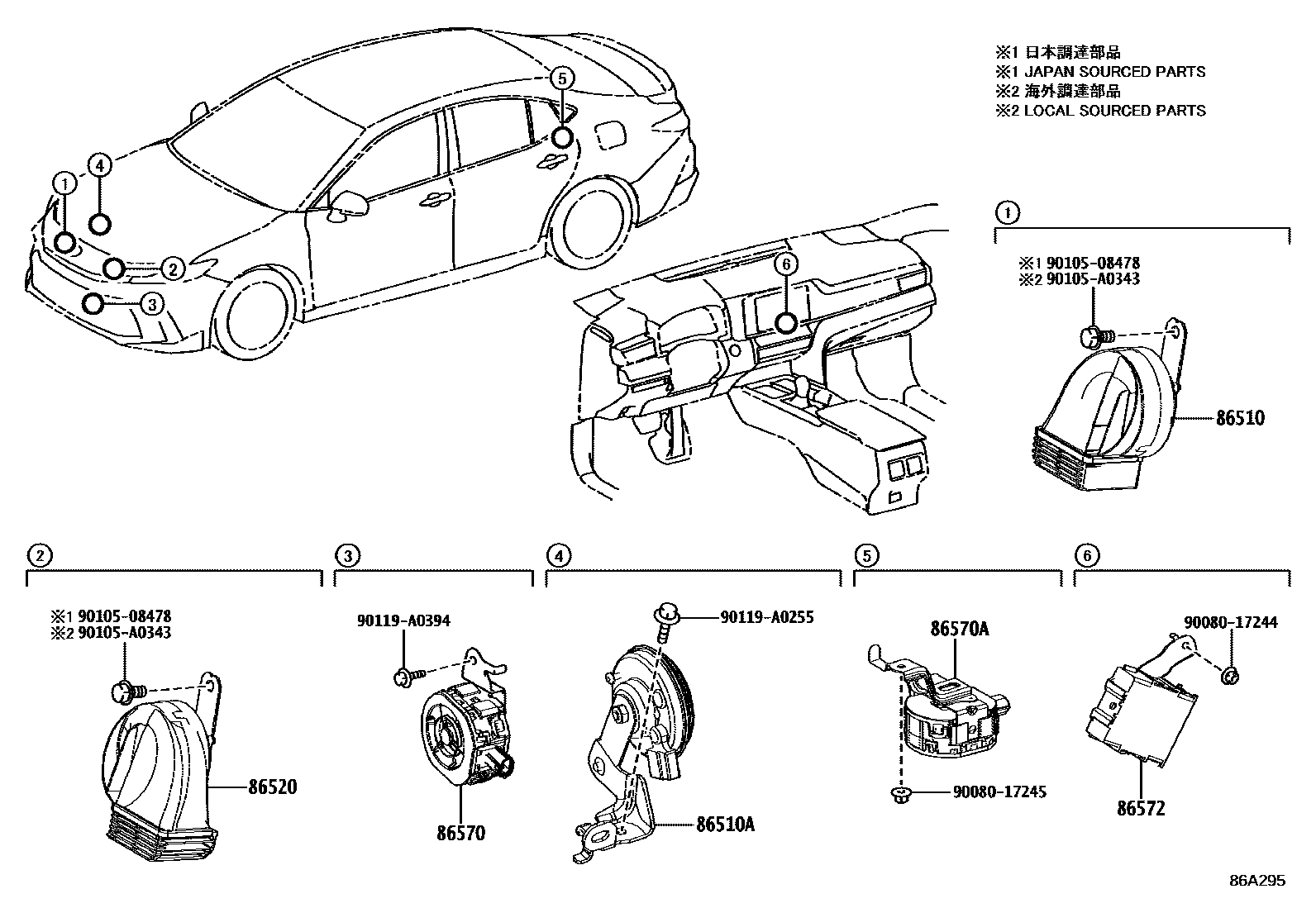

Toyota CAMRY 喇叭 — Figure 8611
Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-0E040 |
| 86510A | Alarm horn assembly | 86560-06060 · 86560-33060 |
| 86520 | Subwoofer assembly | 86520-0E020 |
| 86570 | Vehicle intrusion speaker assembly | 86570-41010 |
| 86570A | ENS. HT-PARLEUR, VEHICULE EN APPROCHE, NO.2 | 86570-33150 |
| 86572 | vehicle hacking speaker controller | 86572-A6010 · 86572-A6020 |
