Toyota CAMRY 倒车影像和摄像头 — Figure 8606

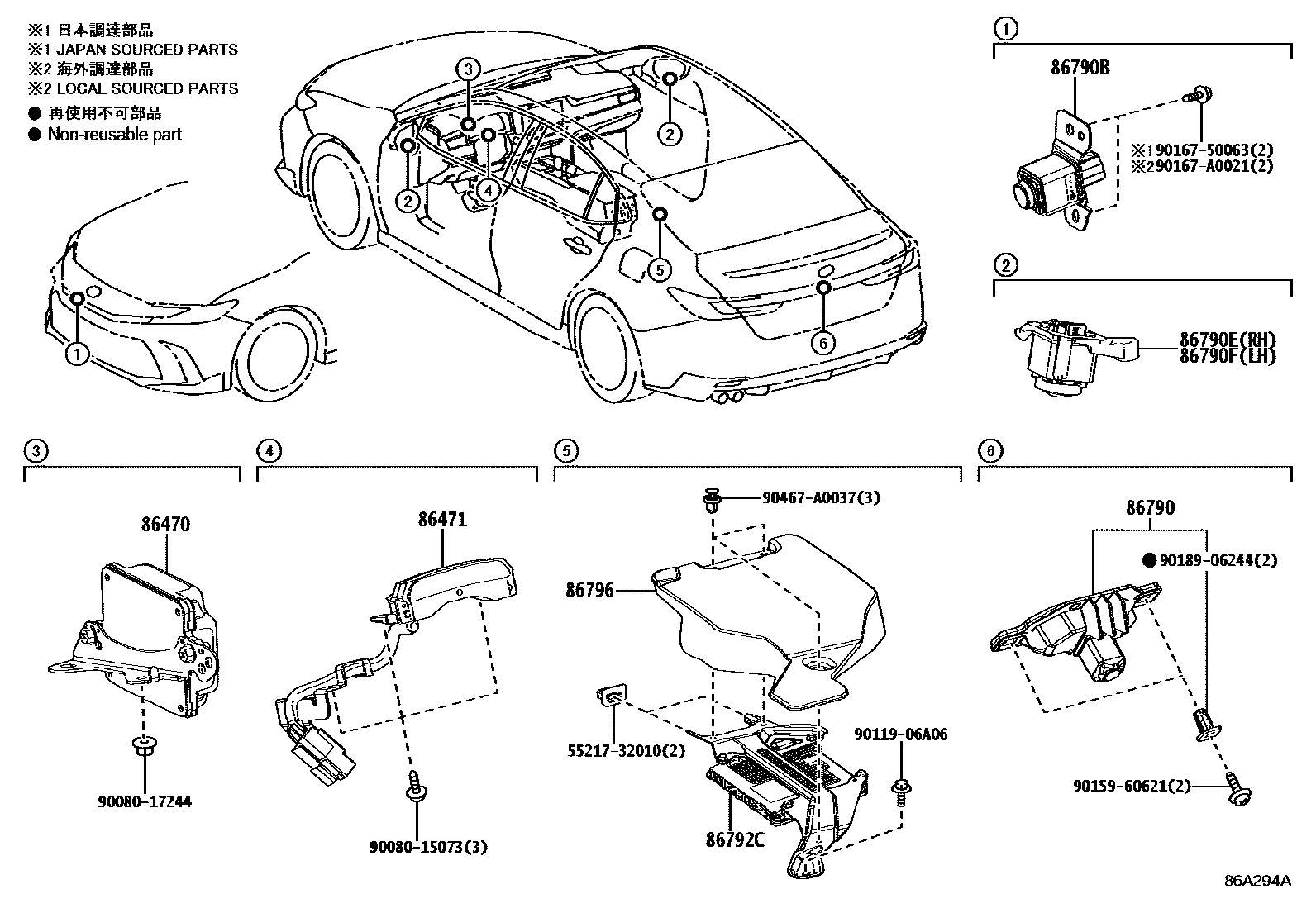

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86470 | Driver monitor ECU assembly | 86470-33010 |
| 86471 | driver monitor camera | 86471-30040 |
| 86790 | Reversing image camera assembly | 86790-06300 · 86790-06310 · 867B0-06210 |
| 86790B | Front image camera assembly | 86790-06320 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-06340 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-06330 |
| 86792C | Parking assist ECU | 86792-33180 |
| 86796 | Parking assist ECU cover | 86796-06060 |
