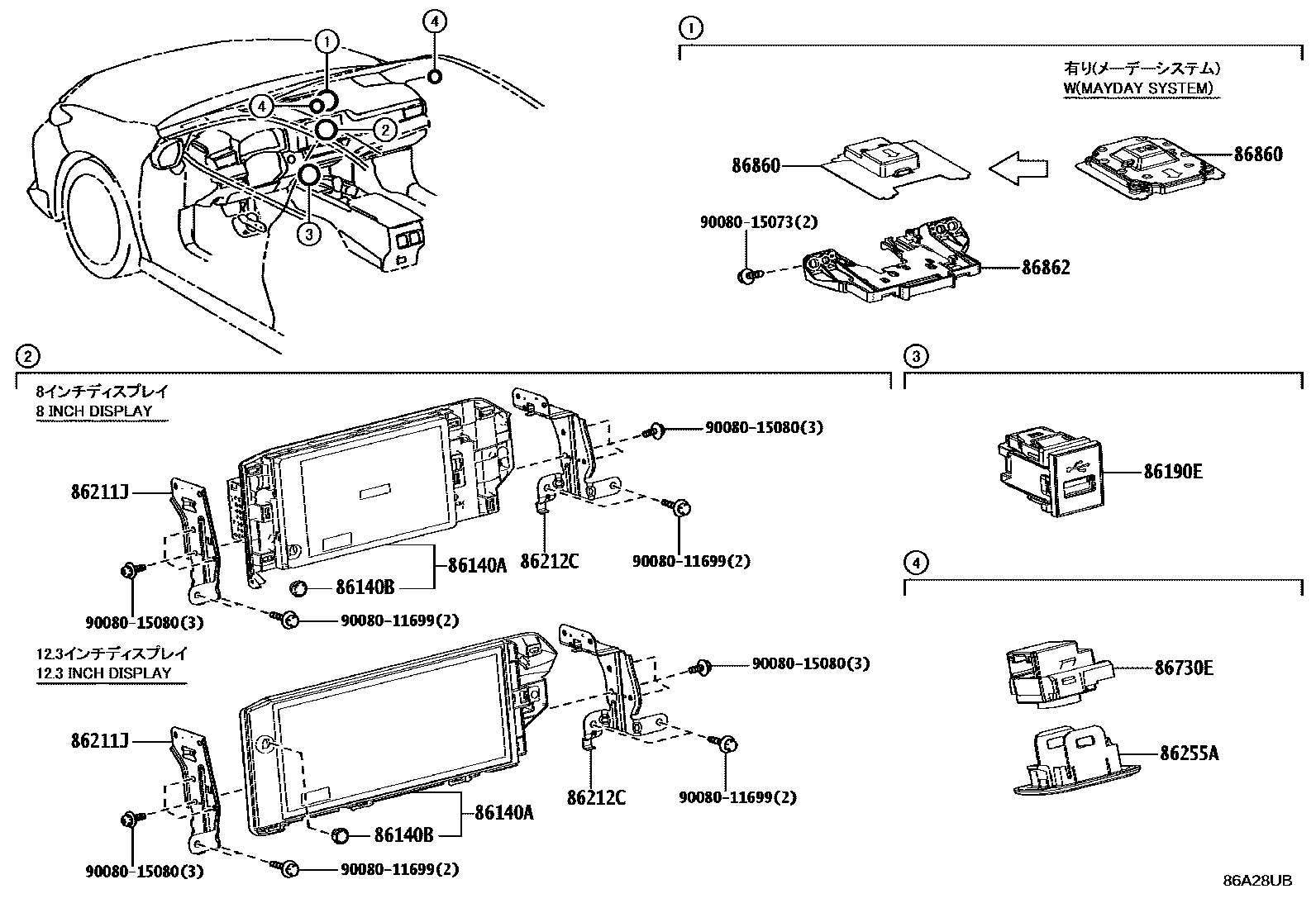

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-AQ010 · 86100-AQ020 · 86100-AQ030 · 86100-AQ040 · 86140-AQ010 · 86140-AQ020 |
| 86140B | Radio and display receiver switch button | 90011-23048 |
| 86190E | Stereo socket adapter assembly | 86190-34010 |
| 86211J | No. 1 radio bracket | 86211-AQ010 |
| 86212C | No. 2 radio bracket | 86212-AQ010 |
| 86730E | ENS. MICROPHONE | 86730-0C020 |
| 86860 | Navigation antenna assembly | 86860-06100 · 86880-02090 |
| 86862 | Navigation antenna bracket | 86862-42010 |
