Toyota CAMRY 扬声器 — Figure 8602

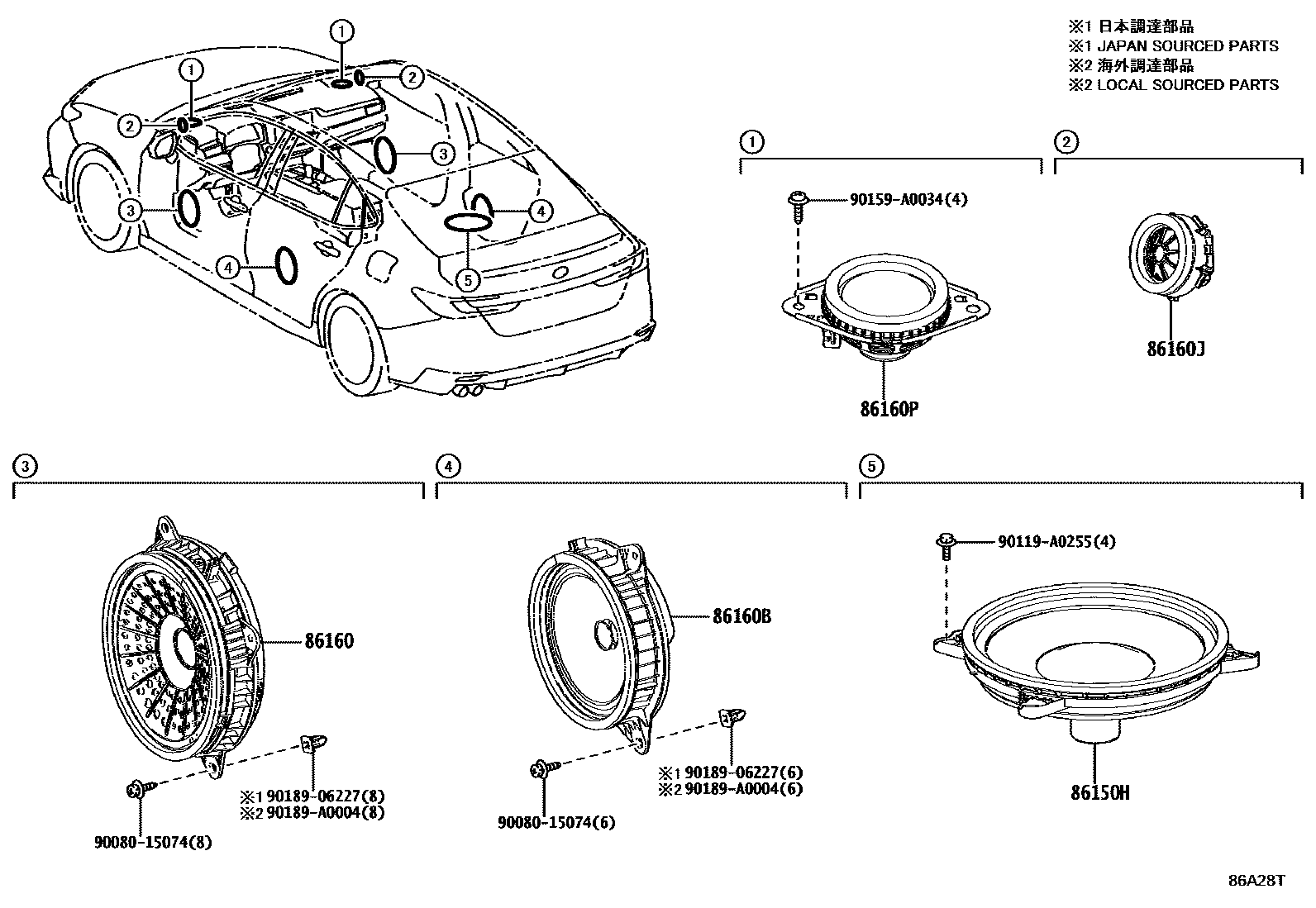

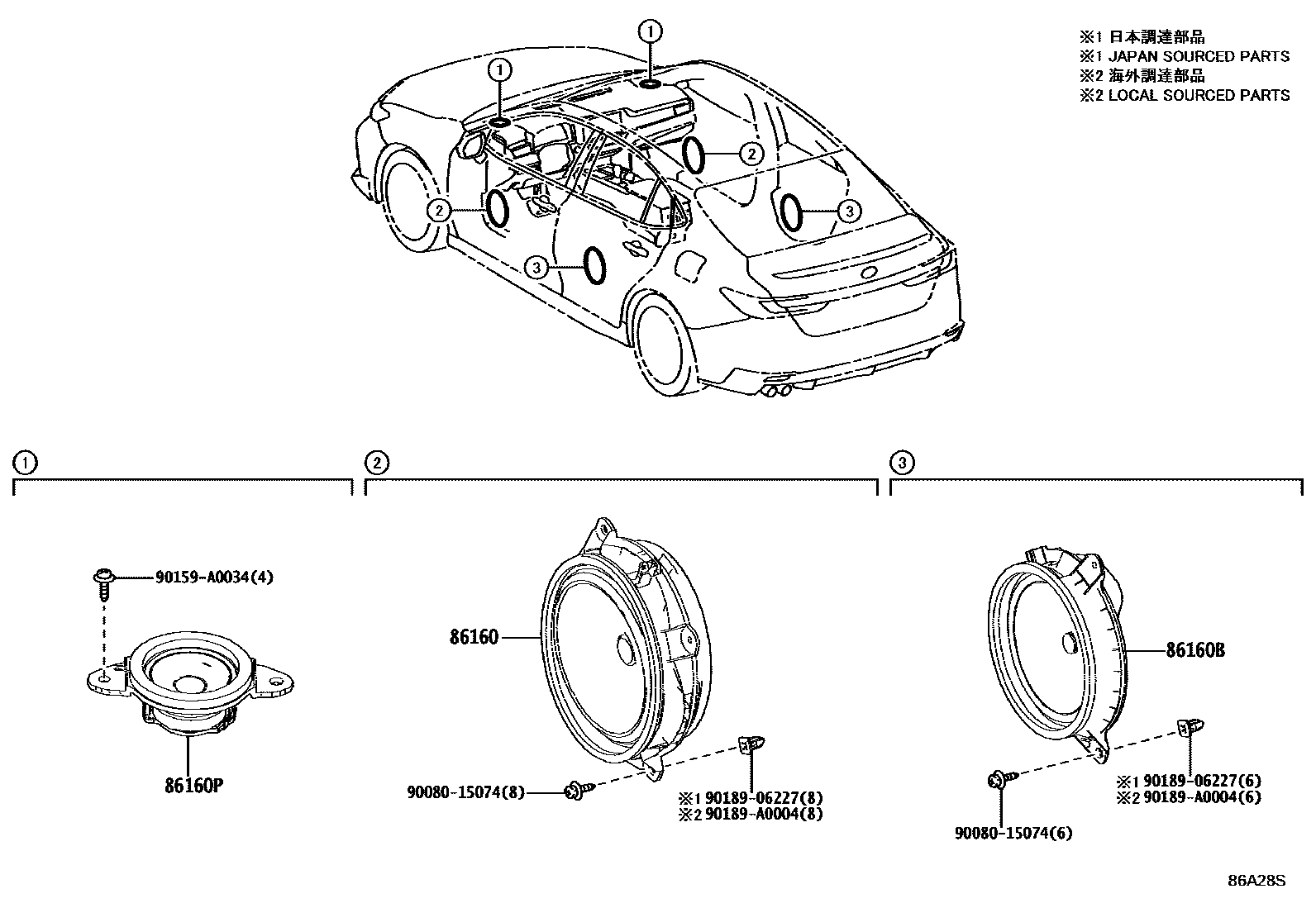

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150H | ENS. H-PARLEUR, AV SUPPORT | 86150-06020 |
| 86160 | No. 1 front speaker assembly | 86160-06850 · 86160-0E340 |
| 86160B | Rear speaker assembly | 86160-02B40 · 86160-0WY50 |
| 86160J | No. 3 front speaker assembly | 86150-06060 |
| 86160P | No. 2 front speaker assembly | 86160-06380 · 86160-06A40 |
