Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

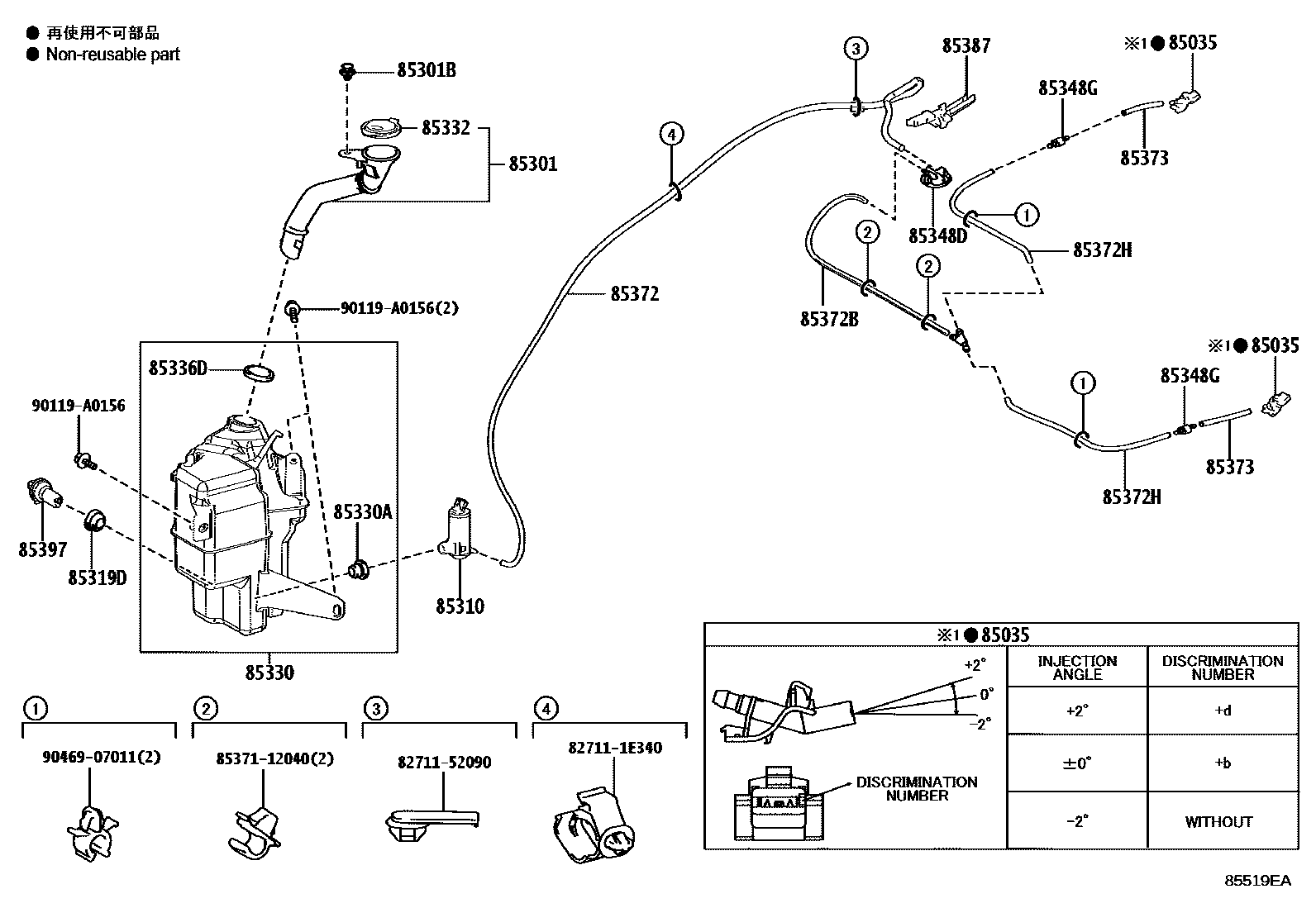

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-06010 |
| 85301B | ATTACHE, RONDELLE | 90467-07214 · 90467-A0037 |
| 85310 | Windshield washer motor and pump assembly | 85330-04011 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-06230 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-24130 |
| 85336D | Windshield washer fluid tank seal | 85336-30160 |
| 85348D | No. 1 windshield washer elbow joint | 85373-06020 |
| 85348G | Windshield washer hose connector No. 2 | 85321-26020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46094 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46334 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33036 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33281 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-06030 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
