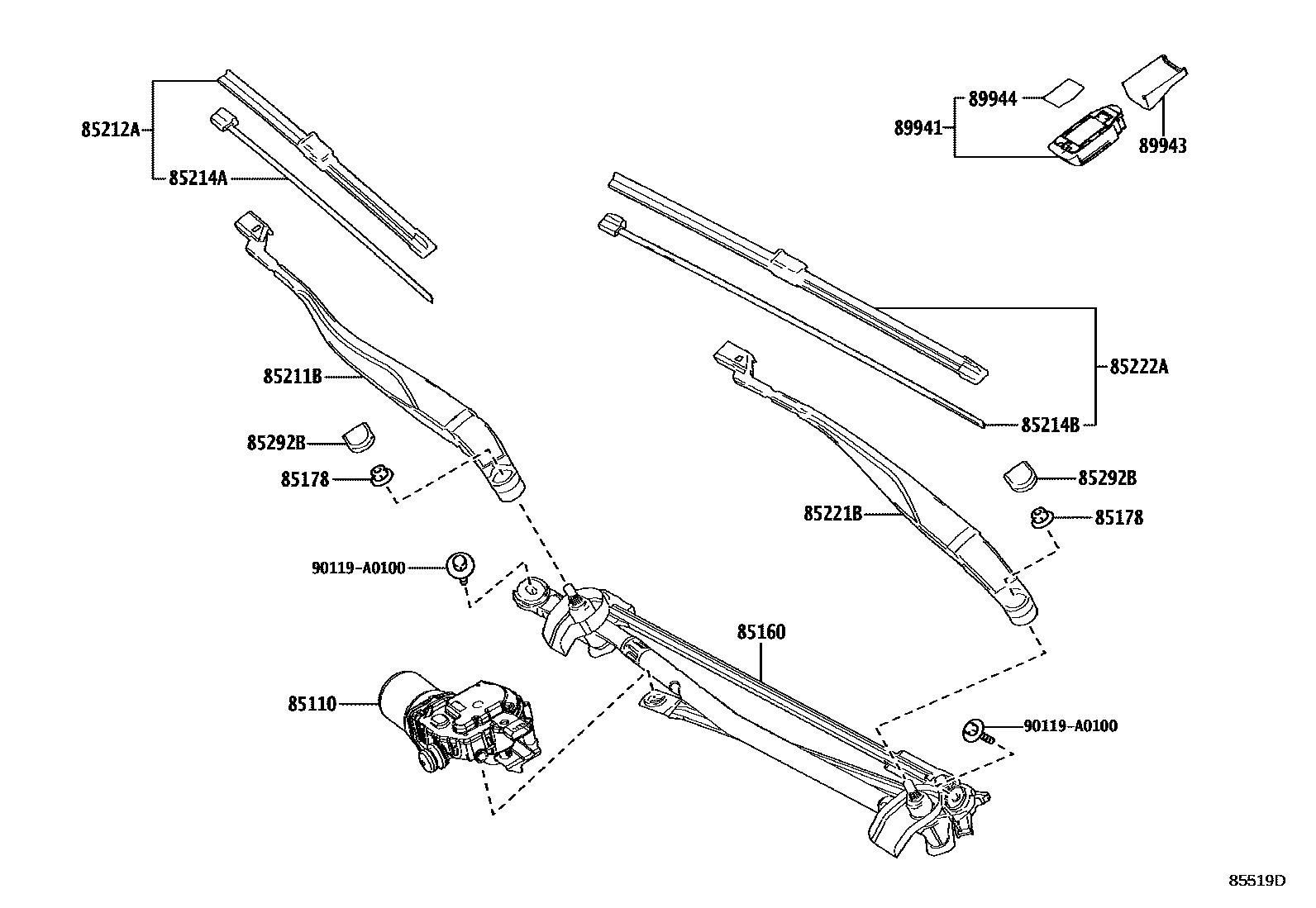

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-AQ010 |
| 85160 | Windshield wiper connecting rod assembly | 85150-AQ010 |
| 85178 | Nut (for securing front wiper arm) | 90182-A0017 |
| 85211B | Right front wiper arm | 85211-AQ010 |
| 85212A | Right front wiper blade | 85212-AQ010 |
| 85214A | Right wiper rubber strip | 85213-AK010 |
| 85214B | Left wiper rubber strip | 85214-AQ010 |
| 85221B | Left front wiper arm | 85221-AQ010 |
| 85222A | Left front wiper blade | 85222-AQ010 |
| 85292B | Front wiper arm cap | 85292-AA010 |
| 89941 | rain sensor | 89941-78020 |
| 89943 | Rain sensor cover | 89943-76020 |
| 89944 | Rain sensor tape | 89944-42020 |
