Toyota CAMRY 逆变器冷却系统 — Figure 8432

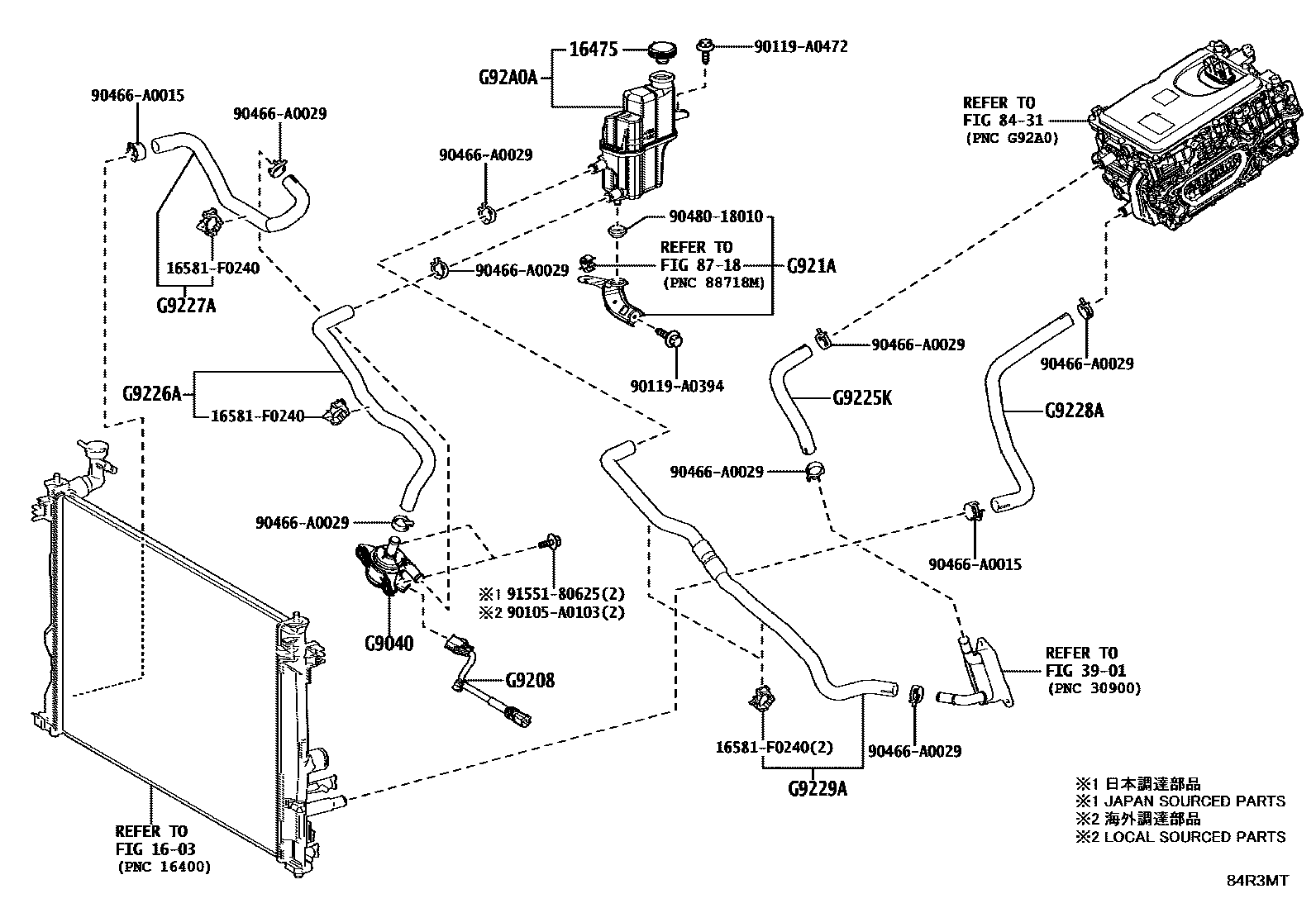

Toyota CAMRY EPC diagram 8432, 逆变器冷却系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | G91H4-07020 |
| G9040 | Inverter water pump assembly (with motor) | G9040-06020 |
| G9208 | Inverter wiring harness sub-assembly | G9208-06010 |
| G921A | No. 1 inverter tank bracket | G91H2-06011 |
| G9225K | No. 1 inverter cooling hose | G9225-06140 |
| G9226A | No. 2 inverter cooling hose | G9226-06042 |
| G9227A | No. 3 inverter cooling hose | G9227-06041 |
| G9228A | No. 4 inverter cooling hose | G9228-06140 |
| G9229A | No. 5 inverter cooling hose | G9229-06100 |
| G92A0A | Inverter liquid tank assembly | G91H0-AQ010 |
