Toyota CAMRY 空气囊 — Figure 8421

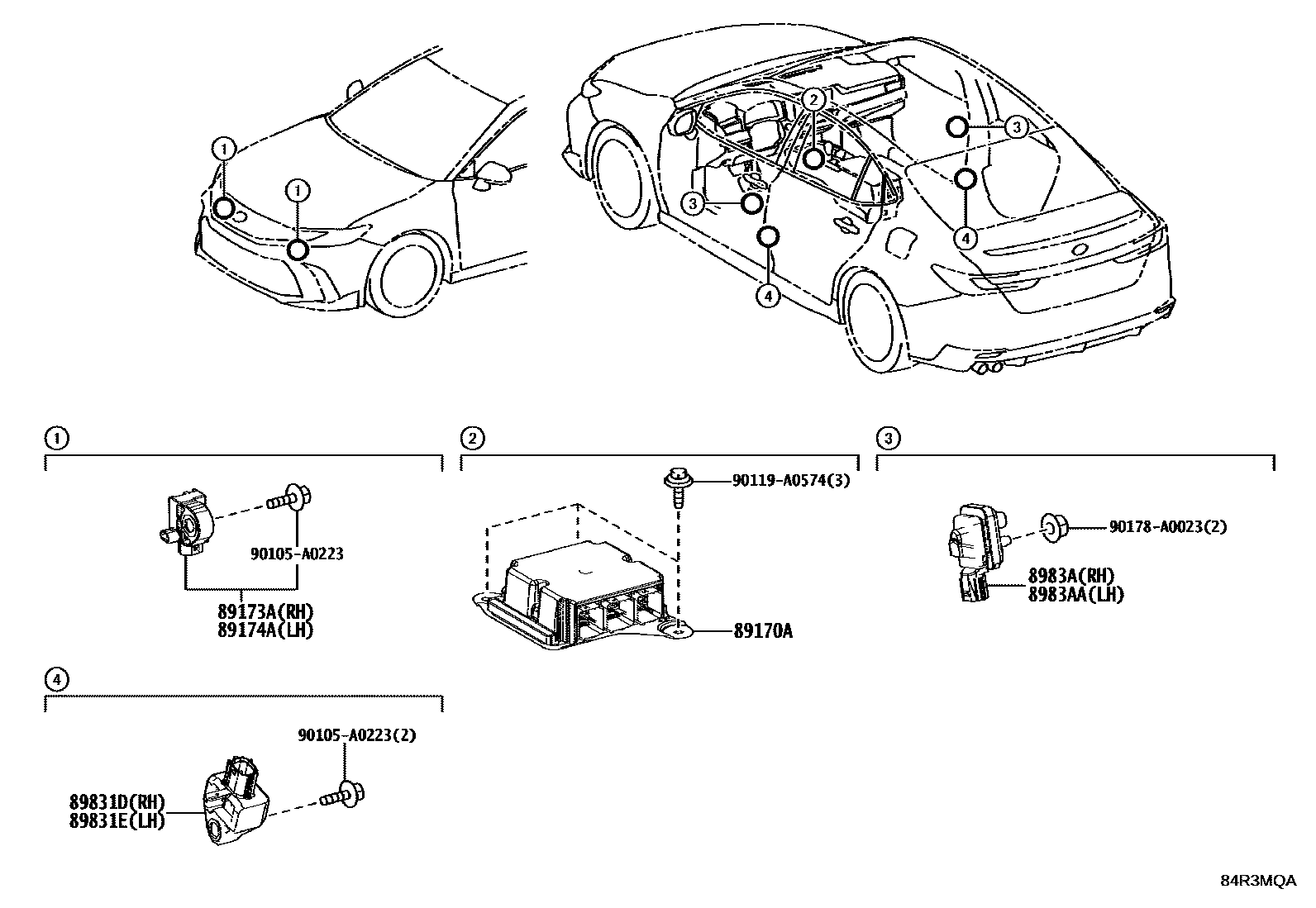

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-06C60 |
| 89173A | Right front air bag sensor | 89173-F9020 |
| 89174A | Left front air bag sensor | 89173-F9020 |
| 89831D | CAPTEUR, AIRBAG LAT PLANCHER, MD | 89831-08110 |
| 89831E | CAPTEUR, AIRBAG LAT PLANCHER, MG | 89831-08110 |
| 8983A | CAPTEUR, PRESSION AIRBAG LAT, MD | 8983A-02050 |
| 8983AA | CAPTEUR, PRESSION AIRBAG LAT, MG | 8983A-02050 |
