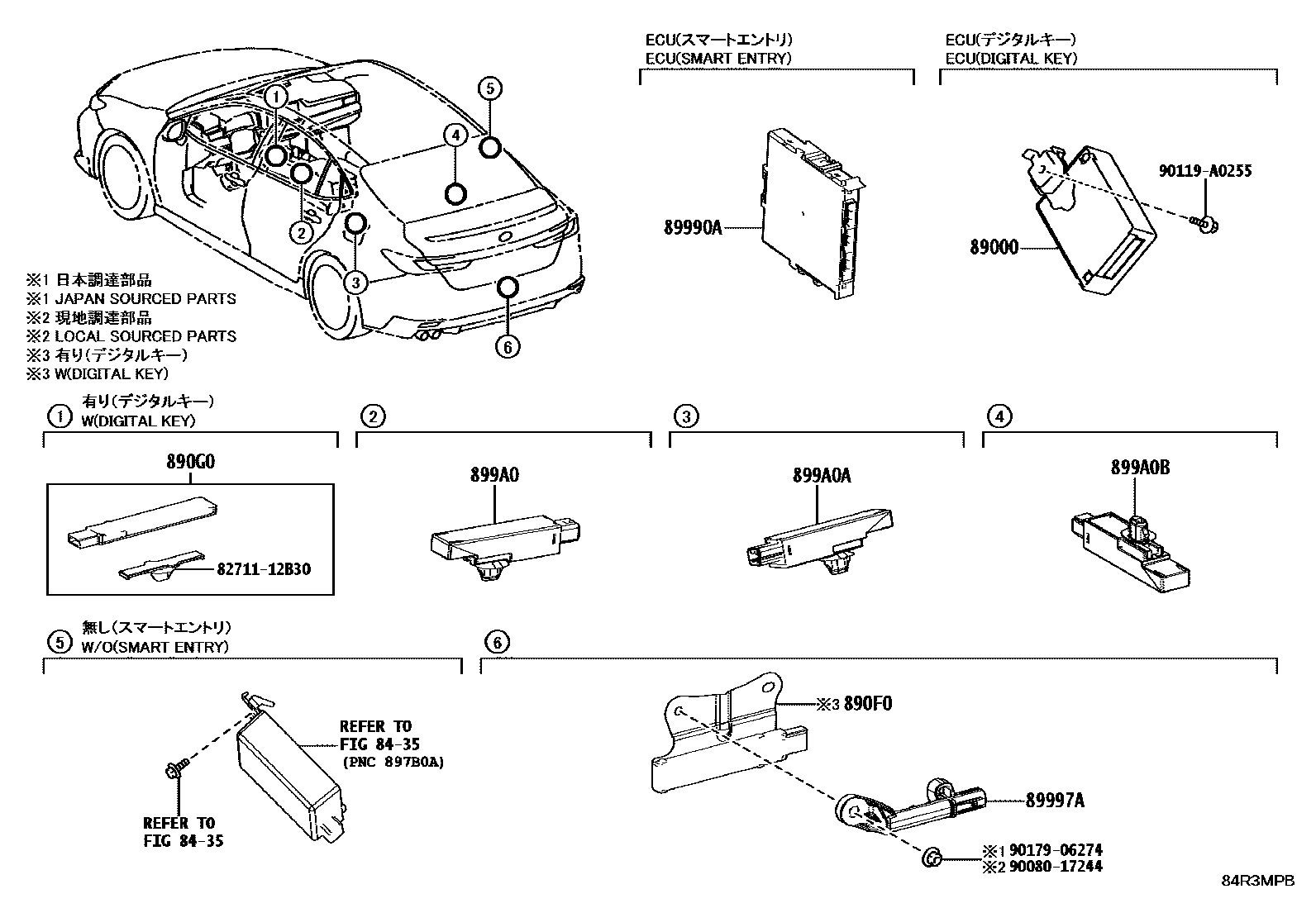

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | ENS. ORDINATEUR, CLE NUMERIQUE | 89000-33100 |
| 890F0 | ENS. RECEPTEUR, CLE NUMERIQUE DE COFFRE BLE | 890F0-47010 |
| 890G0 | ENS. RECEPTEUR, CLE NUMERIQUE INT BLE | 890G0-V1010 |
| 89990A | Smart key ECU assembly | 899H0-AQ010 · 899H0-AQ020 · 899H0-AQ030 |
| 89997A | Electronic key antenna No. 2 | 89997-0E050 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0A020 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0A020 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0A020 |
