Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.

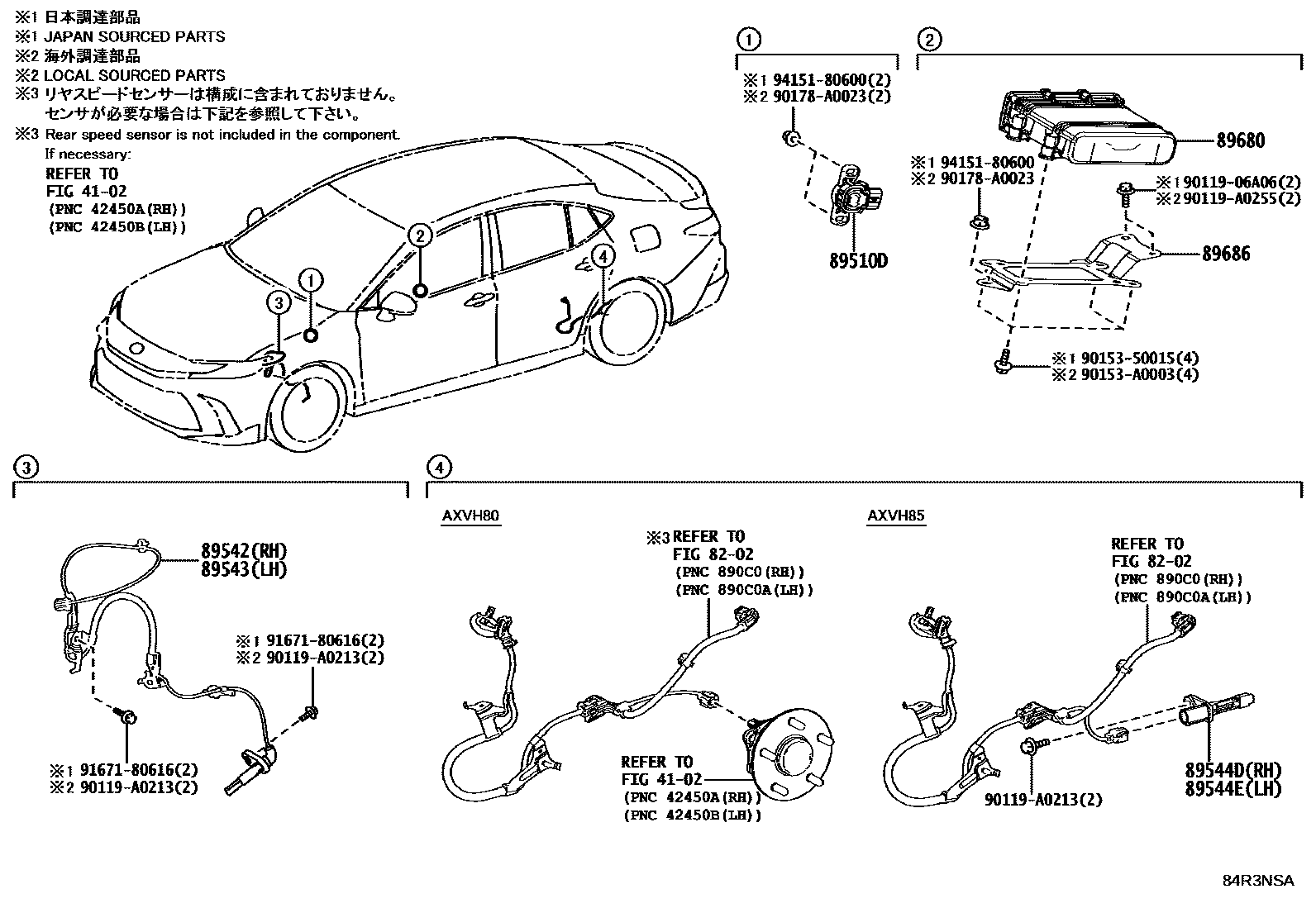

Toyota CAMRY ABS 和 VSC EPC diagram — 84R3NSA
ABS 和 VSC — 84R3NSA (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-42010
89542Right front wheel speed sensor89542-AQ010
89543Left front wheel speed sensor89543-AQ010
89544DCAPTEUR, CONTROLE DERAPAGE, ARR MD89544-06130
89544ECAPTEUR, CONTROLE DERAPAGE, ARR MG89544-06130
89680Brake control power supply assembly89680-48030
89686No. 1 brake control power bracket89686-06040
