Toyota CAMRY 开关和继电器和ECU — Figure 8401

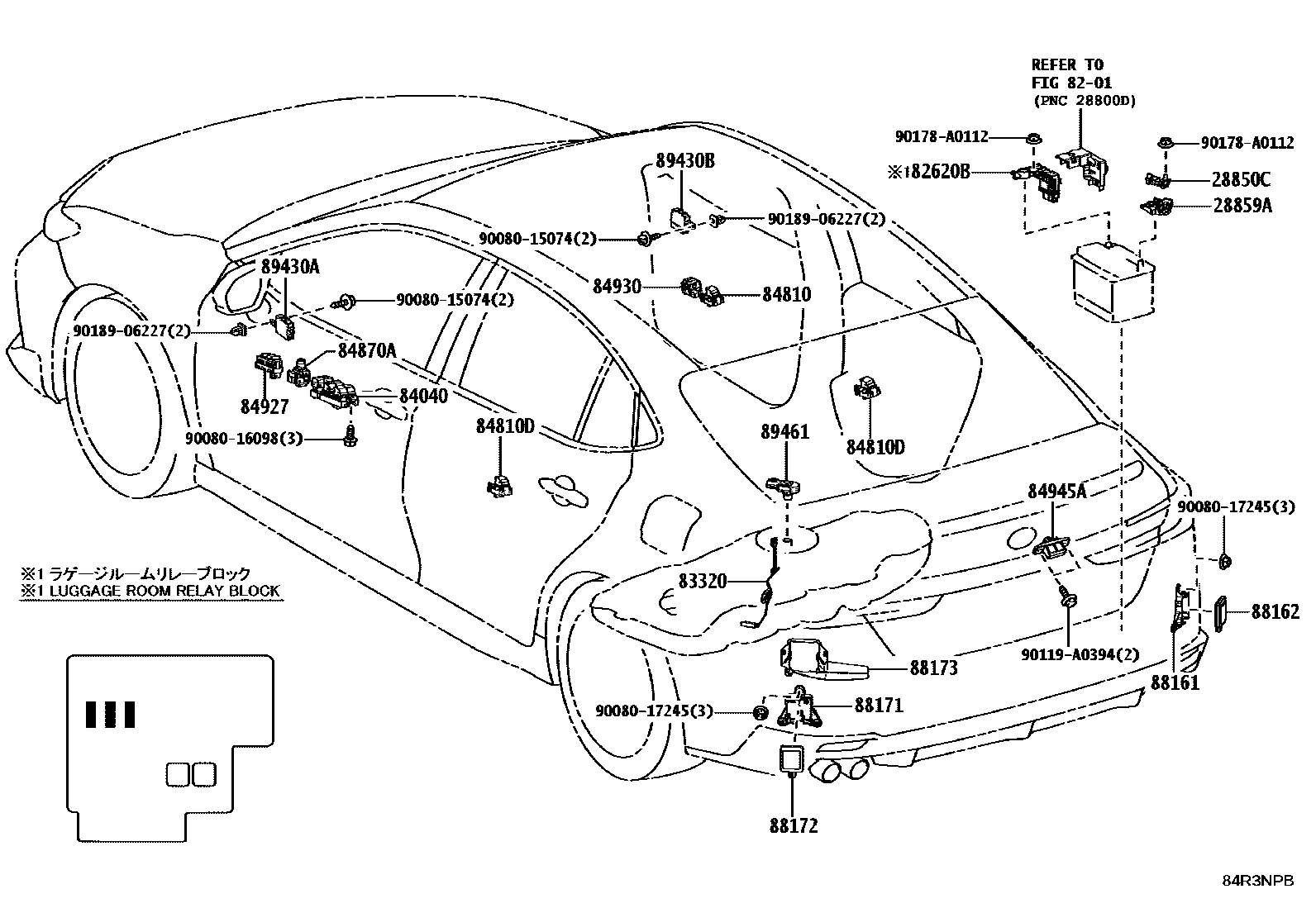

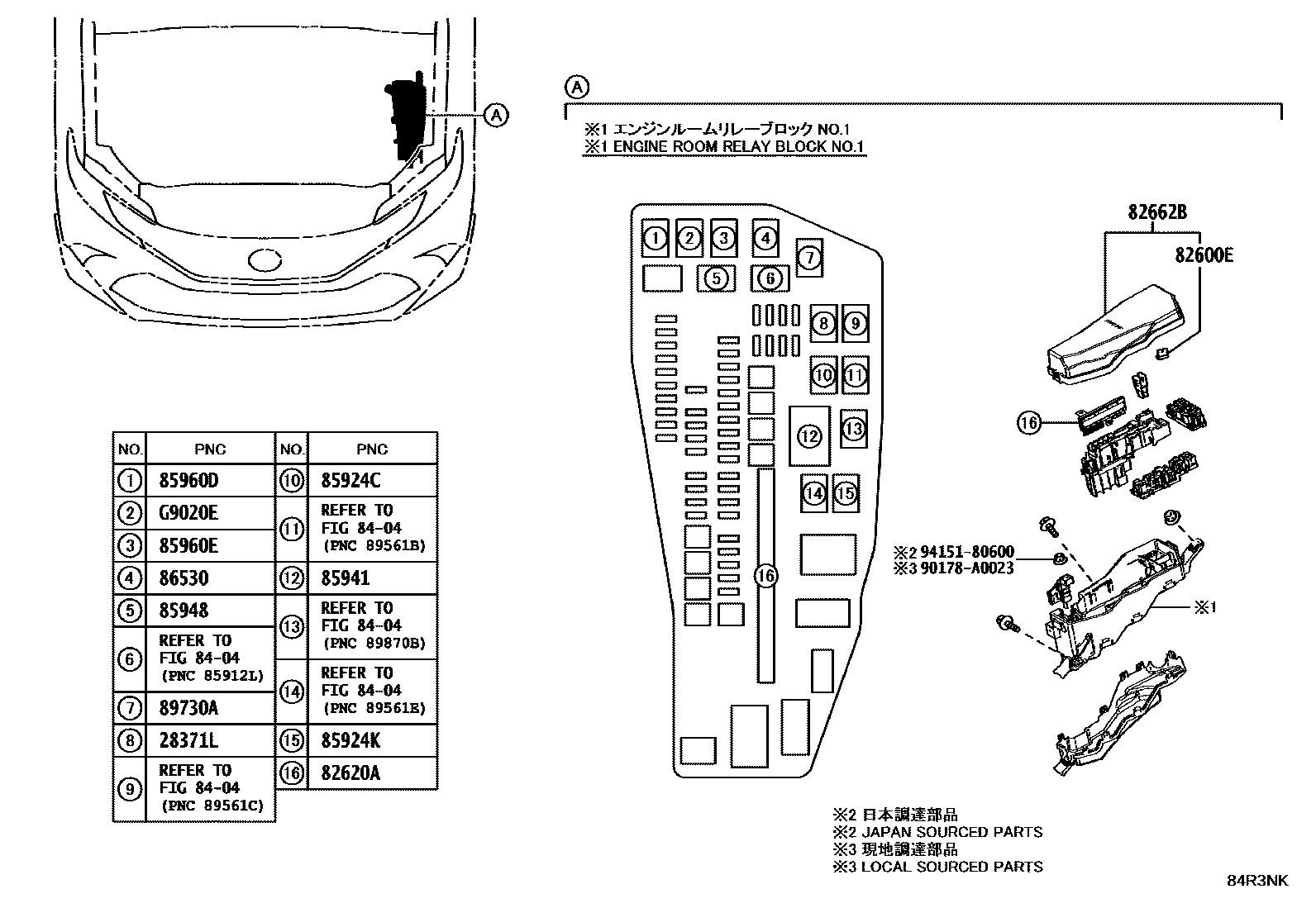

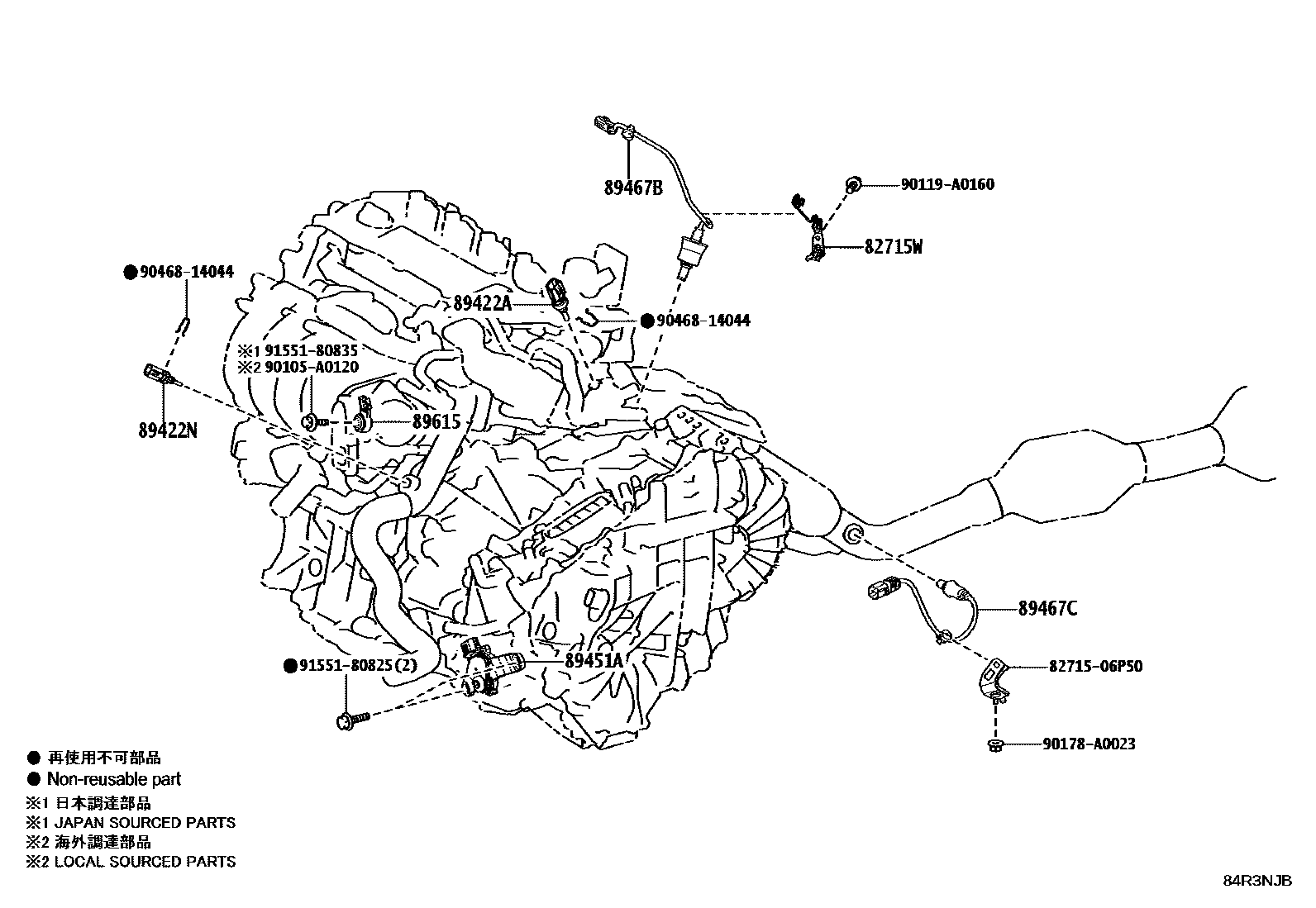

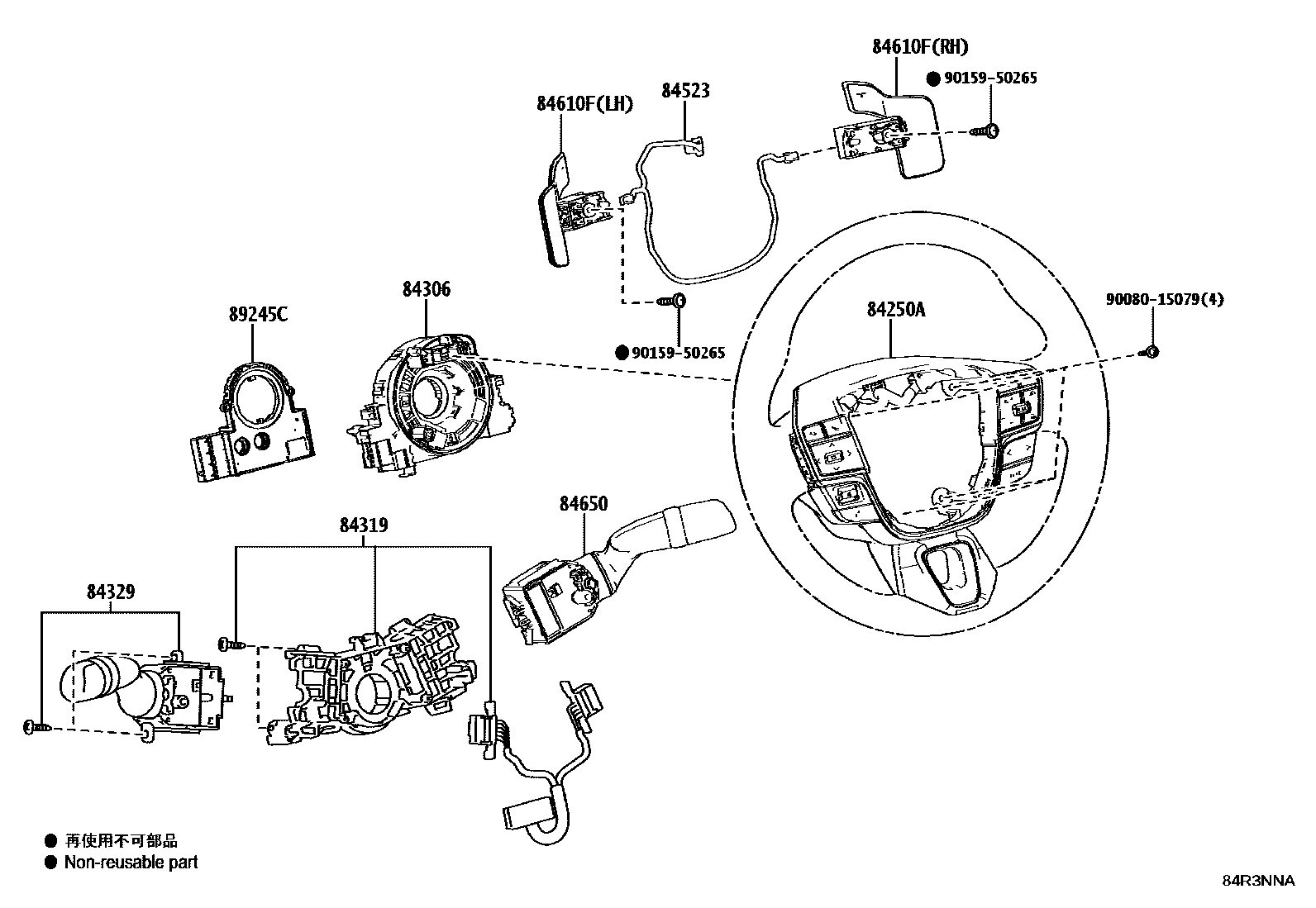

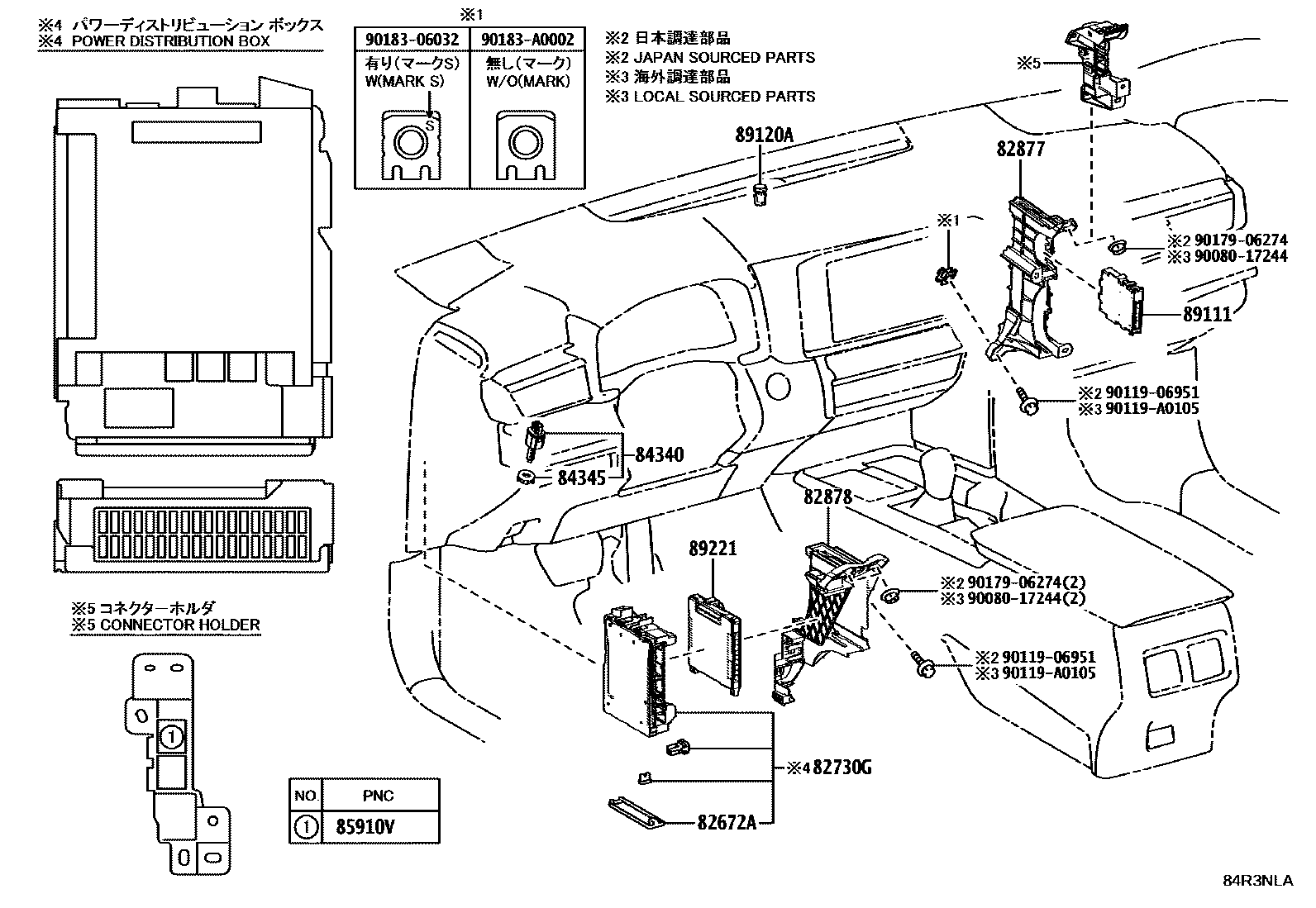

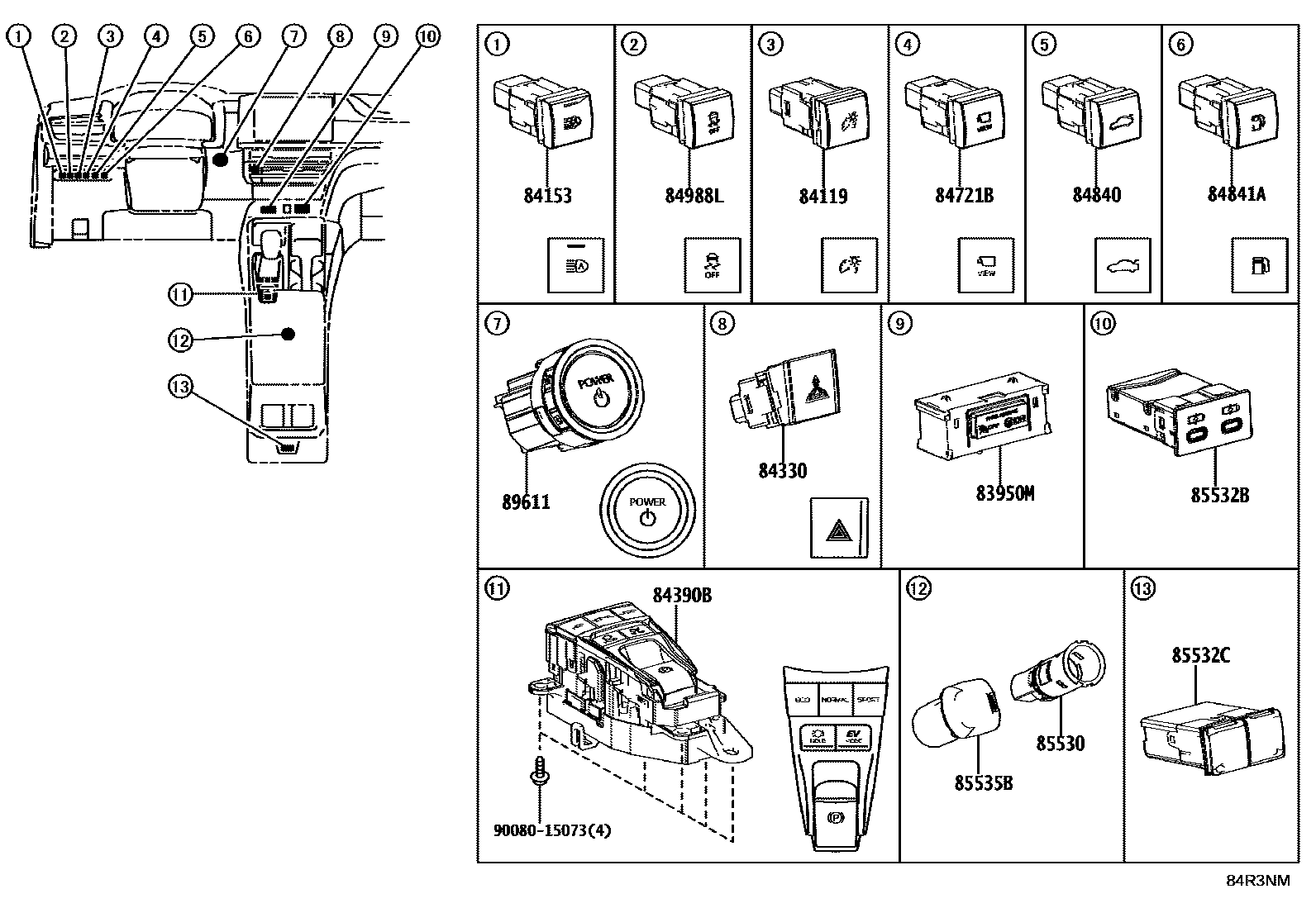

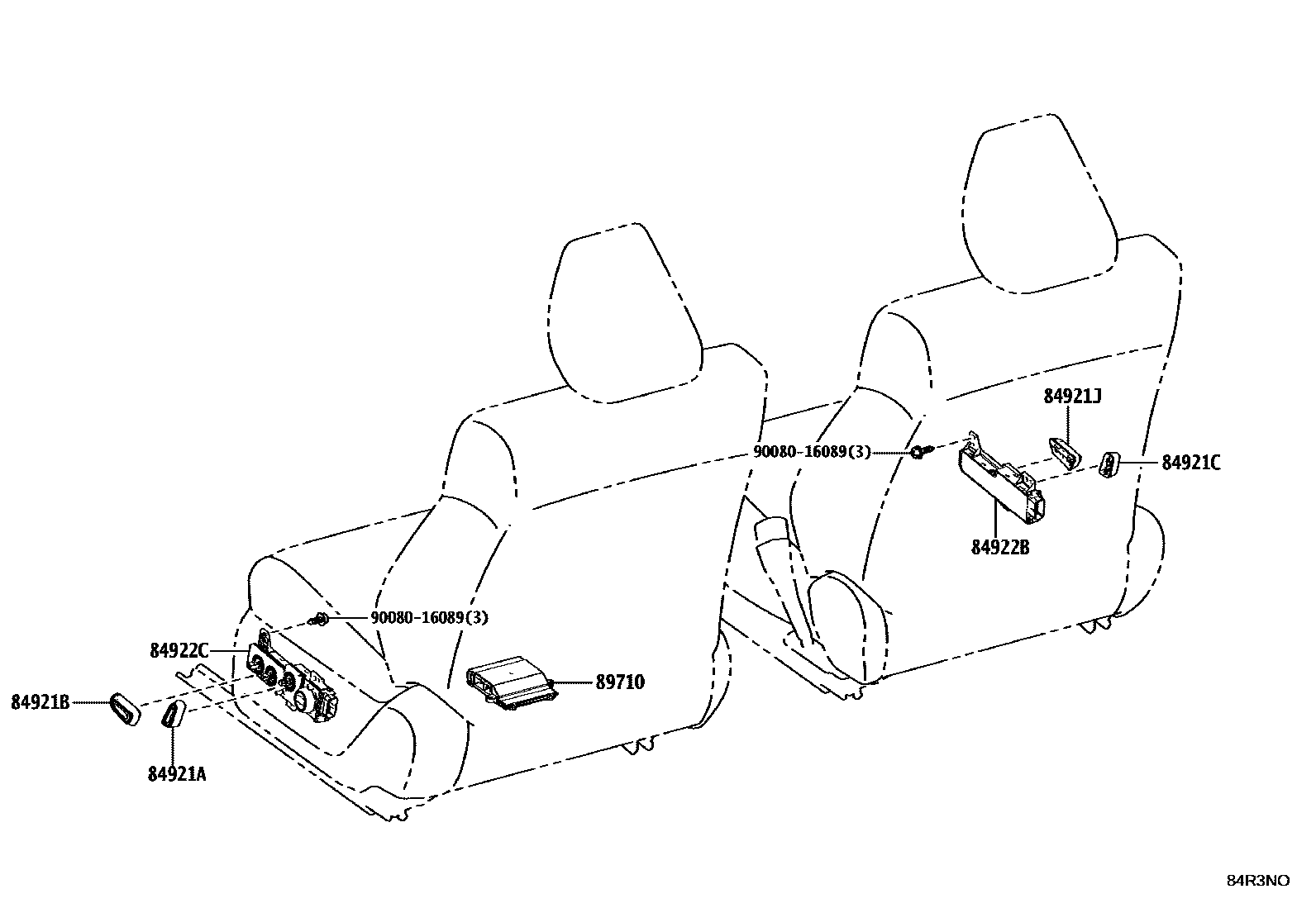

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 7 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371L | RELAIS, IGP | 90080-87026 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-F0050 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-F0420 |
| 82600E | Engine room fuse | 90982-09023 · 90982-09025 |
| 82620A | Fuse box assembly | 82620-33120 |
| 82620B | Fuse box assembly | 82620-33210 |
| 82662B | No. 2 relay box upper cover | 82662-AQ010 |
| 82672A | Junction box cover | 82672-A6010 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-33K11 |
| 82730G | ENS. BOITIER, DISTRIBUTION PUISSANCE | 82730-A6010 · 82730-A6020 |
| 82877 | Right ECU integrated box | 82877-06070 |
| 82878 | Left ECU integrated box | 82878-06010 |
| 83320 | Fuel gauge sensor assembly | 83320-06210 |
| 83950M | Warning light assembly | 83950-AQ010 |
| 84040 | Multi-channel network main switch assembly | 84040-0E131 |
| 84119 | Light control rheostat | 84119-AK010 |
| 84153 | Automatic high beam switch | 84153-02050 |
| 84306 | Spiral cable sub-assembly | 84308-AQ010 · 84308-F6030 |
| 84319 | Steering wheel switch housing | 84319-02020 · 84319-06010 |
| 84329 | turn signal switch | 84329-06010 · 84329-0E020 |
| 84330 | Hazard warning signal switch assembly | 84332-AQ010 |
| 84340 | brake light switch assembly | 84340-09291 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84390B | Electric parking brake switch assembly | 84390-AQ010 |
| 84523 | No. 1 switch harness | 84523-50040 |
| 84610F | Transmission shift switch assembly | 84610-33011 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-06400 · 84652-06410 · 84652-0C040 · 84652-33600 |
| 84721B | COMM., MONITEUR VUE PANORAMIQUE | 84721-16010 |
| 84810 | Electric window lift switch assembly | 84810-0E121 |
| 84810D | Rear electric window lift switch assembly | 84810-0E121 |
| 84840 | Trunk door opening switch assembly | 84840-AQ010 |
| 84841A | Fuel filler cap opener switch | 84841-0A030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0E111 · 84872-AQ010 |
| 84922B | Front right electric seat switch | 84922-06190 |
| 84927 | Seat memory switch | 84927-AQ010 |
| 84930 | Door control switch assembly | 84930-0A090 |
| 84945A | COMMANDE, CLE ELECTRIQUE COMP BAGAGES | 84945-12070 |
| 84988L | VSC off switch | 84988-0E121 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532B | PRISE, CHARGEUR USB | 85532-06080 |
| 85532C | PRISE, CHARGEUR USB, NO.2 | 85532-08040 |
| 85535B | No. 1 power outlet cover | 85535-78010 |
| 85910V | seat heater relay | 90080-87026 |
| 85924C | RELAI, IGCT | 90080-87026 · 90987-02027 |
| 85924K | RELAIS, IGCT, NO.2 | 90080-87026 · 90987-02027 |
| 85941 | windshield washer relay | 90080-87024 · 90987-02025 |
| 85948 | windshield wiper relay | 90080-87026 · 90987-02027 |
| 85960D | RELAIS, PHARE, MD | 90080-87026 |
| 85960E | RELAIS, PHARE, MG | 90080-87026 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 88161 | Blind spot monitor right bracket | 88161-06010 |
| 88162 | Blind spot monitor right sensor | 88162-0E133 |
| 88171 | Blind spot monitor left bracket | 88161-06010 |
| 88172 | Blind spot monitor left sensor | 88162-0E133 |
| 88173 | Blind spot monitor left cover | 88173-06100 |
| 89111 | Network gateway ECU | 89111-12170 |
| 89120A | Automatic light control sensor | 89121-0E060 |
| 89221 | Multi-channel network body ECU | 89221-33E60 · 89221-33E70 |
| 89245C | steering sensor | 8924B-04010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89422N | CAPTEUR, TEMPERATURE EAU, NO.2 | 89422-33040 |
| 89430A | ENS. ORDINATEUR, COMM RETROV EXT, MG | 89430-AQ040 |
| 89430B | ENS. ORDINATEUR, COMM RETROV EXT, MD | 89430-AQ030 |
| 89451A | shift lever position sensor | 89451-28020 |
| 89461 | steam pressure sensor | 89461-47010 |
| 89467B | air fuel ratio sensor | 89467-06320 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-06310 |
| 89611 | push button start switch | 89611-0E260 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 · 89615-78010 · 89615-F6010 |
| 89710 | Position control ECU assembly | 89710-AQ010 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| G9020E | Hybrid water pump relay | 90080-87026 · 90987-02027 |
