Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

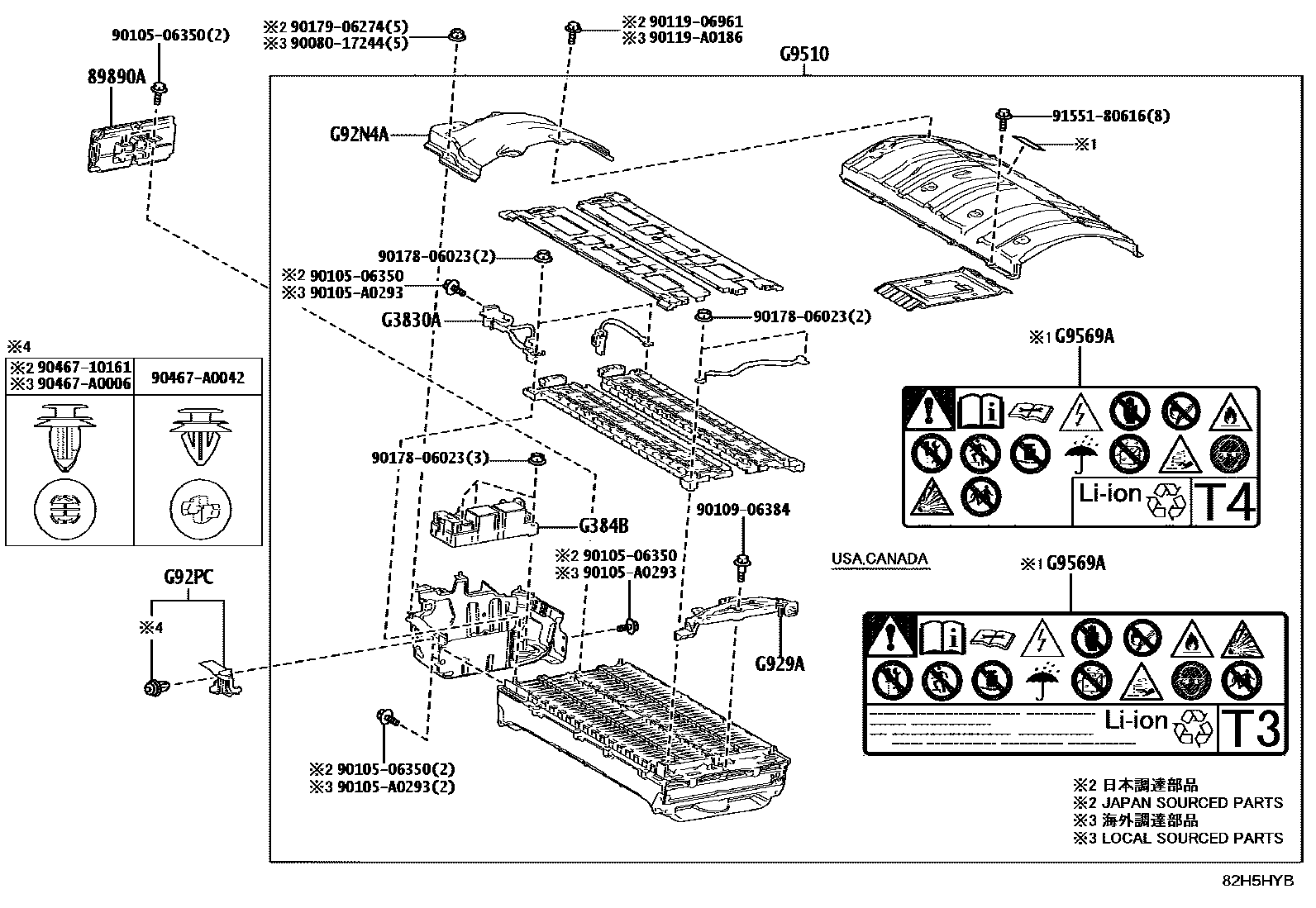

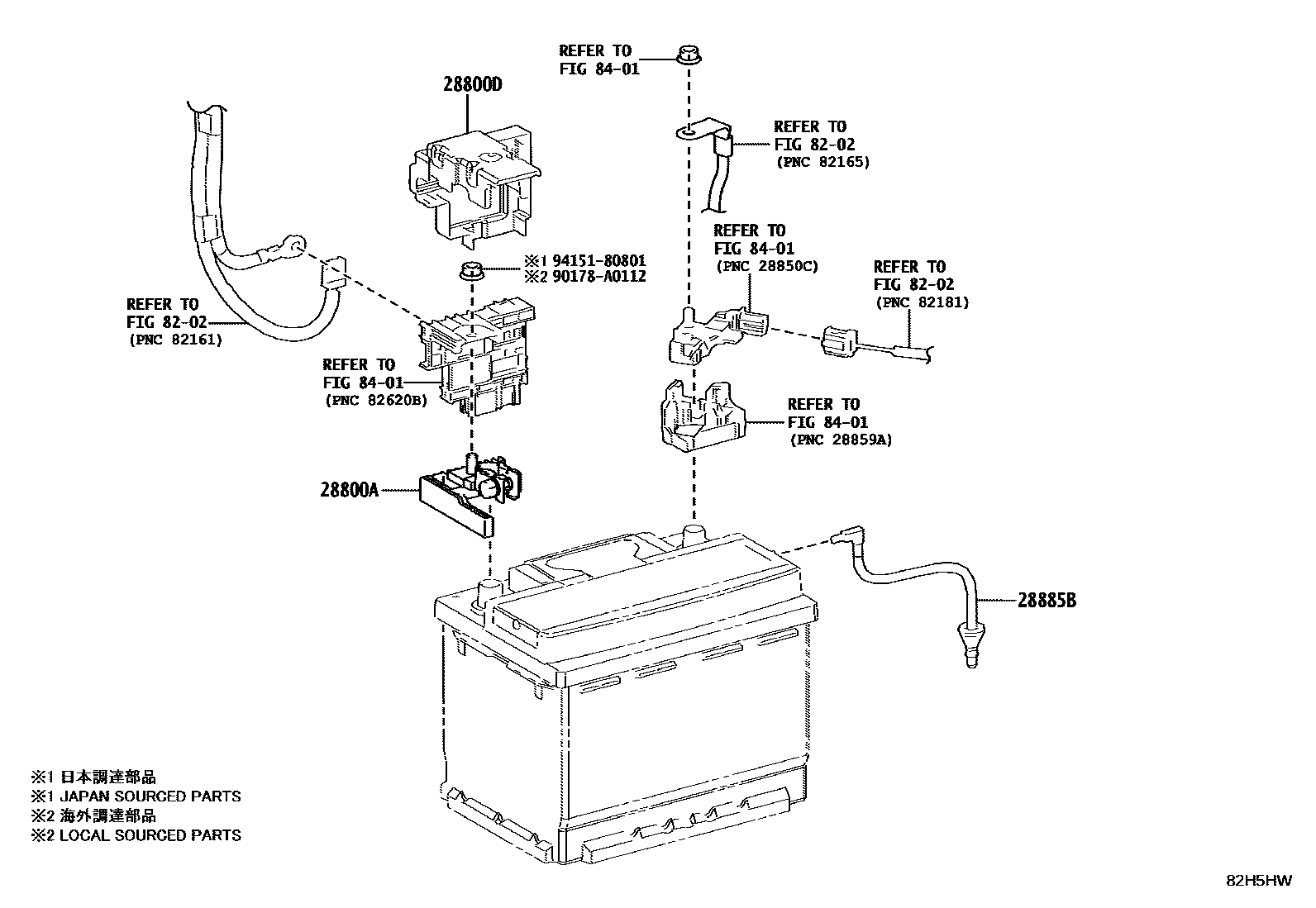

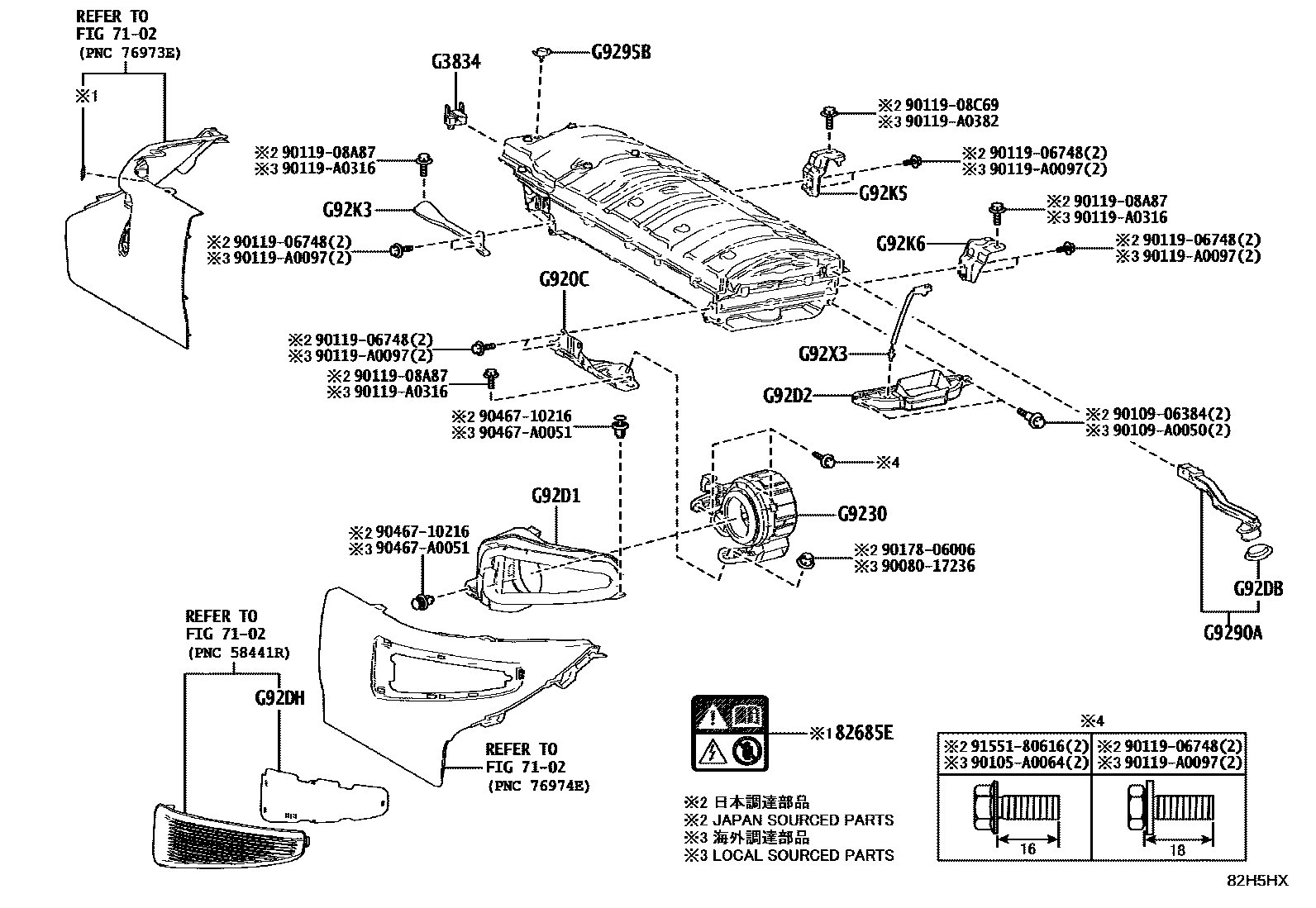

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 82670-33140 |
| 28800D | Connector cover (for battery terminals) | 82621-AQ010 |
| 28885B | battery hose | 28885-0P030 |
| 82685E | Maintenance plug warning nameplate | G9118-33030 |
| 89890A | Battery ECU assembly | 89890-33020 |
| G3830A | Electric vehicle battery plug assembly | G3830-33051 |
| G3834 | Service plug handle | G3834-47050 |
| G384B | BOITIER, DISPOSITIF BATTERIE TRACTION, NO.1 | G384B-33010 |
| G920C | No. 2 hybrid vehicle battery bracket bracket sub-assembly | G920C-06020 |
| G9230 | Battery cooling blower assembly | G9230-33070 |
| G9290A | HV battery hose assembly | G9290-06020 |
| G9295B | Battery cover lock | G9295-30020 |
| G929A | No. 1 hybrid vehicle battery hose | G929A-33030 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06140 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06040 |
| G92DB | No. 1 HV battery seal | G92DB-06040 |
| G92DH | FILTRE, ENTREE BATTERIE HAUTE TENSION, NO.1 | G92DH-33080 |
| G92K3 | HV Battery Bracket No. 1 Bracket | G92K3-06020 |
| G92K5 | SUPPORT, PORTE-BATTERIE HV, NO.3 | G92K5-06010 |
| G92K6 | No. 4 Hybrid Vehicle Battery Bracket | G92K6-06010 |
| G92N4A | No. 1 cover on the right side of the hybrid vehicle battery | G92N4-33050 |
| G92PC | PROTECTION, BATTERIE HV, NO.1 | G92PC-06020 |
| G92X3 | CABLE, GARNITURE BATTERIE HV, NO.3 | G92X3-33010 |
| G9510 | HV power supply battery assembly | G9510-33131 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-06010 · G9569-48020 |
