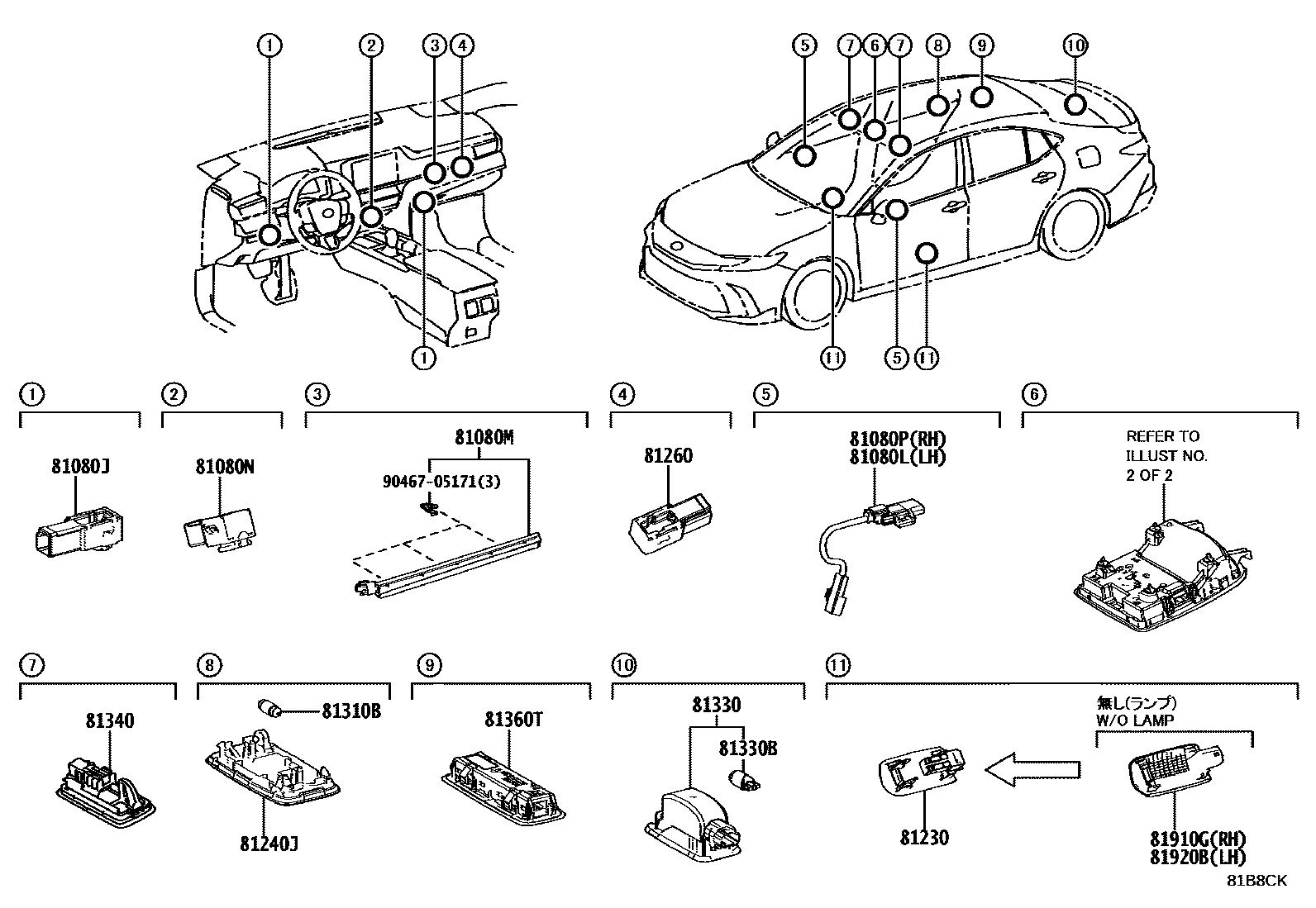

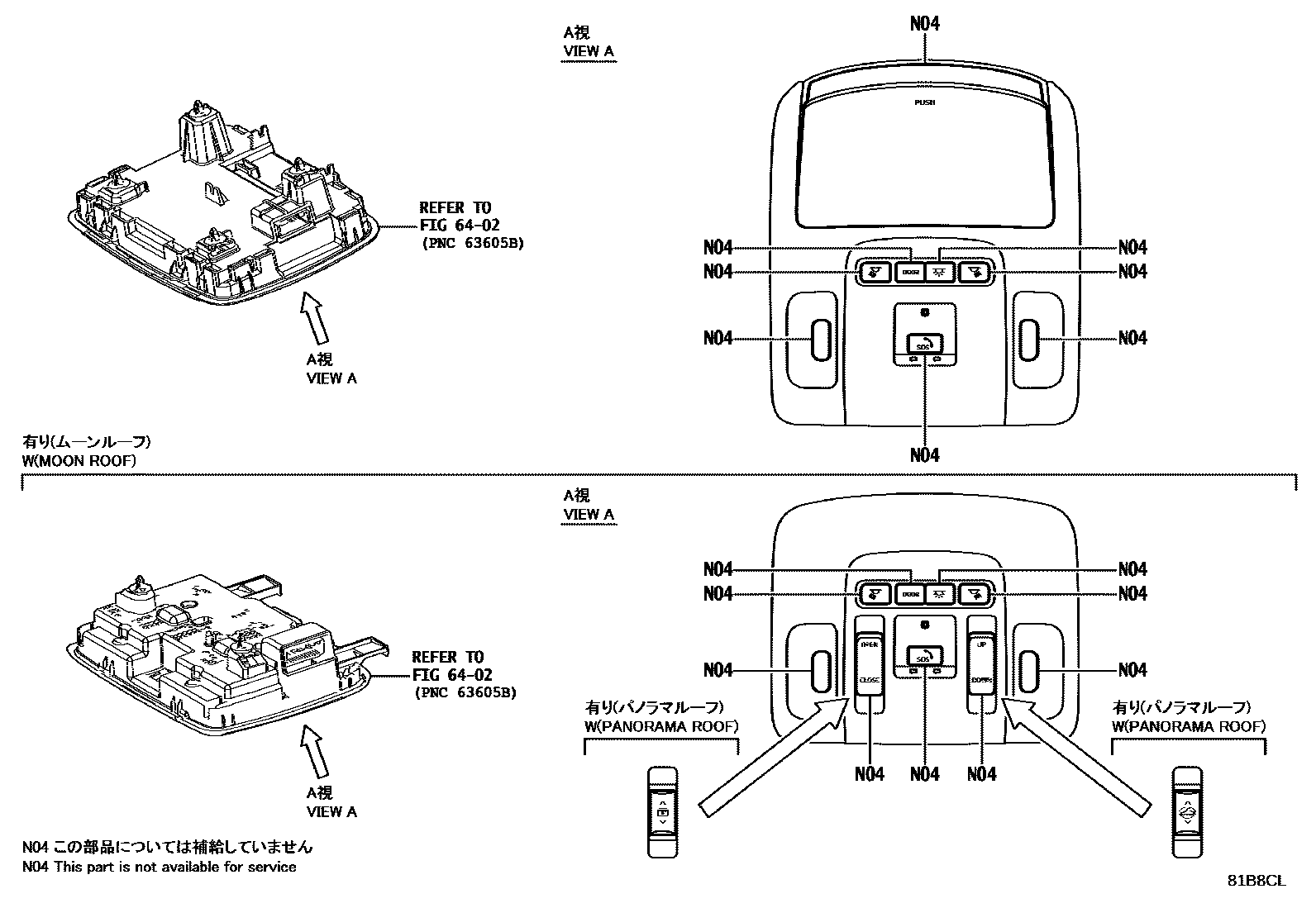

Toyota CAMRY 车内灯 — Figure 8121
Toyota CAMRY EPC diagram 8121, 车内灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080J | No. 1 interior lighting assembly | 81080-33290 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-30200 |
| 81080M | No. 1 interior lighting assembly | 81080-AQ010 |
| 81080N | No. 1 interior lighting assembly | 81080-42110 |
| 81080P | Right No. 1 interior lighting assembly | 81080-30190 |
| 81230 | Door control light assembly | 81230-11030 |
| 81260 | Glove box light assembly | 81080-33290 |
| 81310B | Rear interior light bulb | 90981-14011 |
| 81330 | No. 1 trunk light assembly | 81250-30210 |
| 81330B | trunk light bulb | 99132-12050 |
| 81340 | Vanity light assembly | 81340-33170 |
| 81910G | Right front reflector lampshade | 81911-28020 |
| 81920B | Left front reflector lampshade | 81911-28020 |
