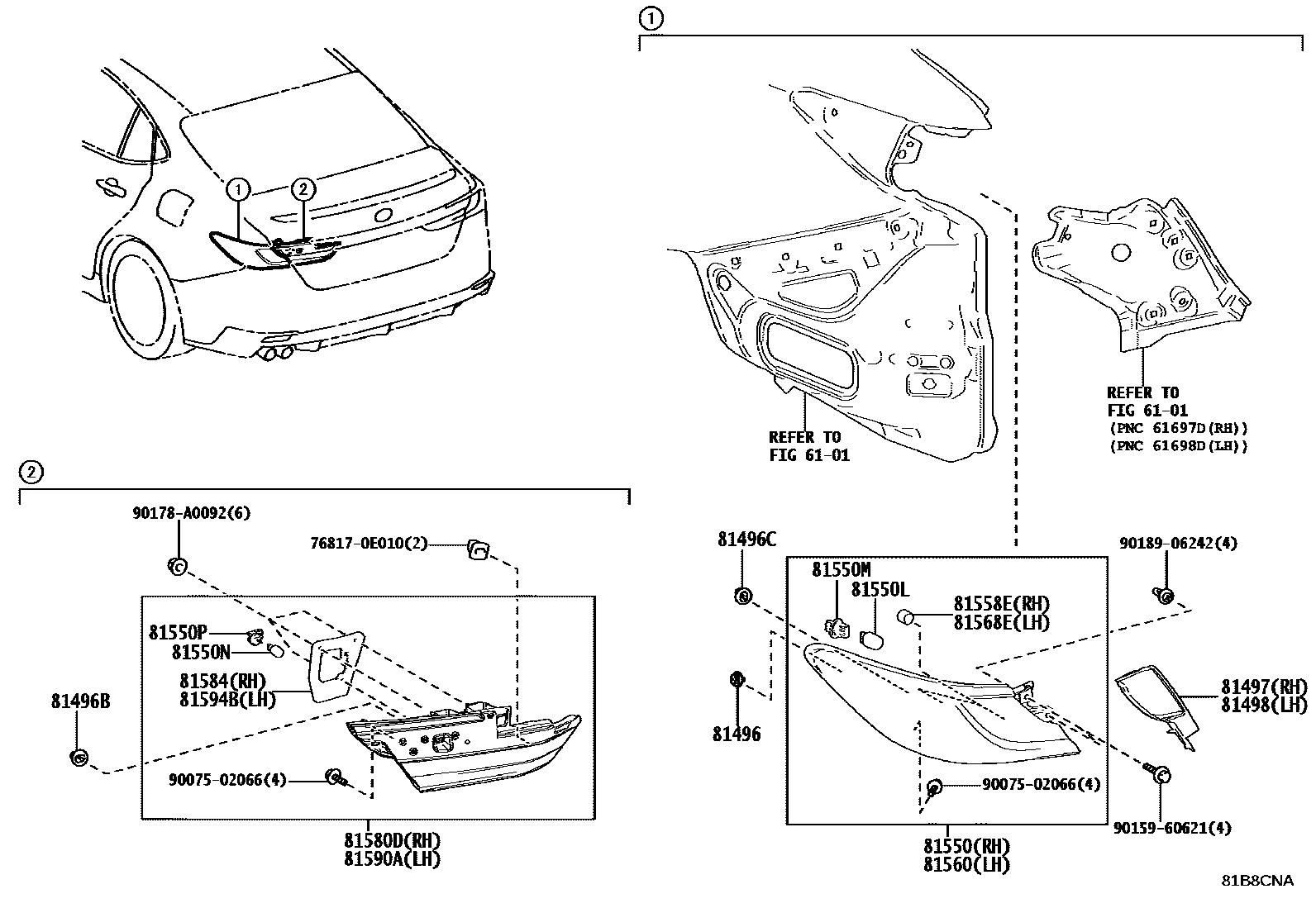

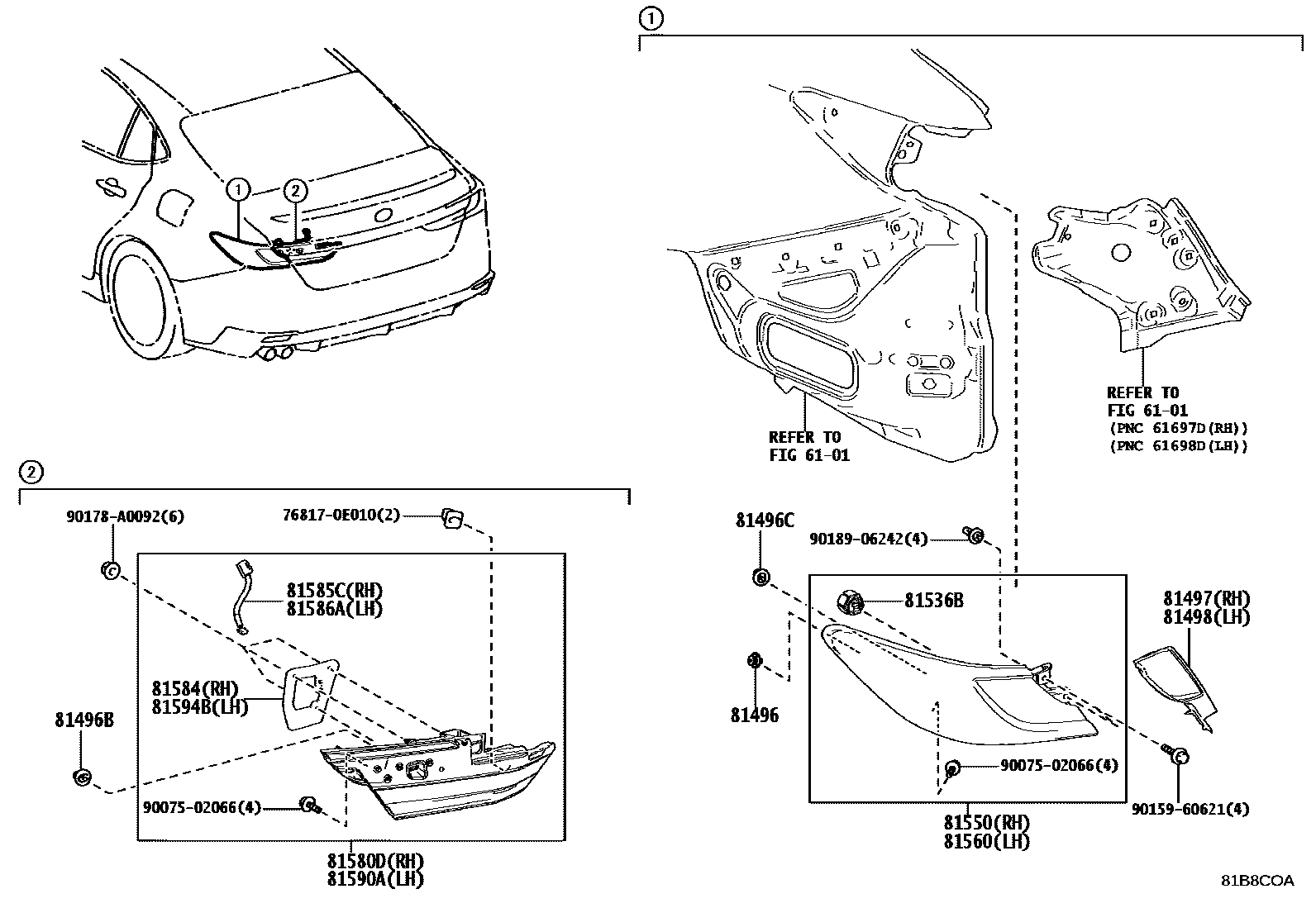

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496B | Rear light guide block | 81496-0E020 |
| 81496C | No. 2 rear combination light guide block | 81496-0E020 |
| 81497 | Right rear combination lamp cover | 81497-AQ010 |
| 81498 | Left rear combination lamp cover | 81498-AQ010 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D30 |
| 81550 | Right rear combination light assembly | 81550-AQ010 · 81550-AQ020 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60028 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60037 |
| 81558E | Right rear combination lamp cover | 90075-15512 |
| 81560 | Left rear combination light assembly | 81560-AQ010 · 81560-AQ020 |
| 81568E | Left rear combination lamp cover | 90075-15512 |
| 81580D | Right rear light assembly | 81580-AQ010 · 81580-AQ020 |
| 81584 | Right rear light seal | 81582-AQ010 |
| 81585C | Right rear light lamp holder and wiring harness | 81586-AQ020 |
| 81586A | DOUILLE CABLE, PROJECTEUR D'ECLAIR. ARR., GAUCHE | 81586-AQ020 |
| 81590A | Left rear light assembly | 81590-AQ010 · 81590-AQ020 |
| 81594B | Left rear light seal | 81592-AQ010 |
