Toyota CAMRY Headlamp — Figure 8101

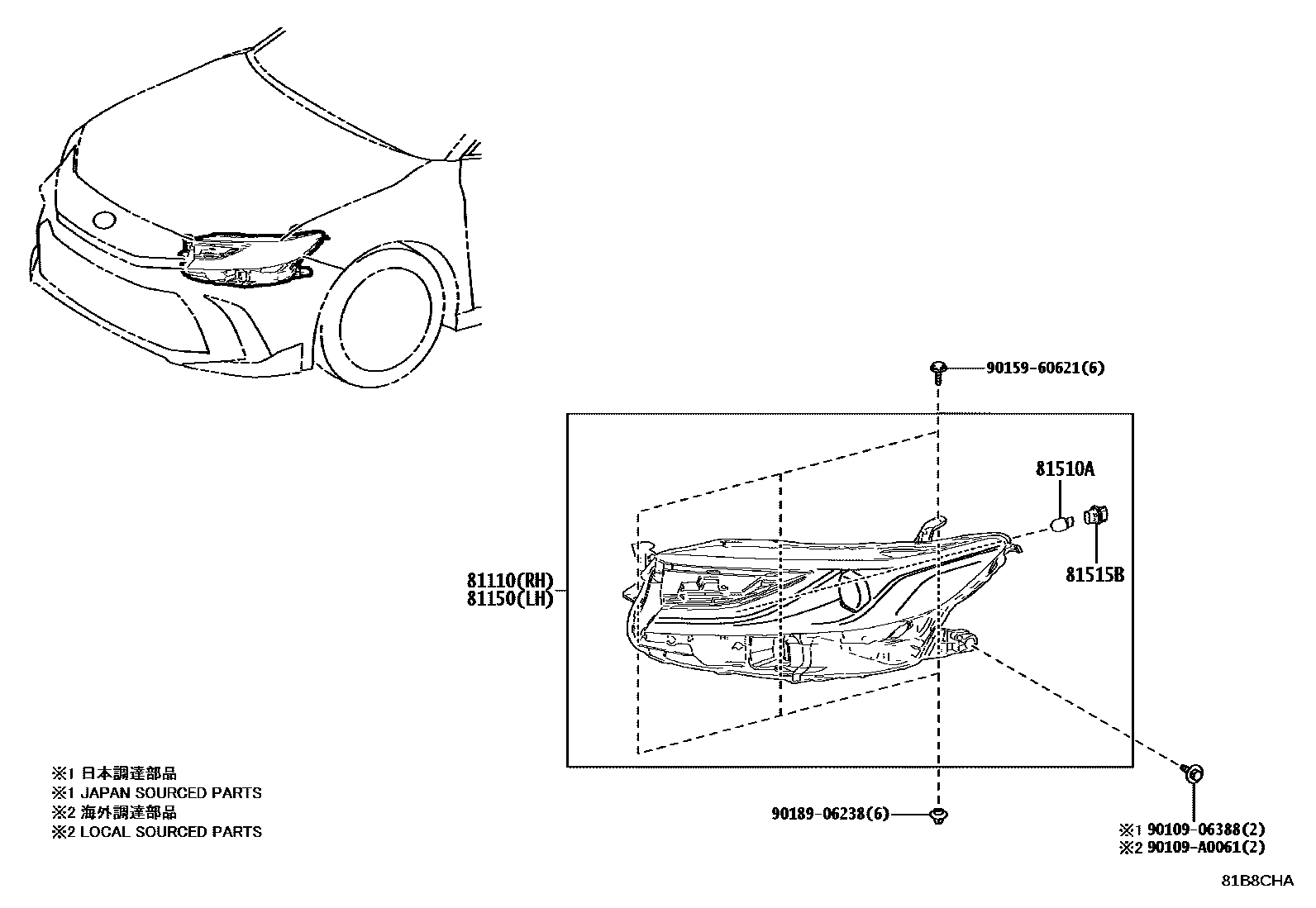

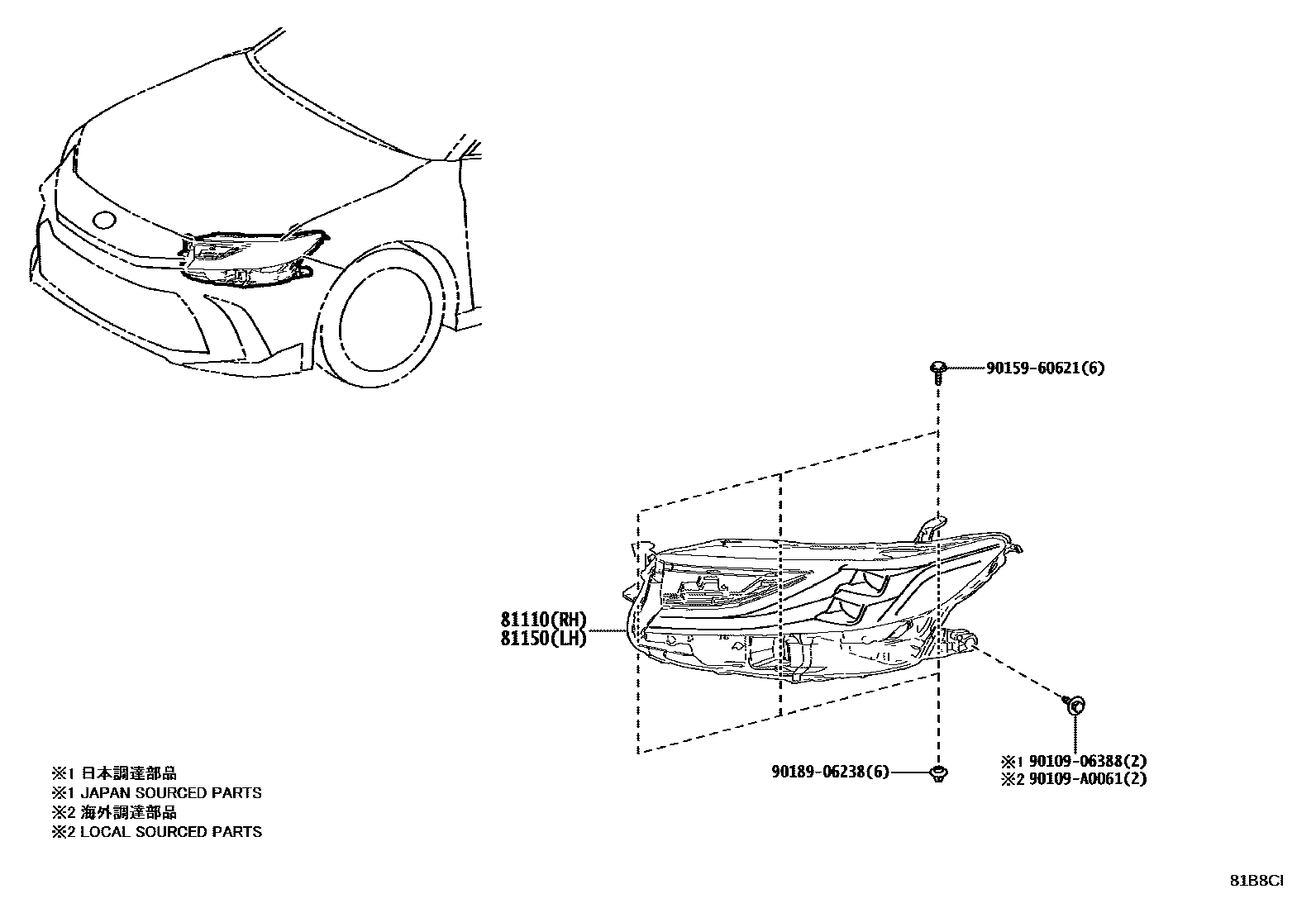

Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-AQ010 · 81110-AQ030 · 81110-AQ040 |
| 81150 | Left headlight assembly | 81150-AQ010 · 81150-AQ030 · 81150-AQ040 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-15024 |
| 81515B | Front turn signal lamp holder | 81128-06470 |
