Toyota CAMRY 燃油箱和燃油管 — Figure 7701

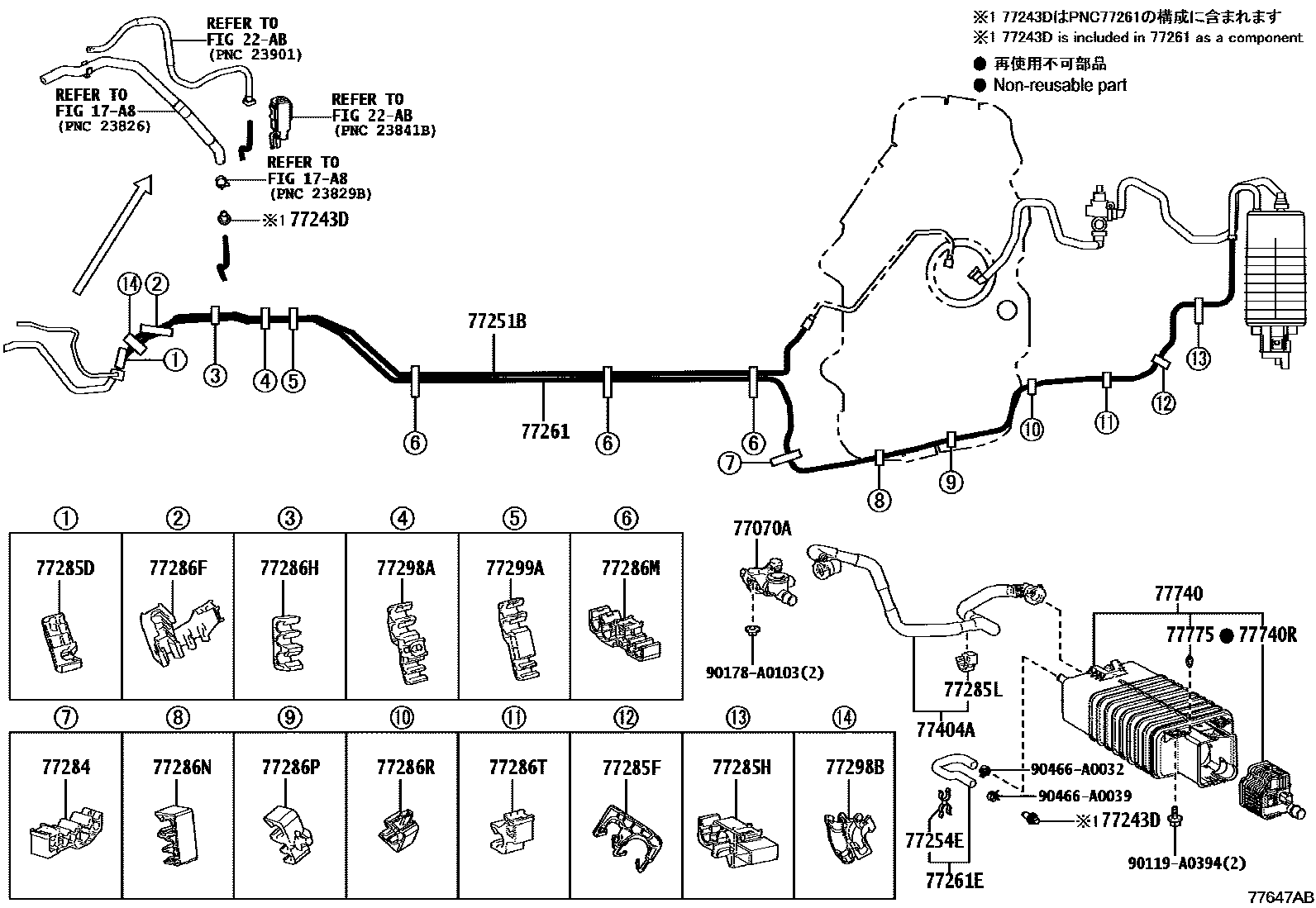

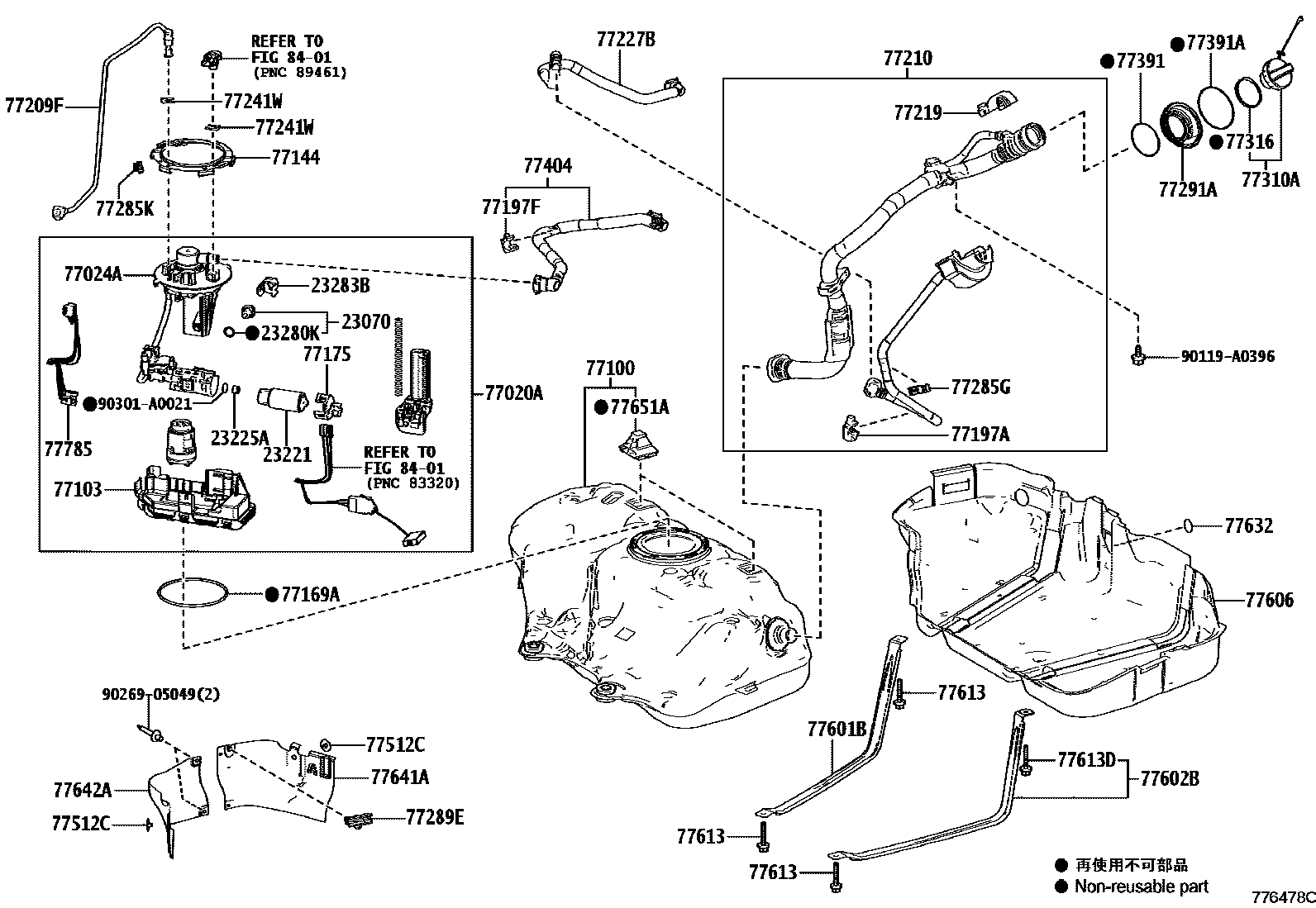

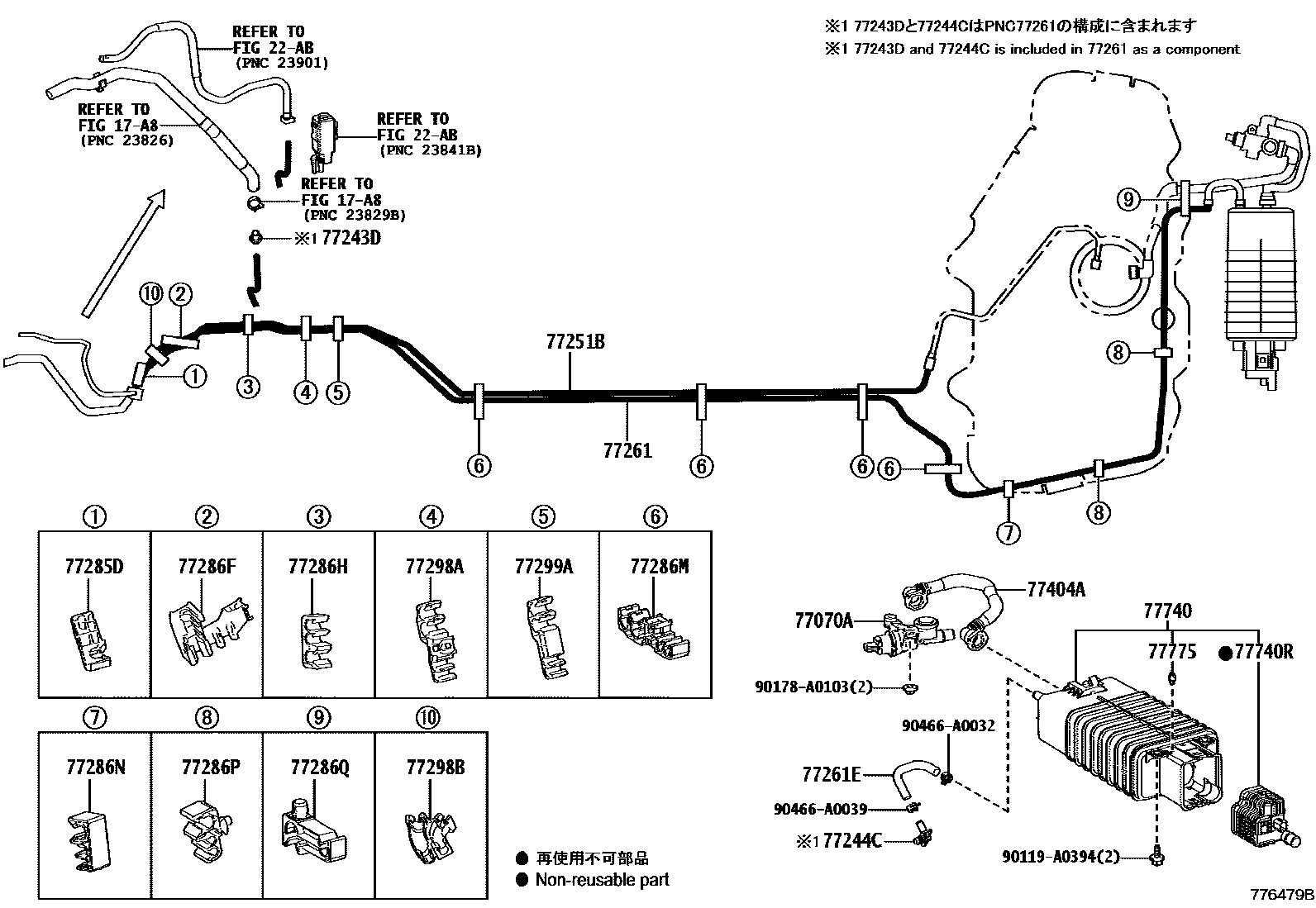

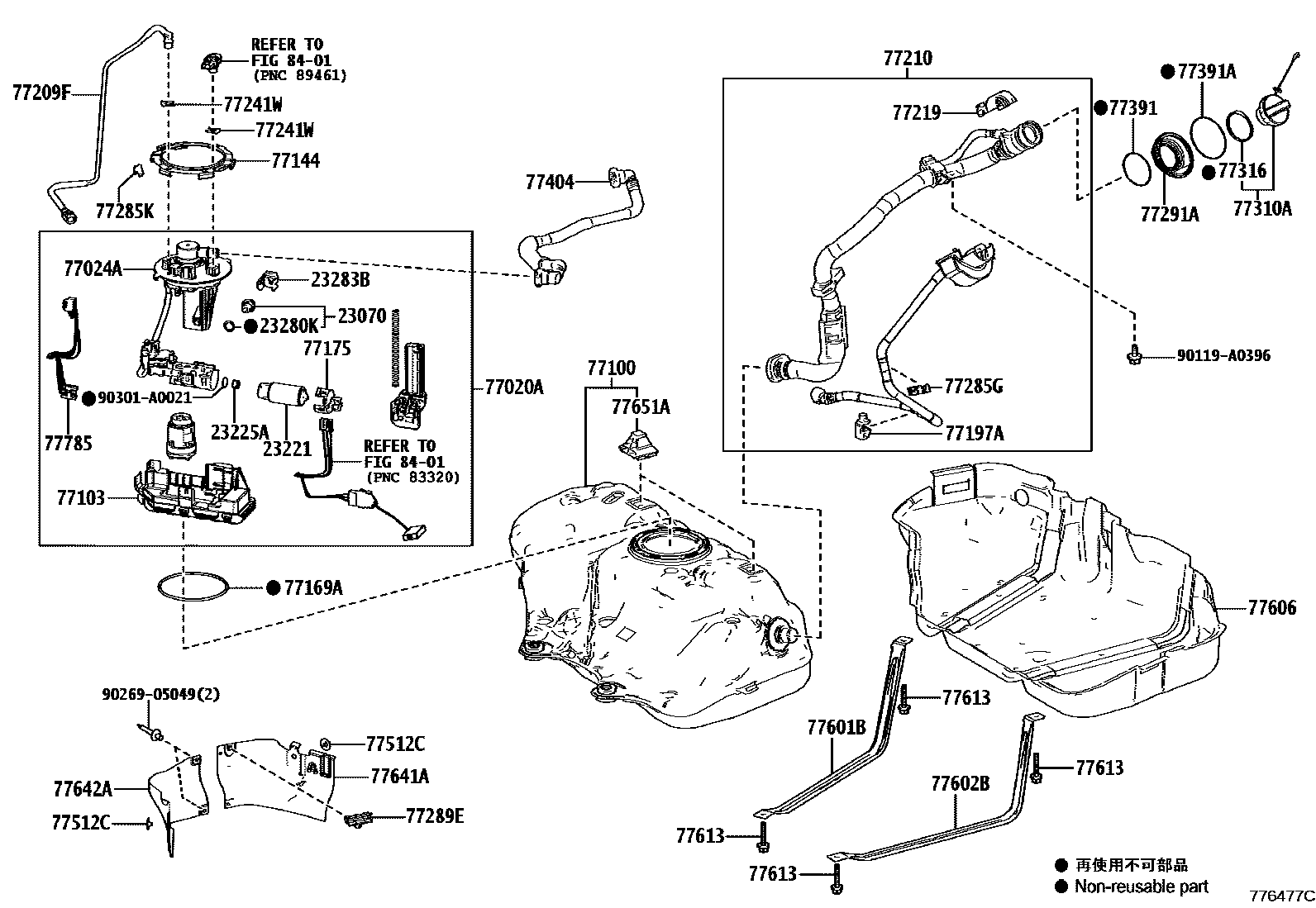

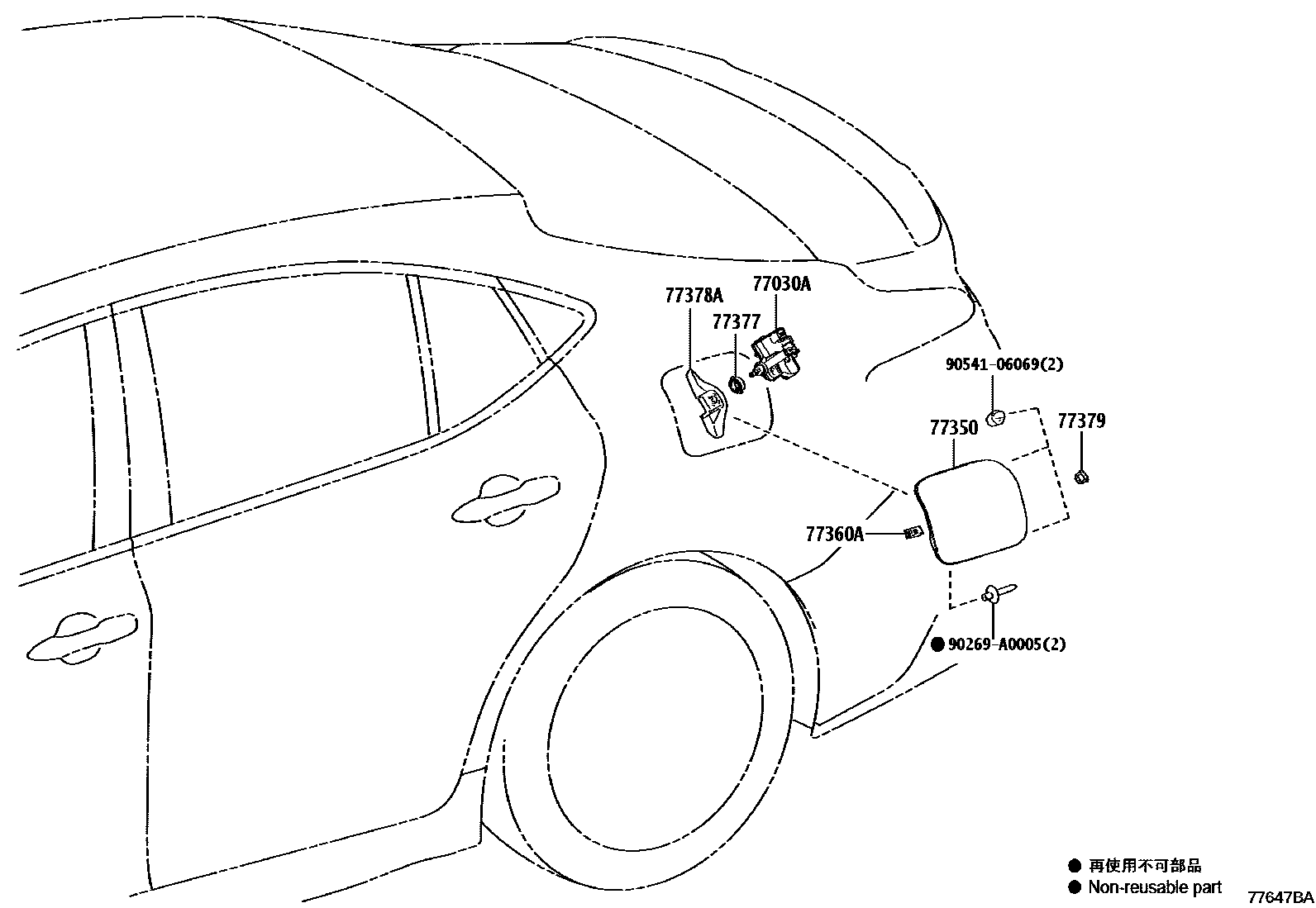

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 5 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-F0010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-F0011 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06741 |
| 77024A | Fuel absorber sub-assembly | 77024-06331 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-AQ010 |
| 77070A | ENS. SOUPAPE, FERM RESERVOIR | 90910-15089 |
| 77100 | fuel tank assembly | 77001-06250 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-0R021 |
| 77144 | Fuel pump instrument fixture | 77144-06040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-06060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0R011 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-06110 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-0R010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06101 · 77209-06210 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-06400 · 77210-06410 |
| 77219 | Fuel tank filler pipe cap | 77219-0R020 |
| 77227B | TUYAU, RENIFLARD RESERV CARB, NO.7 | 77227-06010 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77243D | No. 1 fuel pipe joint | 77243-12050 |
| 77244C | No. 2 fuel pipe joint | 77243-42040 |
| 77251B | main fuel pipe | 77251-06530 · 77251-06540 |
| 77254E | Clamp (for fuel drain hose) | 90464-00503 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06590 · 77261-06600 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77249-06160 · 77249-06170 |
| 77284 | Fuel pipe clamp | 77298-52100 |
| 77285D | No. 1 fuel pipe clamp | 77298-06310 |
| 77285F | No. 1 fuel pipe clamp | 77285-06520 |
| 77285G | No. 1 fuel pipe clamp | 77285-06510 |
| 77285H | No. 1 fuel pipe clamp | 77298-06090 |
| 77285K | No. 1 fuel pipe clamp | 77285-06240 |
| 77285L | No. 1 fuel pipe clamp | 77285-30310 |
| 77286F | No. 2 fuel pipe clamp | 77298-06400 |
| 77286H | No. 3 fuel pipe clamp | 77285-0R060 |
| 77286M | No. 6 fuel pipe clamp | 77298-06380 |
| 77286N | No. 7 fuel pipe clamp | 77285-06190 |
| 77286P | No. 8 fuel pipe clamp | 77285-42270 |
| 77286Q | No. 9 fuel pipe clamp | 77298-06370 |
| 77286R | No. 10 fuel pipe clamp | 77298-06100 |
| 77286T | COLLIER FIXATION TUBE ALIMENTATION ESSENCE NO. 11 | 77285-42290 |
| 77289E | COLLIER, RESERVOIR CARBURANT, NO.1 | 77289-06130 |
| 77291A | Fuel tank filler pipe cover | 77291-AQ010 |
| 77298A | No. 4 fuel pipe clamp | 77298-12160 |
| 77298B | No. 4 fuel pipe clamp | 77298-06420 |
| 77299A | No. 5 fuel pipe clamp | 77298-12170 |
| 77310A | Fuel tank cap assembly | 77300-06120 |
| 77316 | fuel tank cap gasket | 77316-06090 |
| 77350 | Fuel filler cap assembly | 77350-AQ010 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 |
| 77378A | Fuel filler cap lock cover | 77378-33010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-06010 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-AQ010 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-06320 · 77404-06340 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-06330 · 77404-06350 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-06060 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06190 · 77601-06260 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06190 · 77602-06280 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-06120 · 77606-06130 |
| 77613 | Fuel tank strap fixing bolts | 90119-10992 |
| 77613D | BOULON, JEU COLLIER FIX RESERV CARB, NO.2 | 90119-A0509 |
| 77632 | No. 2 fuel tank bracket | 77512-47030 |
| 77641A | No. 1 fuel tank protective shell | 77641-06180 |
| 77642A | No. 2 fuel tank protective shell | 77642-06050 |
| 77651A | No. 1 fuel tank liner | 77651-06060 · 77651-33060 |
| 77740 | Carbon canister assembly | 77740-06240 |
| 77740R | Leak detection pump sub-assembly | 90910-AF006 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-0R041 |
