Toyota CAMRY 侧防护条 — Figure 7503

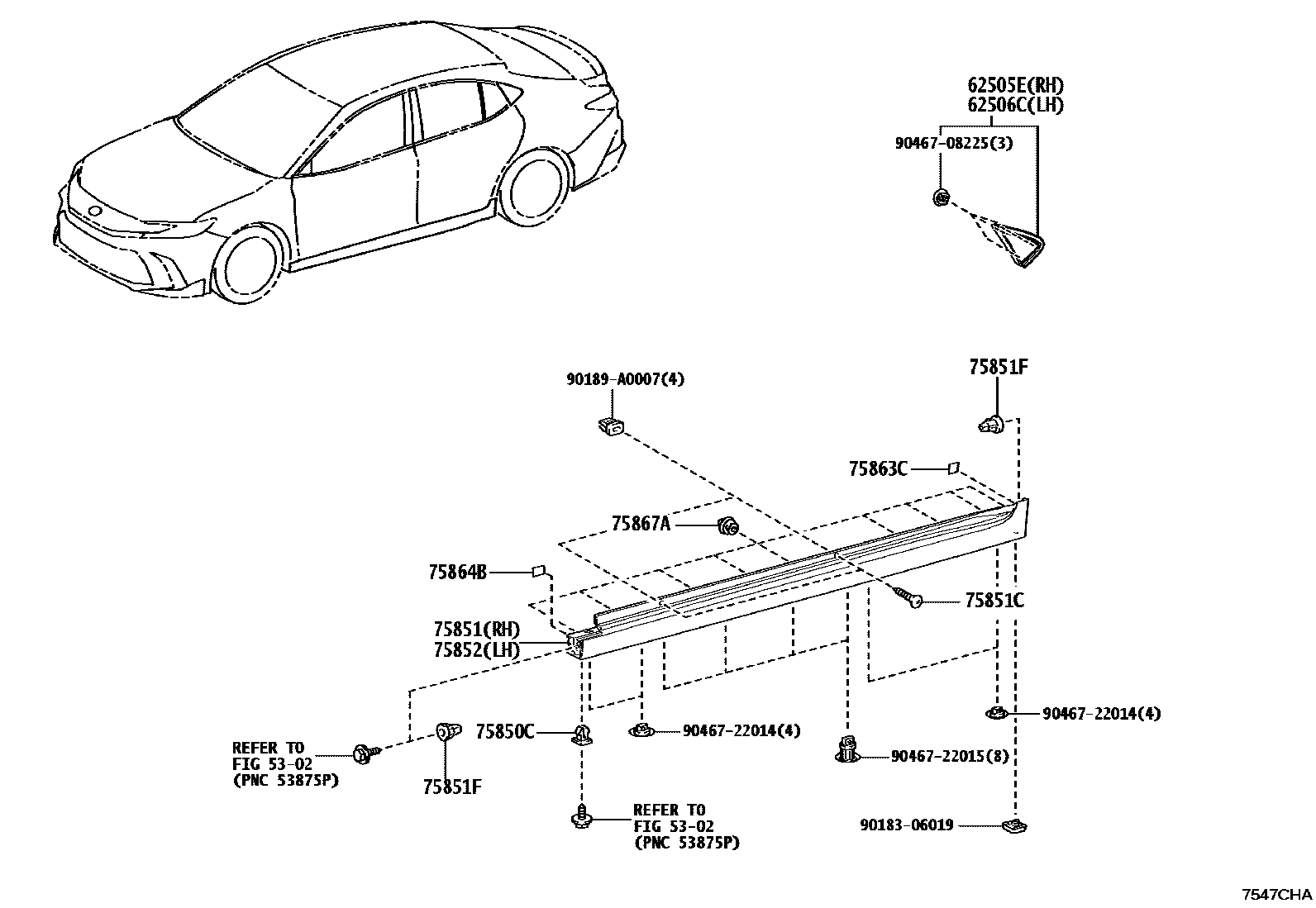

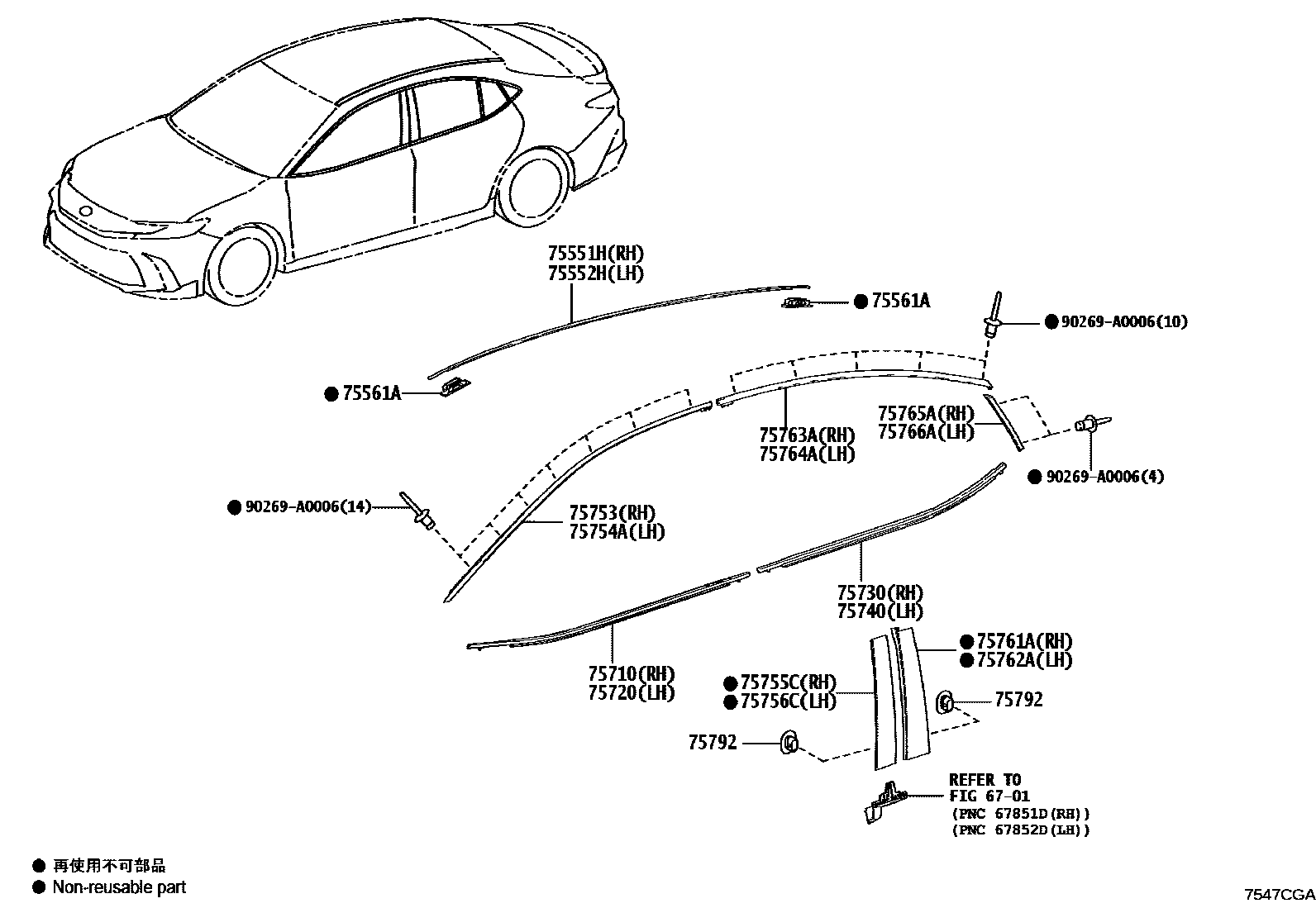

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62505E | SOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MD | 62505-AQ010 · 62505-AQ020 |
| 62506C | SOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MG | 62506-AQ010 · 62506-AQ020 |
| 75551H | Drainage groove side on the right side of the roof | 75555-06090 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-06090 |
| 75561A | Roof drain channel side decorative strip clip | 75561-08040 |
| 75710 | Right front door waistline protection strip assembly | 75710-06210 · 75710-AQ010 |
| 75720 | Left front door waistline protection strip assembly | 75720-06210 · 75720-AQ010 |
| 75730 | Right rear door waistline protection strip assembly | 75730-AQ010 · 75730-AQ020 |
| 75740 | Left rear door waistline protection strip assembly | 75740-AQ010 · 75740-AQ020 |
| 75753 | Protective strip on right front door window frame | 75753-06140 · 75753-AQ010 |
| 75754A | Protective strip on left front door window frame | 75754-06140 · 75754-AQ010 |
| 75755C | Right front door window frame rear protective strip | 75755-06160 |
| 75756C | Left front door window frame rear protective strip | 75756-06160 |
| 75761A | Right rear door window frame front protective strip | 75761-06160 |
| 75762A | Left rear door window frame front protective strip | 75762-06160 |
| 75763A | Protective strip on right rear door window frame | 75763-AQ010 · 75763-AQ020 |
| 75764A | Protective strip on left rear door window frame | 75764-AQ010 · 75764-AQ020 |
| 75765A | Right rear door window frame rear protective strip | 75765-AQ010 |
| 75766A | Left rear door window frame rear protective strip | 75766-AQ010 |
| 75792 | Car door window frame protective strip clip | 75792-0R010 |
| 75850C | OEILLET, NO.1 | 90189-06237 |
| 75851 | Right side door sill panel protective strip | 75851-06941 · 75851-06942 |
| 75851C | VIS(POUR MOULURE BAS DE CAISSE CARROSSERIE) | 90162-40035 · 90162-A0001 |
| 75851F | OEILLET(MOULURE BAS DE CAISSE CARROSSERIE) | 90189-06006 · 90189-06157 |
| 75852 | Left side door sill panel protective strip | 75852-06941 · 75852-06942 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06240 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06210 |
| 75867A | Door sill panel protective strip clip | 75867-AA010 |
