Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.

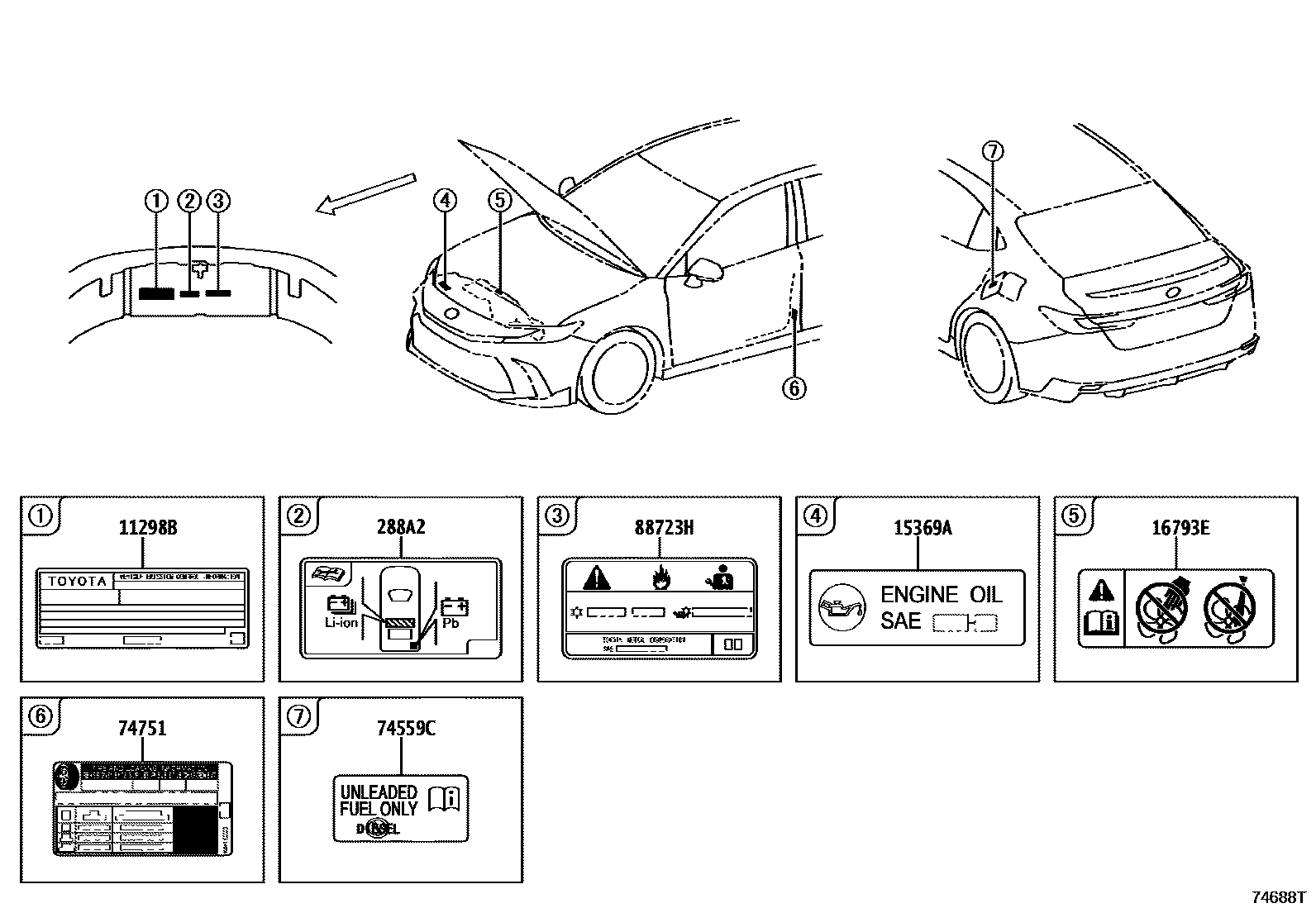

Toyota CAMRY 警示铭牌(车外和车内) EPC diagram — 74688T
警示铭牌(车外和车内) — 74688T (202404 – 999999)

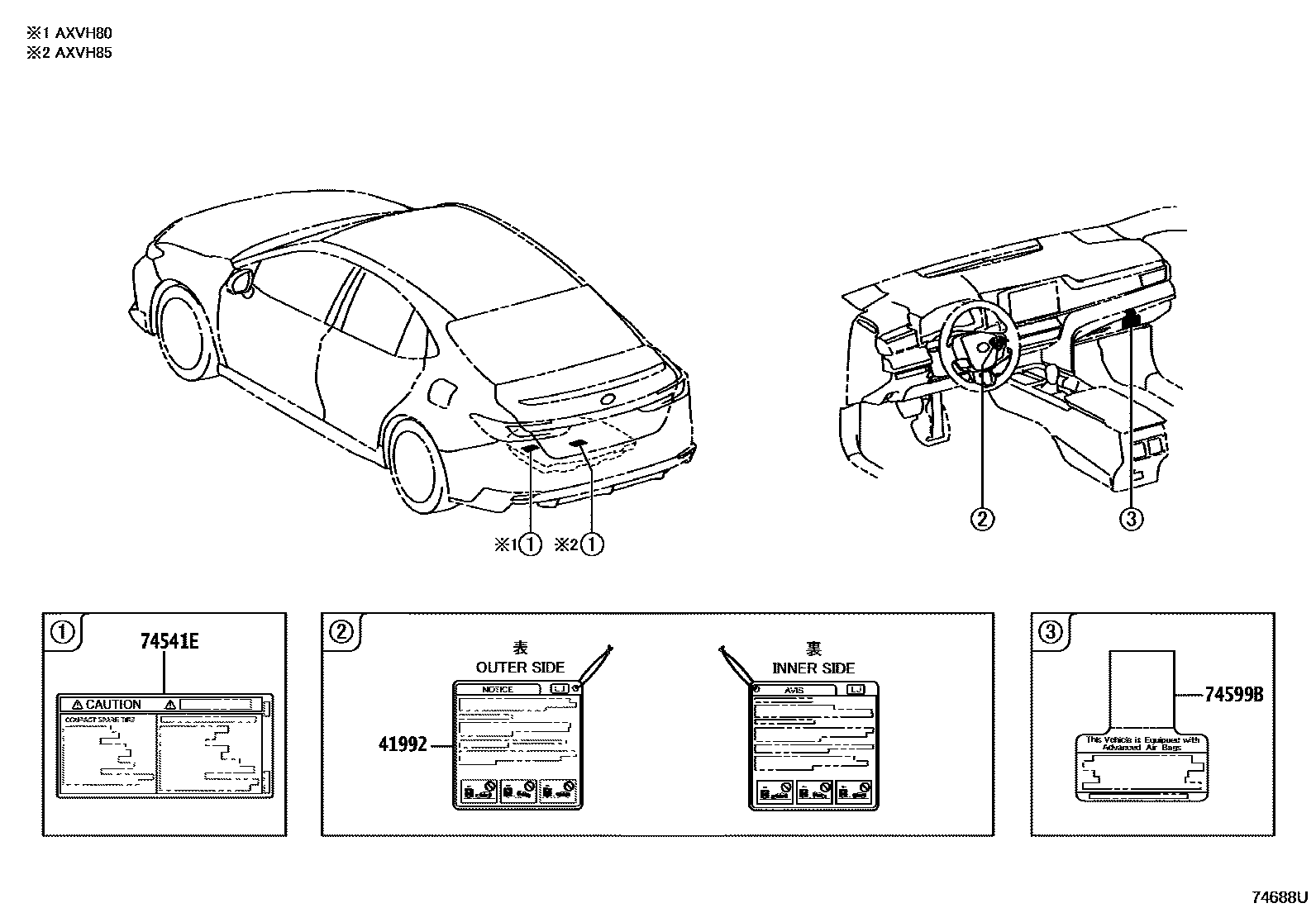

Toyota CAMRY 警示铭牌(车外和车内) EPC diagram — 74688UA
警示铭牌(车外和车内) — 74688UA (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
11298BEmission Control Information Label11298-F0410
15369AEngine oil information label15369-F0020
16793EETIQUETTE, PRECAUTION VENT REFROIDISSEMENT16793-0P040 · 16793-36030
288A2ETIQUETTE, EMPLACEMENT BATT288A2-F2030
41992Differential attention label41992-0R010
74541ESmall spare tire warning plate42668-0E010
74559CETIQUETTE, INFORMATIONS CARB, NO.274559-0D060 · 74559-20140
74599BDriver and passenger air bag information labels74599-0E020
74751tire pressure information label42661-06B20 · 42661-06B40 · 42661-06B50 · 42661-06B70 · 42661-AQ010 · 42661-AQ020
88723HCooler maintenance warning label88723-06230
