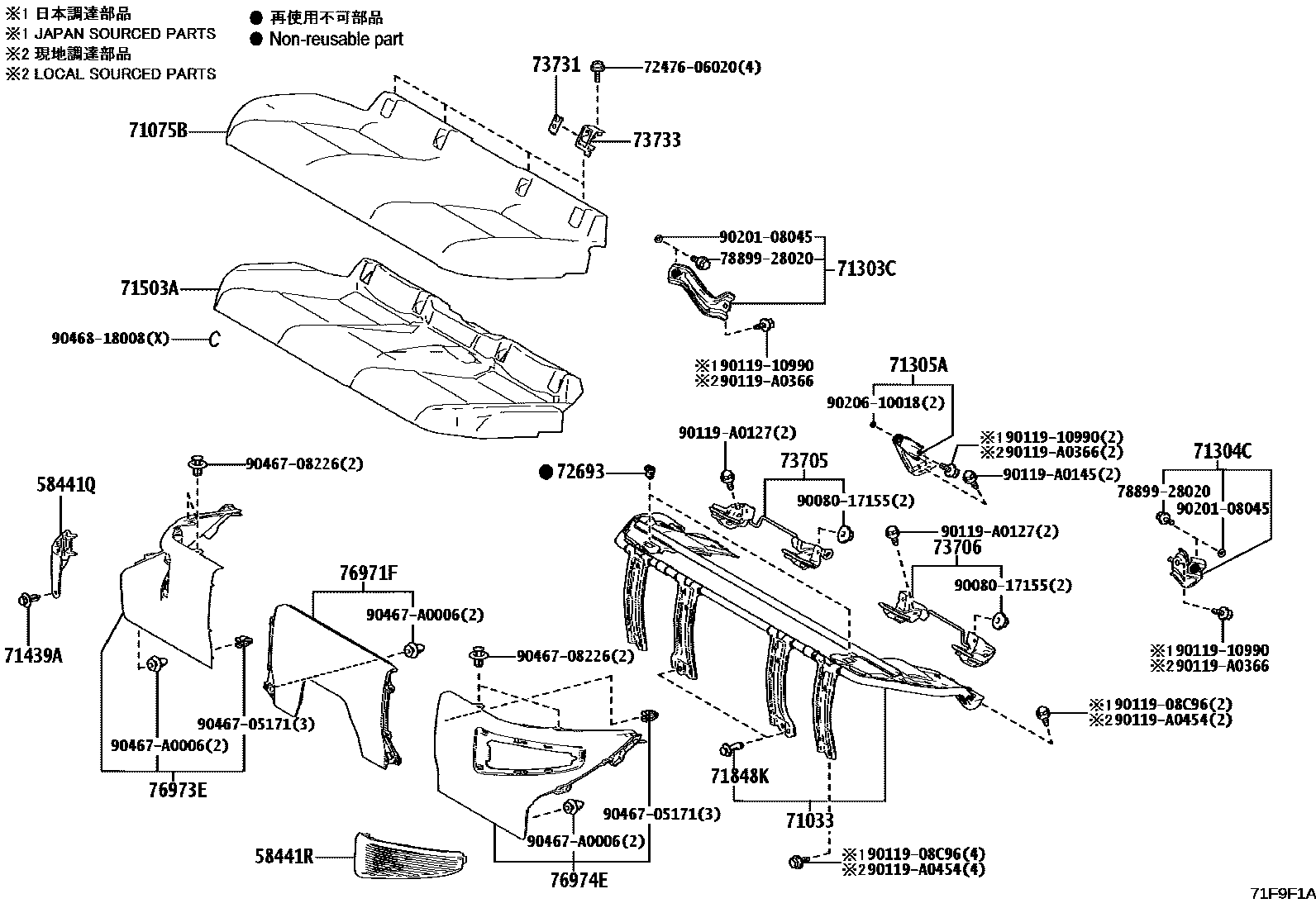

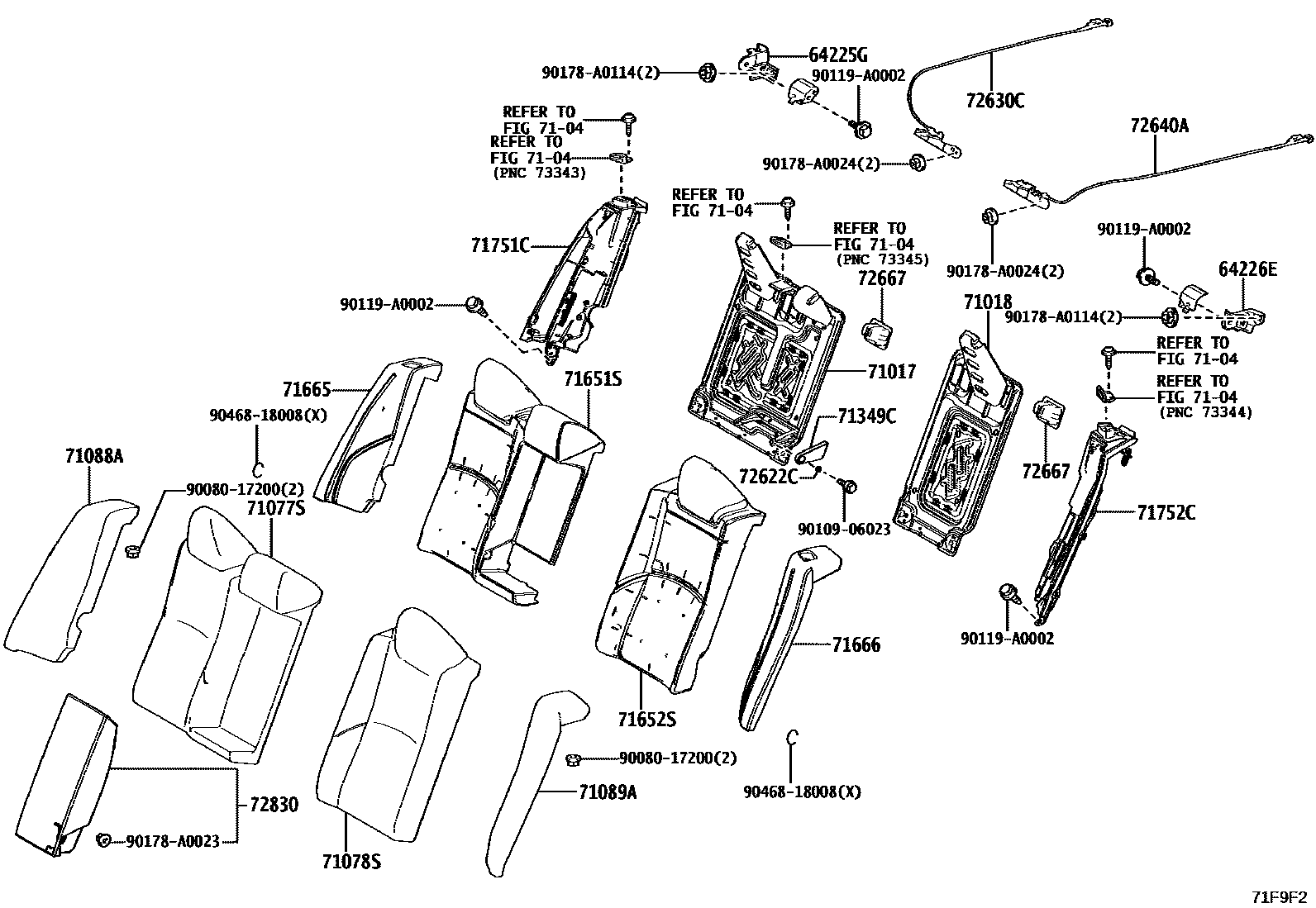

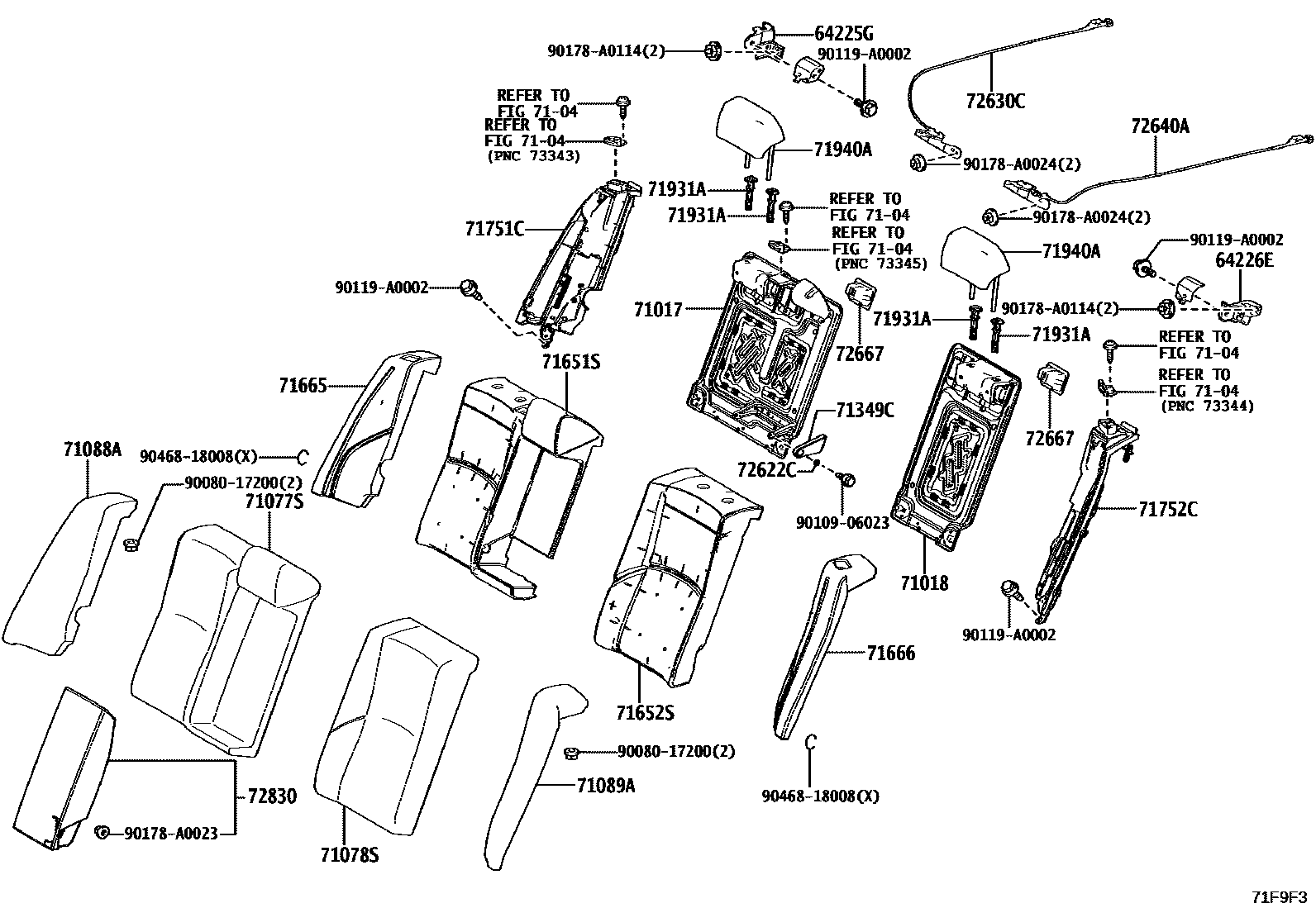

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64225G | MORCEAU, ENSEMBLE DE SIEGE ARRIERE, DR | 64225-AQ010 |
| 64226E | MORCEAU, ENSEMBLE DE SIEGE ARRIERE, GA | 64226-AQ010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-06210 · 71017-06420 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06110 · 71018-06250 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-AQ010 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-06020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06070 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-AQ020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-AQ010 · 71651-AQ020 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-AQ010 · 71652-AQ020 |
| 71665 | Rear right seat backrest side cushion | 71665-AQ010 |
| 71666 | Rear left seat backrest side cushion | 71666-AQ010 |
| 71751C | Rear right side seat back frame | 71751-AQ010 |
| 71752C | Rear left side seat back frame | 71752-AQ010 |
| 71848K | BOUCHON, COUVERCLE DU REGLAGE DU SIEGE | 71848-47050 |
| 72622C | Rear seat back protection shaft bushing | 72622-0T020 |
| 72630C | Rear right seat back lock assembly | 72630-06050 |
| 72640A | Rear left seat back lock assembly | 72640-06050 |
| 72693 | Rear seat cushion hook | 72693-06030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06120 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06120 |
