Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

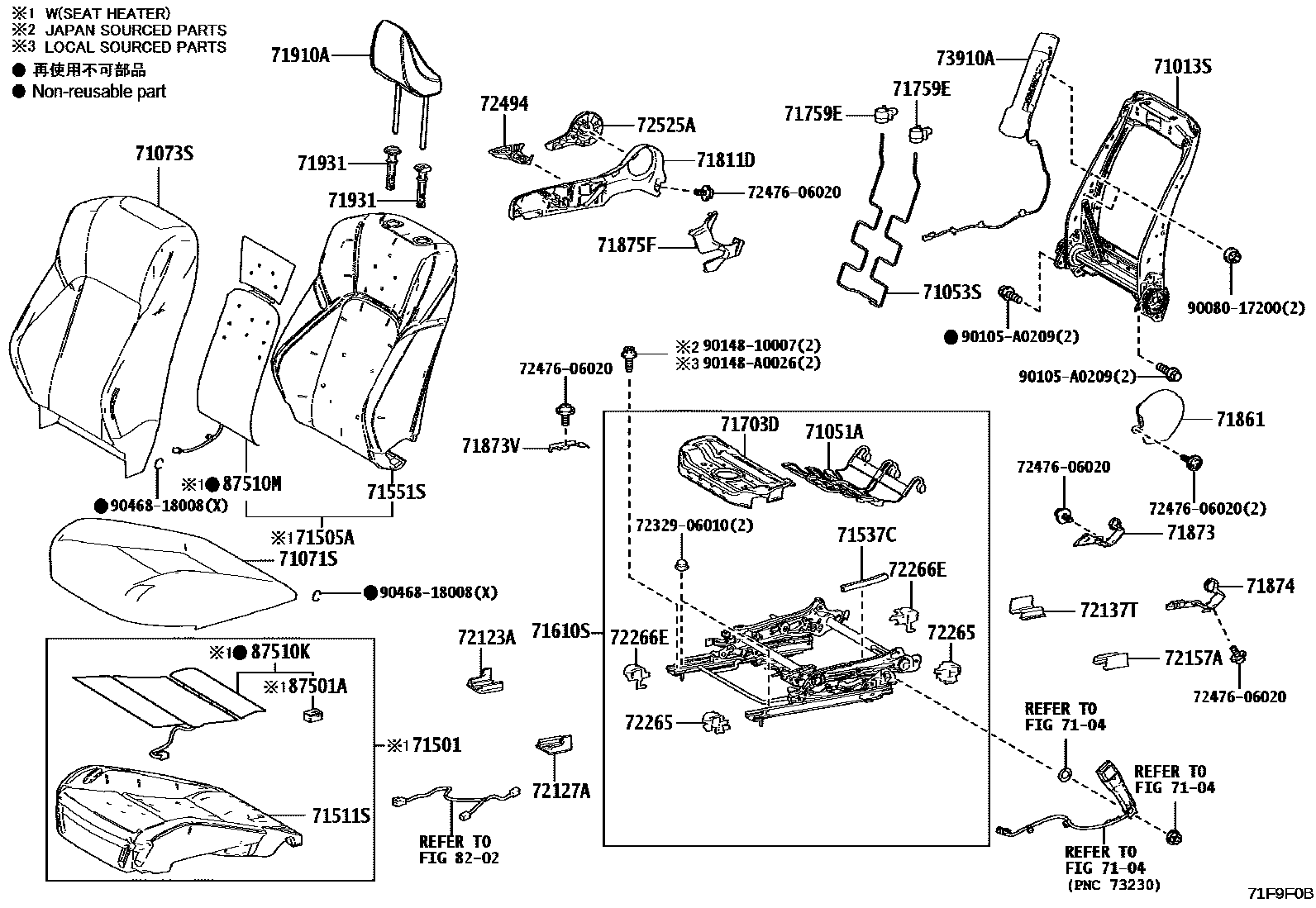

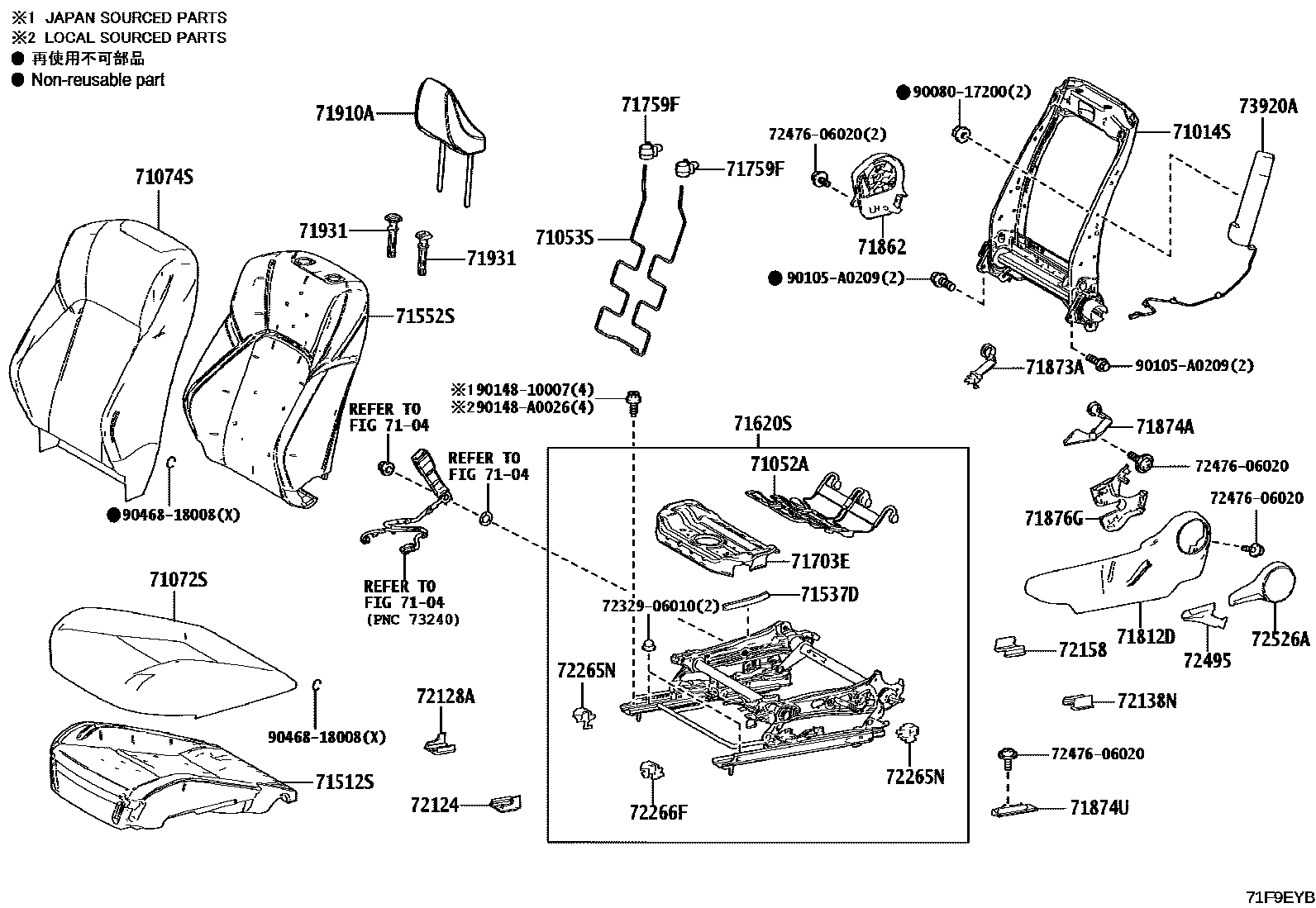

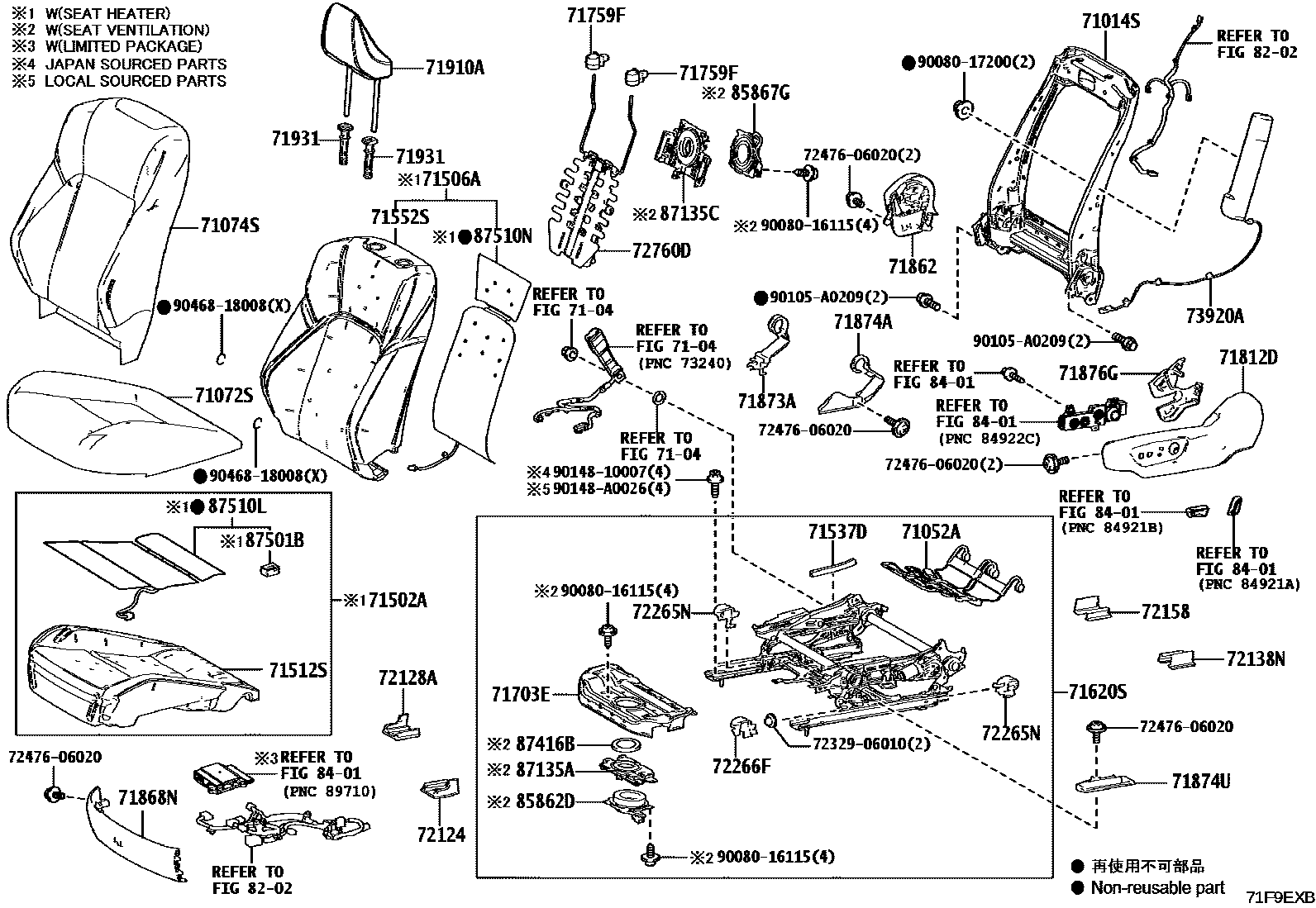

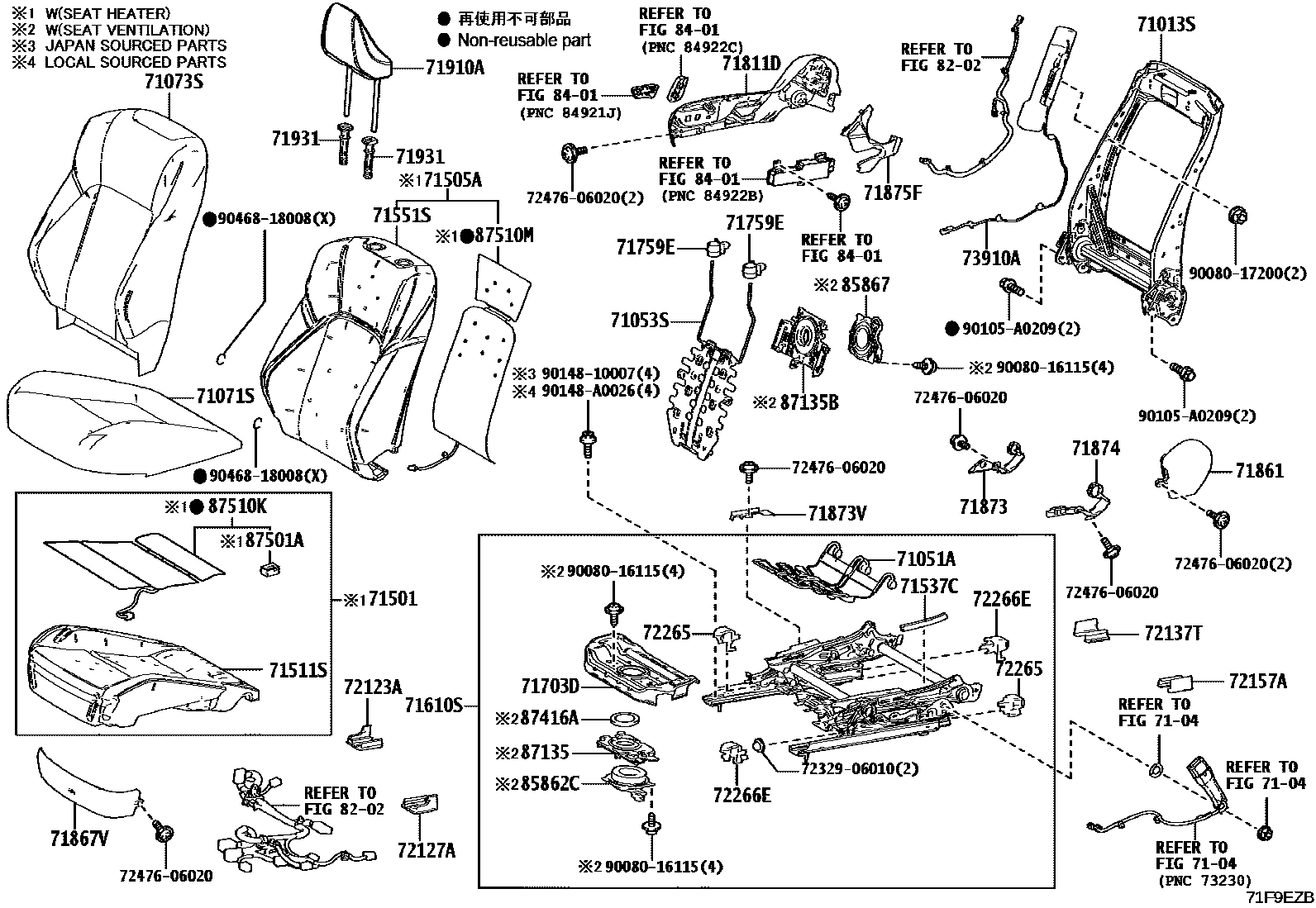

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-AQ010 · 71013-AQ020 |
| 71014S | Front left seat back frame sub-assembly | 71014-AQ010 · 71014-AQ020 · 71014-AQ030 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06030 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06030 |
| 71053S | Front right seat back spring sub-assembly | 71053-0C010 · 71053-AQ010 |
| 71501 | SOUS-ENS. REMB, COUSSIN SIEGE AV, MD | 71501-AQ010 · 71501-AQ020 · 71501-AQ030 |
| 71502A | SOUS-ENS. REMB, COUSSIN SIEGE AV, MG | 71502-AQ010 · 71502-AQ020 |
| 71505A | SOUS-ENS. REMB, DOSSIER SIEGE AV,MD | 71505-AQ010 · 71505-AQ011 · 71505-AQ030 · 71505-AQ031 |
| 71506A | SOUS-ENS. REMB, DOSSIER SIEGE AV,MG | 71506-AQ010 · 71506-AQ011 · 71506-AQ020 · 71506-AQ021 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-AQ010 · 71511-AQ020 · 71511-AQ030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-AQ010 · 71512-AQ020 · 71512-AQ030 |
| 71537C | Front right seat cushion edge protective cover | 71537-06210 |
| 71537D | Front left seat cushion edge protective cover | 71537-06210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-AQ010 · 71551-AQ011 · 71551-AQ020 · 71551-AQ021 |
| 71552S | Front left seat back cushion (for split seats) | 71552-AQ010 · 71552-AQ011 · 71552-AQ020 · 71552-AQ021 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-AQ010 · 71610-AQ020 · 71610-AQ030 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-AQ010 · 71620-AQ020 · 71620-AQ030 · 71620-AQ040 |
| 71703D | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MD | 71703-07020 |
| 71703E | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MG | 71703-07020 |
| 71759E | CROCHET, DOSSIER SIEGE AV, MD | 71759-06020 · 71759-AN010 |
| 71759F | CROCHET, DOSSIER SIEGE AV, MG | 71759-06020 · 71759-AN010 |
| 71873V | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71873-06660 |
| 71874U | PROTECTION, COUSSIN SIEGE AVANT, INF MG | 71874-06690 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06100 |
| 72124 | Front left seat outer slide rail bracket cover | 72127-06100 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-06100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-06100 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-06120 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72138-06110 |
| 72157A | Right seat inner slide rail bracket cover | 72157-06190 |
| 72158 | Left seat inner slide rail bracket cover | 72158-06190 |
| 72265 | Right seat rail upper rail cover | 72265-06010 |
| 72265N | CACHE, RAIL SUP GLISS SIEGE, MG | 72265-06010 |
| 72266E | CACHE, RAIL SUP GLISS SIEGE, AVANT EXT(POUR SIEGE MD) | 72266-06010 |
| 72266F | CACHE, RAIL SUP GLISS SIEGE, AVANT INT(POUR SIEGE MG) | 72266-06010 |
| 72760D | Left lumbar support adjuster assembly | 72750-0C010 |
| 73910A | Front right seat airbag assembly | 73910-AQ010 |
| 73920A | Front left seat airbag assembly | 73920-AQ010 |
| 85862C | SOUFFLERIE, REGULATION TEMP COUSSIN SIEGE, MD | 85862-AQ010 |
| 85862D | SOUFFLERIE, REGULATION TEMP COUSSIN SIEGE, MG | 85862-AQ010 |
| 85867 | Right seat back temperature control blower | 85867-AK010 |
| 85867G | SOUFFLERIE, COMMANDE CLIMAT. DOSSIER SIEGE, GAUCHE | 85867-AK010 |
| 87135 | ADAPTATEUR, VENT SOUFFLERIE, MD(POUR COUSSIN SIEGE) | 87135-07020 |
| 87135A | ADAPTATEUR, VENT SOUFFLERIE, MG(POUR COUSSIN SIEGE) | 87135-07020 |
| 87135B | ADAPTATEUR, VENT SOUFFLERIE, MD(POUR DOSSIER SIEGE) | 87135-AQ010 |
| 87135C | ADAPTATEUR, VENT SOUFFLERIE, MG(POUR DOSSIER SIEGE) | 87135-AQ010 |
| 87416A | JOINT, CONDUIT AIR, MD | 87416-07010 |
| 87416B | JOINT, CONDUIT AIR, MG | 87416-07010 |
| 87501A | Right seat heater control sub-assembly | 87501-07010 |
| 87501B | Left side seat heater control sub-assembly | 87501-07010 |
| 87510K | Front right seat cushion heater assembly | 87510-AQ010 |
| 87510L | Front left seat cushion heater assembly | 87510-AQ010 |
| 87510M | Front right seat back heater assembly | 87530-AQ010 |
| 87510N | Front left seat back heater assembly | 87530-AQ010 |
