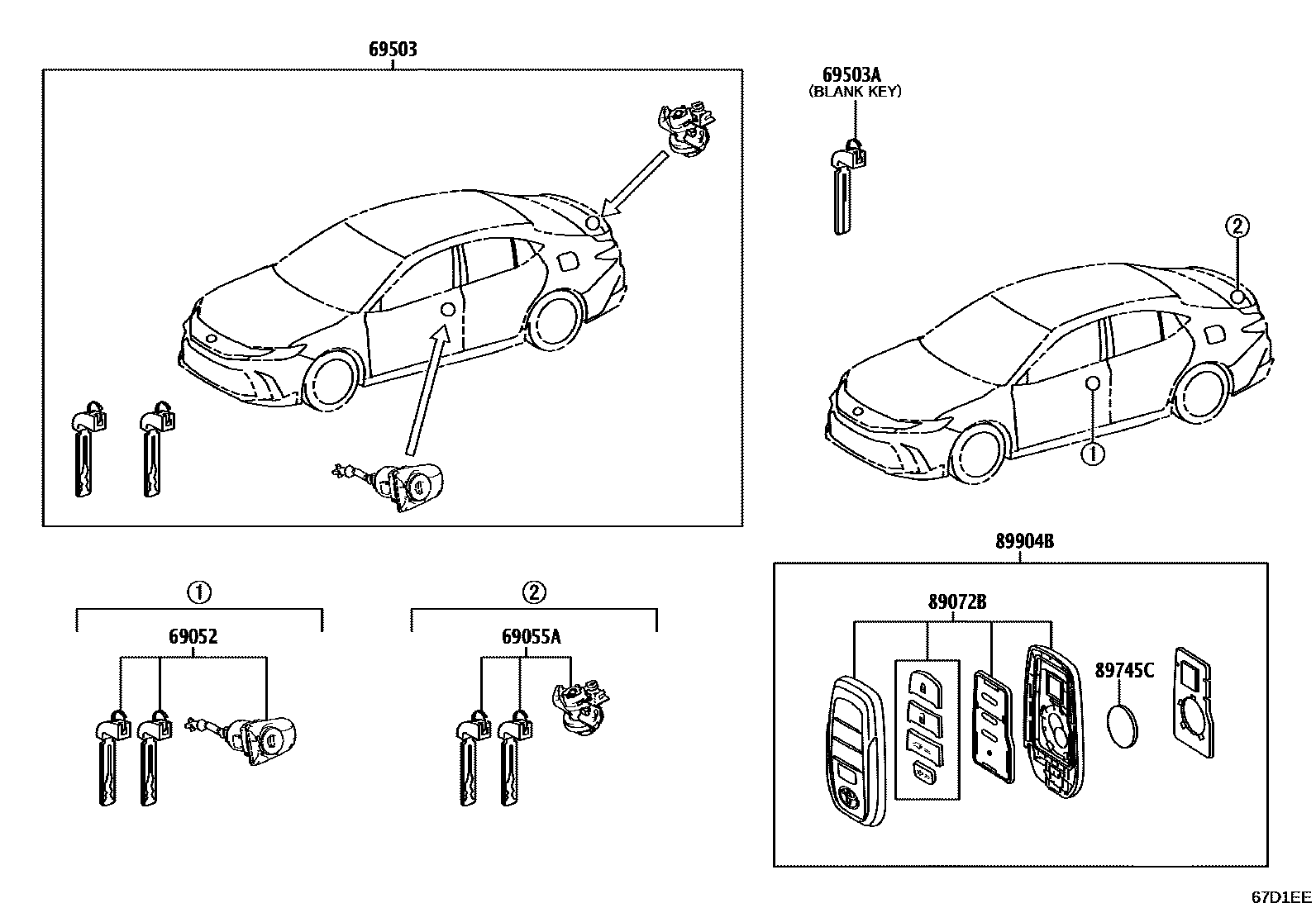

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-AQ010 |
| 69055A | Luggage lock cylinder and key assembly | 69055-AQ010 |
| 69503 | Door lock cylinder components | 69005-AQ010 |
| 69503A | external tooth key | 69515-K0020 |
| 89072B | Remote key shell assembly (for smart key) | 89072-AQ030 |
| 89745C | Transmitter battery | 89745-08010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-AQ010 |
