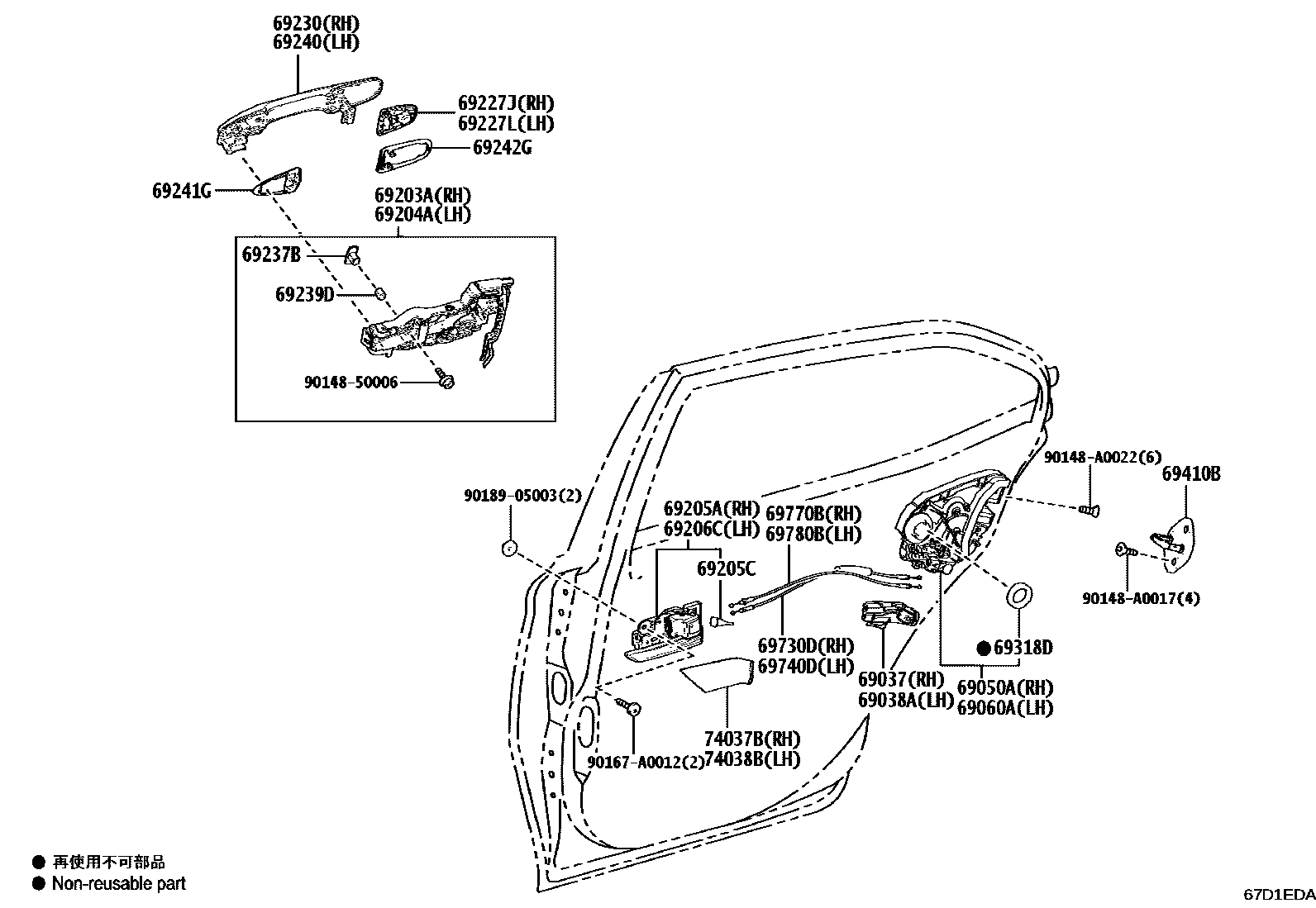

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD | 69037-42010 |
| 69038A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG | 69038-42010 |
| 69050A | Right rear door lock assembly with motor | 69050-AQ010 |
| 69060A | Left rear door lock assembly with motor | 69060-AQ010 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06140 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06140 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 |
| 69227J | Right rear door outer handle cover | 69227-06100 |
| 69227L | Left rear door outer handle cover | 69227-06100 |
| 69237B | ECROU, POIGNEE PORTE ARRIERE | 69237-06030 |
| 69239D | BAGUE, POIGNEE PORTE ARRIERE | 69239-06030 |
| 69241G | Rear door front exterior handle pad | 69241-AQ010 |
| 69242G | Rear door rear outer handle pad | 69242-06170 |
| 69318D | door lock harness seal | 69318-AA010 |
| 69410B | Rear door lock plate assembly | 69410-02020 |
| 69730D | Right rear door lock remote control cable assembly | 69730-AQ010 |
| 69740D | Left rear door lock remote control cable assembly | 69730-AQ010 |
| 69770B | Right rear door inner lock cable assembly | 69770-AQ010 |
| 69780B | Left rear door inner lock cable assembly | 69770-AQ010 |
| 74037B | SOUS-ENS. CACHE, ACCOUDOIR PORTE ARR, MD | 74037-06010 |
| 74038B | SOUS-ENS. CACHE, ACCOUDOIR PORTE ARR, MG | 74038-06010 |
