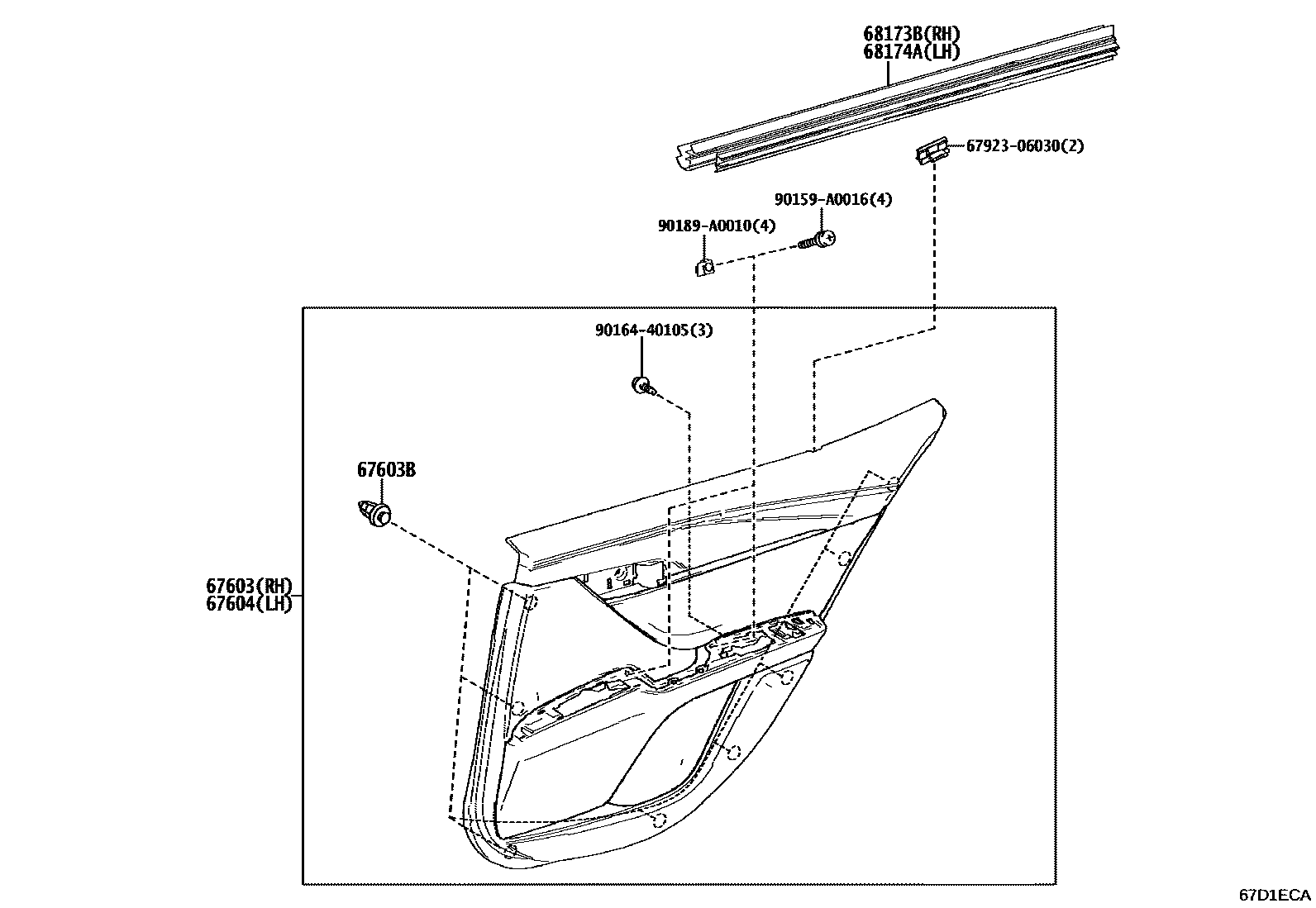

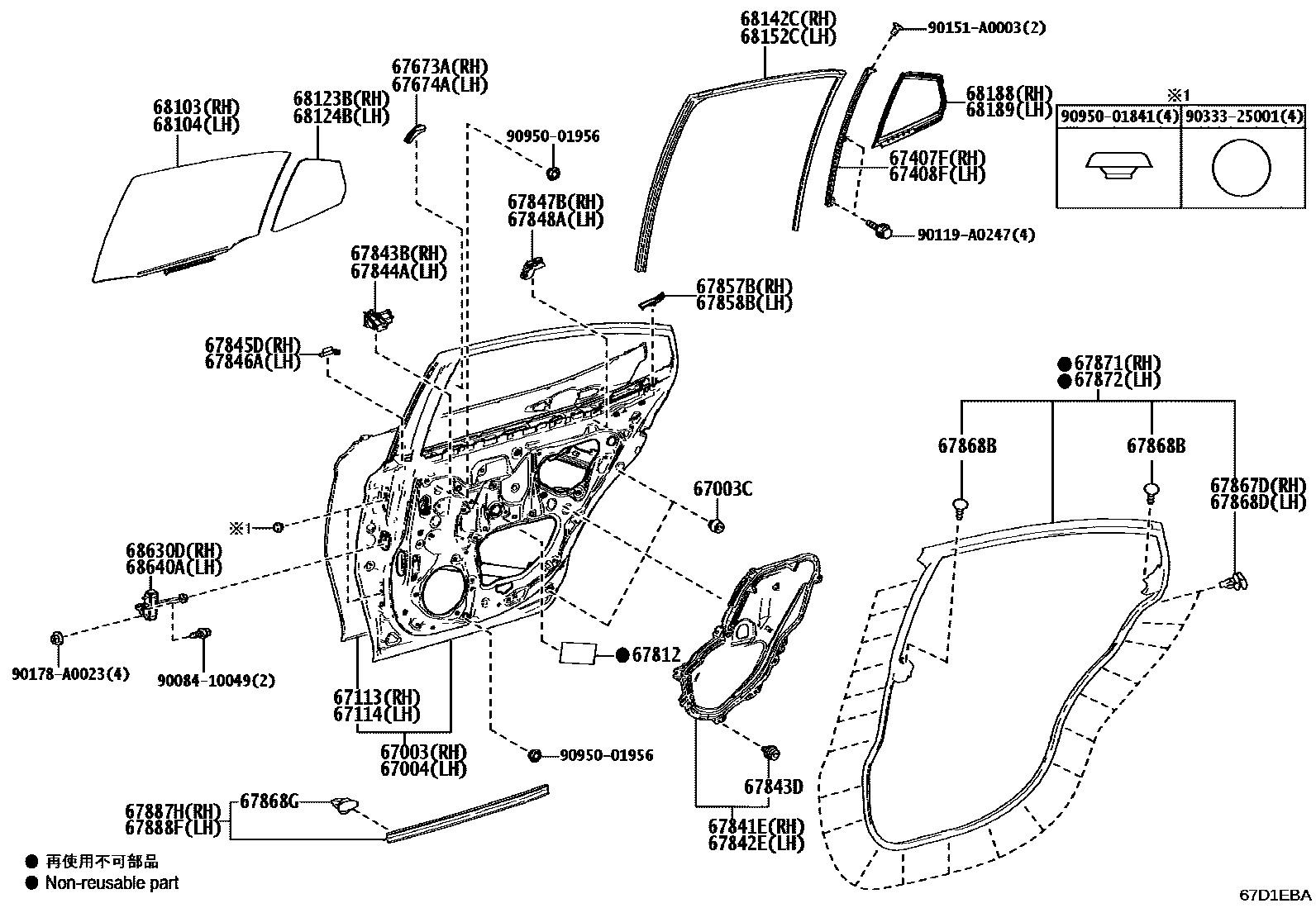

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-AQ010 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-AQ010 |
| 67113 | Right rear door outer panel | 67113-AQ010 |
| 67114 | Left rear door outer panel | 67114-AQ010 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-AQ010 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-AQ010 |
| 67603B | Catch (for rear door trim panel) | 90467-A0048 |
| 67673A | Right rear door frame decorative strip | 67673-06140 |
| 67674A | Left rear door frame decorative strip | 67674-06140 |
| 67812 | Rear door silencer pad | 67811-AA040 |
| 67841E | Right rear door access hole cover | 67841-06280 |
| 67842E | Left rear door access hole cover | 67842-06280 |
| 67843B | Right rear door No. 2 access hole cover | 67843-06061 |
| 67843D | Rear door access hole clip | 90467-A0048 |
| 67844A | Left rear door No. 2 access hole cover | 67844-06041 |
| 67845D | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MD | 67845-06100 |
| 67846A | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MG | 67846-06020 |
| 67847B | No. 1 right rear door ventilator seal | 67847-06050 |
| 67848A | No. 1 left rear door ventilator seal | 67848-06030 |
| 67857B | Right rear door panel protector | 67857-06030 |
| 67858B | Left rear door panel protector | 67858-06030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67868-30030 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67868G | door seal fixings | 67867-52030 |
| 67871 | Right rear door sealing strip | 67871-AQ010 |
| 67872 | Left rear door sealing strip | 67872-AQ010 |
| 67887H | Right rear door seal No. 2 | 67887-06100 |
| 67888F | Left rear door seal No. 2 | 67887-06100 |
| 68103 | Right rear door glass sub-assembly | 68103-AQ010 |
| 68104 | Left rear door glass sub-assembly | 68104-AQ010 |
| 68123B | Right rear door corner window glass | 68123-AQ010 |
| 68124B | Left rear door corner window glass | 68124-AQ010 |
| 68142C | Right rear door glass lift slot | 68142-AQ010 |
| 68152C | Left rear door glass lift slot | 68152-AQ010 |
| 68173B | Right rear door glass inner sealing strip | 68173-06170 |
| 68174A | Left rear door glass inner sealing strip | 68174-06170 |
| 68188 | Right rear door corner window seal | 68188-AQ010 |
| 68189 | Left rear door corner window seal | 68189-AQ010 |
| 68630D | Right rear door opening limiter assembly | 68630-06152 |
| 68640A | Left rear door opening limiter assembly | 68630-06152 |
