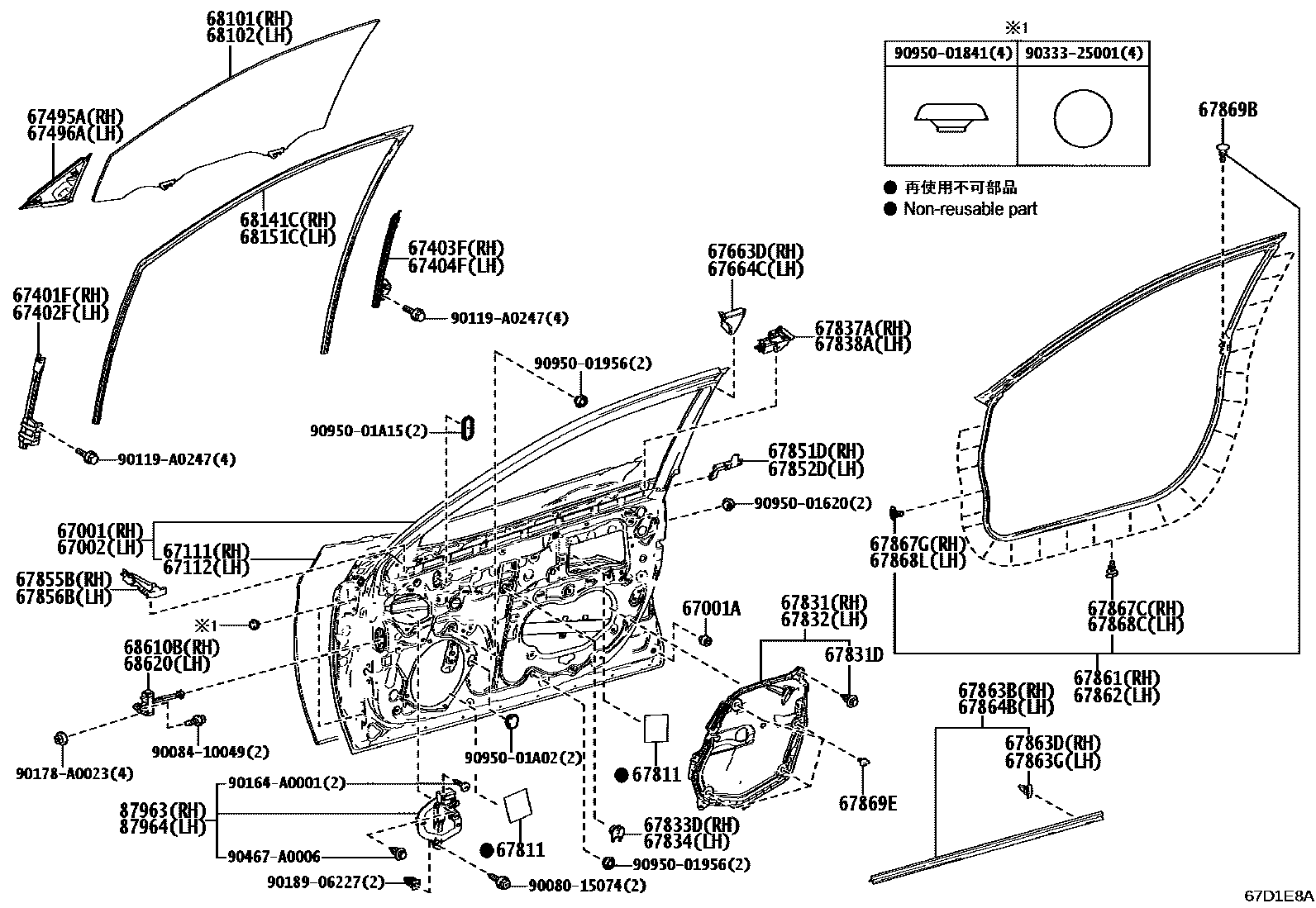

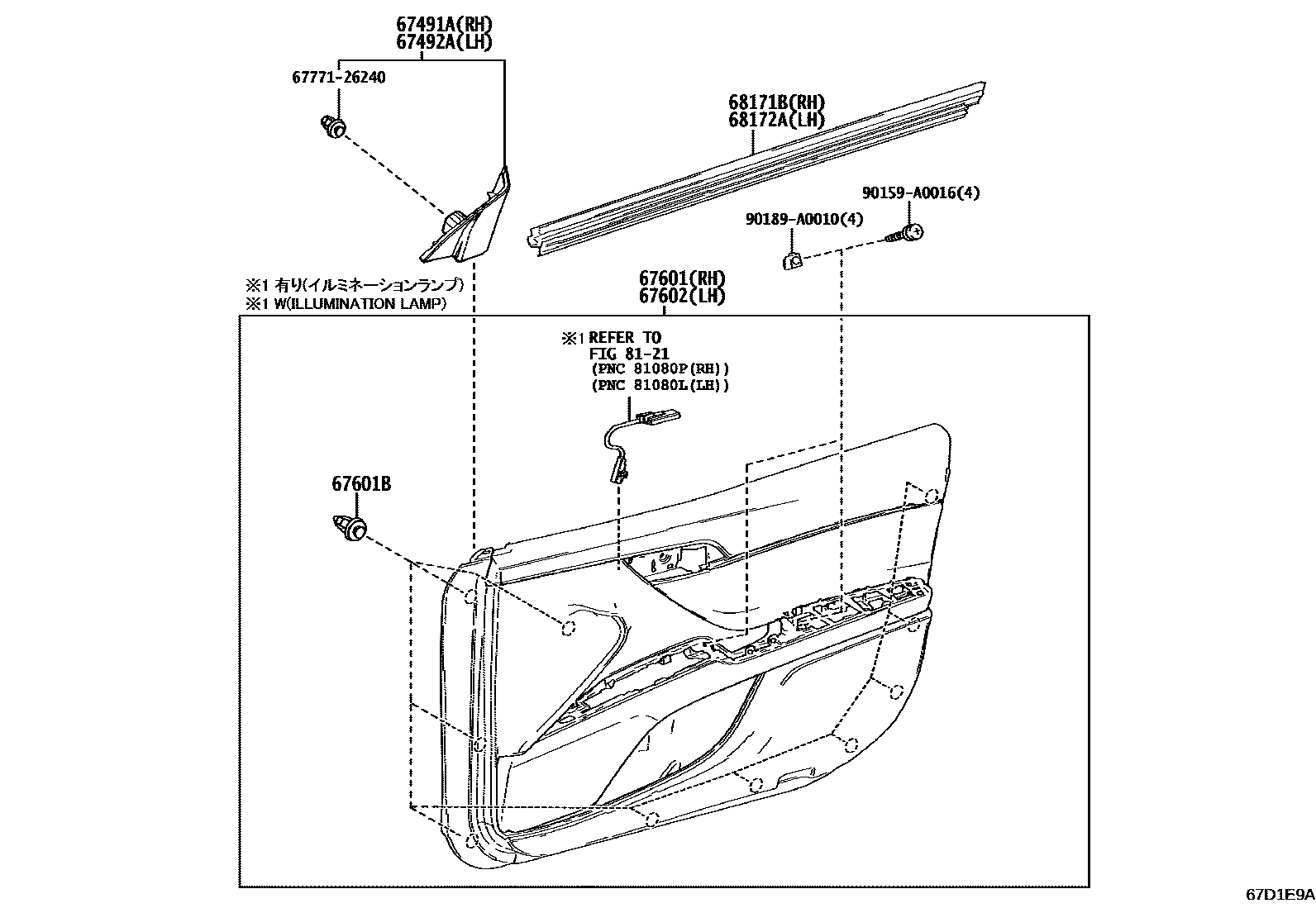

Toyota CAMRY 前门板和前门玻璃 — Figure 6701
Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-AQ010 |
| 67001A | Front door panel cushion | 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-AQ010 |
| 67111 | Outer right front door panel | 67111-06200 |
| 67112 | Outer left front door panel | 67112-06200 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-06160 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-06160 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-06141 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-06141 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-06170 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-06170 |
| 67495A | Right front door front lower door frame upper cover | 67495-06020 |
| 67496A | Left front door front lower door frame upper cover | 67496-06020 |
| 67601B | Catch (for front door trim panel) | 90467-A0048 |
| 67663D | Right door frame decorative strip | 67663-06130 |
| 67664C | Left door frame decorative strip | 67664-06130 |
| 67811 | Front door silencer pad | 67811-33080 |
| 67831 | Right front door access hole cover | 67831-06190 |
| 67831D | Catch (for front door access hole cover) | 90467-A0048 |
| 67832 | Left front door access hole cover | 67832-06190 |
| 67833D | Right front door No. 2 access hole cover | 67833-0E010 |
| 67834 | Left front door No. 2 access hole cover | 67833-0E010 |
| 67837A | Right front door ventilator seal | 67837-06031 |
| 67838A | Left front door ventilator seal | 67838-06021 |
| 67851D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MD | 67851-06020 |
| 67852D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MG | 67852-06020 |
| 67855B | Right front door panel protector | 67855-06010 |
| 67856B | Left front door panel protector | 67856-06010 |
| 67861 | Right front door seal | 67861-06180 |
| 67862 | Left front door seal | 67862-06180 |
| 67863B | Right front door seal No. 2 | 67863-06100 |
| 67863D | Right side fixing piece (for front door seal No. 2) | 67867-52010 |
| 67863G | Left side fixing piece (for front door seal No. 2) | 67867-52010 |
| 67864B | Left front door seal No. 2 | 67863-06100 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52030 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52030 |
| 67869B | Front door seal strip clip | 67868-30030 |
| 67869E | Front door seal strip clip | 67869-0E010 |
| 68101 | Right front door glass sub-assembly | 68101-06340 · 68101-AQ010 |
| 68102 | Left front door glass sub-assembly | 68102-06340 · 68102-AQ010 |
| 68141C | Right front door glass lift channel | 68141-06192 |
| 68151C | Left front door glass lift channel | 68151-06182 |
| 68171B | Right front door glass inner sealing strip | 68171-06212 |
| 68172A | Left front door glass inner sealing strip | 68172-06212 |
| 68610B | Right front door opening limiter assembly | 68610-AQ020 |
| 68620 | Left front door opening limiter assembly | 68610-AQ020 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-06020 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-06020 |
