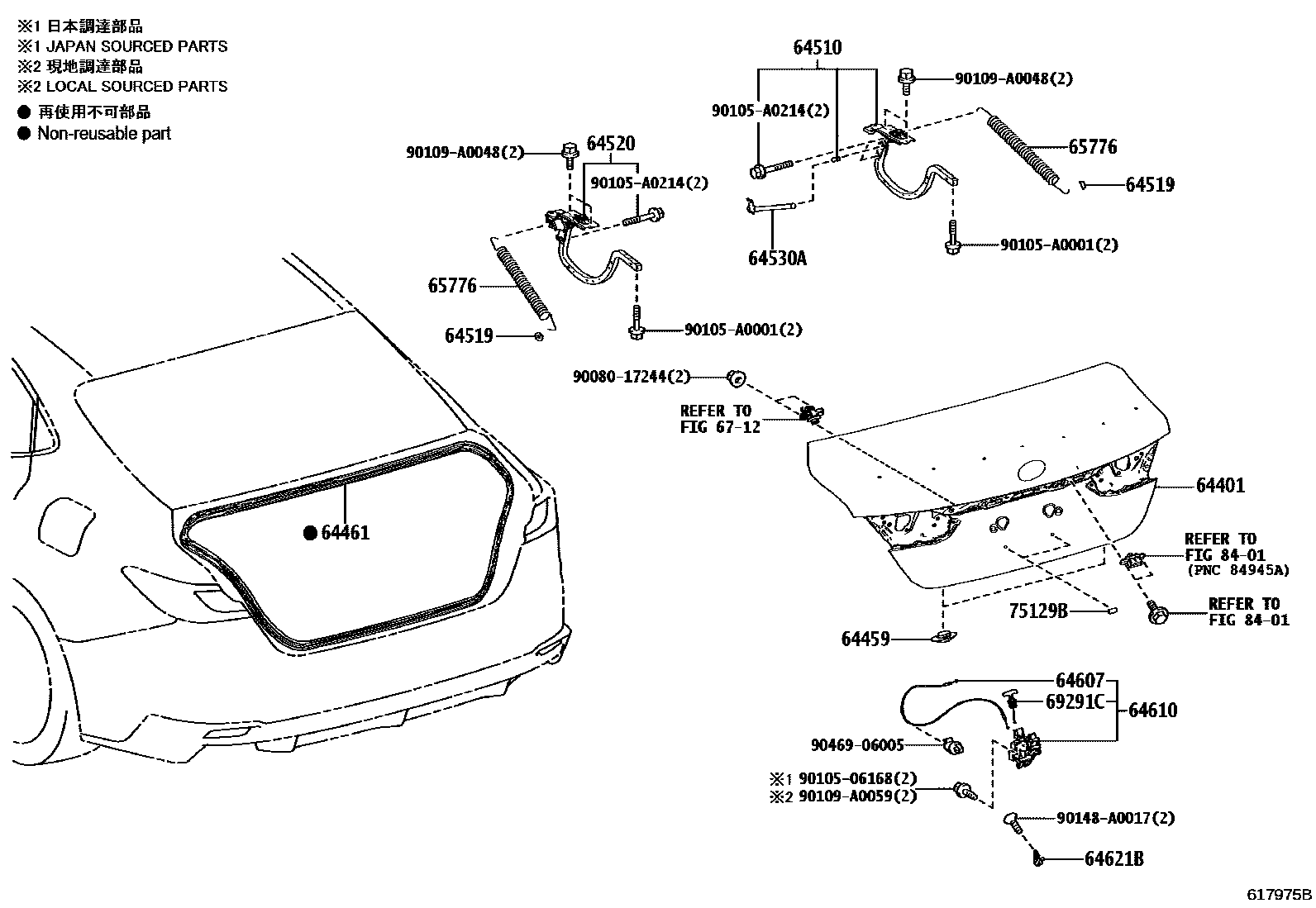

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-AQ010 · 64401-AQ030 |
| 64459 | Trunk door cushion | 64459-06040 |
| 64461 | Trunk door seal | 64461-06220 |
| 64510 | Trunk door right hinge assembly | 64510-06280 |
| 64519 | BAGUE, SUPPORT CHARNIERE PORTE BAGAGES | 64519-07020 |
| 64520 | Trunk door left hinge assembly | 64520-06100 |
| 64530A | Trunk door bracket assembly | 64530-06010 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-AQ010 |
| 64610 | Trunk door lock assembly | 64600-AQ010 |
| 64621B | Trunk door latch | 64621-06030 |
| 65776 | Rear door support rod spring | 65776-AQ010 |
| 69291C | Luggage door inner handle | 69291-33020 |
| 75129B | rear license plate cushion | 75129-AC010 |
