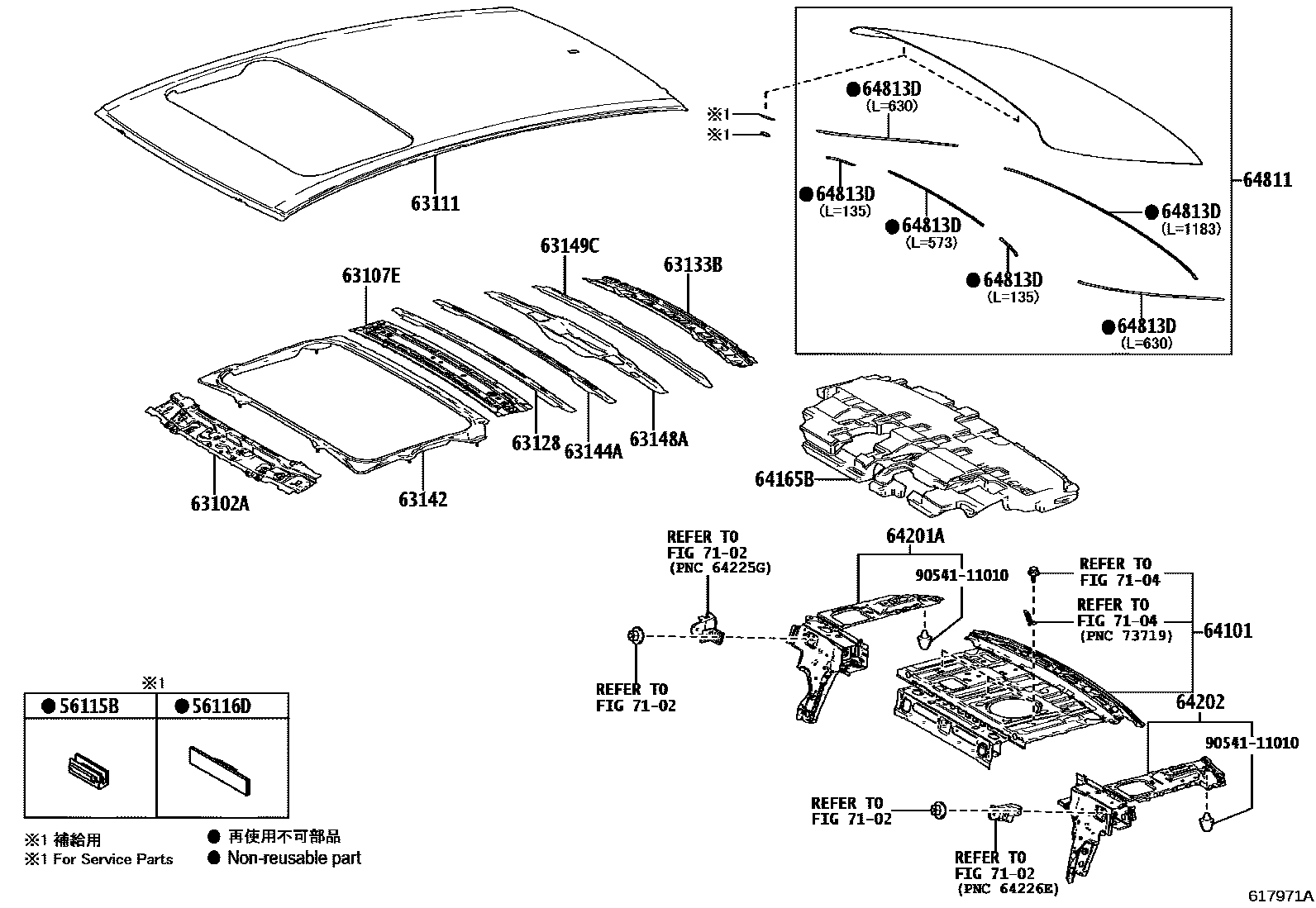

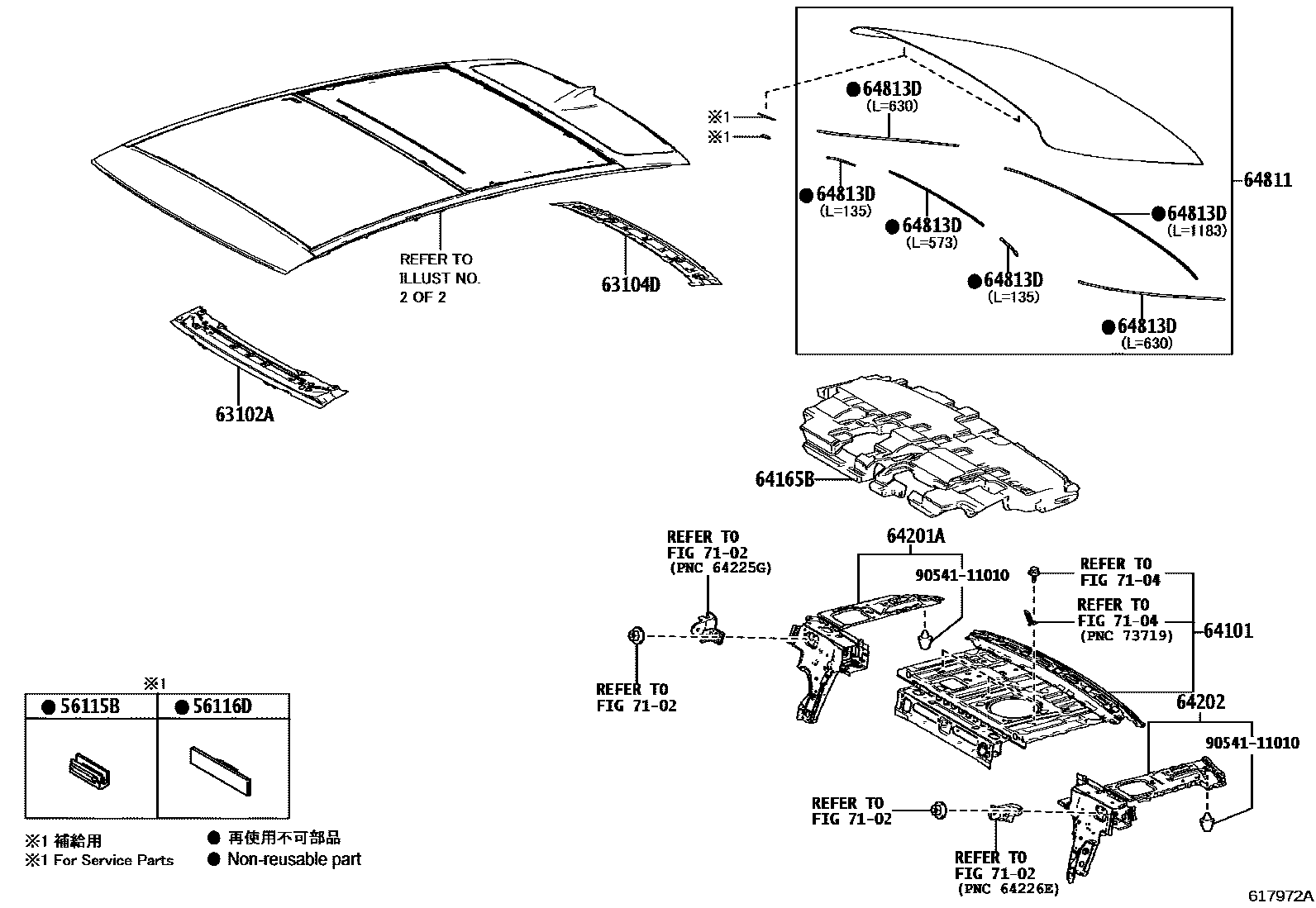

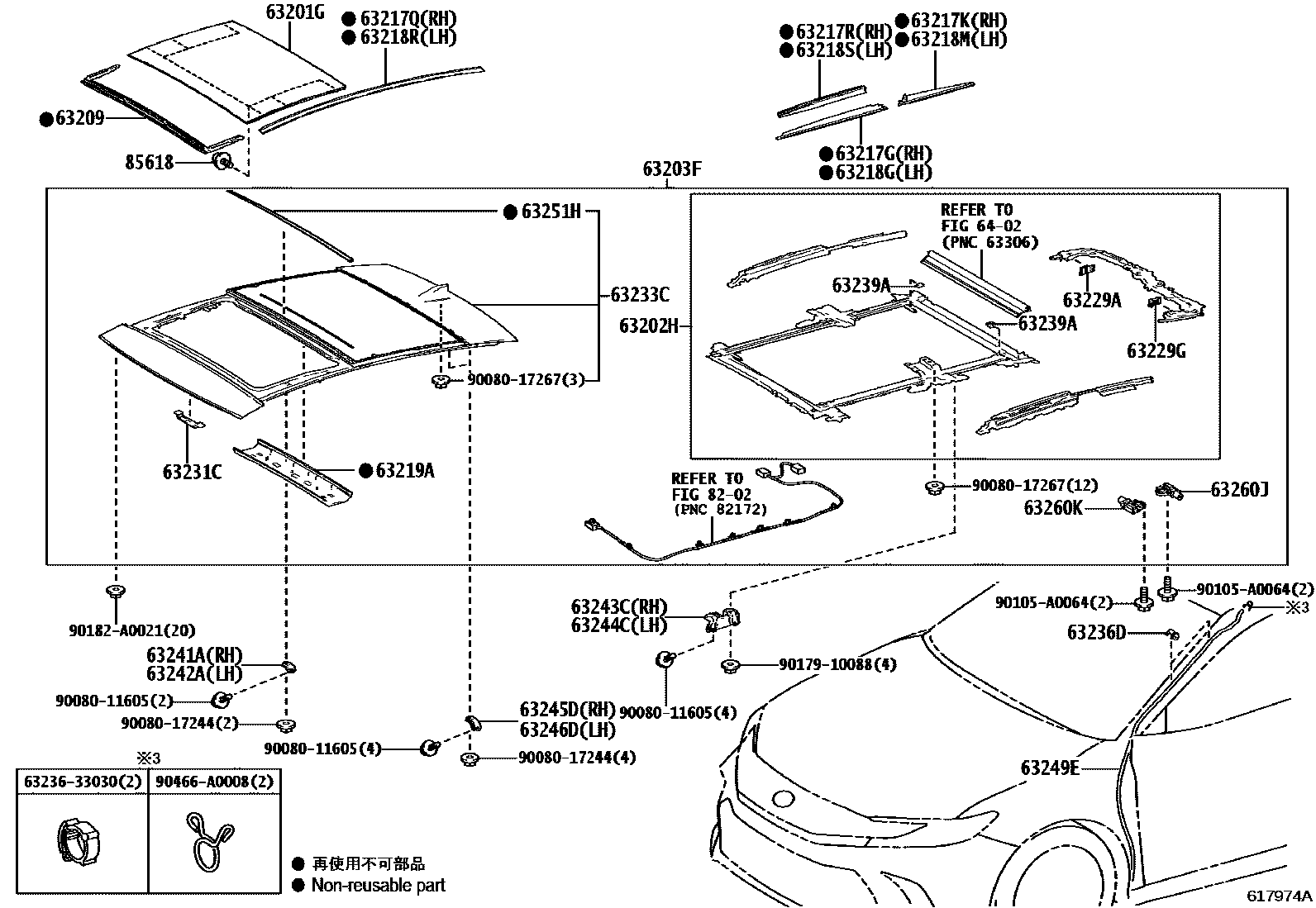

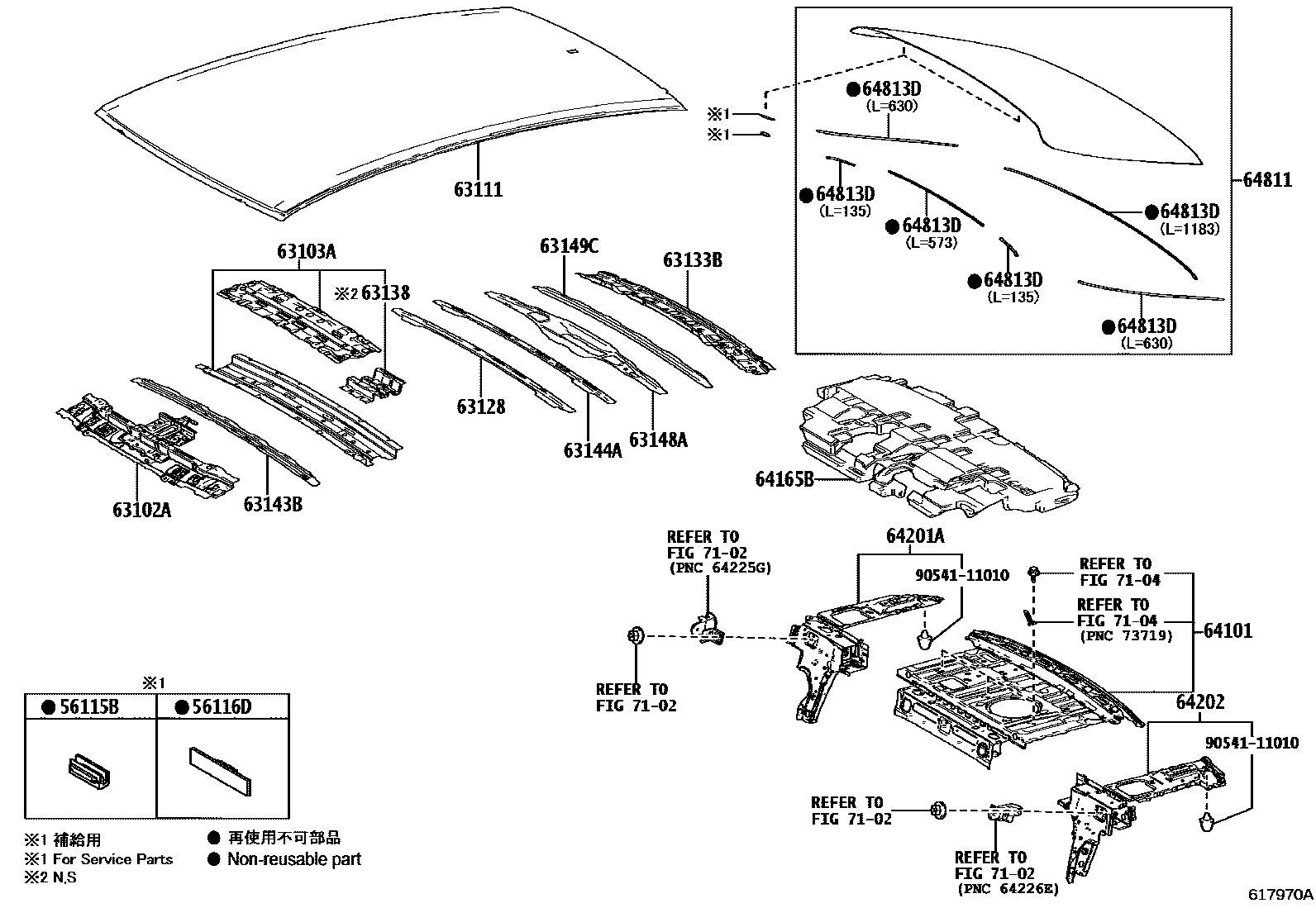

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-06916 · 63102-06917 · 63102-06918 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-AQ010 · 63103-AQ020 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-06070 |
| 63107E | SOUS-ENS. RENFORT, PANNEAU TOIT, NO.5 | 63107-06011 |
| 63111 | roof panel | 63111-06600 · 63111-06610 · 63111-06650 · 63111-06660 |
| 63128 | No. 6 roof panel reinforcement | 63128-06010 |
| 63133B | back window frame | 63133-06160 |
| 63138 | No. 2 ceiling light bracket | 63138-AQ010 |
| 63142 | No. 2 roof panel reinforcement | 63142-06140 |
| 63143B | No. 3 roof panel reinforcement | 63143-06120 |
| 63144A | No. 4 roof panel reinforcement | 63144-06230 |
| 63148A | No. 7 roof panel reinforcement | 63148-06130 |
| 63149C | Left roof panel reinforcement | 63149-06080 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06131 · 63201-06151 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06110 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-0E040 |
| 63209 | Roof deflector sub-assembly | 63209-06101 |
| 63217G | Right sliding sunroof trim | 63217-06070 · 63217-0E070 |
| 63217K | Right sliding sunroof trim | 63217-06150 |
| 63217Q | GARNITURE, LAT TOIT COULISSANT, MD | 63217-06160 |
| 63217R | GARNITURE, LAT TOIT COULISSANT, MD | 63217-06170 |
| 63218G | Sliding sunroof trim, left | 63217-0E070 · 63218-06060 |
| 63218M | Sliding sunroof trim, left | 63218-06110 |
| 63218R | GARNITURE, LAT TOIT COULISSANT, MG | 63218-06120 |
| 63218S | GARNITURE, LAT TOIT COULISSANT, MG | 63218-06130 |
| 63219A | Rear sliding sunroof trim | 63219-06020 |
| 63229A | Sliding sunroof blind stop | 63229-06020 |
| 63229G | BUTEE PARESOLEIL TOIT OUVRANT | 63229-06030 |
| 63231C | Interior light bracket | 63231-06100 |
| 63233C | Sliding skylight shelf | 63233-AQ010 · 63233-AQ020 |
| 63235D | central sliding skylight frame | 63235-06050 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-08050 |
| 63236E | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 63236-08050 |
| 63239A | ENTRETOISE, LOGEMENT TOIT COULISSANT | 63239-06010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-06110 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-06110 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-06090 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-06100 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-06090 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-06090 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06090 |
| 63248E | Left rear sliding sunroof drain hose | 63247-06090 |
| 63249E | Sliding skylight drain hose | 63249-06170 · 63249-06190 |
| 63251H | Sliding skylight seal | 63251-06100 · 63251-06120 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-AQ010 |
| 63260J | Sliding sunroof driving gear assembly | 63260-AQ020 |
| 63260K | Sliding sunroof driving gear assembly | 63260-AQ030 |
| 63669B | Sliding skylight drain seal | 63669-06030 |
| 64101 | Upper back panel sub-assembly | 64101-06430 |
| 64165B | No. 1 upper back panel hole cover | 64165-06290 · 64165-06360 |
| 64201A | Glove box right extension sub-assembly | 64201-06230 |
| 64202 | Glove box left extension section sub-assembly | 64202-06230 |
| 64811 | back window glass | 64801-06221 |
| 64813D | Back window glass adhesive seal | 64813-06180 · 64813-06220 · 64813-06230 · 64813-06440 |
| 85618 | VIS, BUTEE MOTEUR TOIT COULISSANT | 85618-21010 |
