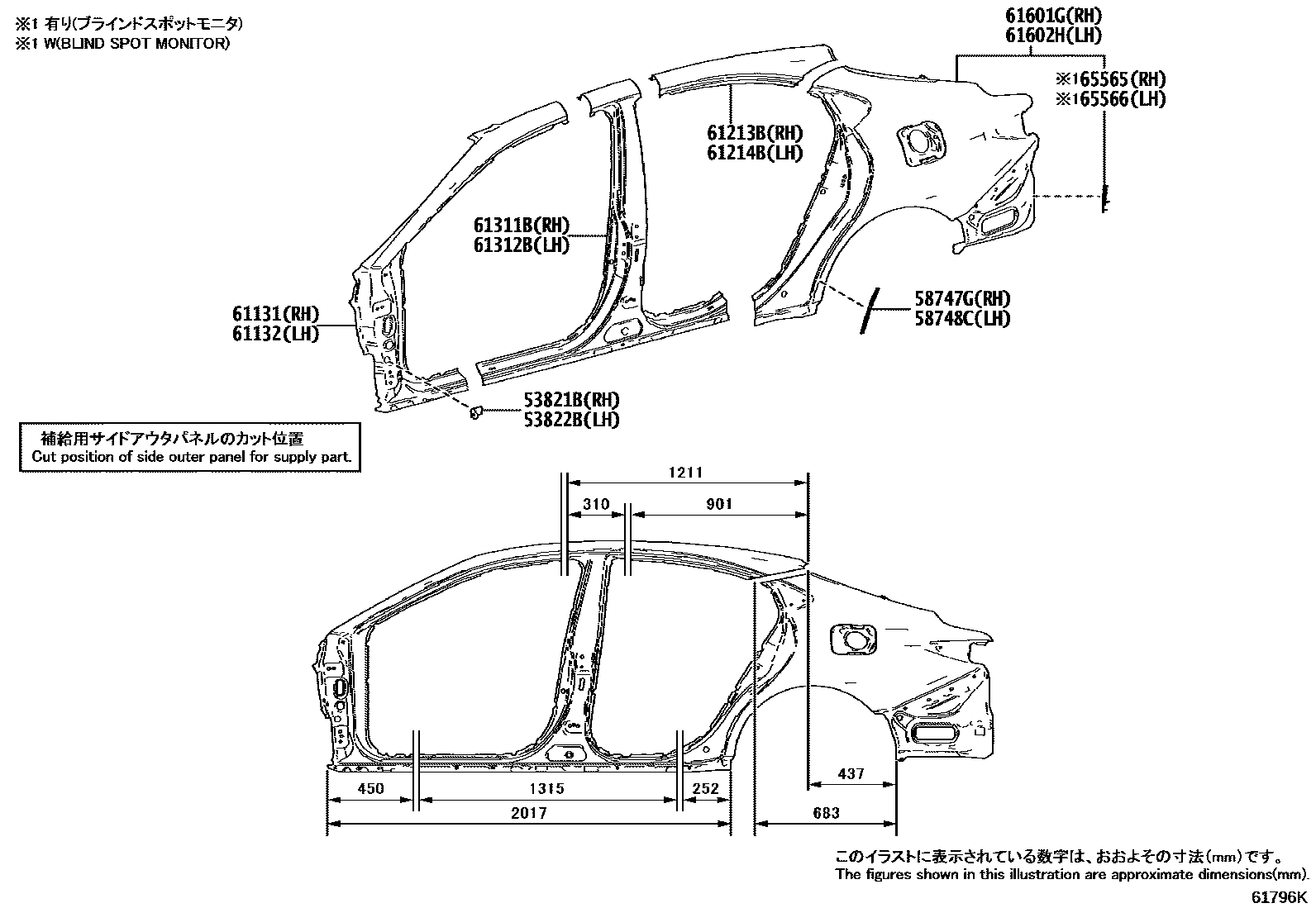

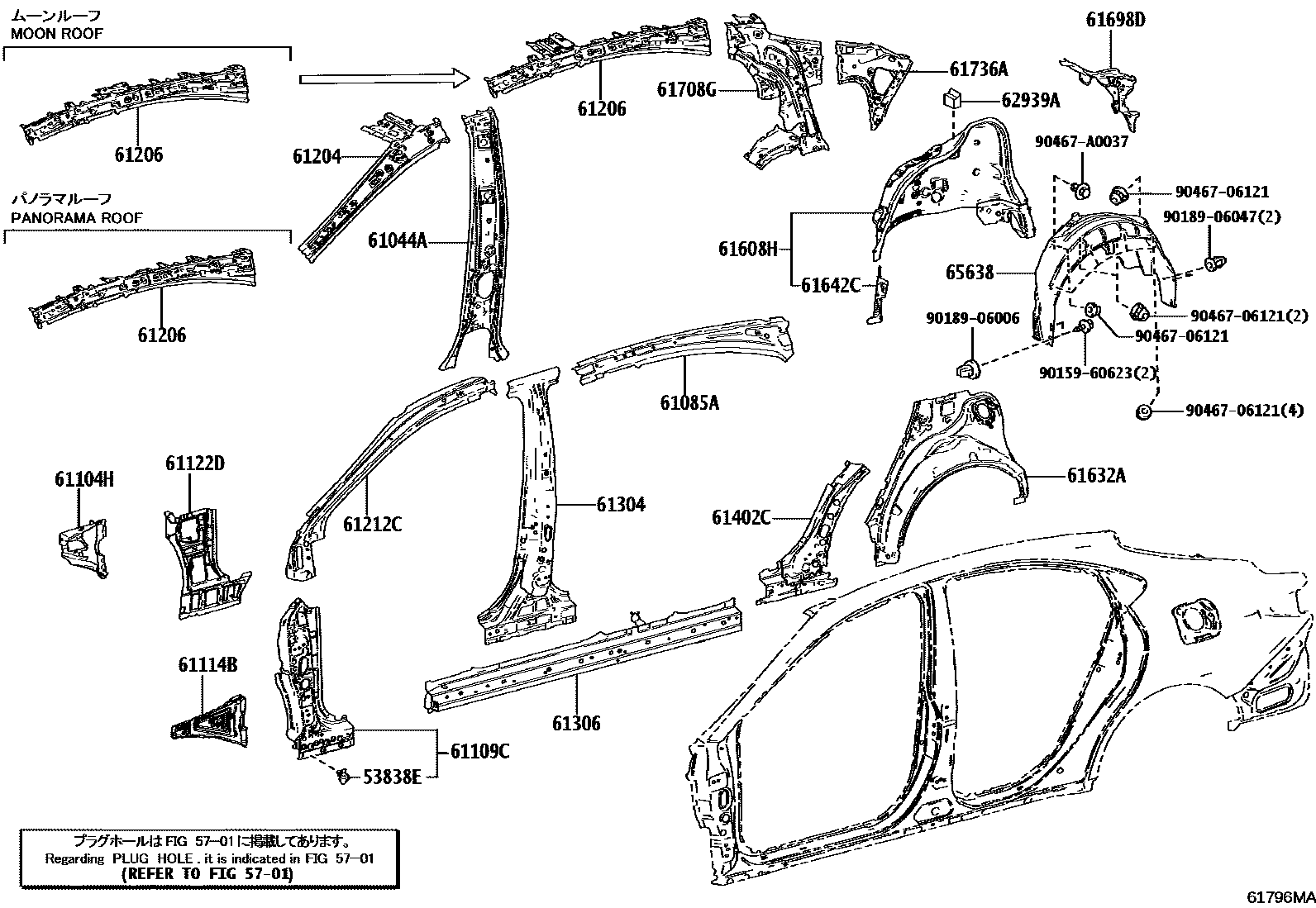

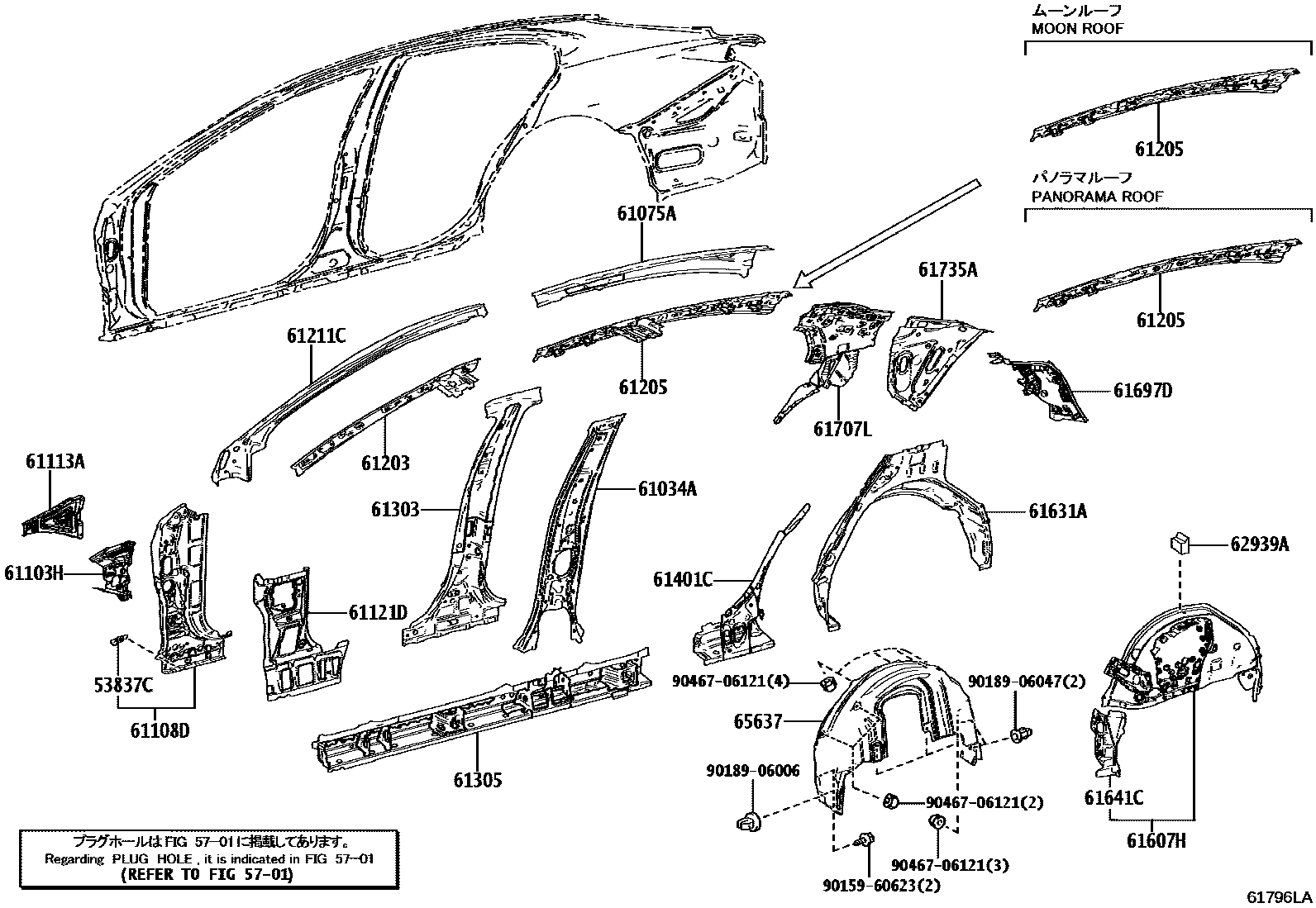

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 3 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-06180 |
| 53822B | Left front fender rear support | 53821-06180 |
| 53837C | No. 2 right front side panel bracket | 53837-06010 |
| 53838E | No. 2 left front side panel bracket | 53838-06020 |
| 58747G | Right rear side panel protector | 58747-06130 |
| 58748C | Left rear side panel protector | 58748-06130 |
| 61034A | No. 3 right inner column sub-assembly | 61034-06020 |
| 61044A | No. 3 left inner column sub-assembly | 61044-06030 |
| 61075A | No. 3 right longitudinal beam sub-assembly on the outside | 61075-AQ010 |
| 61085A | No. 3 left longitudinal beam sub-assembly on the outside | 61085-AQ010 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61103-06070 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61104-06070 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-06170 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-06180 |
| 61113A | No. 2 right outer panel | 61113-06020 |
| 61114B | No. 2 left outer panel | 61114-06020 |
| 61121D | Right front panel | 61121-06170 |
| 61122D | Left front panel | 61122-06160 |
| 61131 | Right body outer front upper pillar | 61131-AQ010 |
| 61132 | Left body outer front upper pillar | 61132-AQ010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06210 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06210 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-AQ010 · 61205-AQ900 · 61205-AQ901 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-AQ010 · 61206-AQ900 · 61206-AQ901 |
| 61211C | Roof right side rail | 61211-06180 |
| 61212C | Roof left side rail | 61212-06170 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-AQ020 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-AQ020 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-AQ010 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-AQ010 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-AQ010 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-AQ010 |
| 61311B | Right body outer center pillar | 61311-AQ010 |
| 61312B | Left body outer center pillar | 61312-AQ010 |
| 61401C | Right door outer sill panel sub-assembly | 61401-AQ010 |
| 61402C | Left door outer sill sub-assembly | 61402-AQ010 |
| 61601G | SOUS-ENS. PANNEAU, COTE ARR CARROSSERIE ARR, MD | 61601-AQ020 · 61601-AQ030 |
| 61602H | SOUS-ENS. PANNEAU, COTE ARR CARROSSERIE ARR, MG | 61602-AQ020 · 61602-AQ030 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-06090 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-06090 |
| 61631A | Right wheel cover outer panel | 61631-06200 |
| 61632A | Left side wheel cover outer panel | 61632-06905 |
| 61641C | Right front side wheel housing corner panel | 61641-06140 |
| 61642C | Left front side wheel housing corner panel | 61642-06140 |
| 61697D | Right side enclosure end cover | 61697-AQ900 |
| 61698D | Left side enclosure end cover | 61698-AQ900 |
| 61707L | Right front roof inner panel sub-assembly | 61707-AQ900 |
| 61708G | Left front roof inner panel sub-assembly | 61708-AQ900 |
| 61735A | Right rear roof inner panel | 61735-06160 |
| 61736A | Left rear roof inner panel | 61736-06160 |
| 62939A | Side ventilation silencers | 62939-06080 |
| 65565 | Right side panel rear end lining | 65565-06110 |
| 65566 | Left side panel rear end lining | 65565-06110 |
| 65637 | Right rear wheel house lining | 65637-AQ010 |
| 65638 | Left rear wheel house lining | 65638-AQ010 |
