Toyota CAMRY 地板隔热垫 — Figure 5802

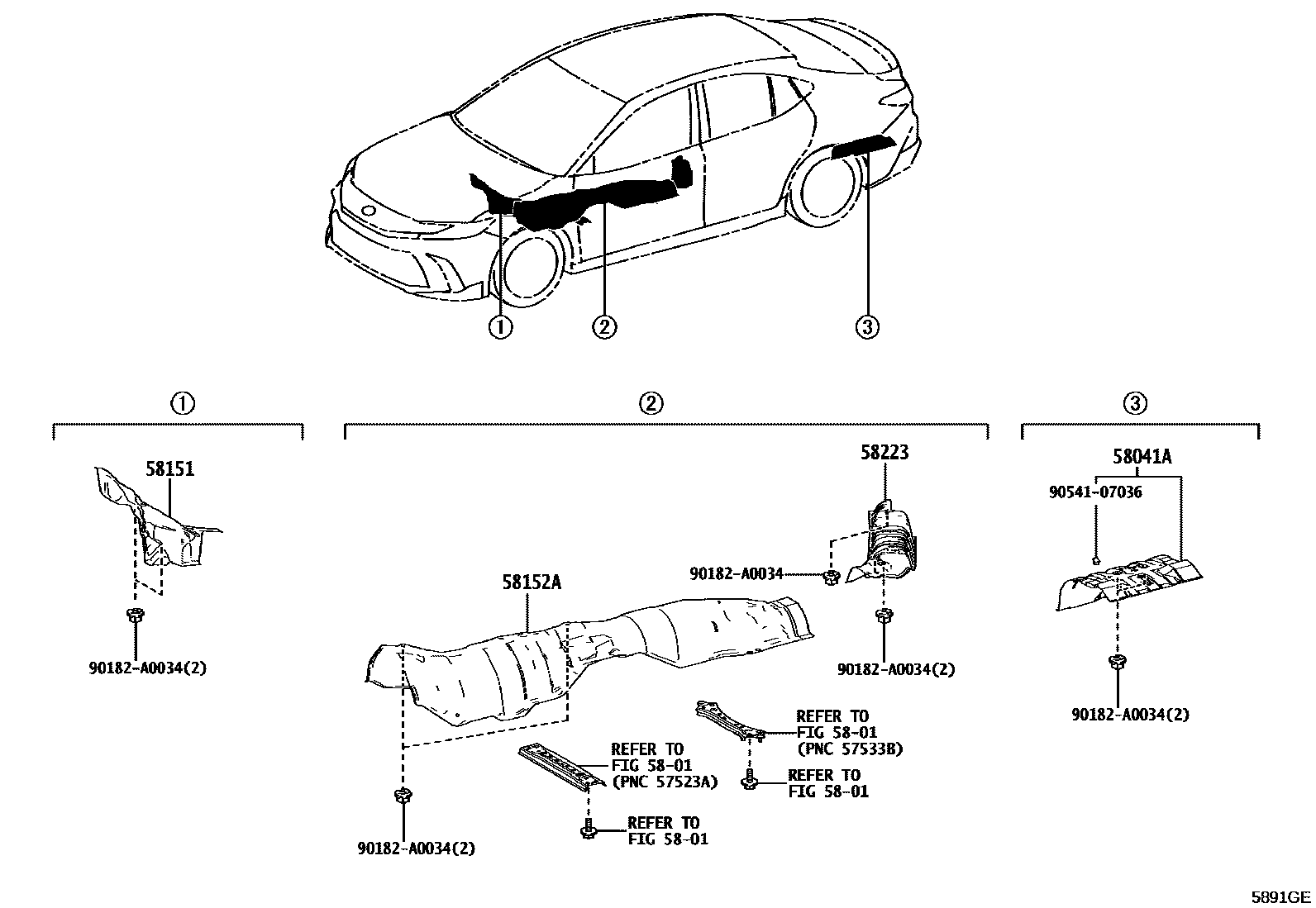

Toyota CAMRY EPC diagram 5802, 地板隔热垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58041A | Front floor insulation pad sub-assembly No. 1 | 58041-06020 · 58041-06030 |
| 58151 | Front floor insulation mat No. 1 | 58151-06010 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-06161 · 58152-06240 |
| 58223 | Central Floor Insulating Mat No. 2 | 58223-06051 · 58223-06090 |
