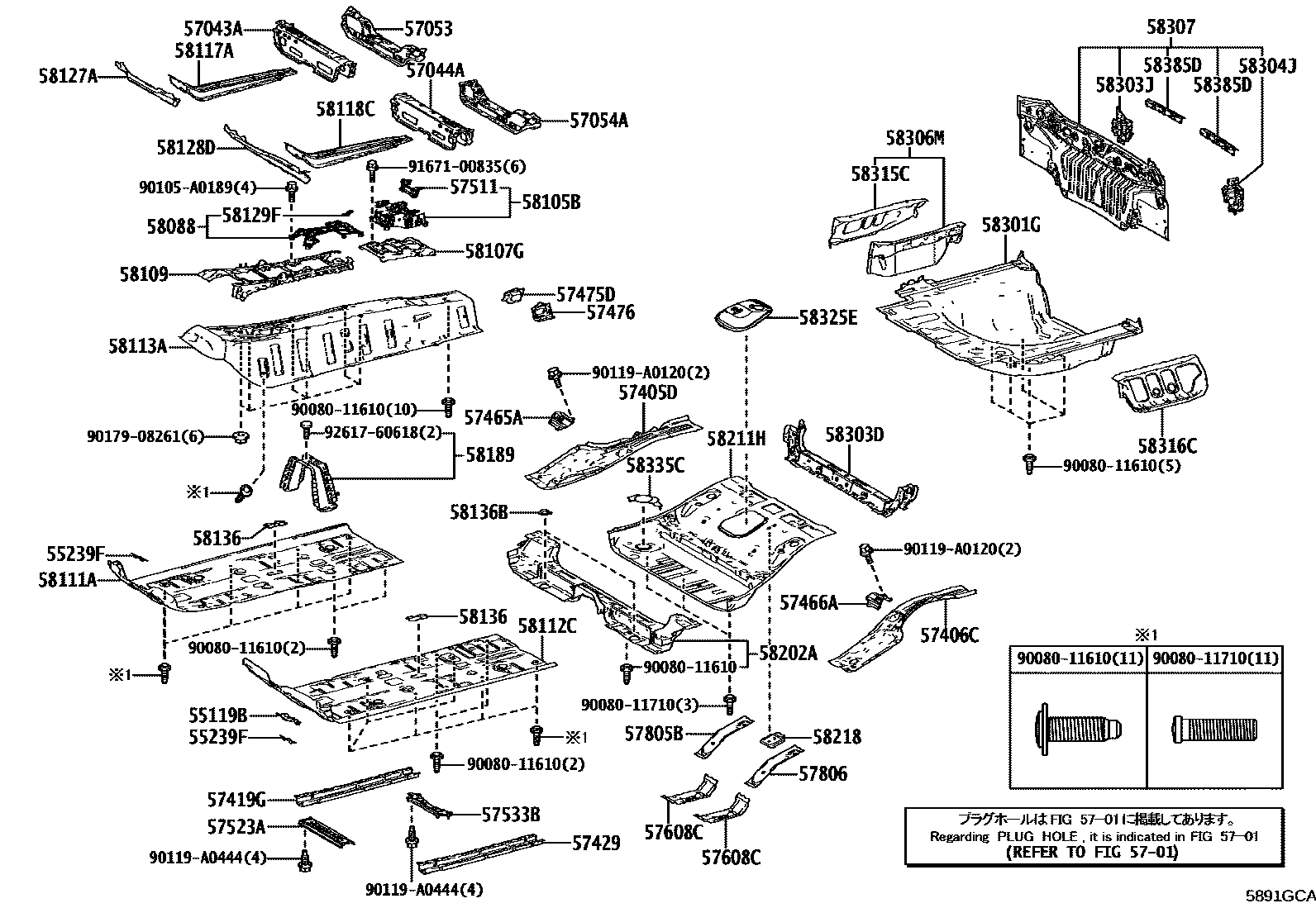

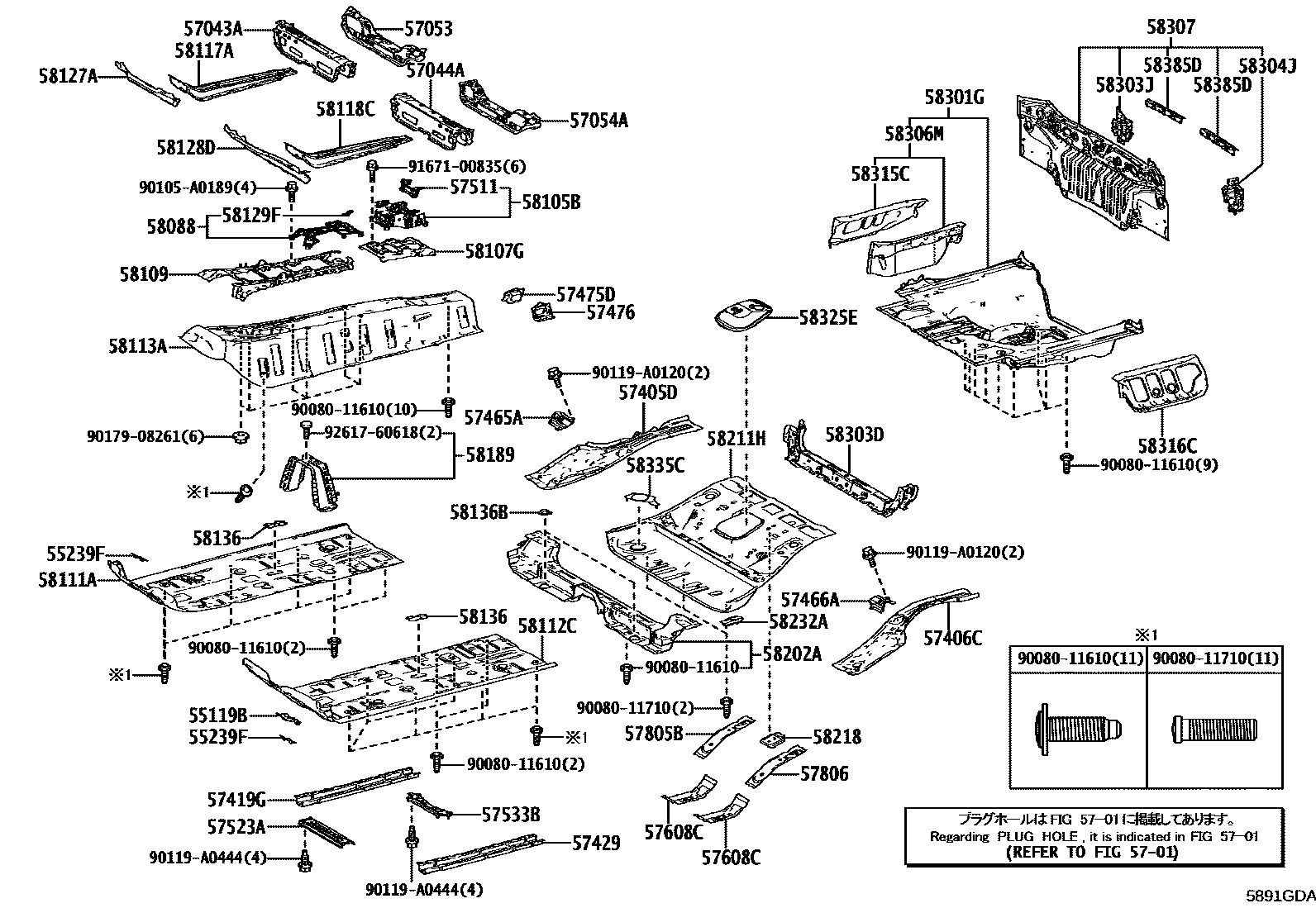

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55119B | PROLONGEMENT, TABLIER, GAUCHE | 55119-06050 |
| 55239F | PLAQUE, ISOLANT DE TABLEAU DE BORD, NO.3 | 55239-06050 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-06100 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-06100 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-06090 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-06100 |
| 57405D | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MD | 57405-06010 |
| 57406C | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MG | 57406-06060 |
| 57419G | Front floor right rear lower reinforcement | 57419-06090 |
| 57429 | Left rear reinforcement under front floor | 57419-06090 |
| 57465A | Center floor right beam corner panel | 57465-06010 |
| 57466A | Center floor left transom corner panel | 57466-06010 |
| 57475D | Front floor right cross member panel | 57475-06060 |
| 57476 | Front floor left cross member panel | 57476-06050 |
| 57511 | Front floor center reinforcement | 57511-06110 |
| 57523A | TIRANT DE TRAVERSE DE PLANCHER CENTRAL | 57523-06010 |
| 57533B | Front floor center bracket | 57533-06070 |
| 57608C | Fuel tank mounting bracket sub-assembly | 57608-06130 · 57608-06170 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-06040 · 57805-06120 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57805-06040 · 57805-06120 |
| 58088 | SOUS-ENS. SUPPORT, TRINGL CHG VIT PLANCHER | 58088-06070 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-06120 |
| 58107G | SOUS-ENS. RENFORT, BASE FREIN STATIONNEMENT | 58107-06050 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-06010 |
| 58111A | Front floor right bottom panel | 58111-06141 |
| 58112C | Front floor left bottom panel | 58112-06011 |
| 58113A | front floor center panel | 58113-06080 |
| 58117A | Front floor right reinforcement | 58117-06010 |
| 58118C | Front floor left reinforcement | 58117-06010 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-06020 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-06090 |
| 58129F | COLLIER, CABLE CHANGEMENT RAPPORT & SELECTION | 58129-06050 |
| 58136 | Front floor hole cover | 58136-06050 |
| 58136B | Center floor hole cover | 58136-06070 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06140 |
| 58202A | Center floor front floor sub-assembly | 58202-06160 |
| 58211H | central floor base | 58211-06340 · 58211-06370 |
| 58218 | seat floor | 58218-06070 |
| 58232A | SUPPORT, ISOLANT THERMIQUE PLANCHER CENTRAL, NO.2 | 58232-06010 |
| 58301G | SOUS-ENS. PANNEAU, PLANCHER ARR | 58301-06910 · 58301-06913 |
| 58303D | Rear floor partition sub-assembly | 58303-06120 |
| 58303J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE DROIT | 58303-06030 |
| 58304J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE GAUCHE | 58304-06050 |
| 58306M | Rear floor side panel sub-assembly | 58306-06120 |
| 58307 | Body lower back panel sub-assembly | 58307-06221 |
| 58315C | Rear floor right side panel extension | 58315-06010 |
| 58316C | Rear floor left side panel extension | 58316-06040 |
| 58325E | Rear floor access hole cover | 58325-06090 |
| 58335C | Front floor right panel | 58335-06050 |
| 58385D | Rear bumper cover bracket | 58385-06150 |
