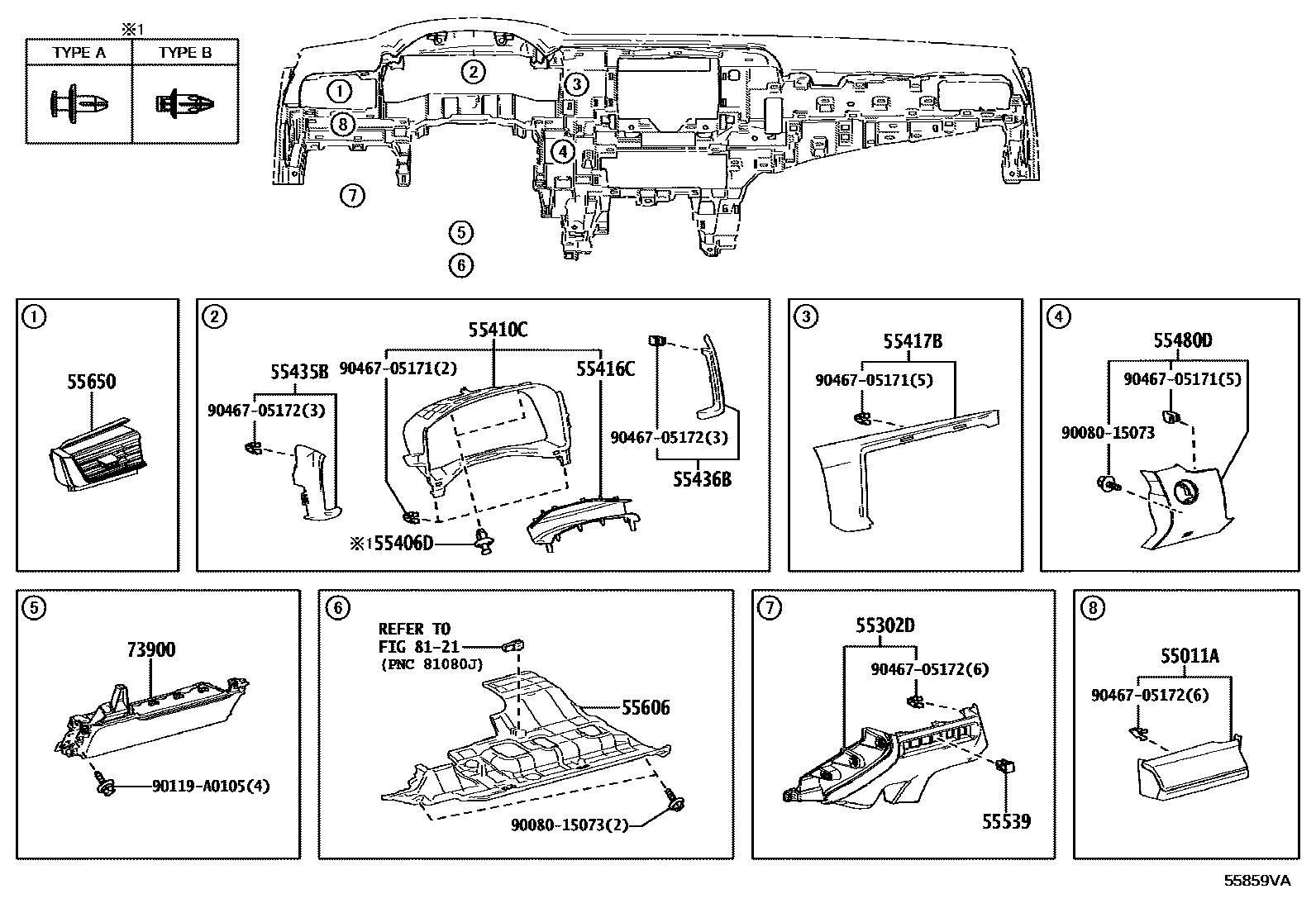

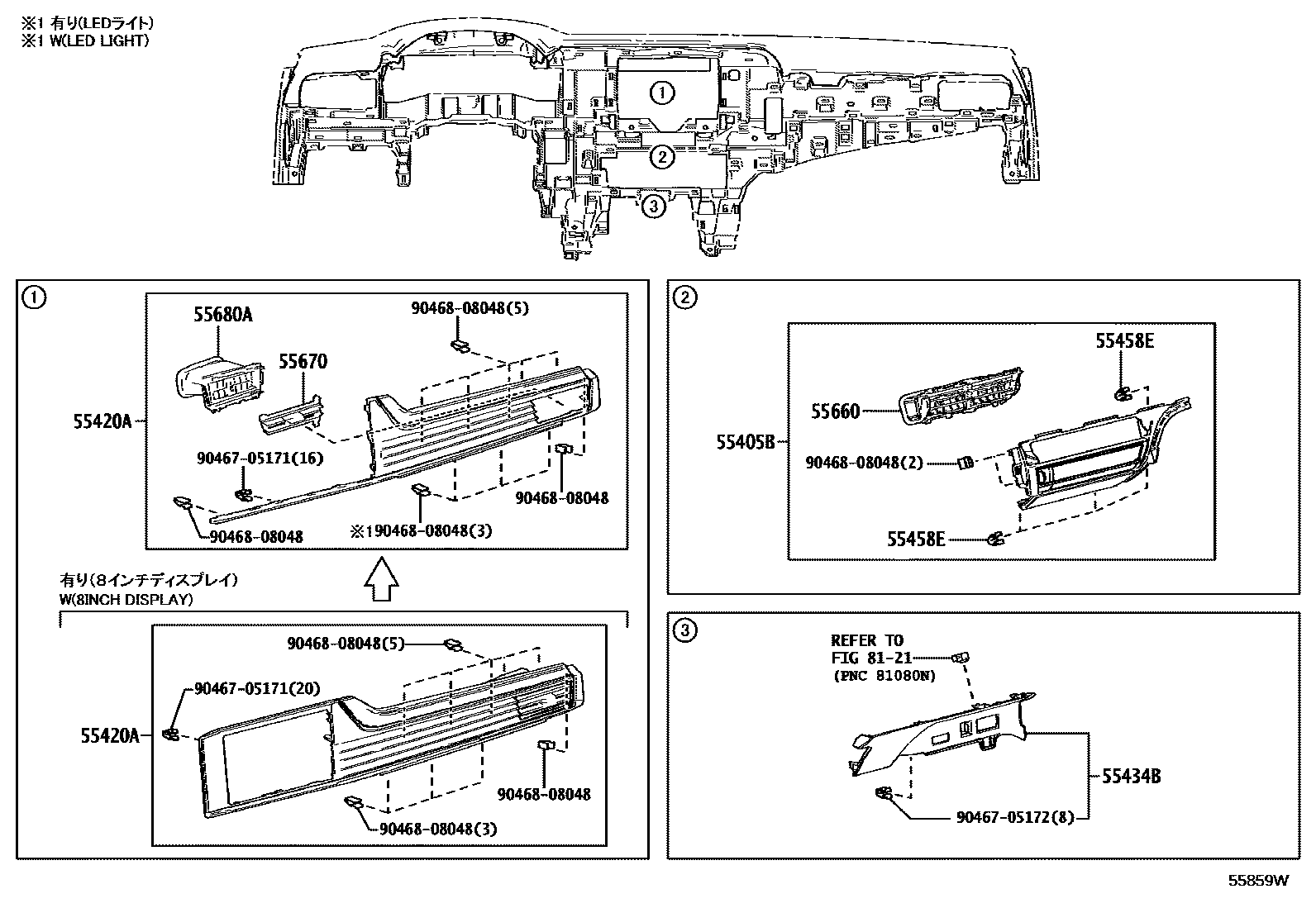

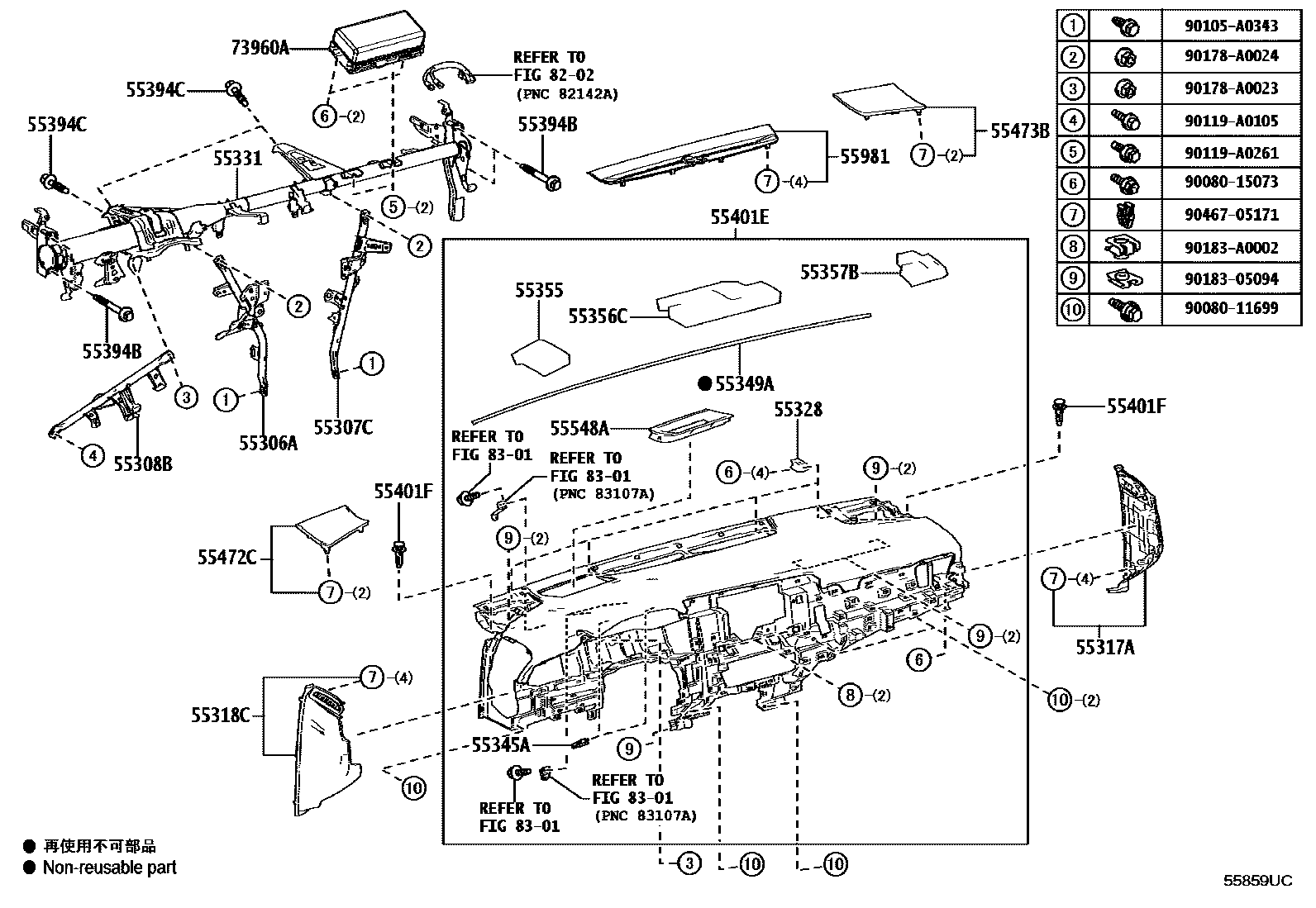

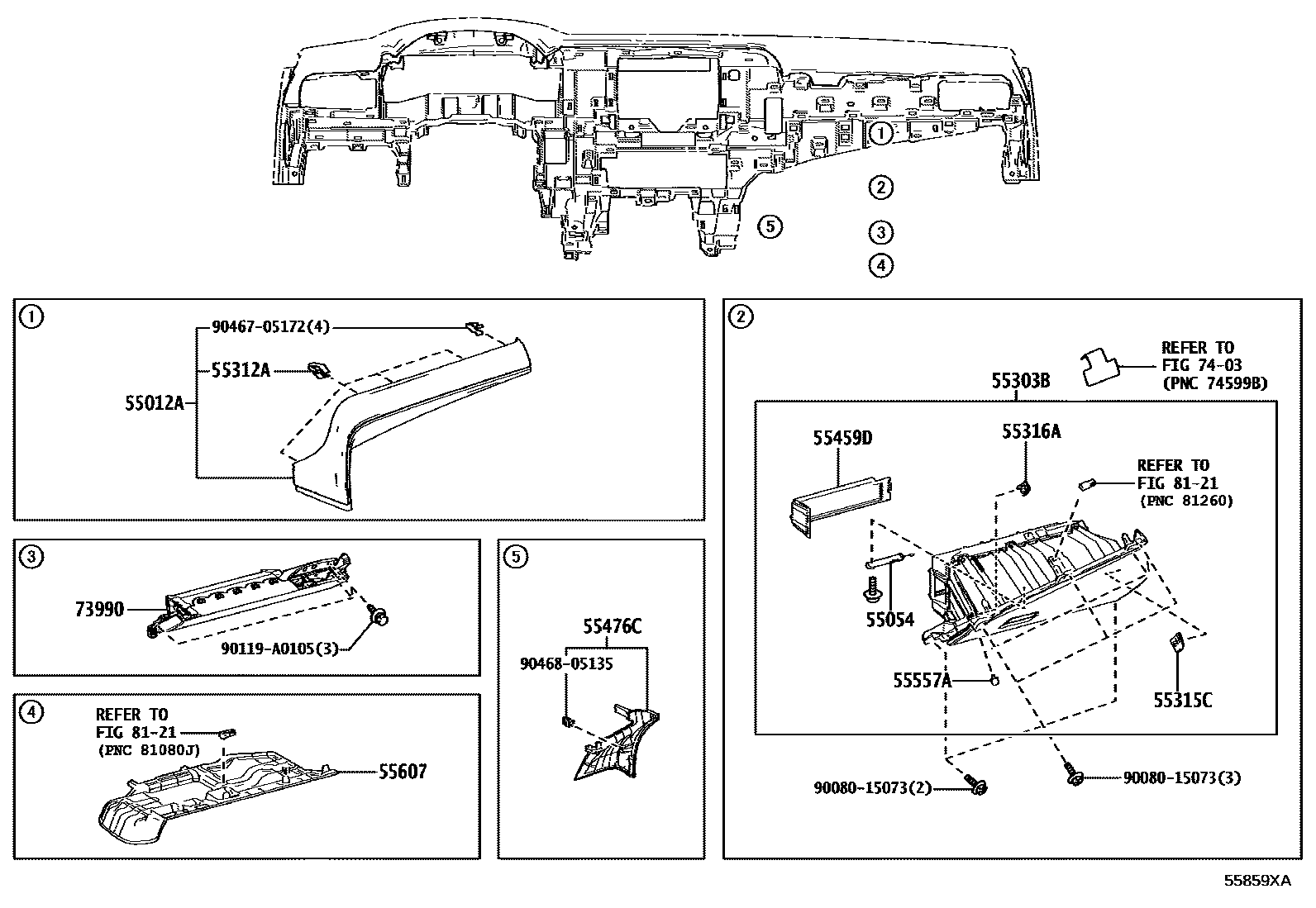

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-06100 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-AQ010 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-AQ010 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-06160 |
| 55315C | RENFORT, COTE INSTRUMENT, SUPERIEUR MD | 55315-06140 |
| 55316A | RENFORT, COTE INSTRUMENT, SUPERIEUR MG | 55316-06310 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-AQ010 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-06170 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-AQ010 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-AQ010 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-AQ010 |
| 55394B | Dashboard bolts | 90105-A0280 |
| 55394C | Dashboard bolts | 90119-A0312 |
| 55401F | Clip (for safety mat) | 52161-02020 |
| 55410C | Instrument cluster decorative panel assembly | 55404-AQ010 |
| 55416C | Instrument cluster decorative panel fixings | 55416-AQ010 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-AQ010 · 55420-AQ020 · 55420-AQ030 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-AQ010 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-AQ010 |
| 55458E | Clip (for instrument panel lower cover) | 90467-05171 |
| 55459D | Instrument panel lower left cover | 55459-06090 |
| 55472C | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.1 | 55472-06141 |
| 55473B | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.2 | 55473-06141 |
| 55539 | Spare switch hole cover | 55539-06110 |
| 55548A | Dashboard hole cover | 55548-06081 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-AQ010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06290 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-AQ010 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-AQ010 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-AQ010 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-AQ010 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-AQ010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06230 |
