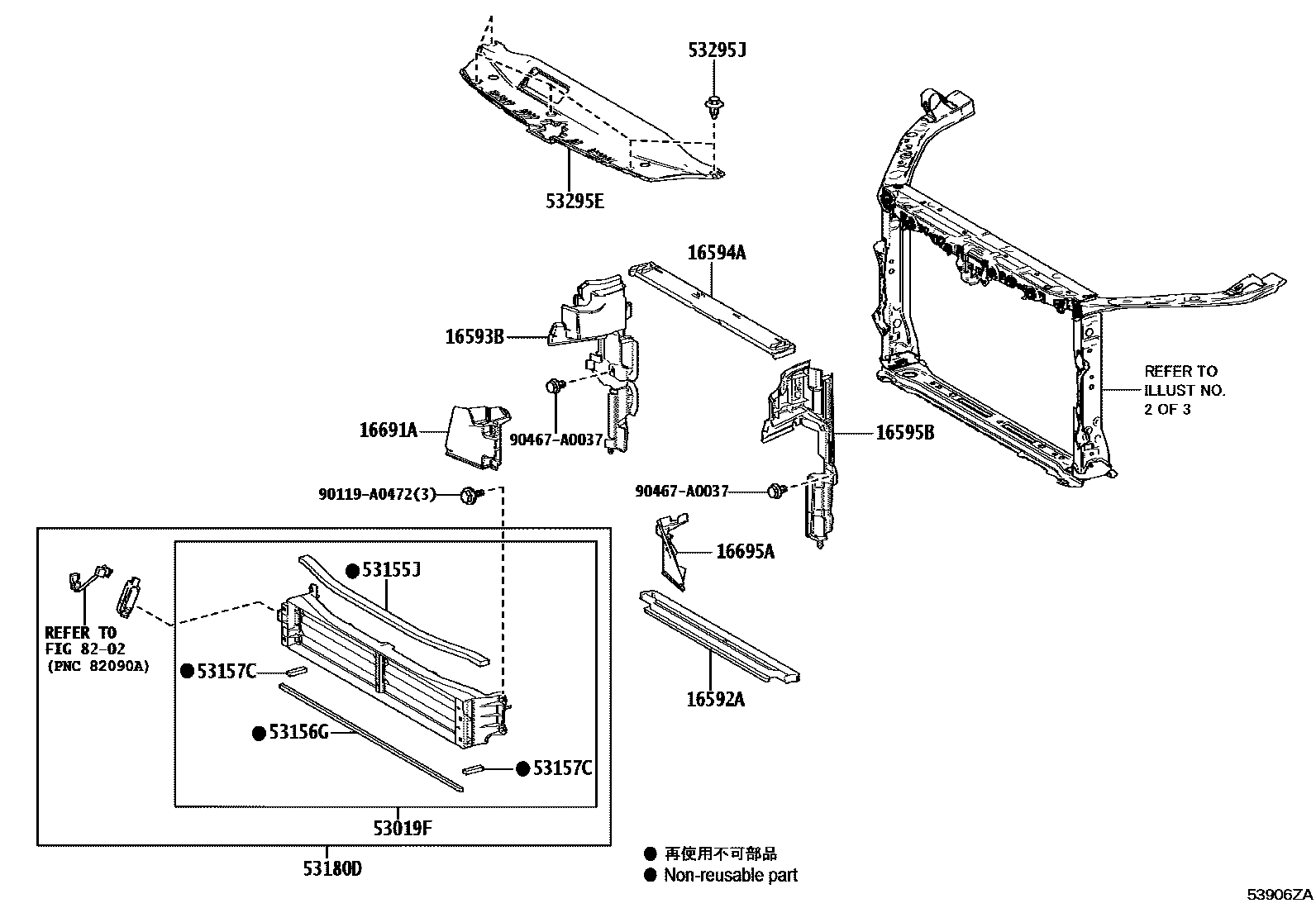

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-F0010 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-F0640 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-F0010 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-F0660 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-F0290 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-F0350 |
| 52081A | Front bumper right side stay sub-assembly | 52081-06010 |
| 52082A | Front bumper left stay sub-assembly | 52081-06010 |
| 52141H | Front bumper right upper arm | 52141-06220 |
| 52142J | Front bumper left upper arm | 52142-06210 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-06010 |
| 53155J | JOINT ETANCHEITE NO.1 CALANDRE RADIATEUR | 53155-06040 |
| 53156G | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-06030 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-06050 |
| 53180D | ENS. DE VOLET DE RADIATEUR | 53180-06091 · 53180-06092 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06280 |
| 53203 | Radiator left bracket sub-assembly | 53203-06320 |
| 53205 | Radiator upper bracket sub-assembly | 53205-06901 |
| 53253B | Radiator mounting bracket | 53253-06010 |
| 53295E | Cold air intake pipe seal | 53295-06180 |
| 53295J | CLIP, JOINT CONDUIT ADMISSION AIR FRAIS | 90467-07217 |
| 53301G | engine cover cushion | 90541-15033 |
| 53384G | COUSSIN, CAPOT, CENTRAL | 90541-09145 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-06010 |
| 53701 | Right front fender fender sub-assembly | 53701-06260 |
| 53702 | Left front fender fender sub-assembly | 53702-06310 |
| 53707E | Fender right fender sub-assembly | 53707-06060 |
| 53708D | Fender left fender sub-assembly | 53708-06010 |
| 53731D | Right front fender to cowl side upper beam | 53731-06190 |
| 53732D | Left front fender to cowl side upper beam | 53732-06180 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06150 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06150 |
| 53736 | Right front fender fender seal | 53736-06070 |
| 53737B | Left front fender fender seal | 53737-06130 |
| 53785A | Right front fender corner plate | 53785-06010 |
| 53786B | Left front fender corner plate | 53786-06010 |
| 53821G | Right front fender rear support | 53821-06140 |
| 53822F | Left front fender rear support | 53822-06130 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-06130 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-06140 |
| 55101 | Front apron sub-assembly | 55101-06610 |
| 55111C | BOULON, SOUDE(POUR TABLEAU BORD) | 90080-11610 |
| 55210 | Front wall insulation pad assembly | 55210-06520 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-06580 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-06010 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-10217 · 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-06020 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-10217 · 90467-13079 |
| 57104A | Front cross member sub-assembly | 57104-06060 |
