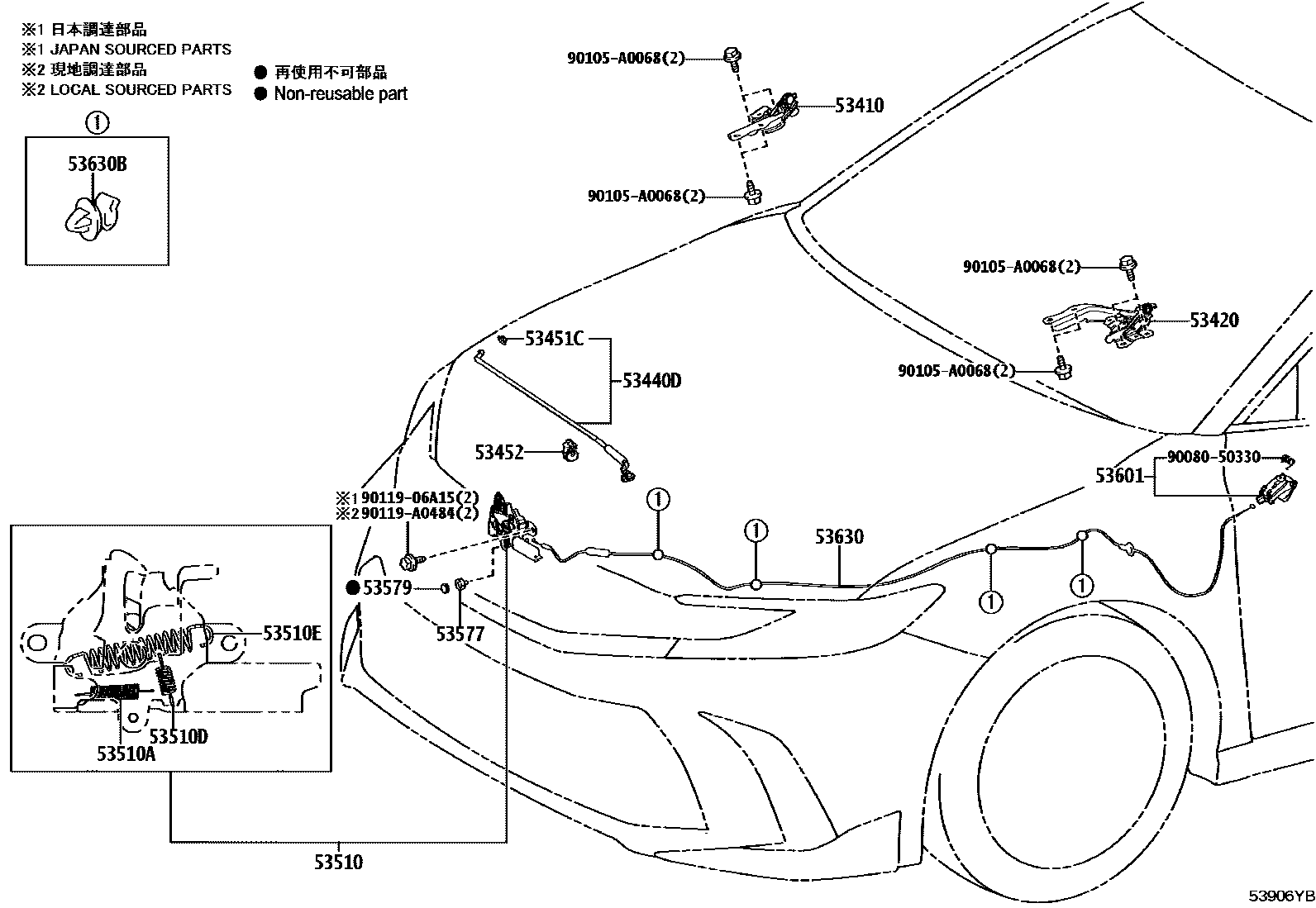

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-AQ020 |
| 53420 | Engine cover left hinge assembly | 53420-AQ020 |
| 53440D | Engine cover support rod assembly | 53440-06230 |
| 53451C | Engine cover support rod clip | 53454-12040 |
| 53452 | Engine cover stay rod fixing | 53452-AQ010 |
| 53510 | Engine cover lock assembly | 53510-06330 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53577 | engine cover lock bolt | 53577-0E010 |
| 53579 | Engine hood lock nut cover | 53579-0E010 |
| 53630 | Engine hood lock control cable assembly | 53630-06231 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
