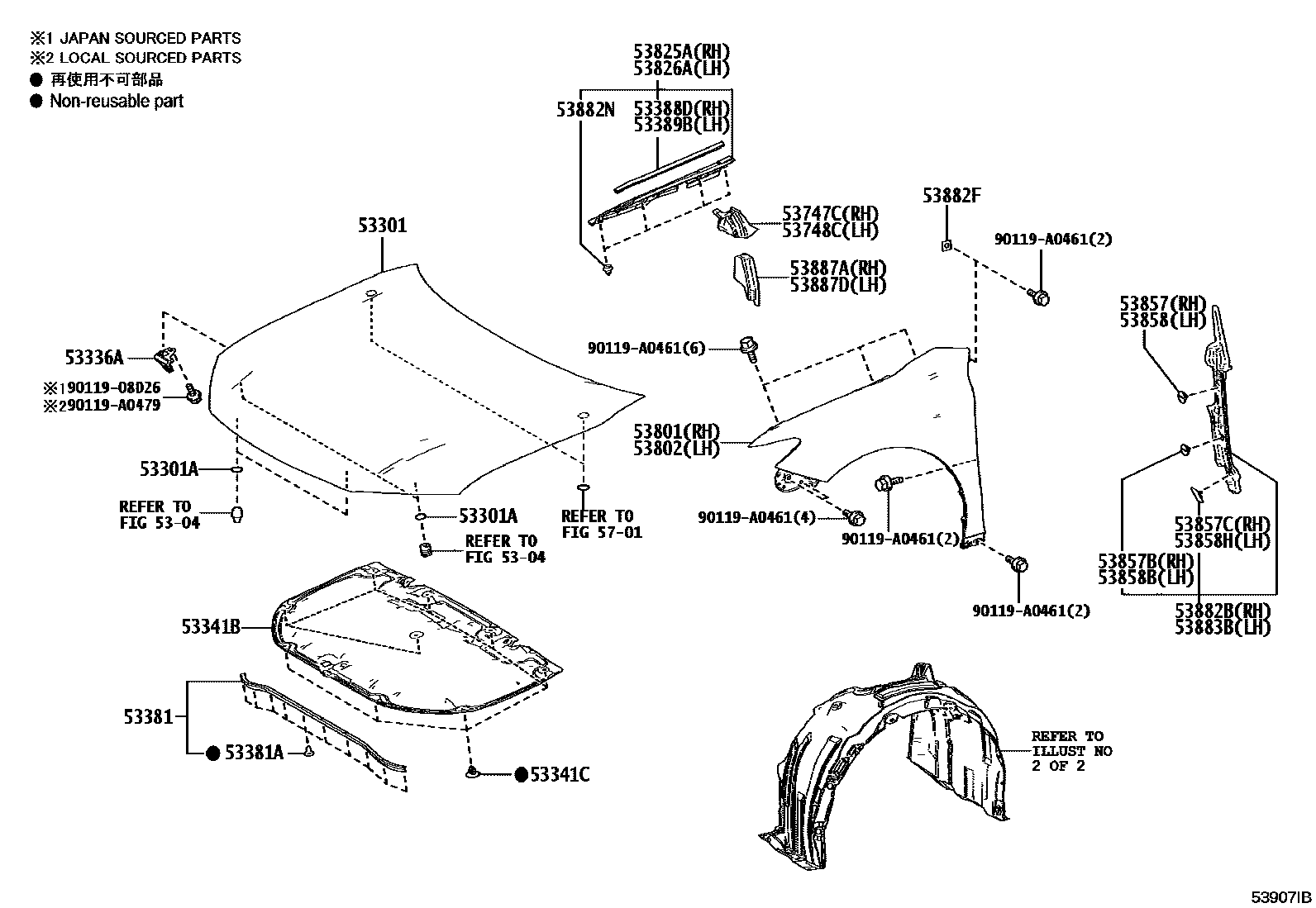

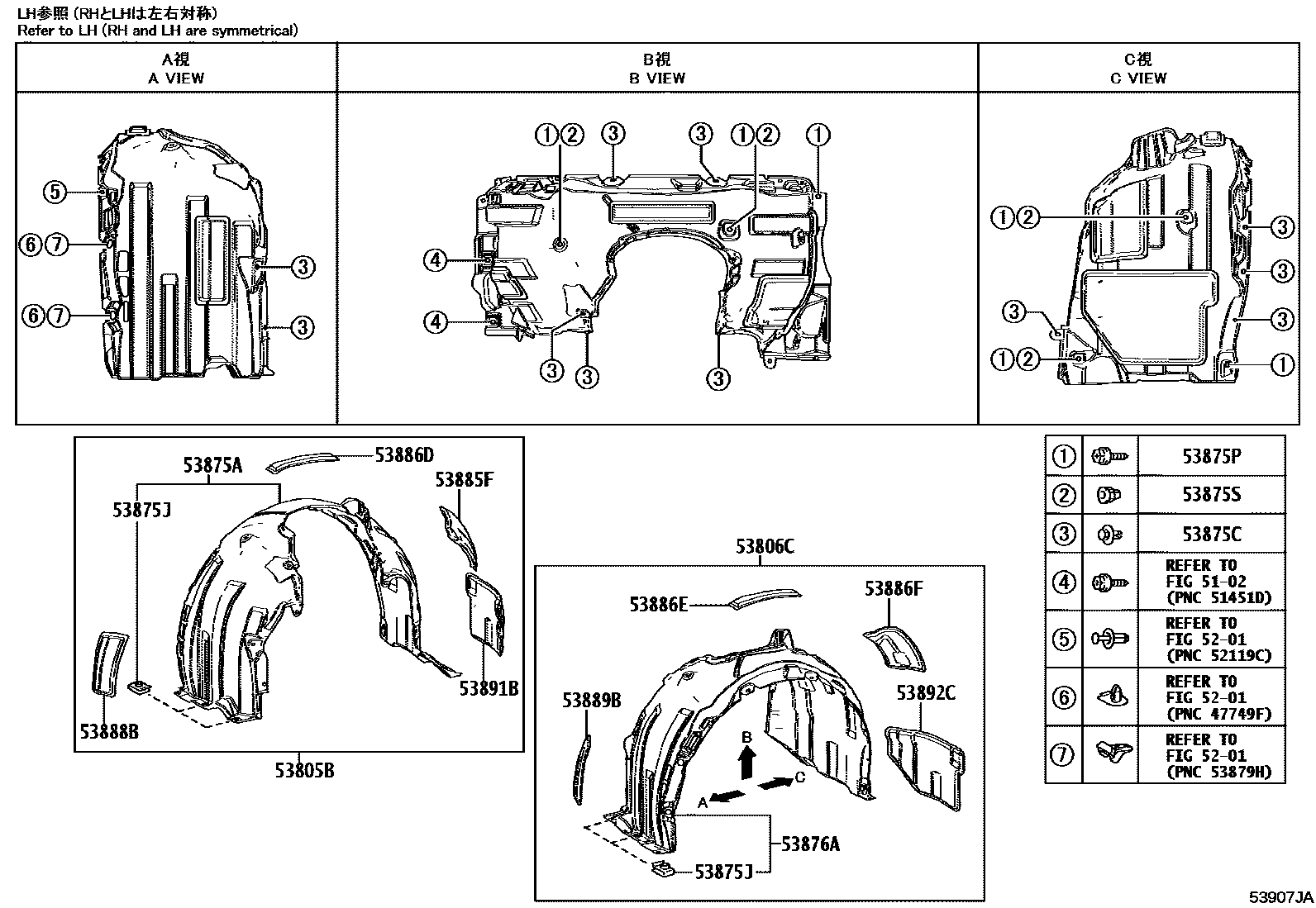

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-AQ010 |
| 53301A | Hole plug (for engine cover) | 90950-06124 |
| 53336A | Engine cover strut bracket | 53336-06140 |
| 53341B | engine cover gasket | 53341-AQ010 |
| 53341C | Clip (for engine cover gasket) | 90467-A0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-06190 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53388D | Engine cover to right front fender seal | 53388-06190 |
| 53389B | Engine cover to left front fender seal | 53388-06190 |
| 53747C | Right air sealing plate | 53747-06060 |
| 53748C | Left air sealing plate | 53748-06060 |
| 53801 | Right front fender sub-assembly | 53801-AQ010 |
| 53802 | Left front fender sub-assembly | 53802-AQ010 |
| 53805B | Right front fender splash guard sub-assembly | 53805-AQ010 |
| 53806C | SOUS-ENS. BLINDAGE GARDE-BOUE AVANT GAUCHE | 53806-AQ010 |
| 53825A | Right front fender protection piece | 53825-AQ010 |
| 53826A | Protection piece on left front fender | 53826-AQ010 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53857C | RETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, DR | 53857-12010 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53858H | RETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, GA | 53857-12010 |
| 53875A | Right front fender lining | 53875-AQ010 |
| 53875C | Front fender lining clip | 90467-A0037 |
| 53875J | ATTACHE, DOUBLURE AILE AVANT | 90179-06104 · 90467-A0036 |
| 53875P | VIS, NO.1 | 90159-60623 |
| 53875S | OEILLET, NO.1 | 90189-06236 |
| 53876A | Left front fender lining | 53876-AQ010 |
| 53882B | Right front fender seal | 53882-06170 |
| 53882F | front fender seal | 53882-30030 |
| 53882N | Clip (for front fender seal) | 90467-A0006 |
| 53883B | Left front fender seal | 53883-06160 |
| 53885F | Right front fender rear splash guard | 53885-AQ010 |
| 53886D | Front fender lining muffler | 53886-AQ010 |
| 53886E | ISOLANT, GARNITURE AILE AVANT | 53886-AQ010 |
| 53886F | Left front fender rear splash guard | 53885-AQ010 |
| 53887A | No. 1 front fender splash guard seal | 53887-06010 |
| 53887D | No. 1 front fender splash guard seal | 53889-06100 |
| 53888B | No. 2 right front fender splash guard seal | 53888-AQ010 |
| 53889B | No. 2 left front fender splash guard seal | 53888-AQ010 |
| 53891B | JOINT D'ETANCHEITE AVANT DROIT GARDE-BOUE AILE AVANT | 53891-AQ010 |
| 53892C | Left front fender splash guard front seal | 53891-AQ010 |
