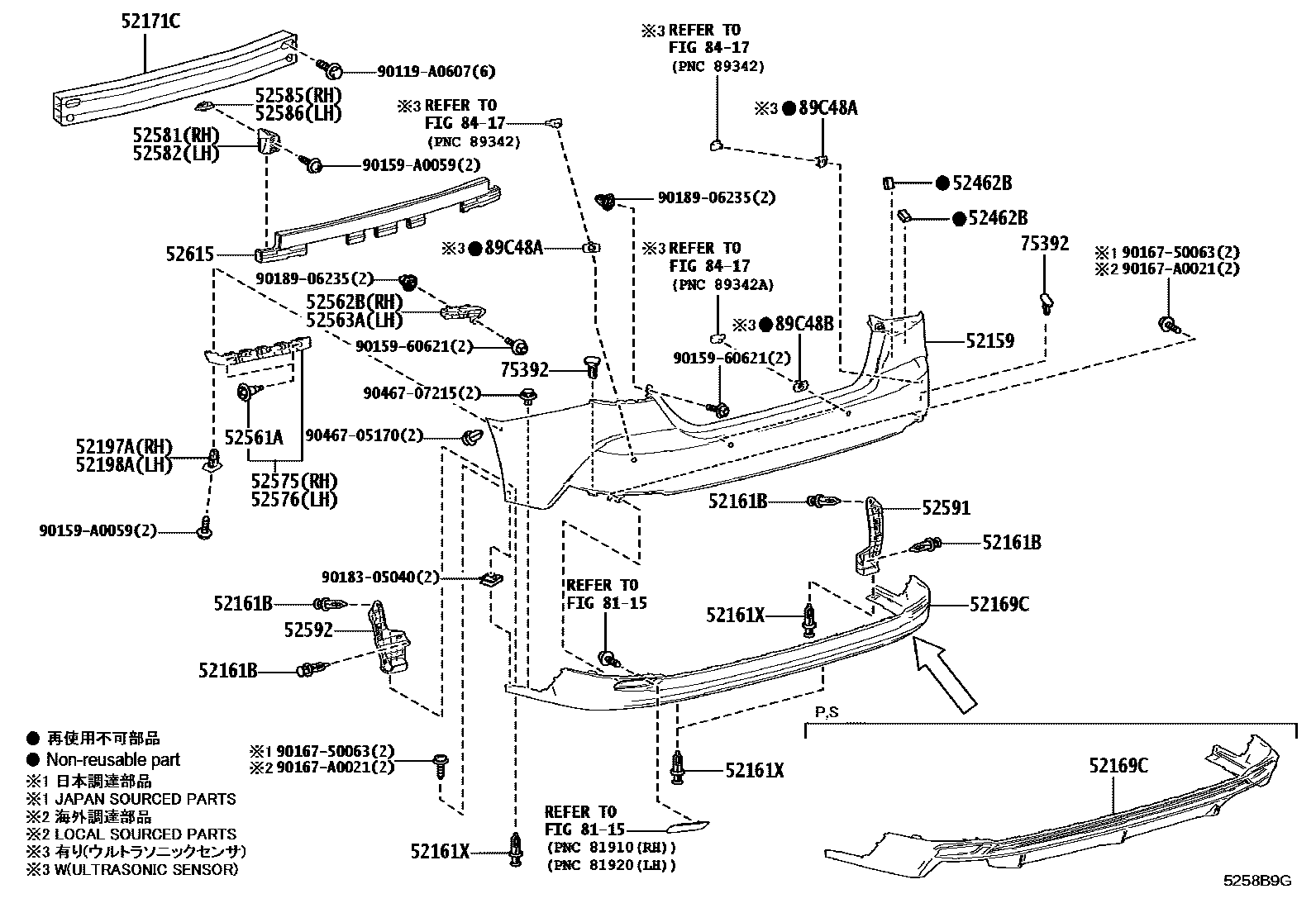

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-AQ900 · 52159-AQ901 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52161X | PARTIE, PARE-CHOCS ARR | 52161-02020 |
| 52169C | Rear bumper lower cover | 52169-AQ010 · 52169-AQ030 · 52169-AQ900 · 52169-AQ901 |
| 52171C | RENFORT PARE-CHOCS ARRIERE | 52171-06170 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52462B | TAMPON, PARE-CHOCS ARR | 52462-AQ010 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52562B | Rear bumper upper right fixing bracket | 52562-AQ010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-AQ010 |
| 52575 | Rear bumper right side fixing bracket | 52575-AQ010 |
| 52576 | Rear bumper left side fixing bracket | 52576-AQ010 |
| 52581 | Rear bumper right side protector | 52581-AQ010 |
| 52582 | Rear bumper left protector | 52582-AQ010 |
| 52585 | INSERT, PROTECT PARE-CHOCS ARR, MD | 52585-06010 |
| 52586 | INSERT, PROTECT PARE-CHOCS ARR, MG | 52586-06010 |
| 52591 | Rear bumper right seal | 52591-06030 |
| 52592 | Rear bumper left seal | 52592-06030 |
| 52615 | Rear bumper energy absorber | 52615-AQ010 |
| 75392 | External protective strip fixings | 75392-0R050 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-04020 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-04020 |
