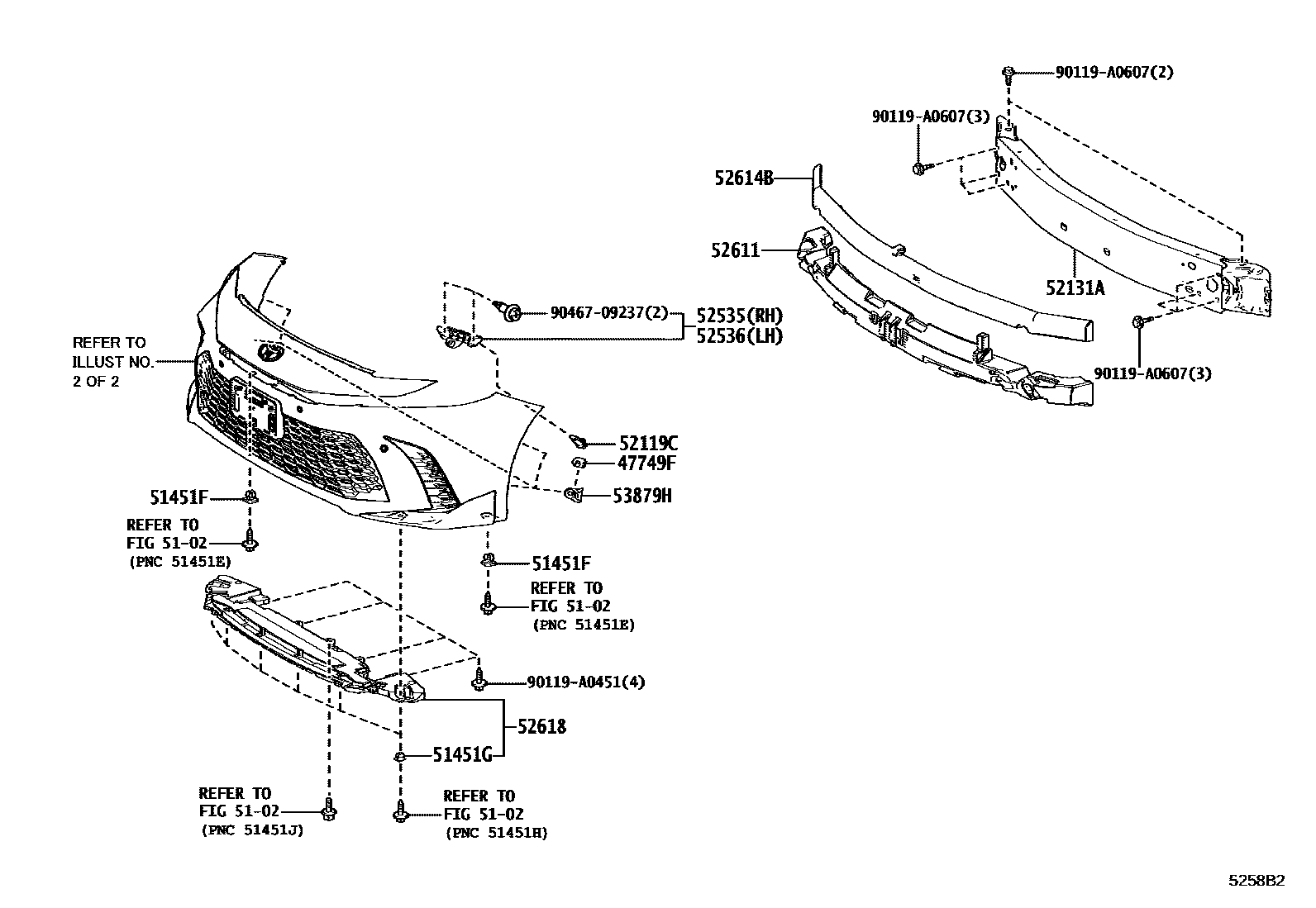

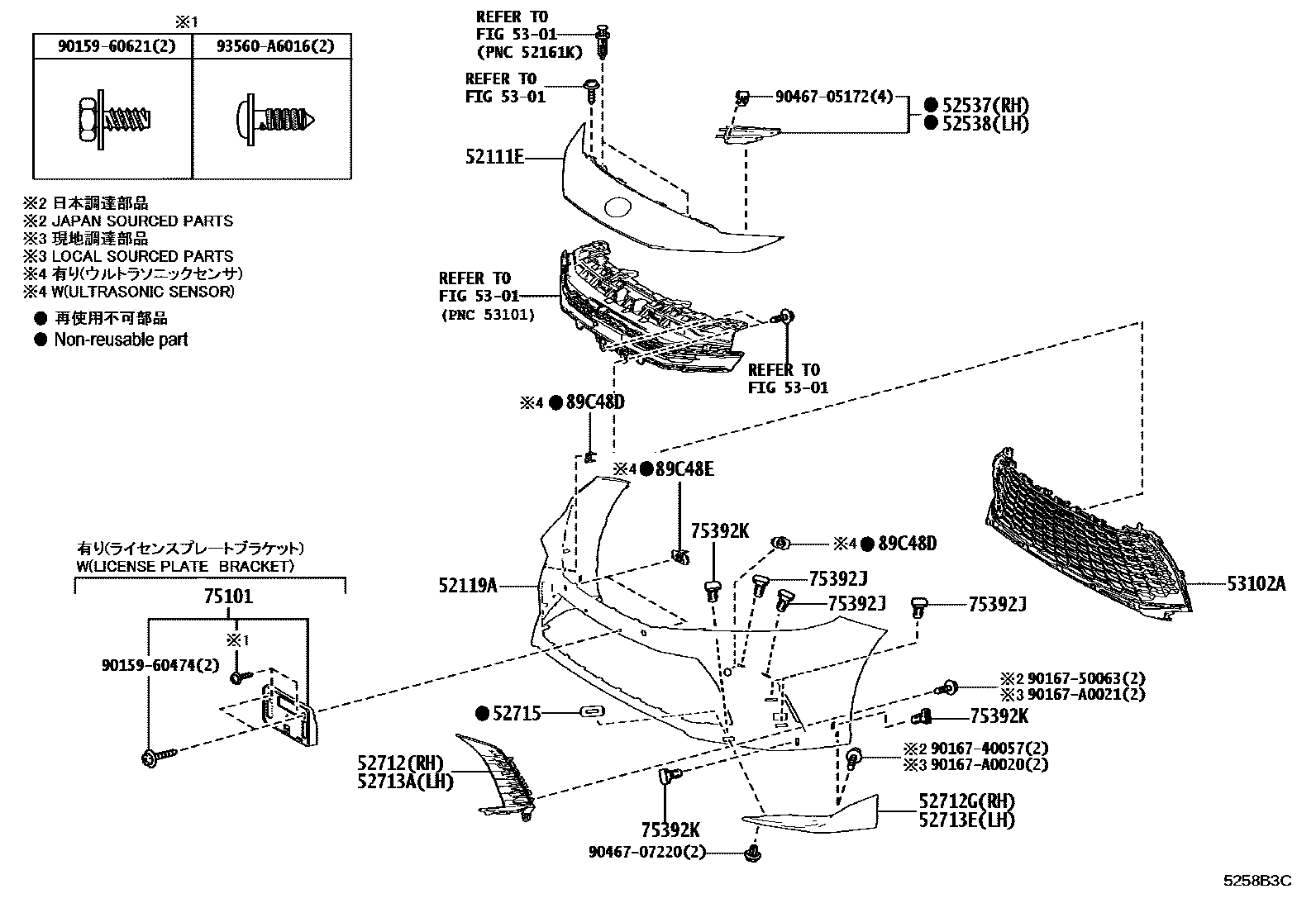

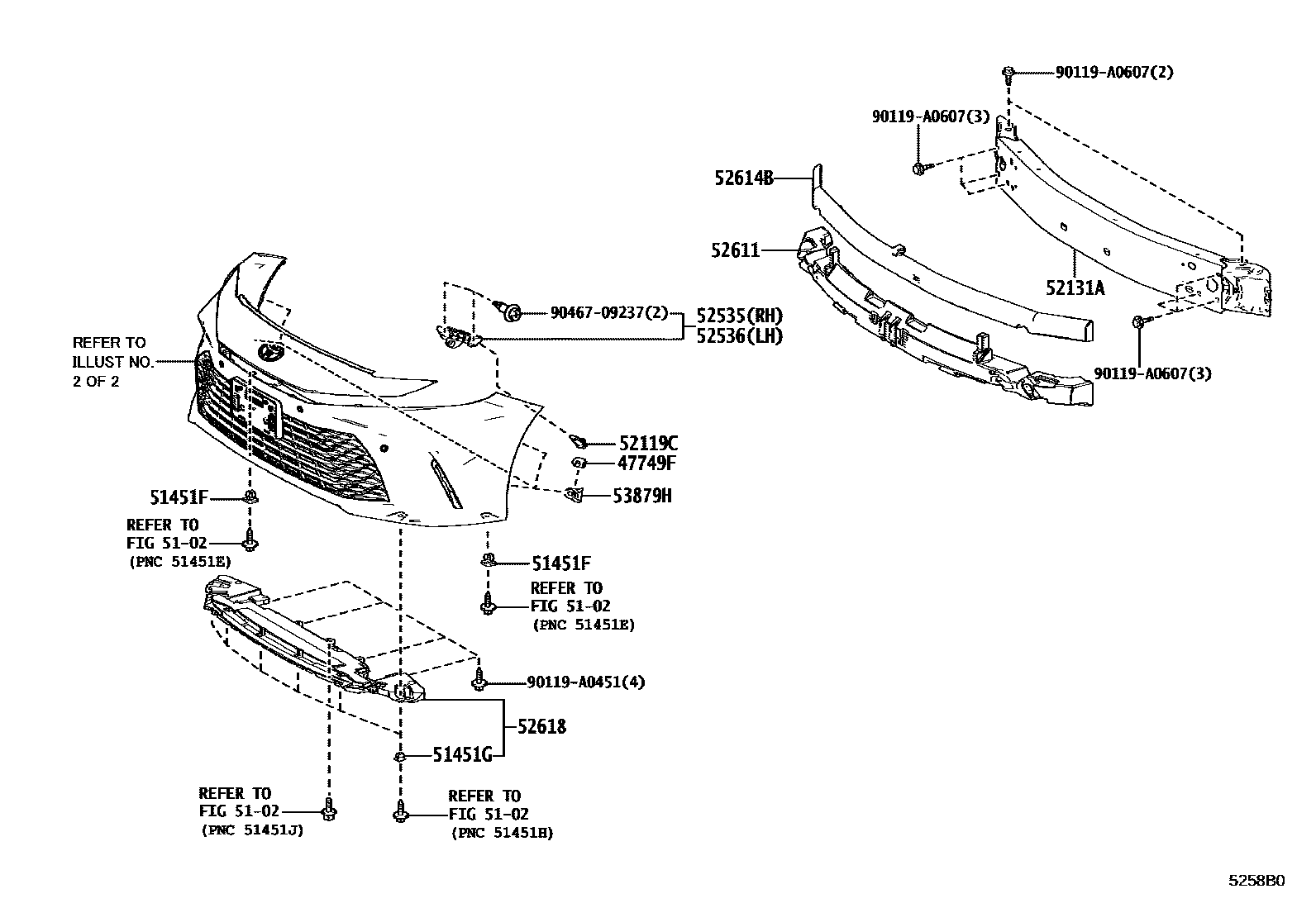

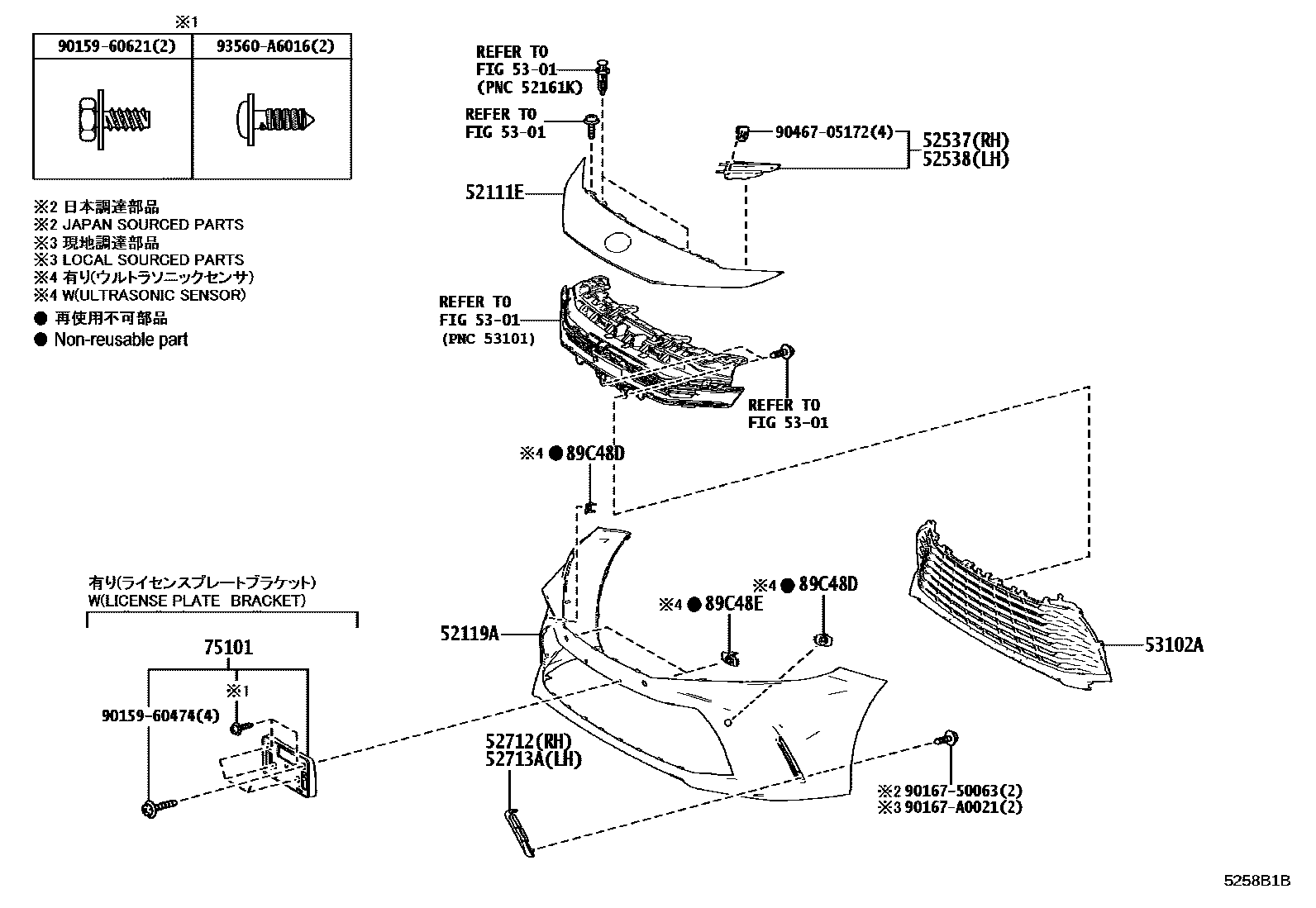

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 51451G | OEILLET, NO.2 | 90189-06237 |
| 52111E | front bumper stay | 52111-AQ900 |
| 52119A | front bumper cover | 52119-AQ900 · 52119-AQ901 · 52119-AQ903 · 52119-AQ904 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52131A | Front bumper reinforcement | 52021-06170 |
| 52535 | Front bumper right side fixing bracket | 52535-AQ010 |
| 52536 | Front bumper left fixed bracket | 52536-AQ010 |
| 52537 | Front bumper right end fixing bracket | 52537-AQ010 |
| 52538 | Front bumper left end fixing bracket | 52538-AQ010 |
| 52611 | front bumper energy absorber | 52611-AQ011 |
| 52614B | ABSORBEUR CHOC NO. 2 PARE-CHOCS AVANT | 52614-AQ010 |
| 52618 | Front bumper lower shock absorber | 52618-AQ010 |
| 52712 | Front bumper right side protective strip | 52712-AQ010 · 52712-AQ020 · 52712-AQ030 |
| 52712G | MOULURE, LAT PARE-CHOCS AV, MD NO.2 | 52712-AQ040 |
| 52713A | Front bumper left protective strip | 52713-AQ010 · 52713-AQ020 · 52713-AQ030 |
| 52713E | MOULURE, LAT PARE-CHOCS AV, MG NO.2 | 52713-AQ040 |
| 52715 | Front bumper protection strip No. 1 fixing piece | 52715-AQ010 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-AQ010 · 53102-AQ020 · 53102-AQ030 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75101 | Front license plate bracket sub-assembly | 75101-AQ010 · 75101-AQ020 |
| 75392J | External protective strip fixings | 75392-0R050 · 75392-35220 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-0R050 · 75392-35220 |
