Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

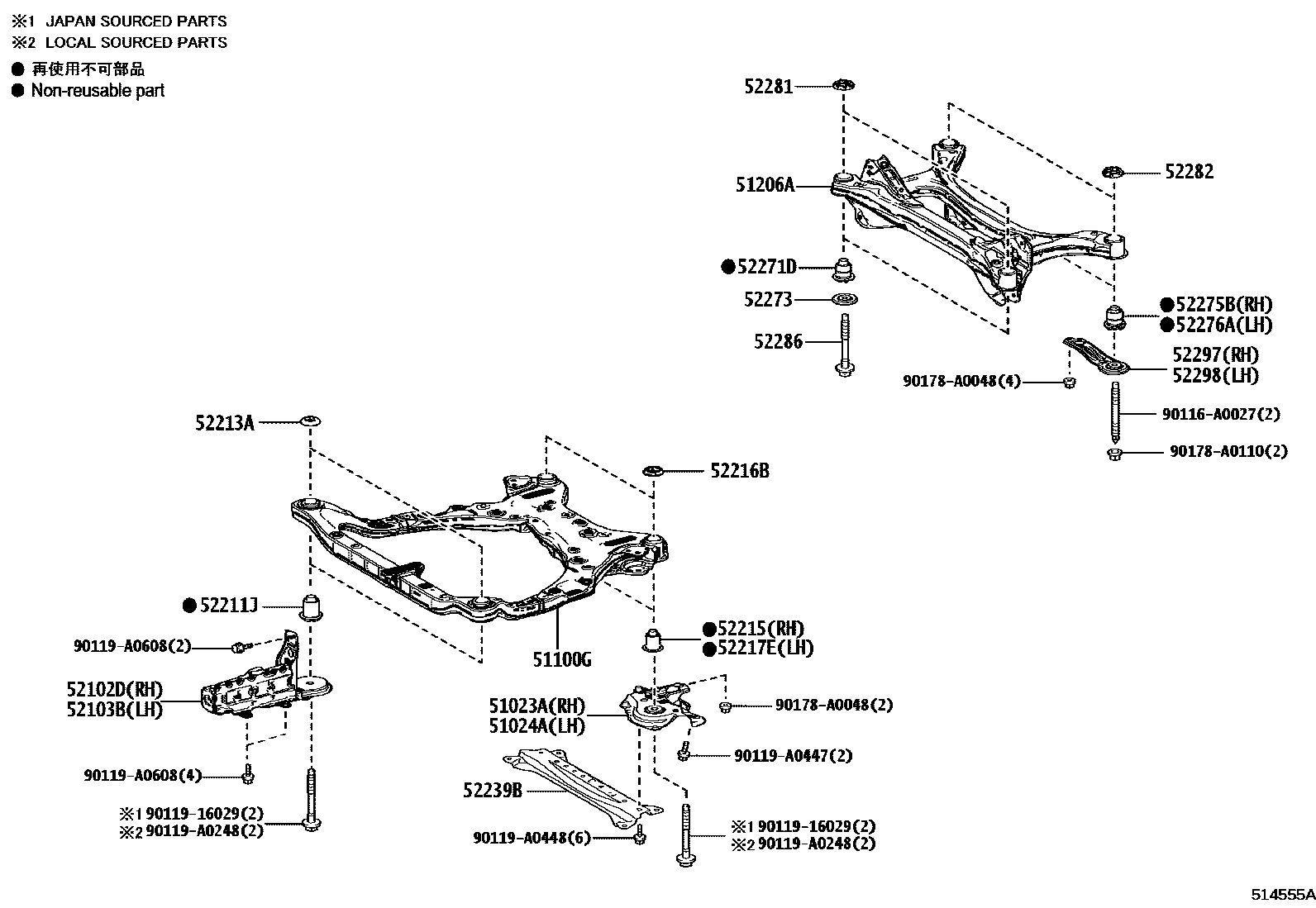

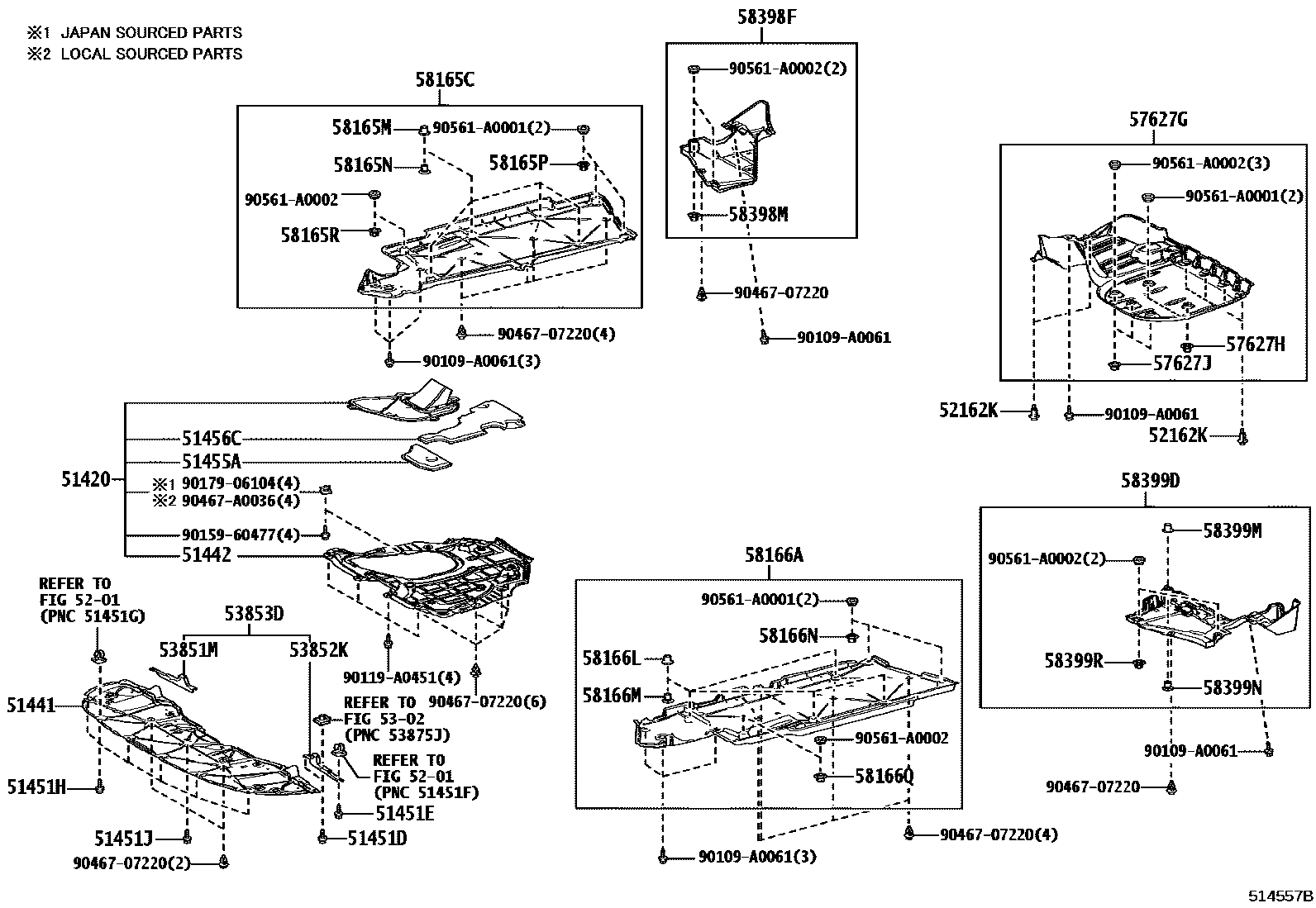

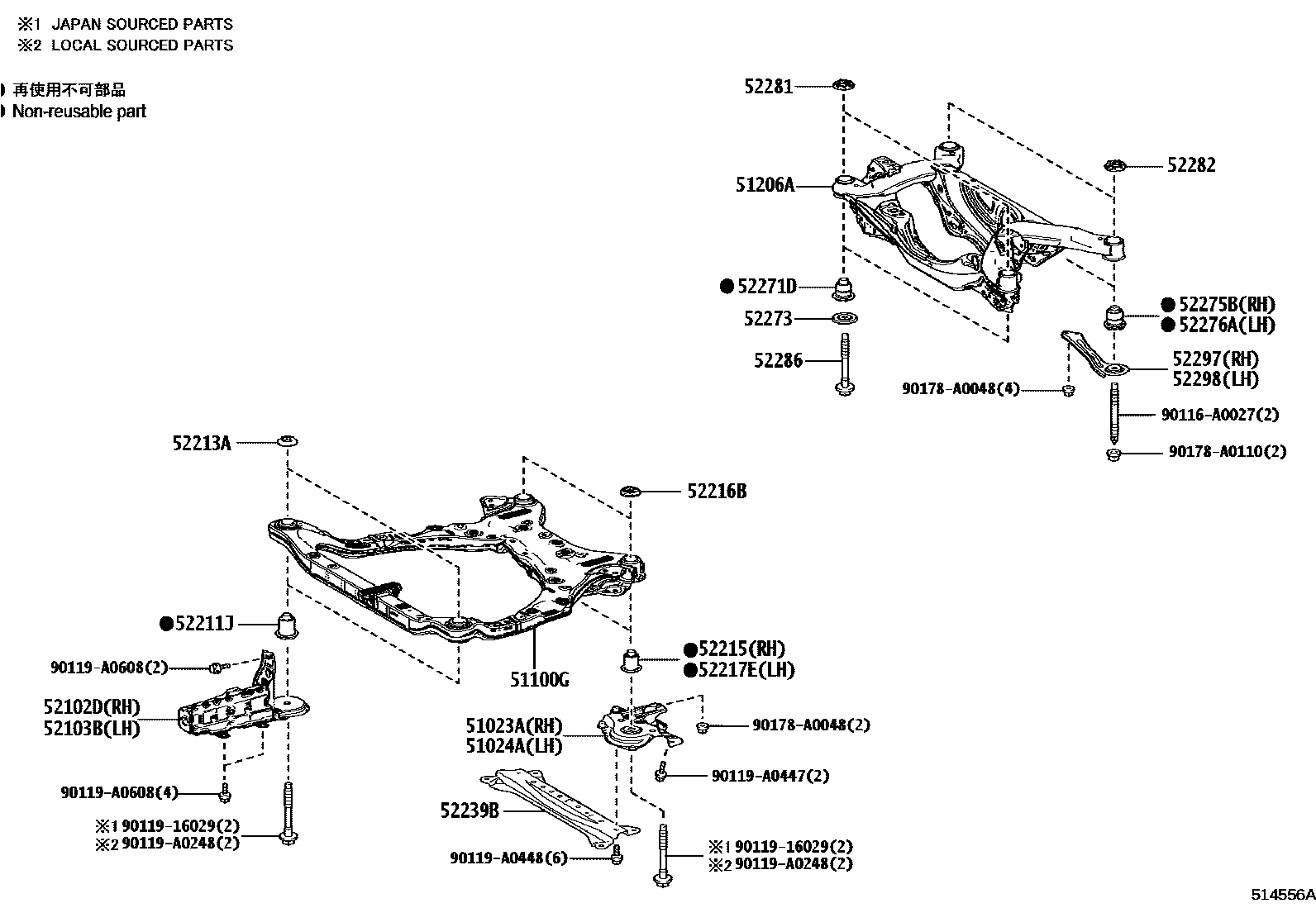

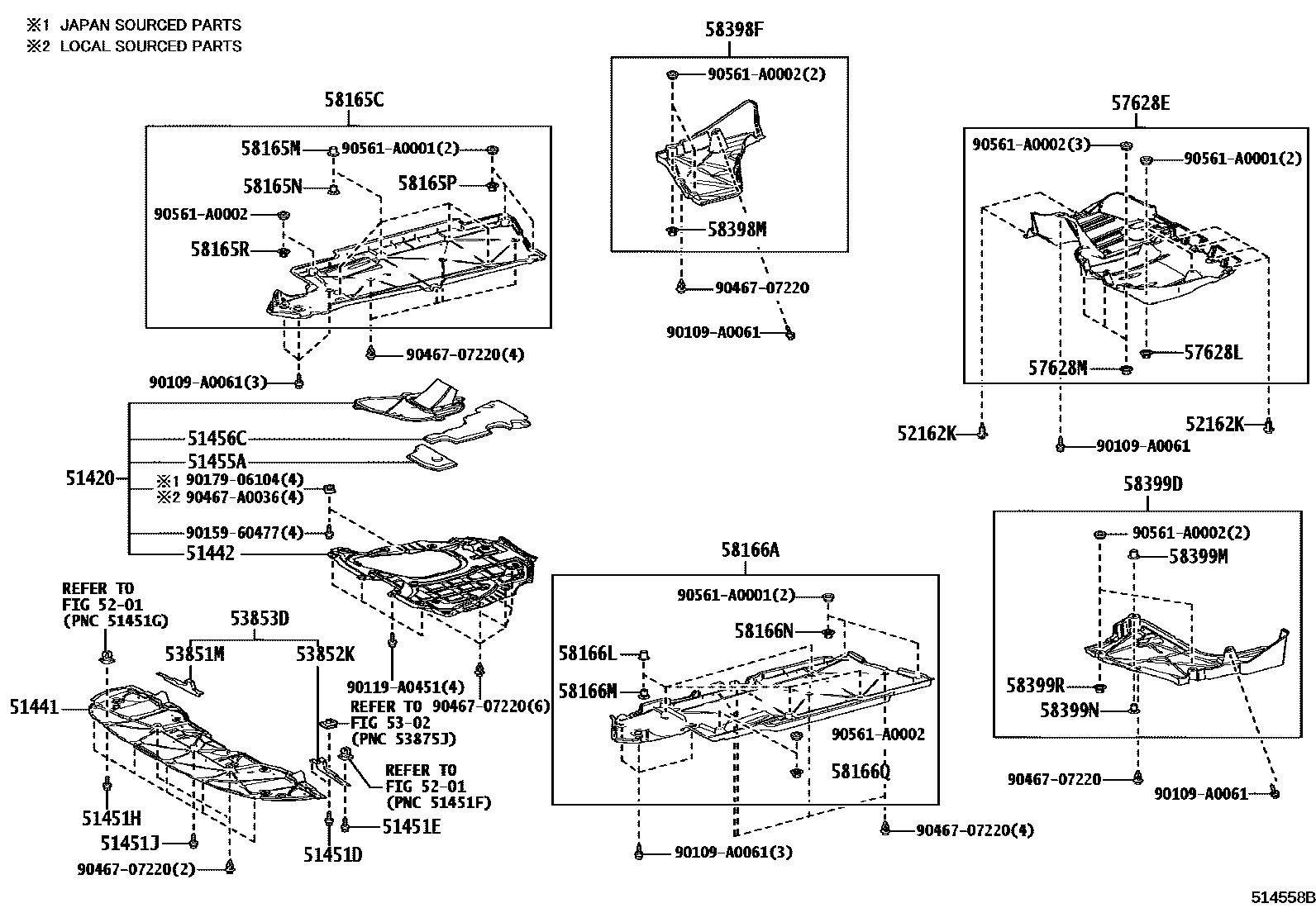

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-06050 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-06050 |
| 51100G | Front frame assembly | 51100-06290 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06130 · 51206-06190 |
| 51420 | COUV ASS, SOUS MOT, NO.2 | 51420-06050 |
| 51441 | No. 1 engine bottom cover | 51441-06360 |
| 51442 | No. 2 engine bottom cover | 51442-06280 |
| 51451D | VIS, NO.1 | 90159-60477 · 90159-A0059 |
| 51451E | VIS, NO.2 | 90159-60477 · 90159-A0059 |
| 51451H | VIS, NO.3 | 90159-60477 · 90159-A0059 |
| 51451J | BOULON, NO.1 | 90119-A0451 |
| 51455A | Engine undercover seal No. 1 | 51455-06010 |
| 51456C | Engine undercover seal No. 2 | 51456-06010 |
| 52102D | S-ENS. PROL., PARE-CHOCS AVANT, DROIT | 52102-06010 |
| 52103B | S-ENS. PROL., PARE-CHOCS AVANT, GAUCHE | 52103-06010 |
| 52162K | PIECE PARE-CHOCS ARRIERE | 52161-02020 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06170 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06170 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06170 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06150 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06150 |
| 52239B | PLAQUE, MONTAGE DE CARROSSERIE | 52239-06030 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06130 · 52271-06170 |
| 52273 | Rear suspension cross member lower block | 52273-06050 |
| 52275B | Rear suspension cross member right rear body fixed cushion | 52275-06150 · 52275-06190 |
| 52276A | Rear suspension cross member left rear body fixed buffer pad | 52276-06010 · 52276-06050 |
| 52281 | Differential support beam cushion | 52281-06040 |
| 52282 | Differential support beam upper stop | 52282-06070 · 52282-06110 |
| 52286 | No. 2 differential support beam mounting bolts | 90119-A0450 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-06010 · 52297-06090 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-06010 · 52298-06090 |
| 53851M | PATIN, EXTENSION PASSAGE ROUE AVT, RH | 53851-06180 |
| 53852K | Left front fender exterior panel pad | 53852-06180 |
| 53853D | PATIN, EXTENSION DE L'OUVERTURE DE LA ROUE AVANT, NO.3 | 53853-06180 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 57628-06180 |
| 57627H | ATTACHE, CACHE LONGERON PLANCHER ARR, NO.1 | 90467-A0038 |
| 57627J | CLIP, CACHE LONGERON PLANCHER ARR, NO.2 | 90467-A0039 |
| 57628E | Rear floor left longitudinal member cover | 57628-06320 |
| 57628L | ATTACHE, CACHE LONGERON PLANCHER ARR, NO.1 | 90467-A0038 |
| 57628M | CLIP, CACHE LONGERON PLANCHER ARR, NO.2 | 90467-A0039 |
| 58165C | Front floor right cover | 58165-06040 |
| 58165P | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.3 | 90467-A0038 |
| 58165R | CLIP, CACHE PLANCHER AVANT, NO.4 | 90467-A0039 |
| 58166A | Front floor left cover | 58166-06040 |
| 58166N | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.3 | 90467-A0038 |
| 58166Q | CLIP, CACHE PLANCHER AVANT, NO.4 | 90467-A0039 |
| 58398F | No. 1 floor under cover | 58398-06160 · 58398-06210 |
| 58398M | CLIP, CACHE SOUS PLANCHER, NO.1 | 90467-A0039 |
| 58399D | Floor No. 2 lower cover | 58399-06160 · 58399-06210 |
| 58399R | ATTACHE, CACHE SOUS PLANCHER, NO.3 | 90467-A0039 |
