Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

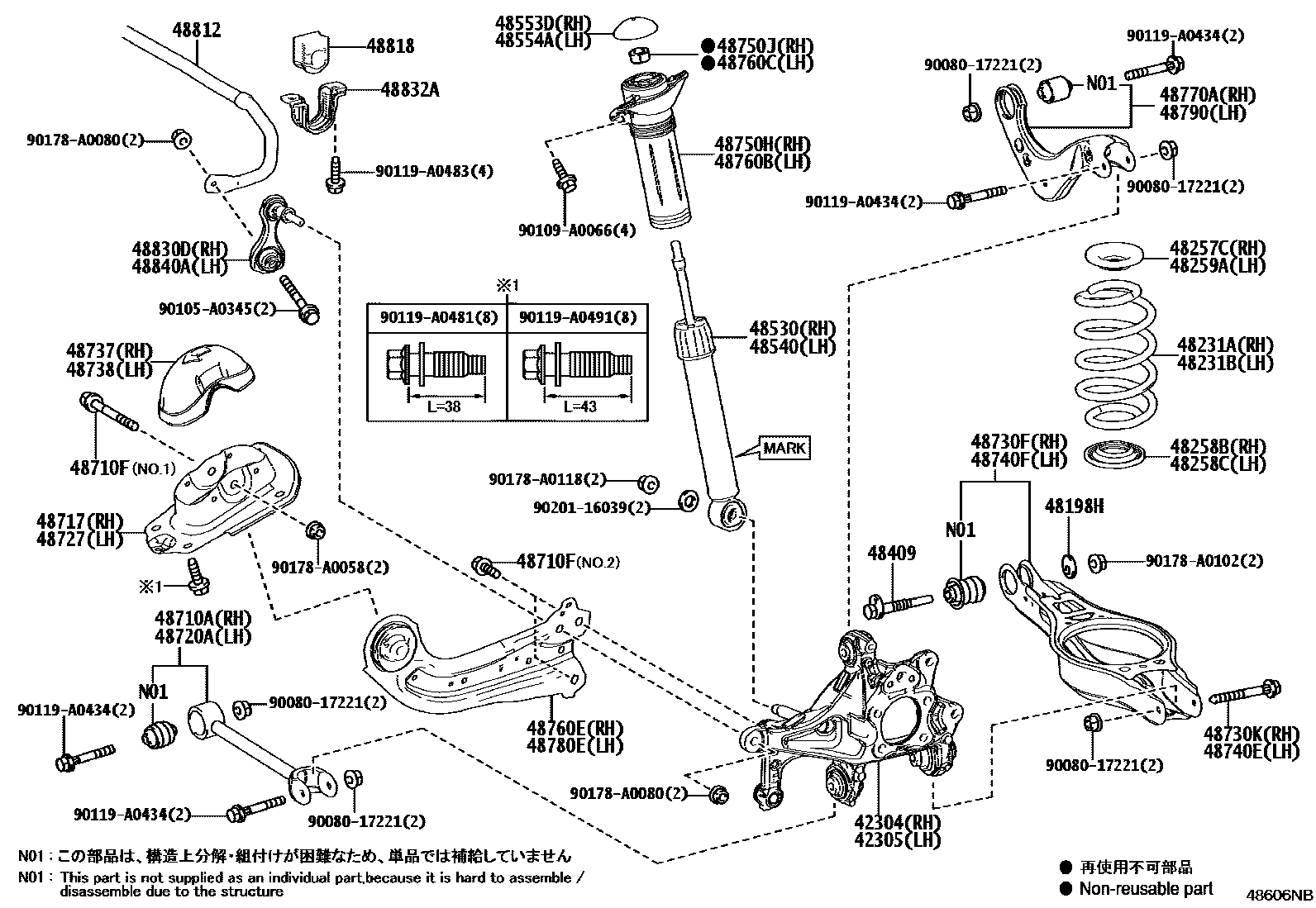

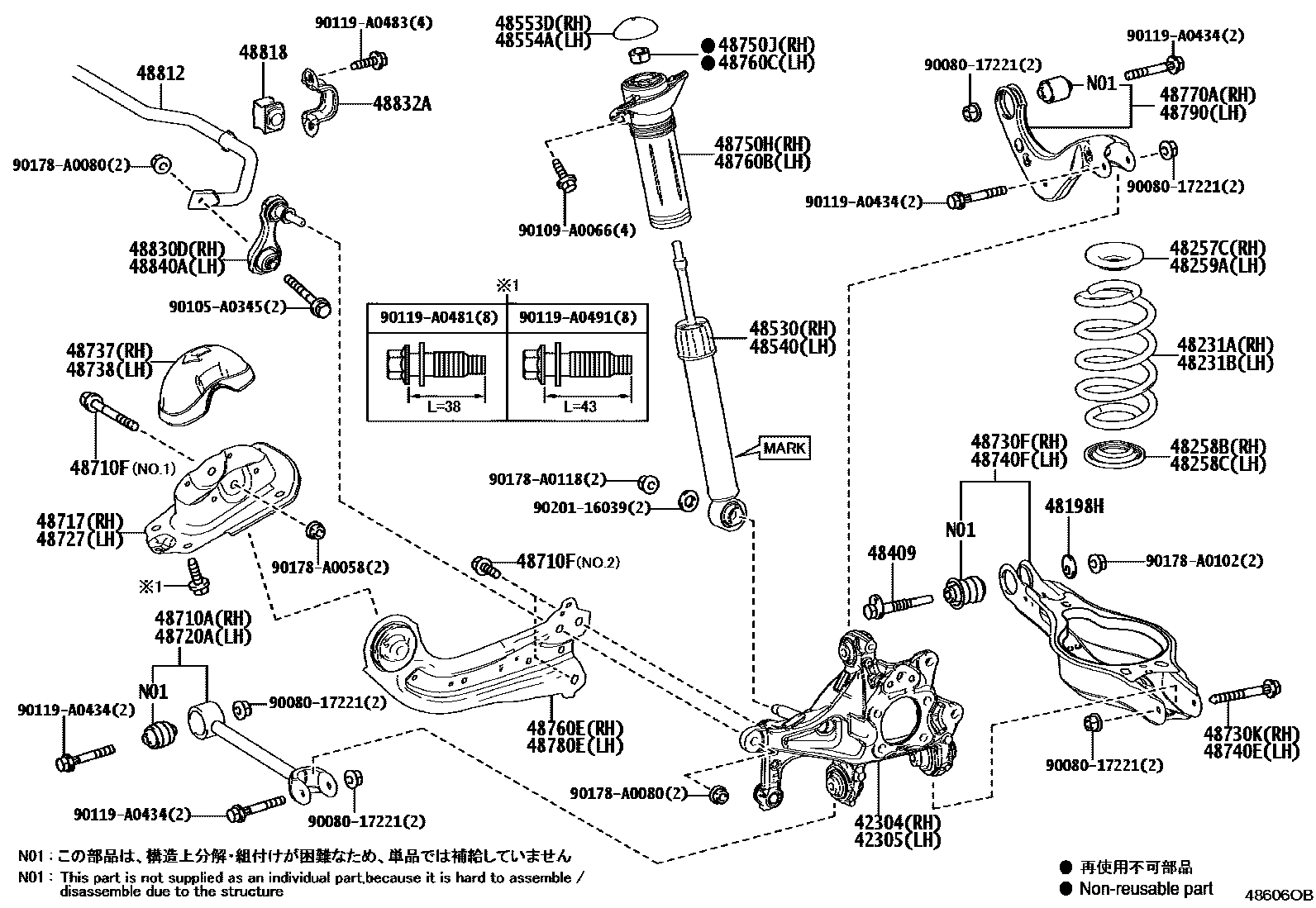

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06270 · 42304-06320 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06270 · 42305-06320 |
| 48198H | No. 2 camber angle adjustment cam | 48198-07010 |
| 48231A | Right rear coil spring | 48231-33B30 · 48231-33B40 · 48231-33B50 · 48231-33B60 · 48231-33B70 · 48231-33B80 · 48231-33B90 |
| 48231B | Left rear coil spring | 48231-33B30 · 48231-33B40 · 48231-33B50 · 48231-33B60 · 48231-33B70 · 48231-33B80 · 48231-33B90 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06230 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06230 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06030 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-06010 |
| 48530 | Right rear shock absorber assembly | 48530-8Z315 · 48530-8Z316 · 48530-8Z317 · 48530-8Z318 · 48530-8Z319 |
| 48540 | Left rear shock absorber assembly | 48530-8Z315 · 48530-8Z316 · 48530-8Z317 · 48530-8Z318 · 48530-8Z319 |
| 48553D | Right rear shock absorber cover | 48553-06010 |
| 48554A | Left rear shock absorber cover | 48553-06010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06170 |
| 48710F | Bolt (for rear trailing arm) | 90105-A0346 · 90105-A0365 |
| 48717 | Right rear suspension arm bracket | 48717-06030 · 48717-06160 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06170 |
| 48727 | Left rear suspension arm bracket | 48727-06060 · 48727-06100 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-06120 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-A0433 |
| 48737 | Right rear suspension arm cover | 48753-06080 |
| 48738 | Left rear suspension arm cover | 48753-06090 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-A0433 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-06120 |
| 48750H | Right rear suspension support assembly | 48750-06300 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90170-A0008 · 94130-61200 |
| 48760B | Left rear suspension support assembly | 48750-06300 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90170-A0008 · 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-06310 |
| 48770A | Right rear upper control arm assembly | 48770-06010 |
| 48780E | Left rear trailing arm assembly | 48780-06120 |
| 48790 | Left rear upper control arm assembly | 48790-06010 |
| 48812 | rear stabilizer bar | 48812-06250 · 48812-33410 · 48812-AQ010 · 48812-AQ020 · 48812-AQ030 |
| 48818 | Rear stabilizer bar bushing | 48818-06330 · 48818-AQ010 · 48818-AQ021 · 48818-AQ030 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0A010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06060 · 48832-AQ010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-0A010 |
