Toyota CAMRY 制动配管和卡箍 — Figure 4708

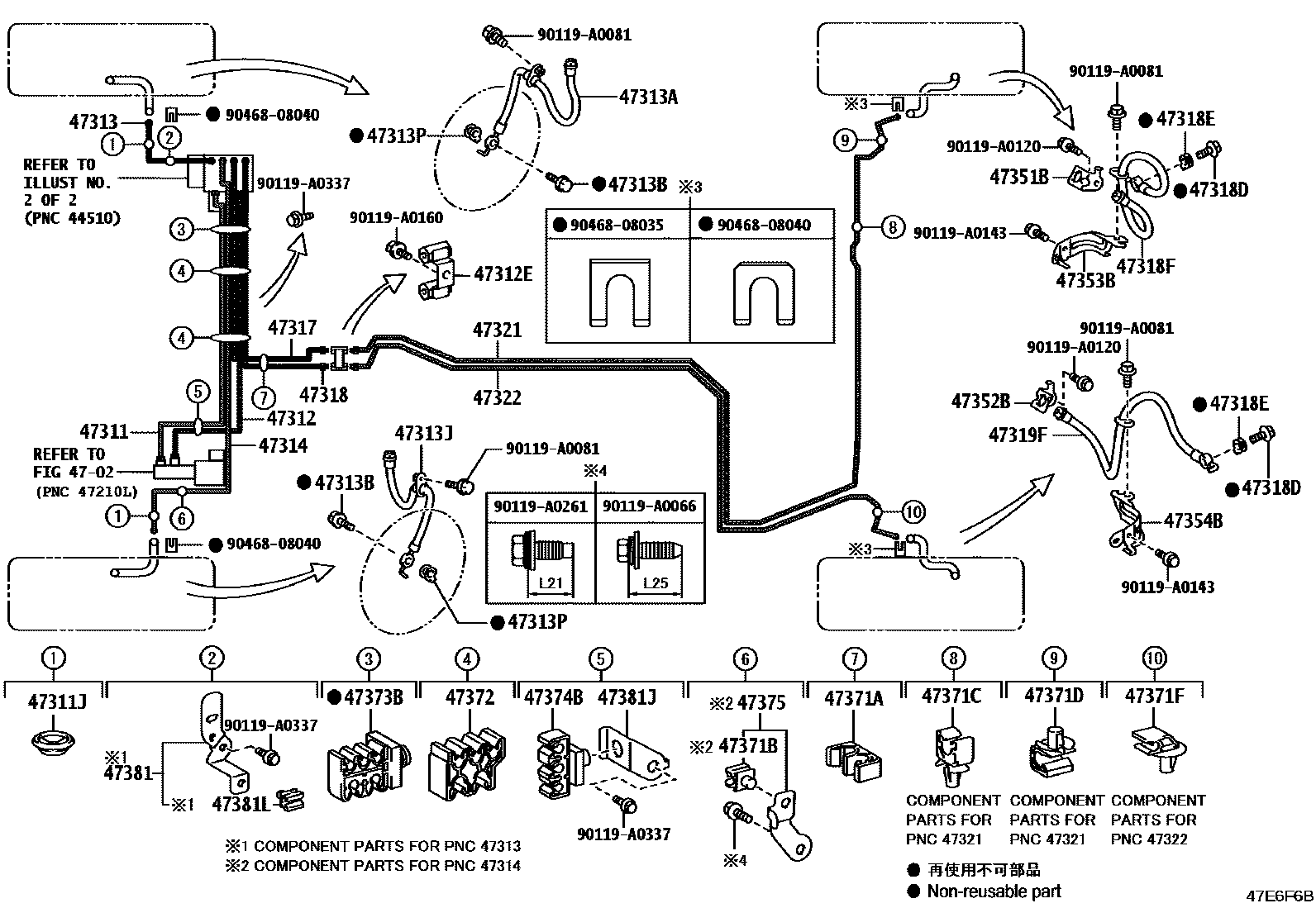

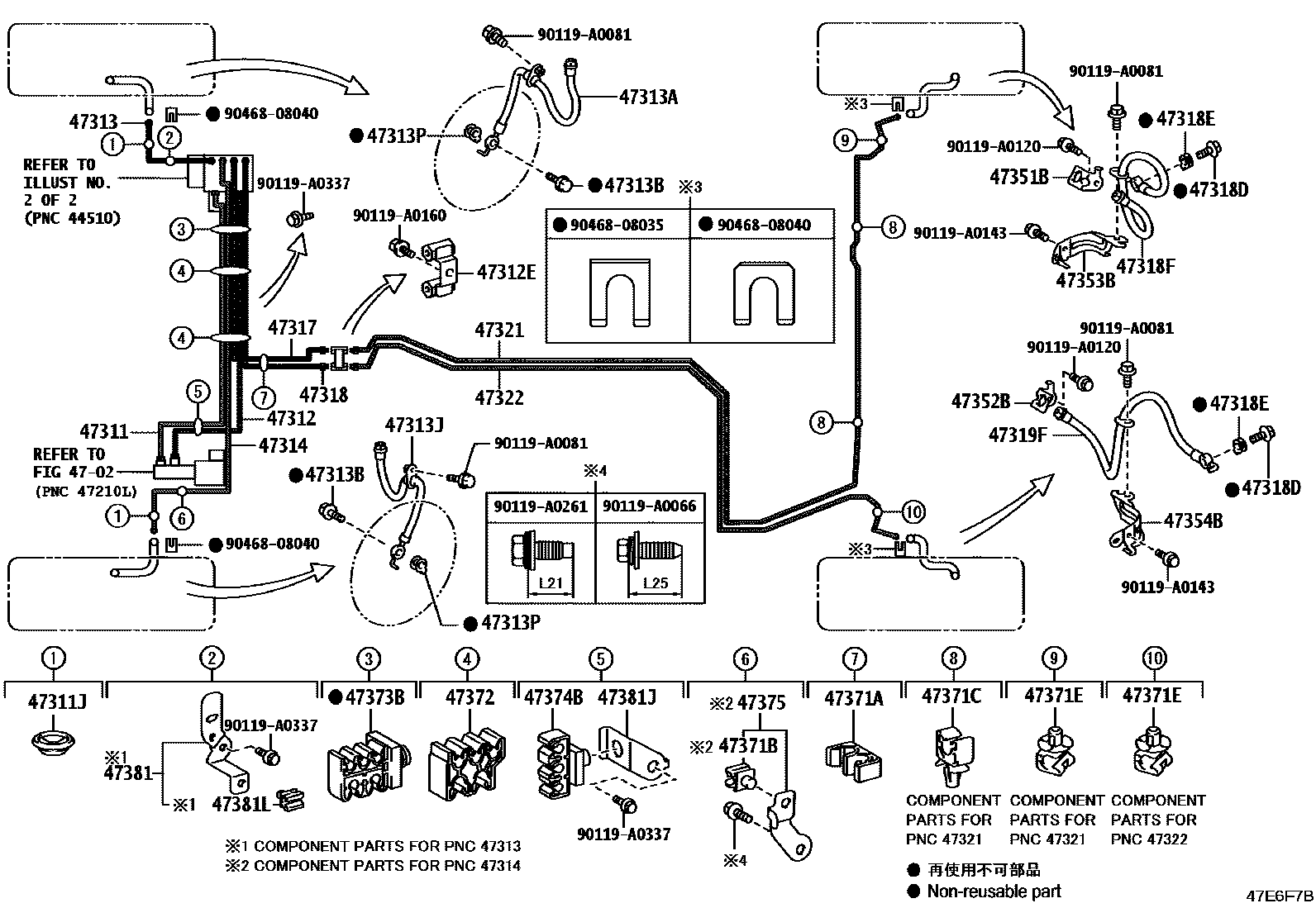

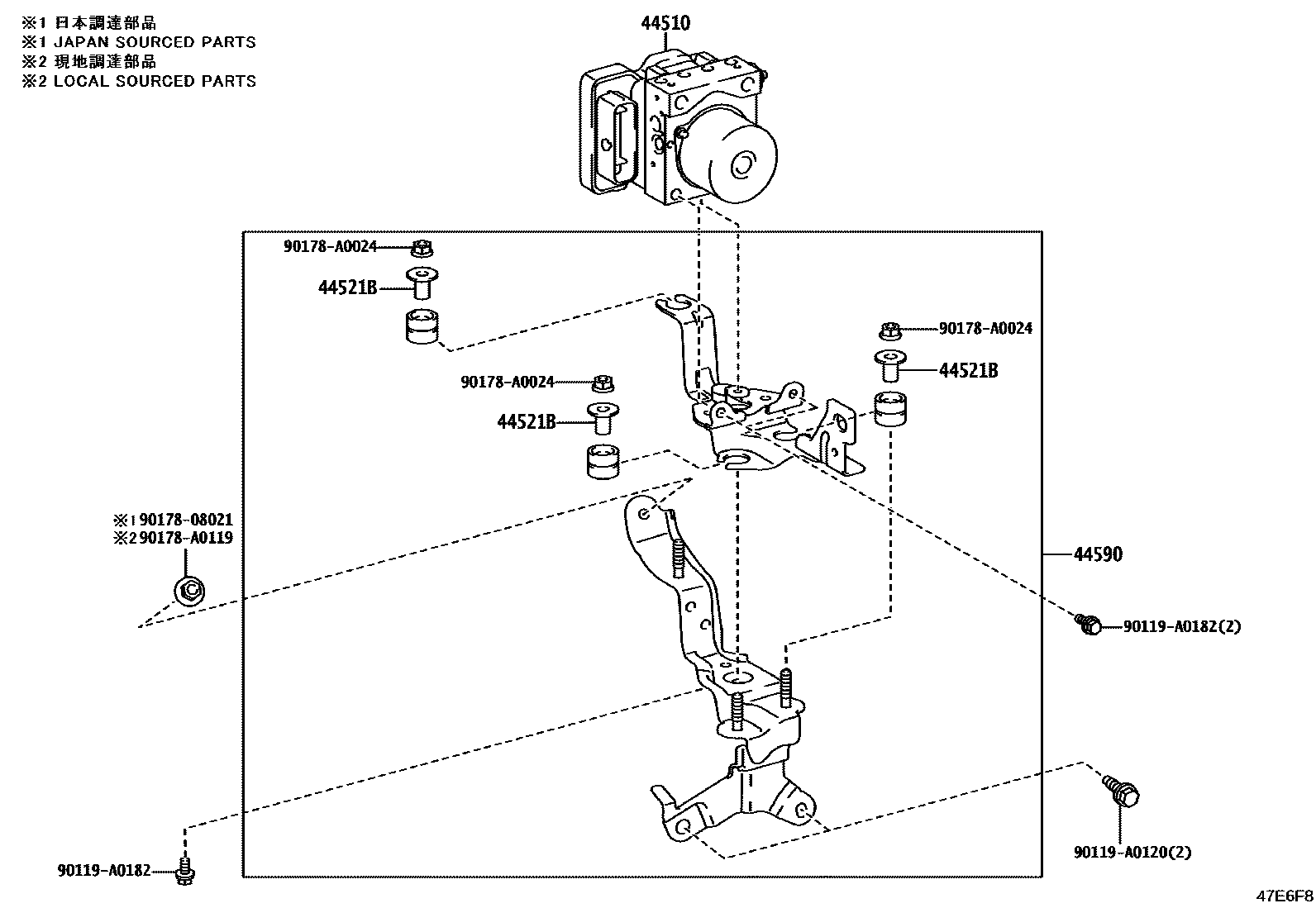

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-06690 · 44050-06691 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-33020 |
| 44590 | Brake actuator bracket assembly | 44590-06390 |
| 47311 | No. 1 front brake pipe | 47311-06800 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-06640 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-A0011 |
| 47313 | No. 3 front brake pipe | 47313-06610 |
| 47313A | No. 1 front flexible hose | 90947-A2157 |
| 47313B | Connector bolt (for front flex hose) | 90401-A0001 |
| 47313J | No. 2 front flexible hose | 90947-A2158 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06570 |
| 47317 | No. 7 front brake pipe | 47317-06690 |
| 47318 | No. 8 front brake pipe | 47318-06260 |
| 47318D | Connector bolt (for rear flex hose) | 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2159 |
| 47319F | Left rear flexible hose | 90947-A2160 |
| 47321 | No. 1 rear brake pipe | 47321-06410 · 47321-06420 |
| 47322 | No. 2 rear brake pipe | 47322-06410 · 47322-06420 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06050 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06050 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06040 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06040 |
| 47371A | No. 1 brake pipe clamp | 90464-00904 |
| 47371B | No. 6 brake pipe clamp | 90949-01D56 |
| 47371C | No. 7 brake pipe clamp | 90949-01E01 |
| 47371D | No. 8 brake pipe clamp | 90949-01E84 |
| 47371E | No. 9 brake pipe clamp | 90949-01D17 |
| 47371F | No. 10 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90949-01E79 |
| 47374B | No. 4 brake pipe clamp | 90949-01E80 |
| 47375 | No. 5 brake pipe clamp | 47371-33350 |
| 47381 | No. 1 brake pipe clamp bracket | 47371-33340 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-06020 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-01D56 |
