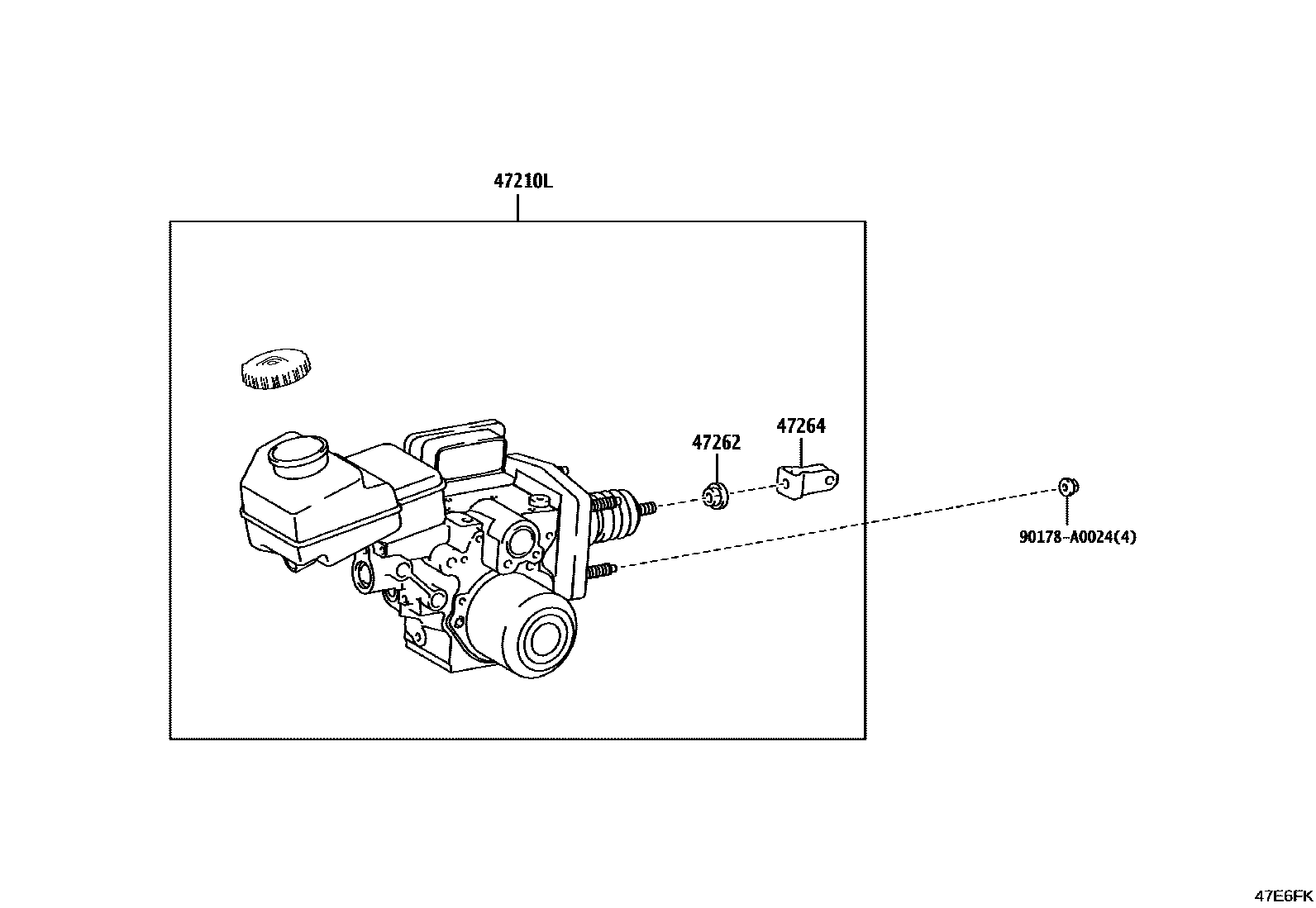

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47210L | Brake booster assembly with master cylinder | 47050-06040 |
| 47262 | master cylinder push rod nut | 90179-10065 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-42030 |
