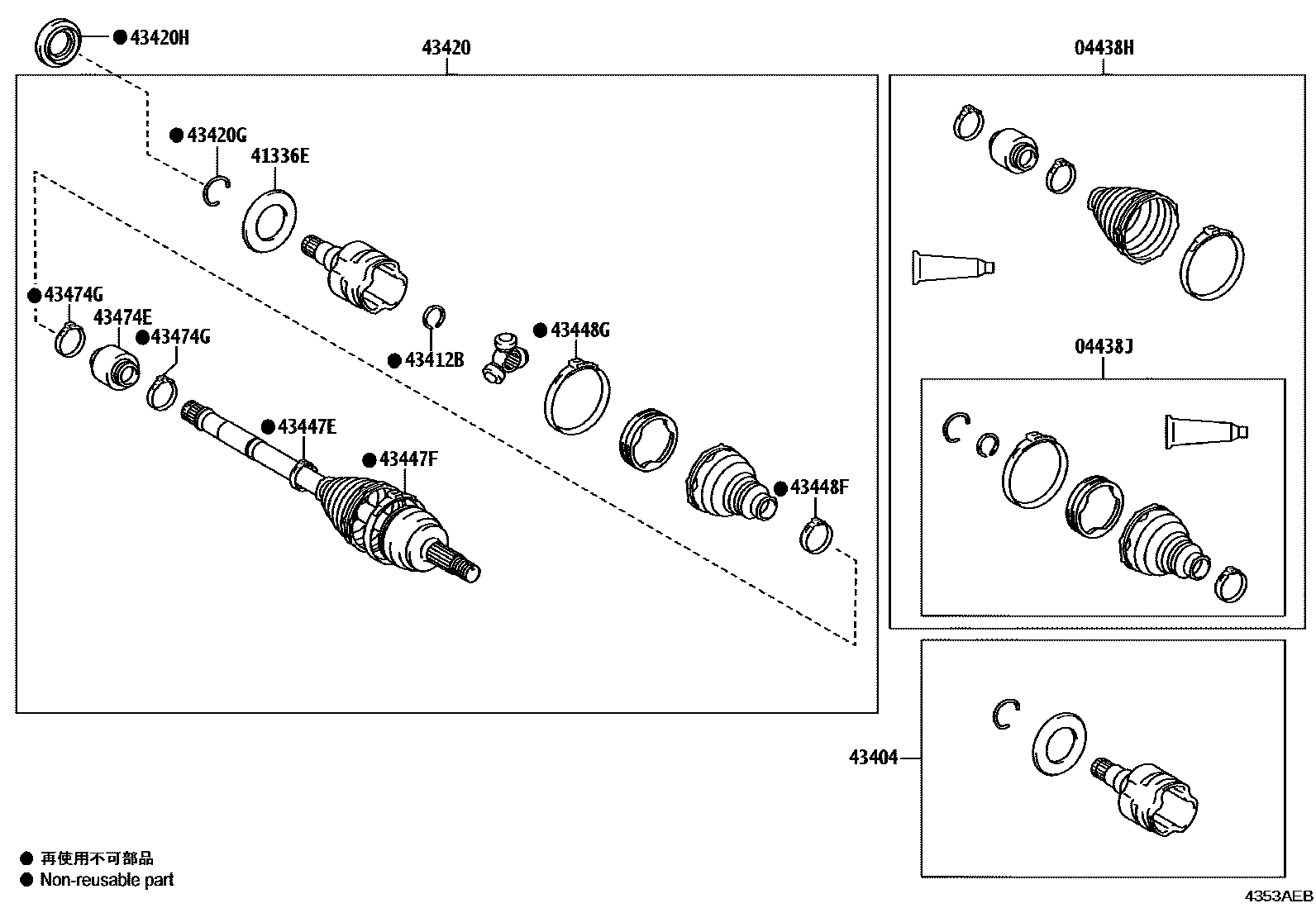

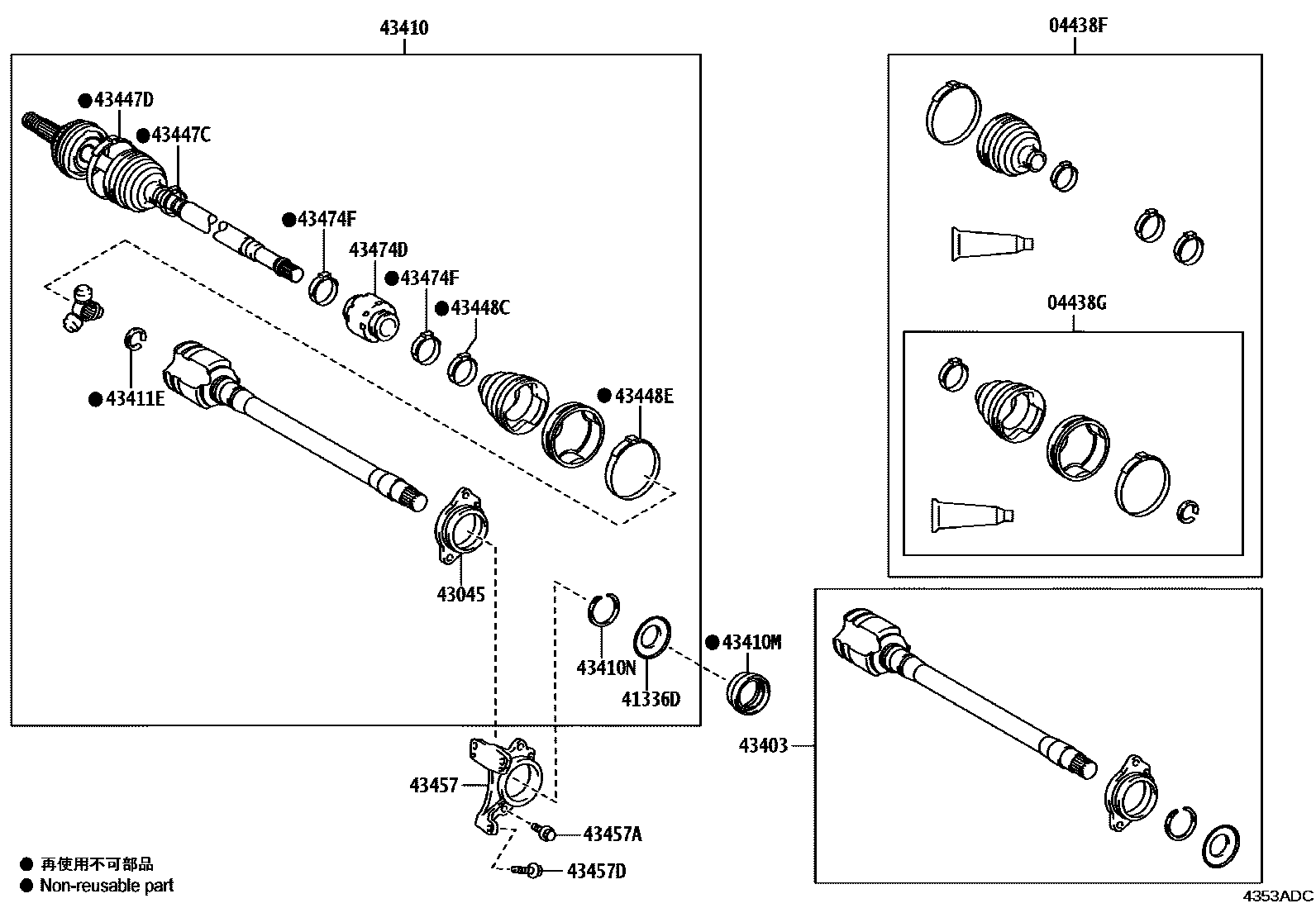

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-AQ200 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-AQ200 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-AQ300 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-AQ300 |
| 41336D | Right front driveshaft dust cover | 41336-08020 |
| 41336E | Left front driveshaft dust cover | 41336-08030 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43403 | Right front axle inner universal joint assembly | 43403-AQ010 |
| 43404 | Left front axle inner universal joint assembly | 43404-AQ010 |
| 43410 | Right front driveshaft assembly | 43410-AQ010 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40051 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-06450 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06450 |
| 43420 | Left front drive shaft assembly | 43420-AQ010 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50062 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-04030 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-04030 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-07100 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-F6020 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-07100 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-F6020 |
| 43457 | drive shaft bearing bracket | 43457-06150 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-A0259 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10087 |
| 43474D | Right front driveshaft shock absorber | 43474-06540 |
| 43474E | Left front driveshaft shock absorber | 43474-06530 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06790 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06A40 |
