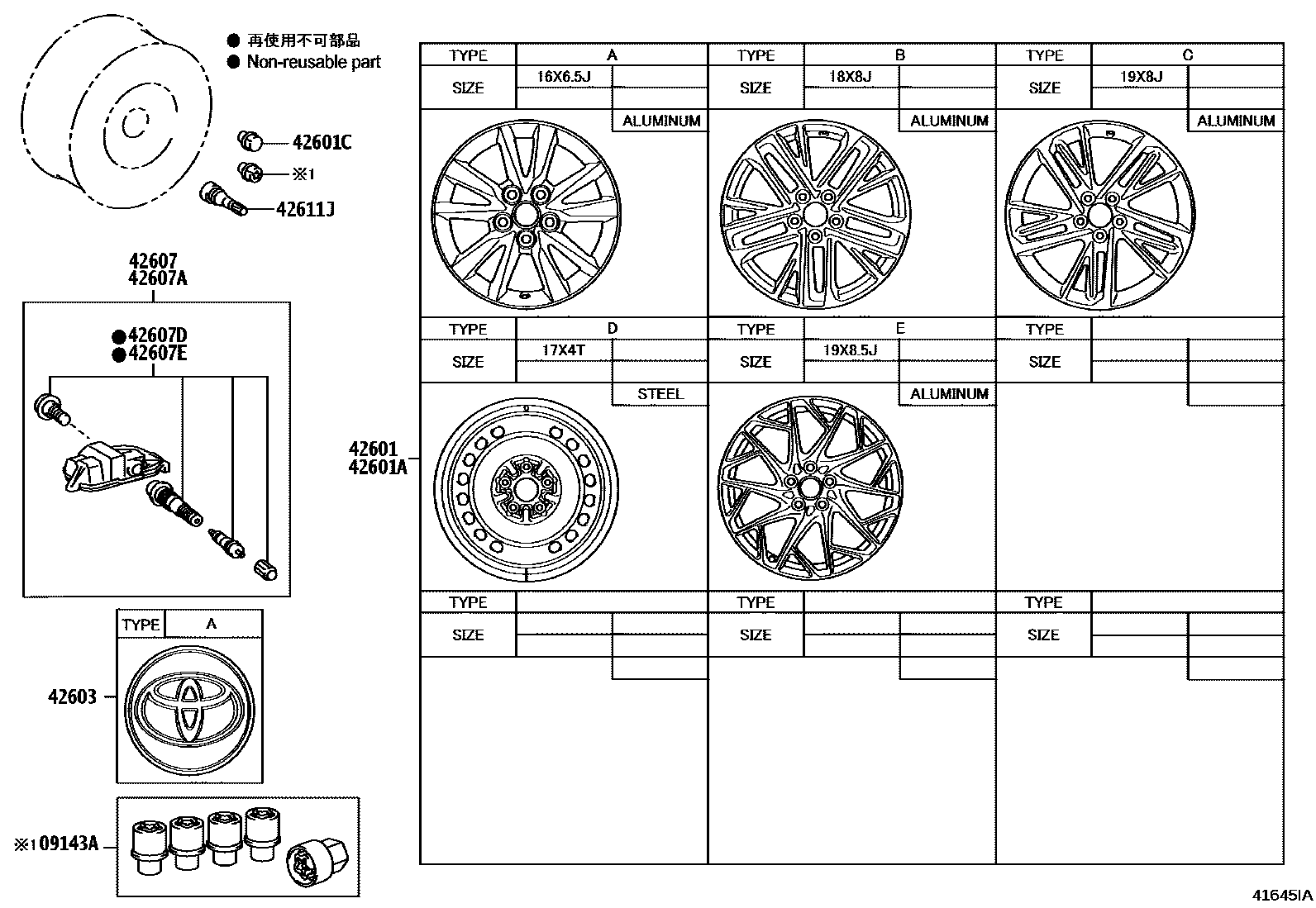

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09143A | ECROU, VERROUILLAGE ROUE AVEC CLE A DOUILLES | 09143-YY070 · 09143-YY120 |
| 42601 | spoke wheel | 42611-AQ010 · 42611-AQ020 · 42611-AQ030 · 42611-AQ040 · 42611-YYE60 |
| 42601A | Spoke wheel (for spare tire) | 42611-06C40 · 42611-AQ010 · 42611-AQ020 · 42611-AQ030 |
| 42601C | Hub nut (for axle) | 90942-A1009 · 90942-A1010 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0E070 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-0E090 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-0E090 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-A5010 |
| 42607E | SOUPAPE, CONTROLE PRESSION PNEU (ROUE SECOURS) | 90942-A5010 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
