Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102

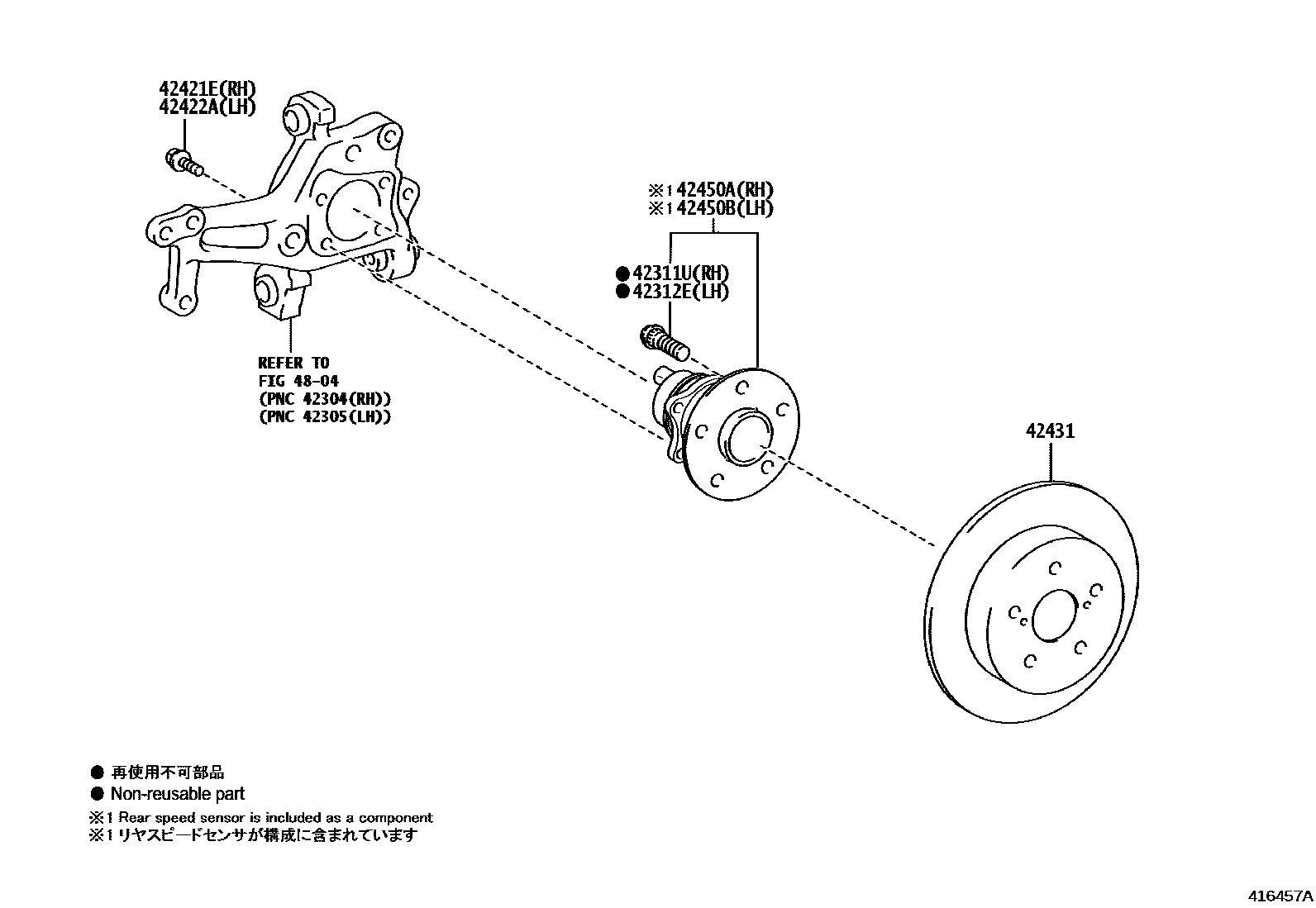

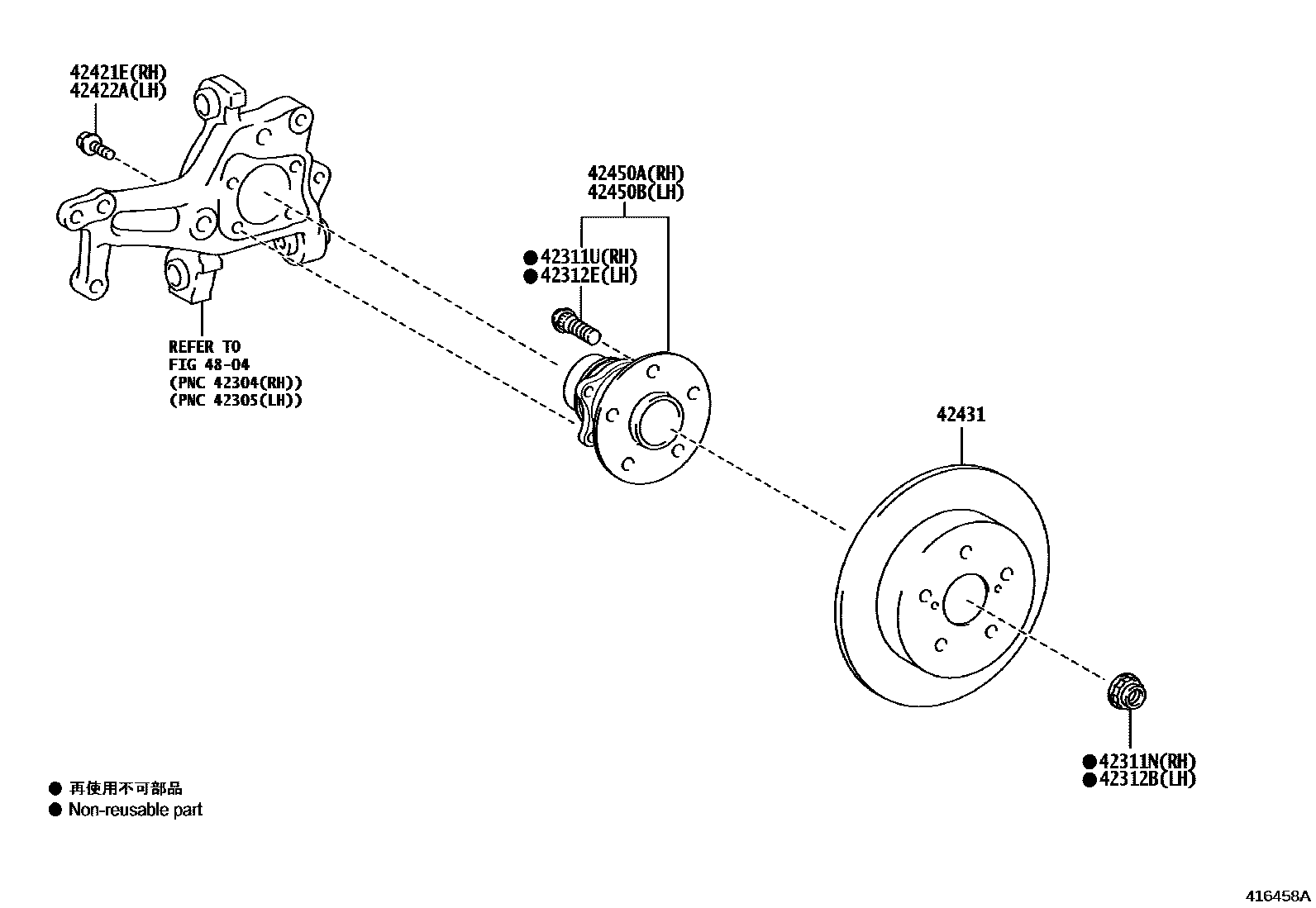

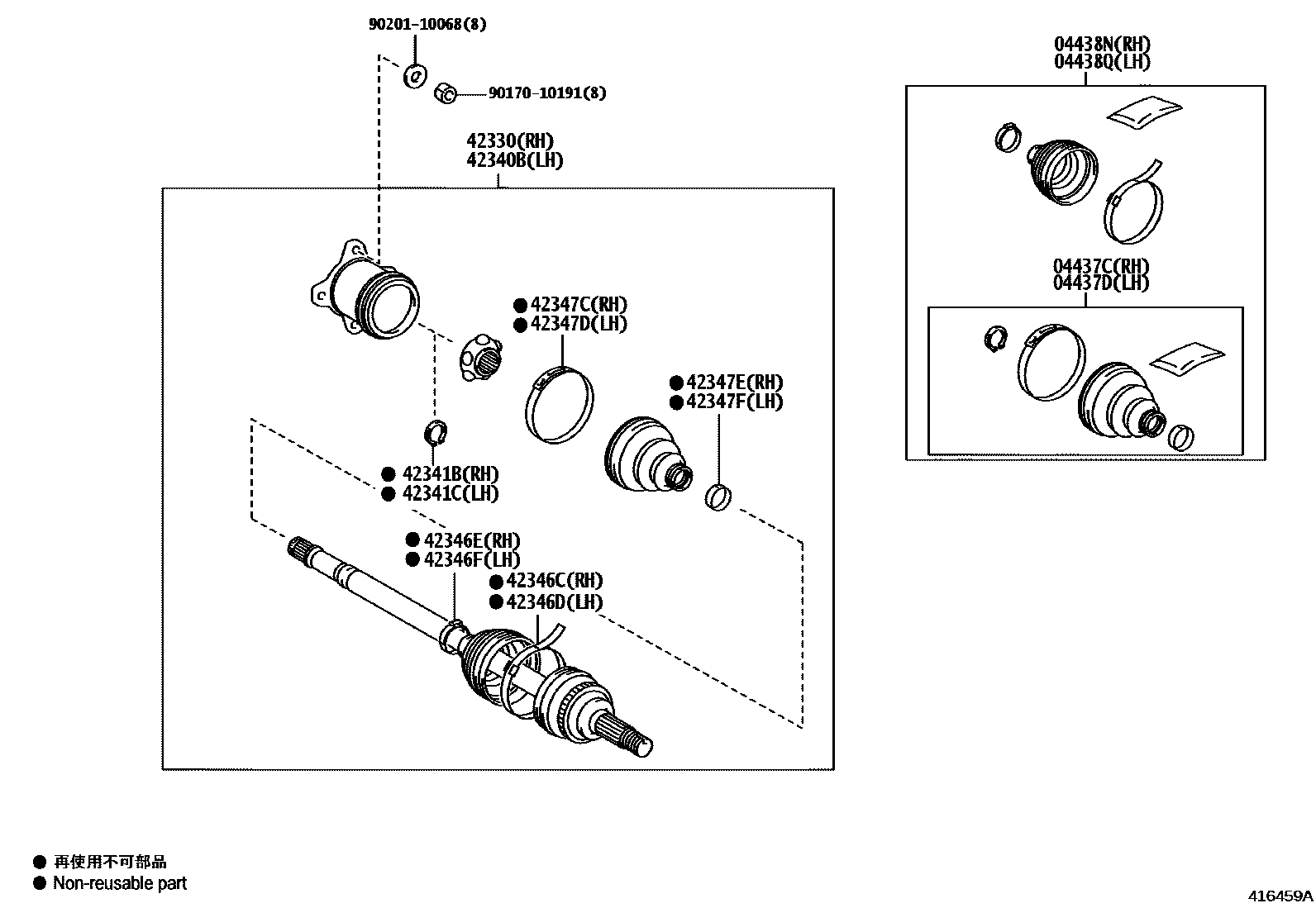

Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04437-AQ100 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04437-AQ100 |
| 04438N | Right rear driveshaft inboard and outboard universal joint dust boot assembly | 04427-AQ100 |
| 04438Q | Left rear driveshaft inboard and outboard universal joint dust boot assembly | 04427-AQ100 |
| 42311N | Nut (for rear axle right half shaft) | 90080-17238 · 90177-22001 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312B | Nut (for rear axle left half shaft) | 90080-17238 · 90177-22001 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42330 | Rear axle right drive shaft assembly | 42340-AQ010 |
| 42340B | Rear axle left drive shaft assembly | 42340-AQ010 |
| 42341B | Snap ring (for rear axle right drive shaft) | 43425-0E390 · 43425-48040 |
| 42341C | Snap ring (for rear axle left drive shaft) | 43425-0E390 · 43425-48040 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-AQ010 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 42345-AQ010 |
| 42346E | Clamp No. 2 (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-0R190 · 42345-52270 |
| 42346F | Clamp No. 2 (for the universal joint dust cover on the outside of the rear left drive shaft of the rear axle) | 42345-0R190 · 42345-52270 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-0E500 · 42345-12120 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-0E500 · 42345-12120 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-0E510 · 42345-12130 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-0E510 · 42345-12130 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-A0389 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-A0389 |
| 42431 | rear brake disc | 42431-06180 |
| 42450A | Rear axle right hub and bearing assembly | 42410-AQ010 · 42450-AQ010 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-AQ010 · 42450-AQ010 |
