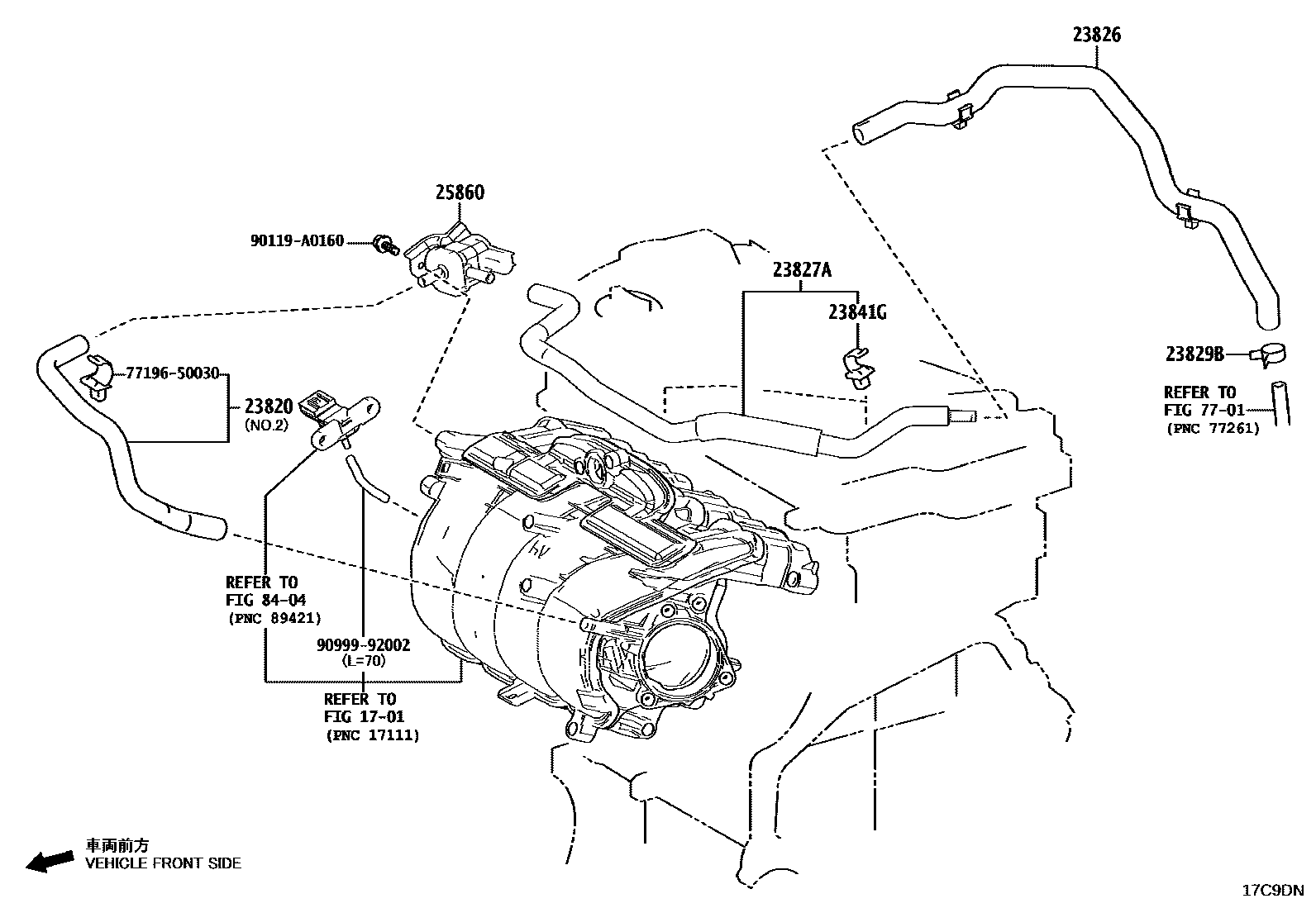

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-F0150 |
| 23826 | No. 1 fuel vapor supply hose | 23820-F0580 · 23820-F0590 |
| 23827A | No. 2 fuel vapor supply hose | 23820-F0680 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-A0032 · 96136-41901 |
| 23841G | fuel hose clamp | 23841-15040 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-F0020 |
