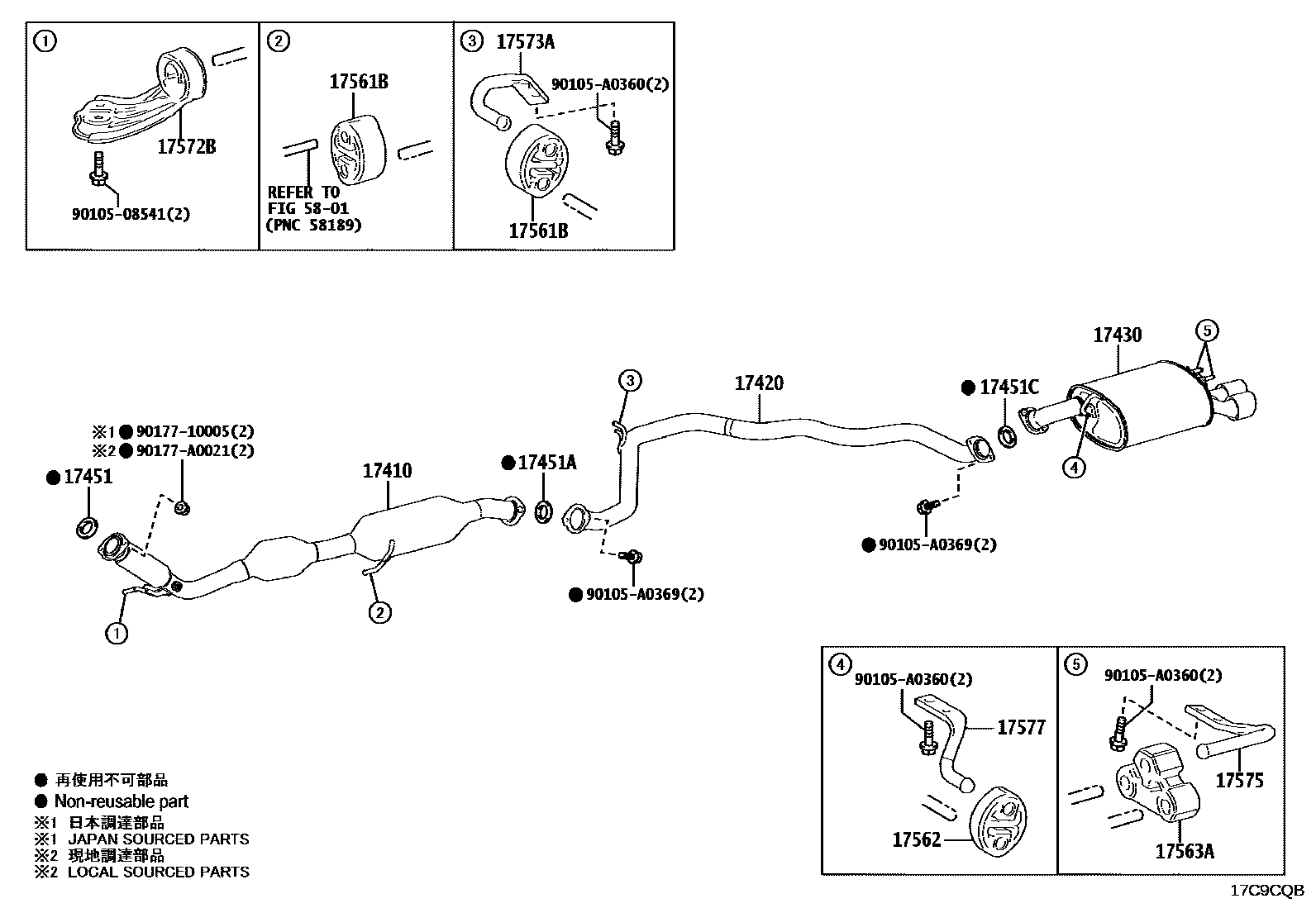

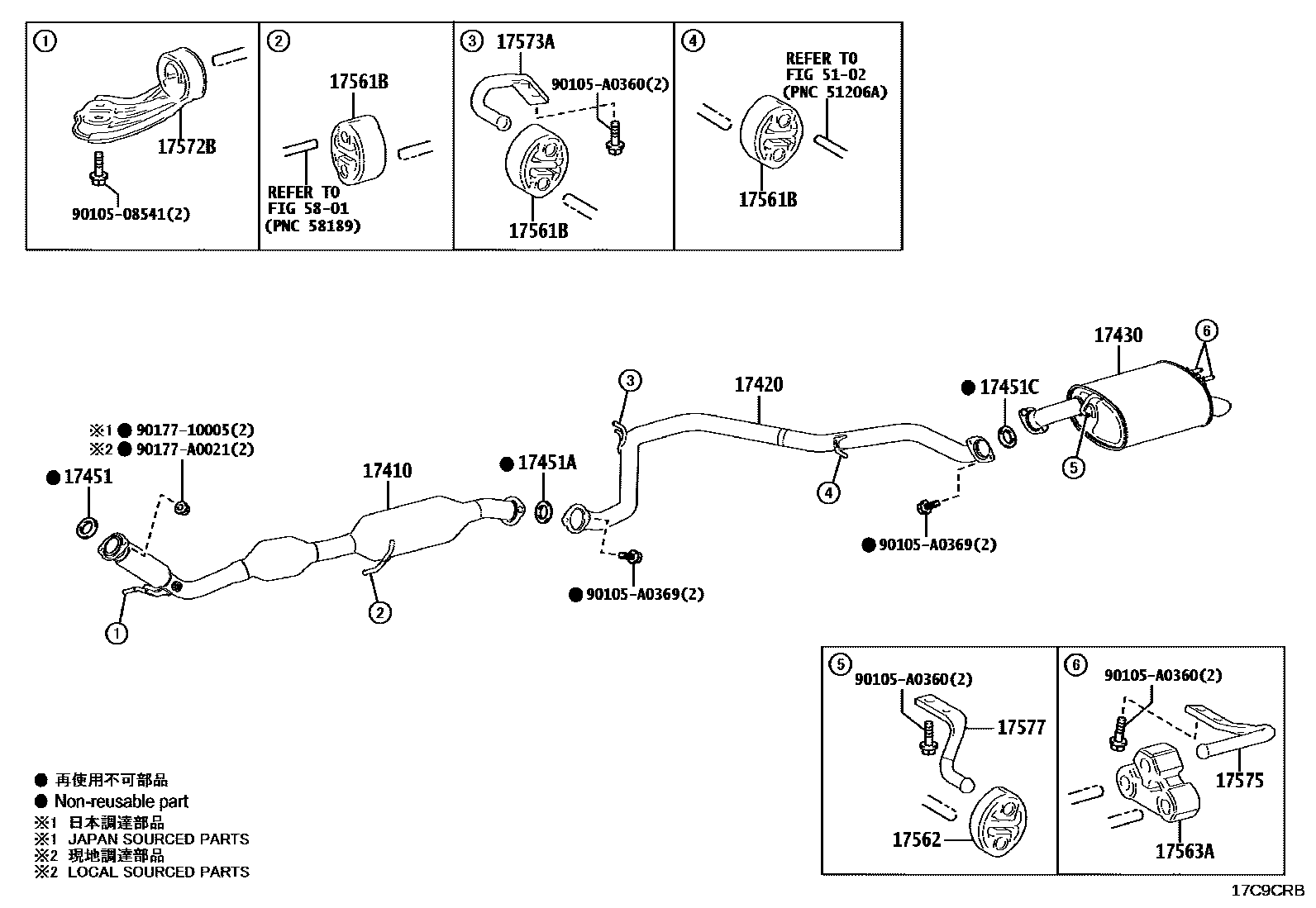

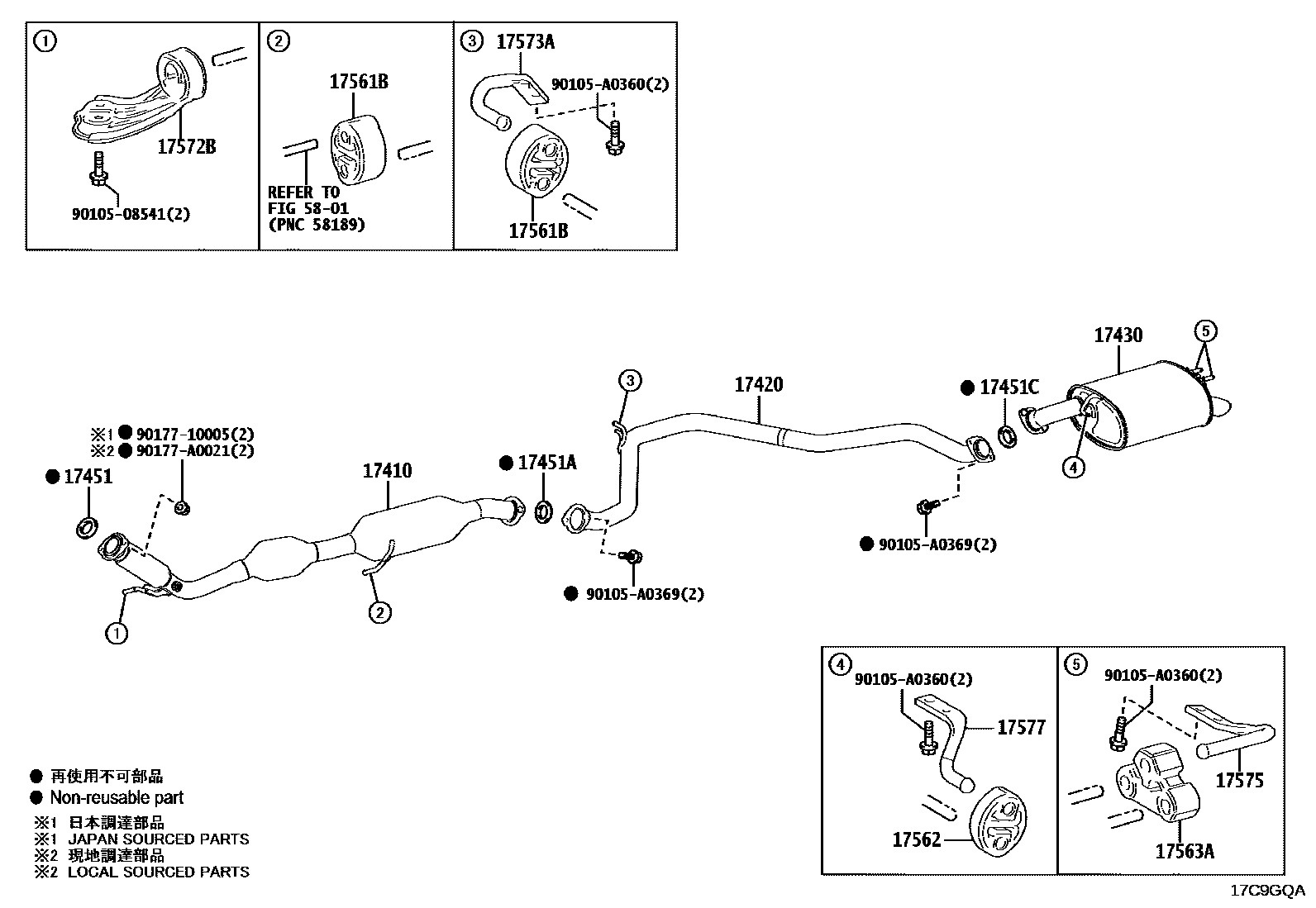

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-F0730 |
| 17420 | Central exhaust pipe assembly | 17420-F0021 · 17420-F0022 · 17420-F0200 |
| 17430 | Exhaust tailpipe assembly | 17440-F0112 · 17440-F0181 |
| 17451 | Exhaust pipe gasket | 90917-A6002 |
| 17451A | No. 2 exhaust pipe gasket | 90917-A6003 |
| 17451C | No. 3 exhaust pipe gasket | 90917-A6004 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P041 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0P051 |
| 17563A | No. 3 exhaust pipe lifting lug | 17566-F0010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-0P170 |
| 17573A | No. 3 exhaust pipe bracket | 17573-0P160 · 17573-F0180 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0P200 |
| 17577 | No. 7 exhaust pipe bracket | 17577-0P050 |
