Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 1 images and 2 PNC and OE references.

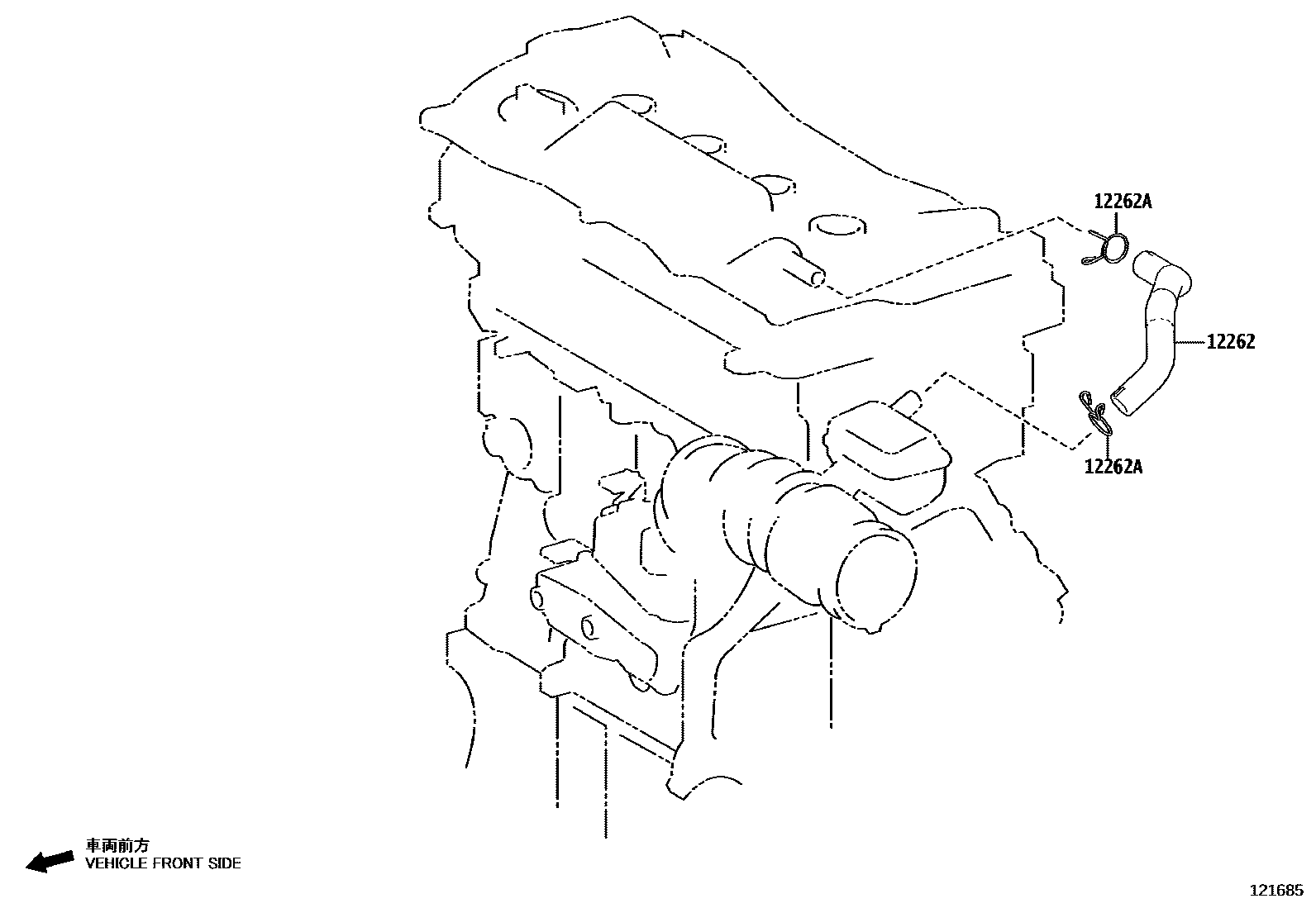

Toyota CAMRY Ventilation Hose EPC diagram — 121685
Ventilation Hose — 121685 (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
12262Ventilation hose No. 212262-25040
12262AClamp (for vent hose No. 2)90466-A0028 · 90467-21004
