Toyota CAMRY Engine Mounting — Figure 1107

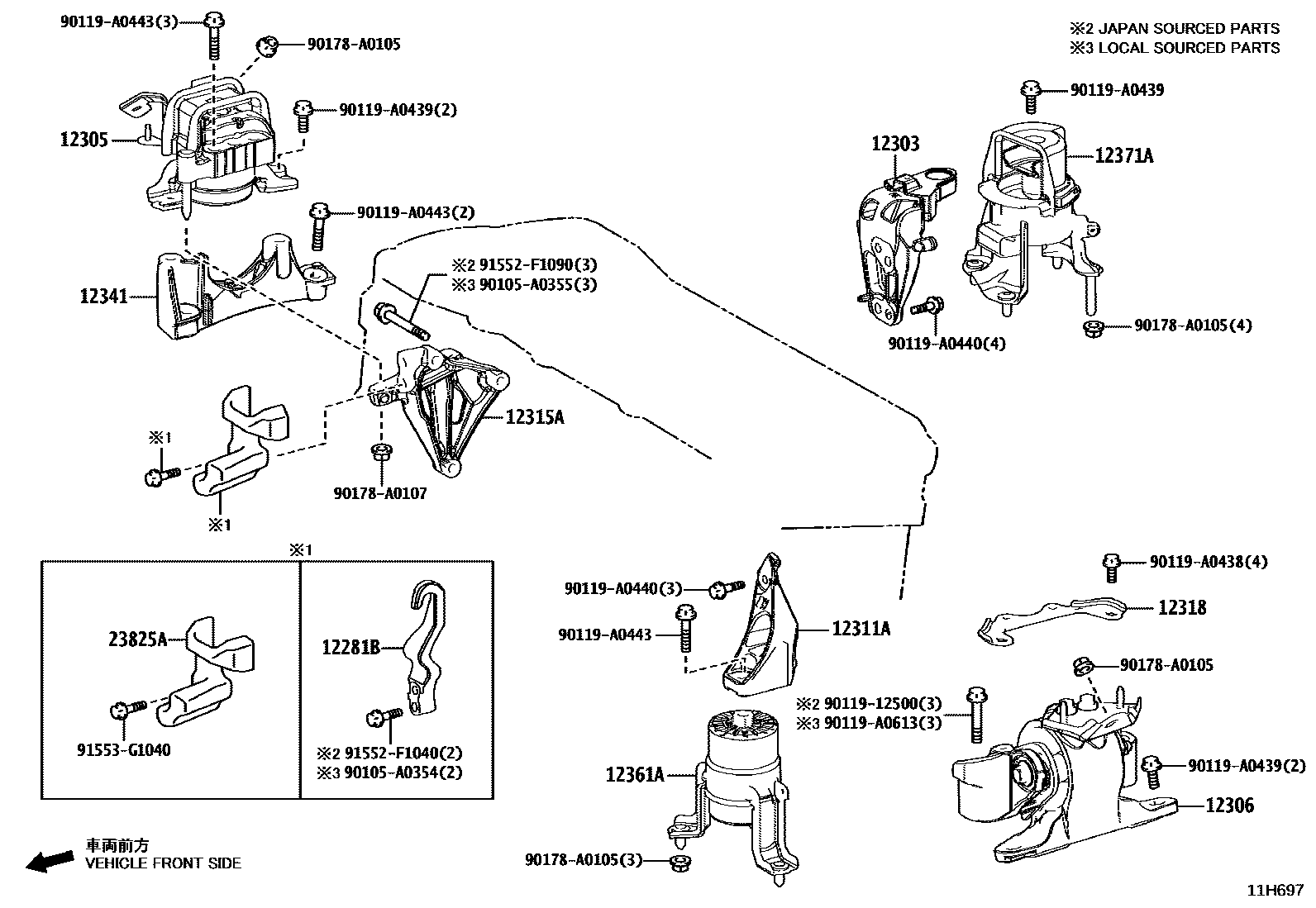

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-F0180 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-F0020 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-F0110 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-F0020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25031 |
| 12318 | Engine left mounting bracket | 12318-F0160 |
| 12341 | engine mounting spacer | 12341-F0010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-F0020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-F0020 |
| 23825A | PROTECTION, ALIM CARBURANT | 23825-F0080 |
