Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.

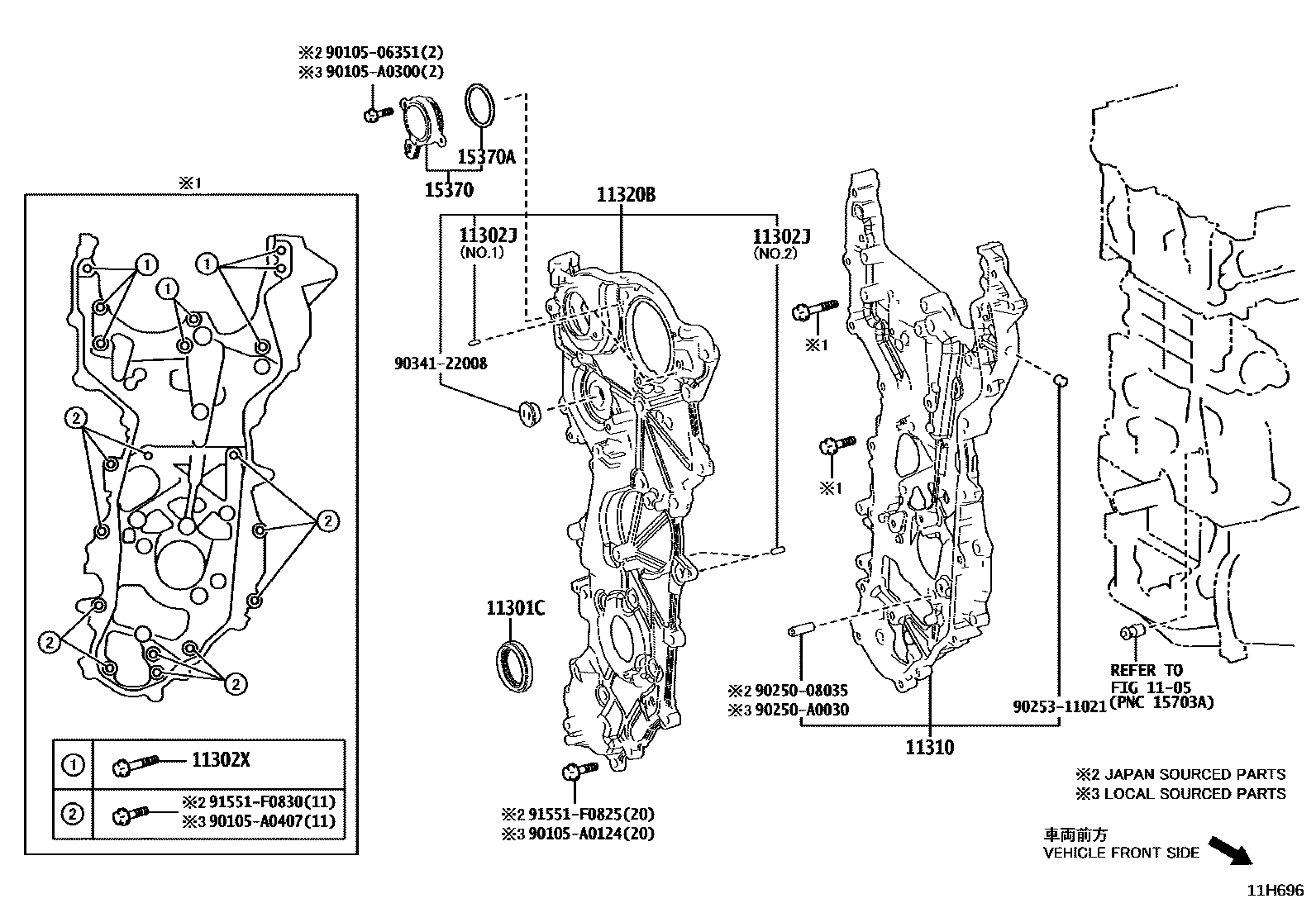

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 11H696
Timing Gear Cover & Rear End Plate — 11H696 (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044 · 90311-A0033
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003 · 90250-A0028 · 90250-A0029
11302XBOULON, A COLLERETTE90105-A0408 · 91551-F0845
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-25030 · 11310-F0010
11320BENS. CACHE, CHAINE DISTRIBUTION, NO.211320-25011 · 11320-F0010
15370ENS. SOLENOIDE, COMMANDE HUILE DISTRIB ARBRE CAMES15370-25020 · 15370-F0020
15370AJOINT, TORIQUE(POUR SOLENOIDE COM HUILE DISTRIB ARBRE CAMES)90301-44006 · 90301-T0079
