Toyota CAMRY Cylinder Block — Figure 1105

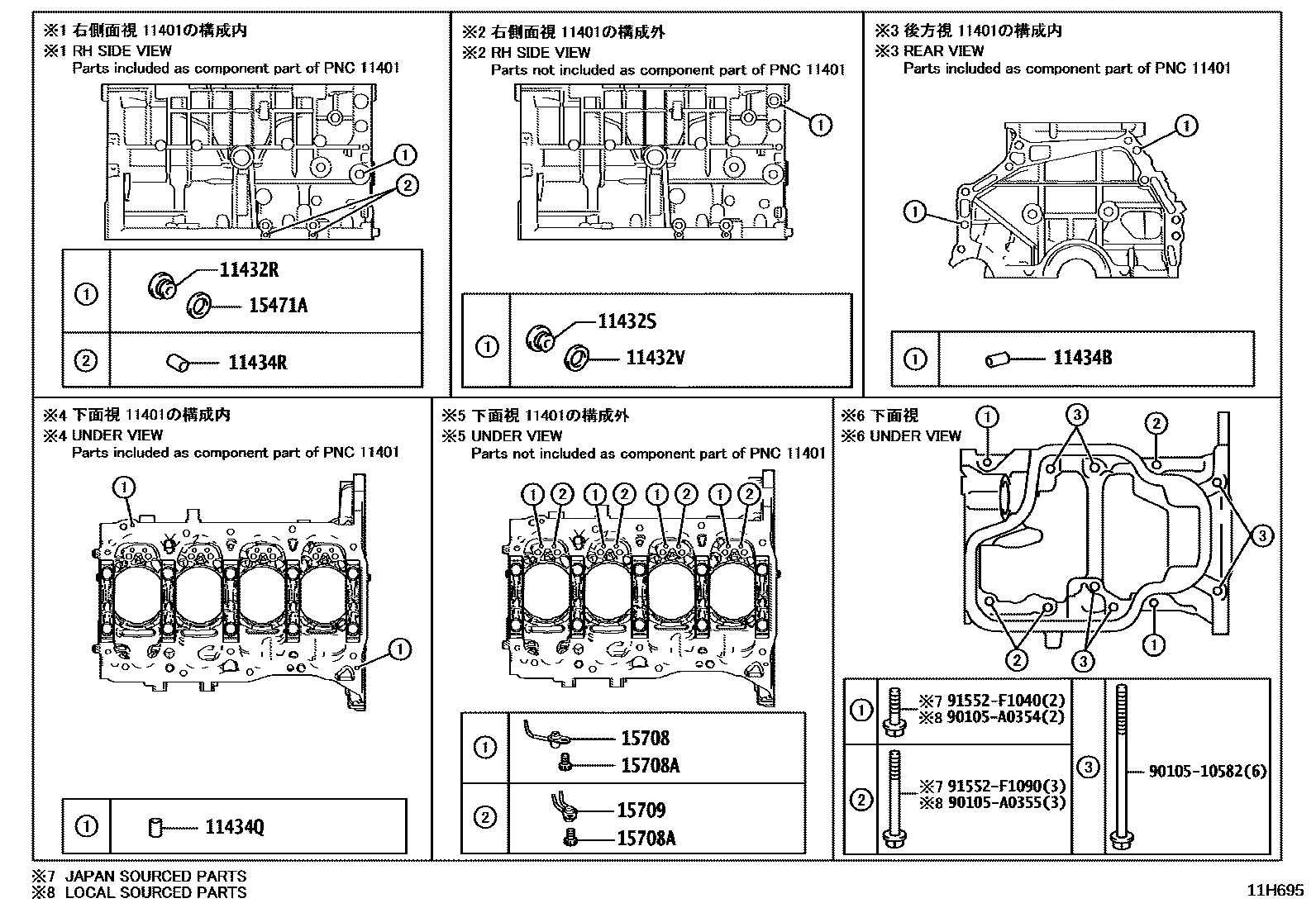

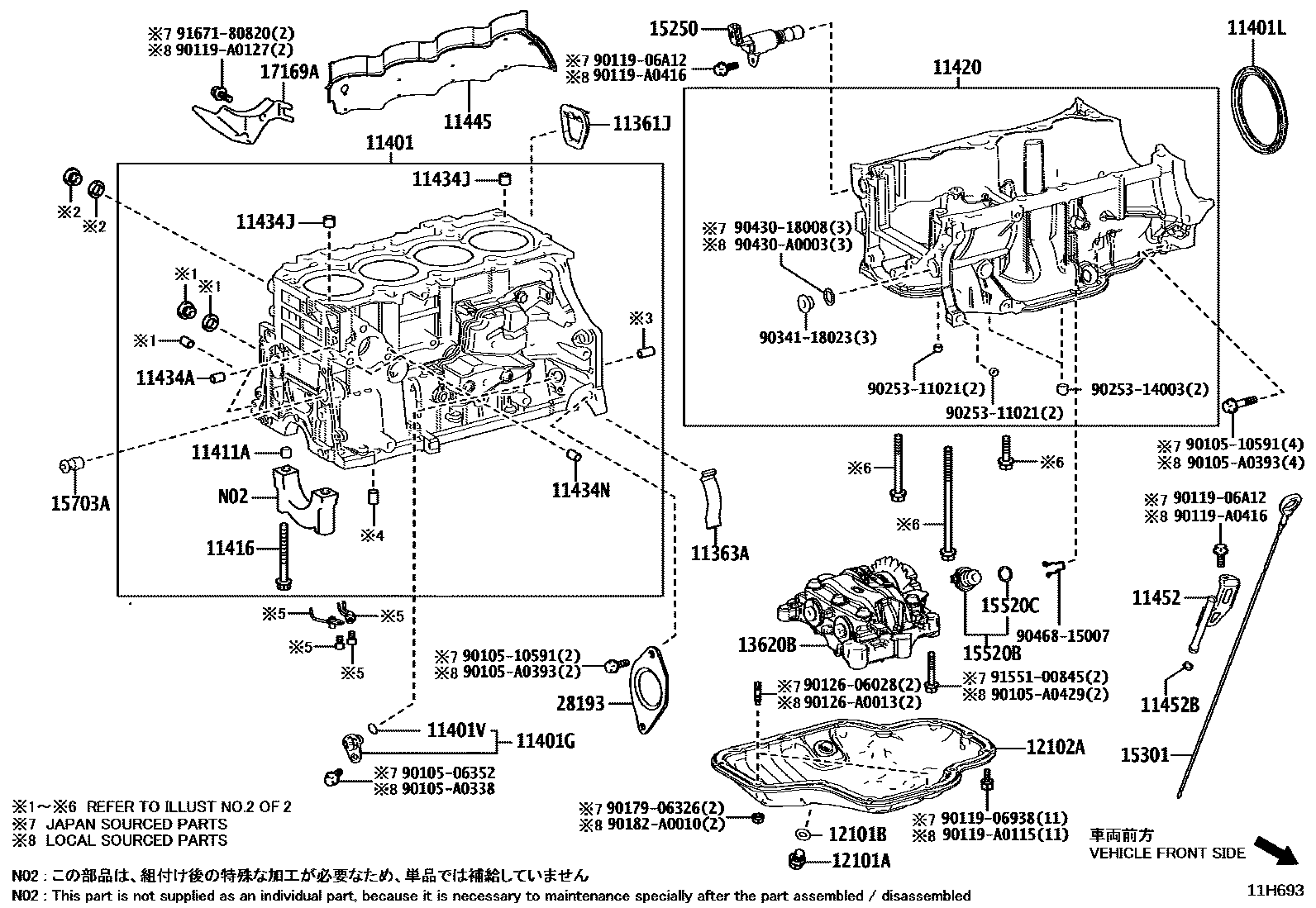

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-25010 |
| 11363A | Flywheel housing side cover | 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11410-29695 · 11410-F9320 |
| 11401G | crankshaft position sensor | 90919-05095 · 90919-A5006 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-90010 · 90311-A0035 |
| 11401V | JOINT TORIQUE, CAPTEUR POSITION VILEBREQUIN | 90301-11039 |
| 11411A | Ring pin (for cylinder block No. 1) | 90253-14003 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02197 · 90910-A2015 |
| 11420 | Reinforce crankcase assembly | 11420-25010 · 11420-F0010 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-12012 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-12031 · 90430-A0006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 · 90250-A0028 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-14003 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 · 90250-A0028 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 · 90250-A0028 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 · 90250-A0028 |
| 11445 | Cylinder block water jacket spacer | 11445-25010 · 11445-F0010 |
| 11452 | Engine oil level gauge guide | 11452-25010 · 11452-F0010 |
| 11452B | O-ring (for oil level gauge guide) | 96741-19010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-A0007 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 · 90430-A0006 |
| 12102A | No. 2 oil pan sub-assembly | 12102-25010 · 12102-F0010 |
| 13620B | Engine balancer assembly | 13620-25010 · 13620-F0010 |
| 15250 | ENS. SOUPAPE, COMMANDE PRESSION HUILE | 15250-25010 · 15250-F0020 |
| 15301 | Engine oil level scoring assembly | 15301-25030 · 15301-F0010 |
| 15471A | Gasket (for cylinder block) | 90430-18008 · 90430-A0003 |
| 15520B | ENSEMBLE BOUCHON, CARTER | 15520-25010 · 15520-F2010 |
| 15520C | JOINT, TORIQUE (POUR BOUCHON CARTER) | 96743-24016 |
| 15703A | SOUS-ENSEMBLE SOUPAPE, GICLEUR GRAISSAGE | 15703-25011 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-25010 |
| 15708A | BOULON, BUSE HUILE | 90110-06040 · 90110-A0004 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-25010 |
| 17169A | Exhaust manifold No. 3 heat shield | 17169-25030 · 17169-F0050 |
| 28193 | Starter hole vibration isolation pad | 28193-25010 |
