Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

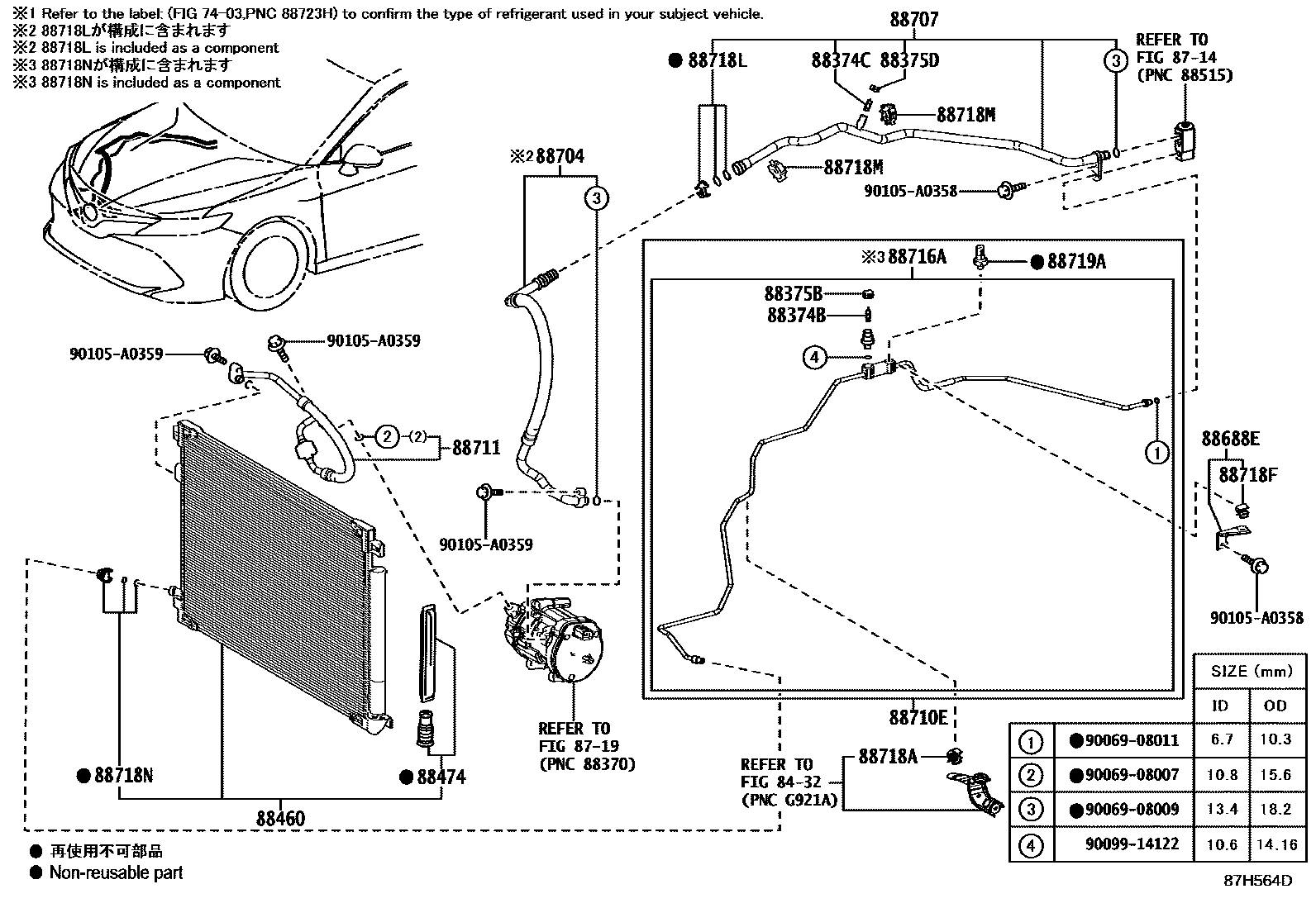

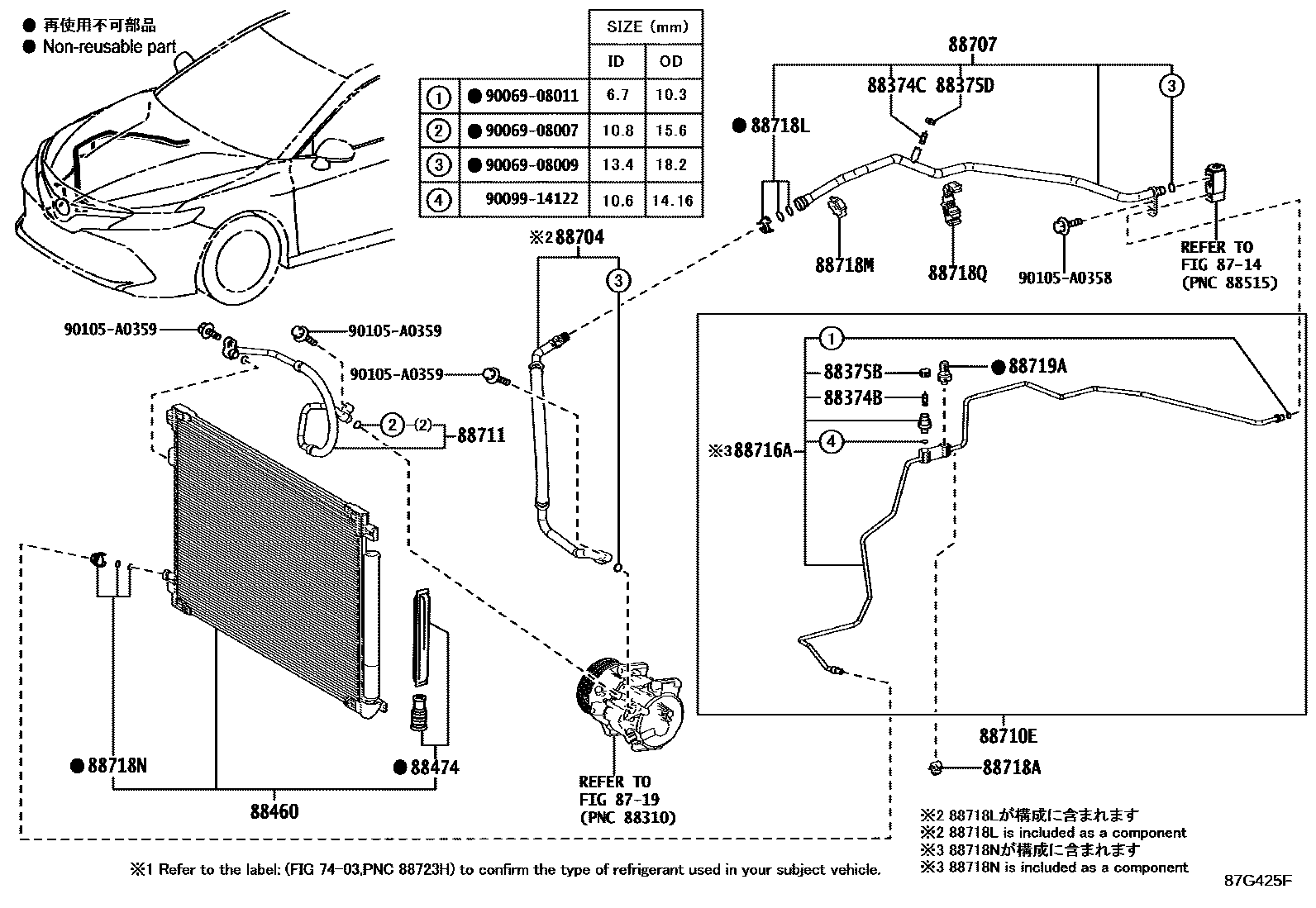

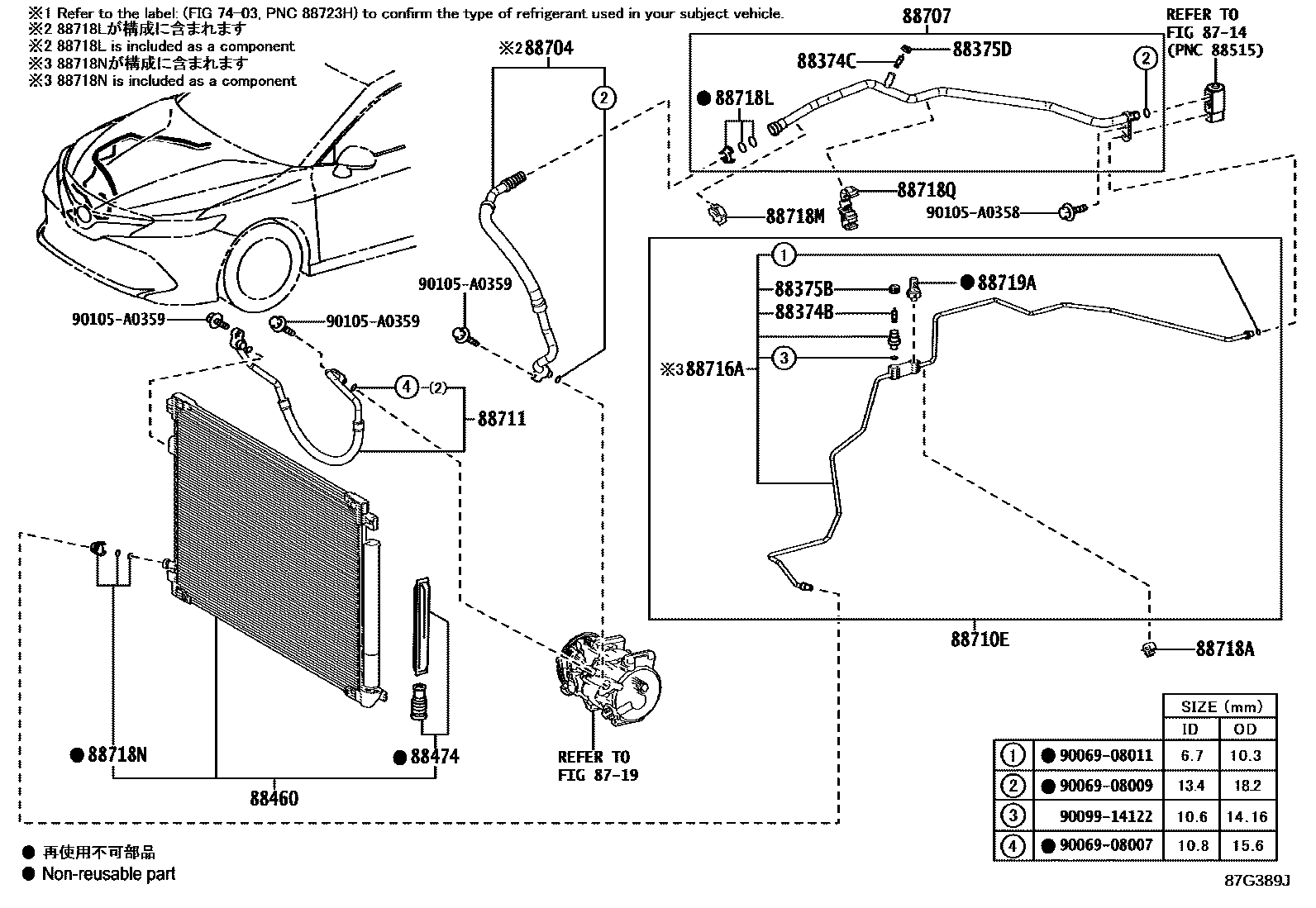

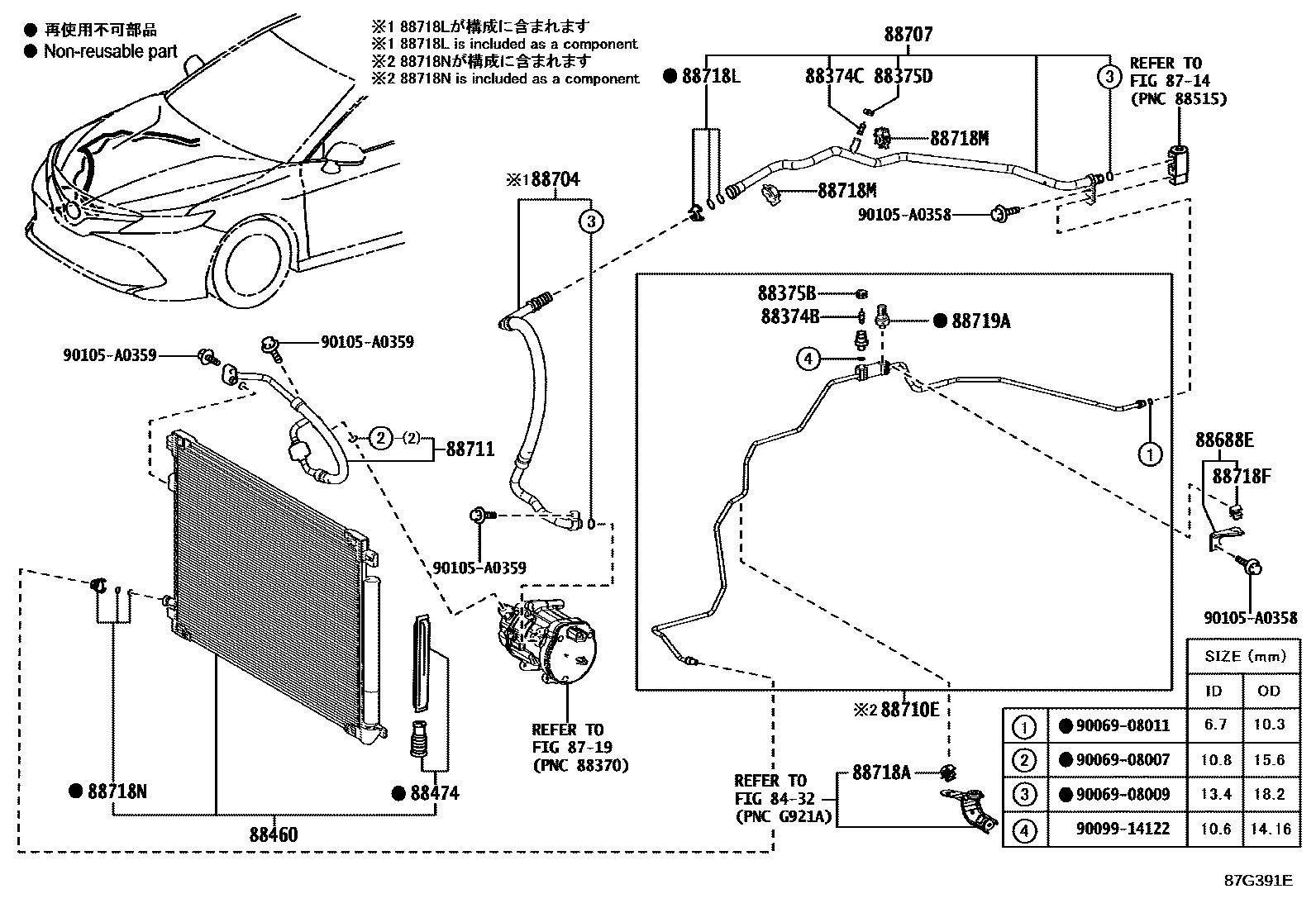

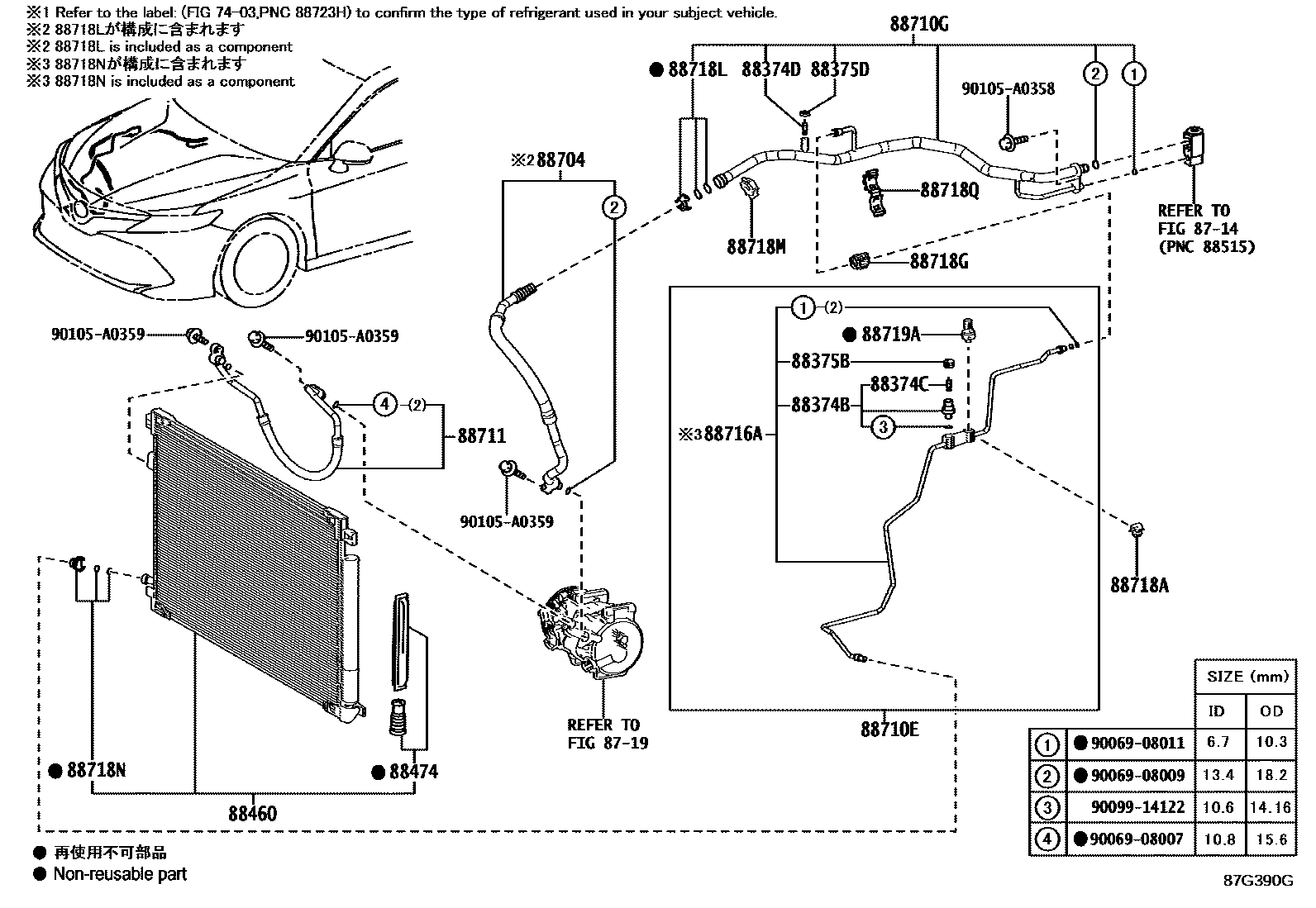

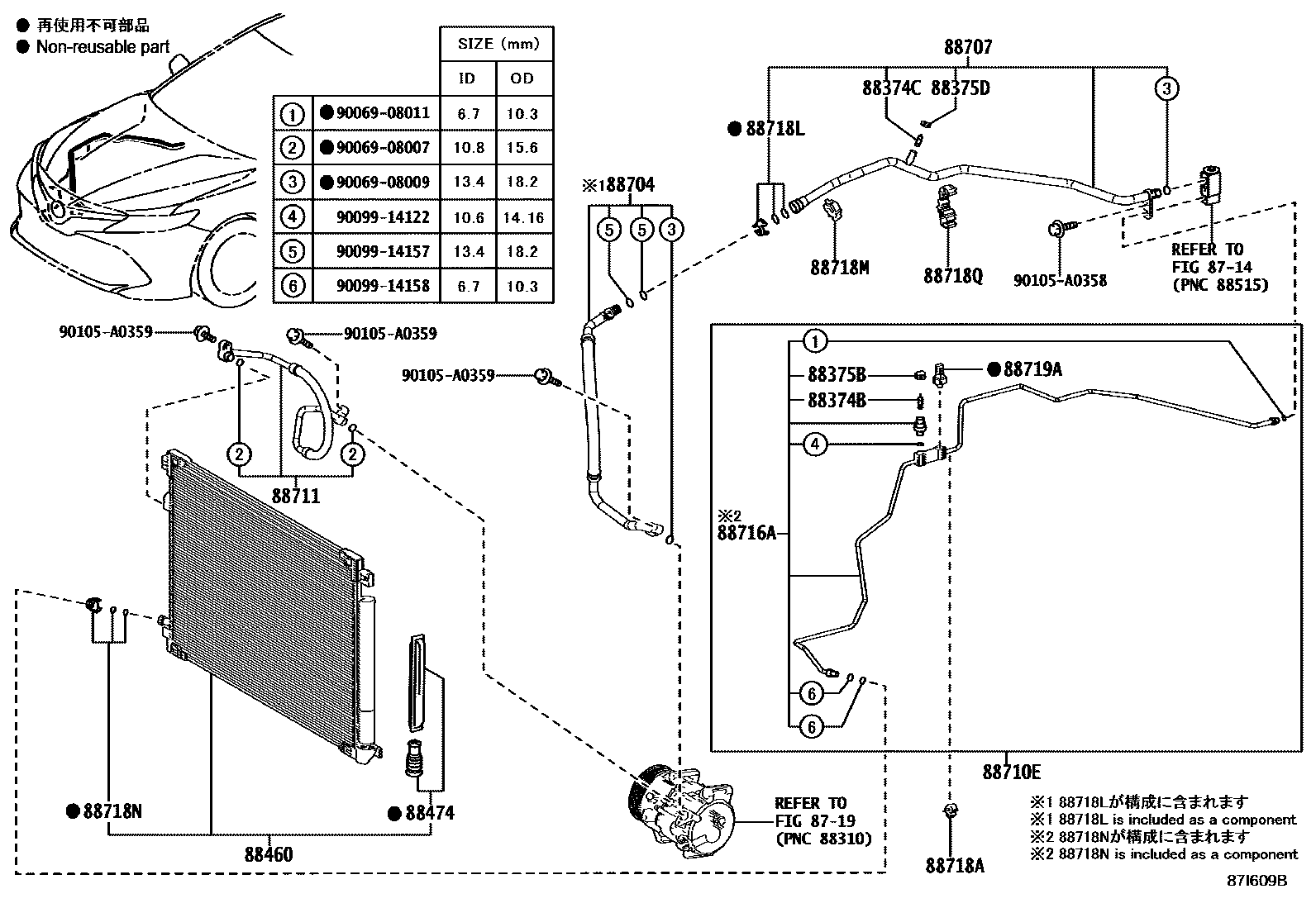

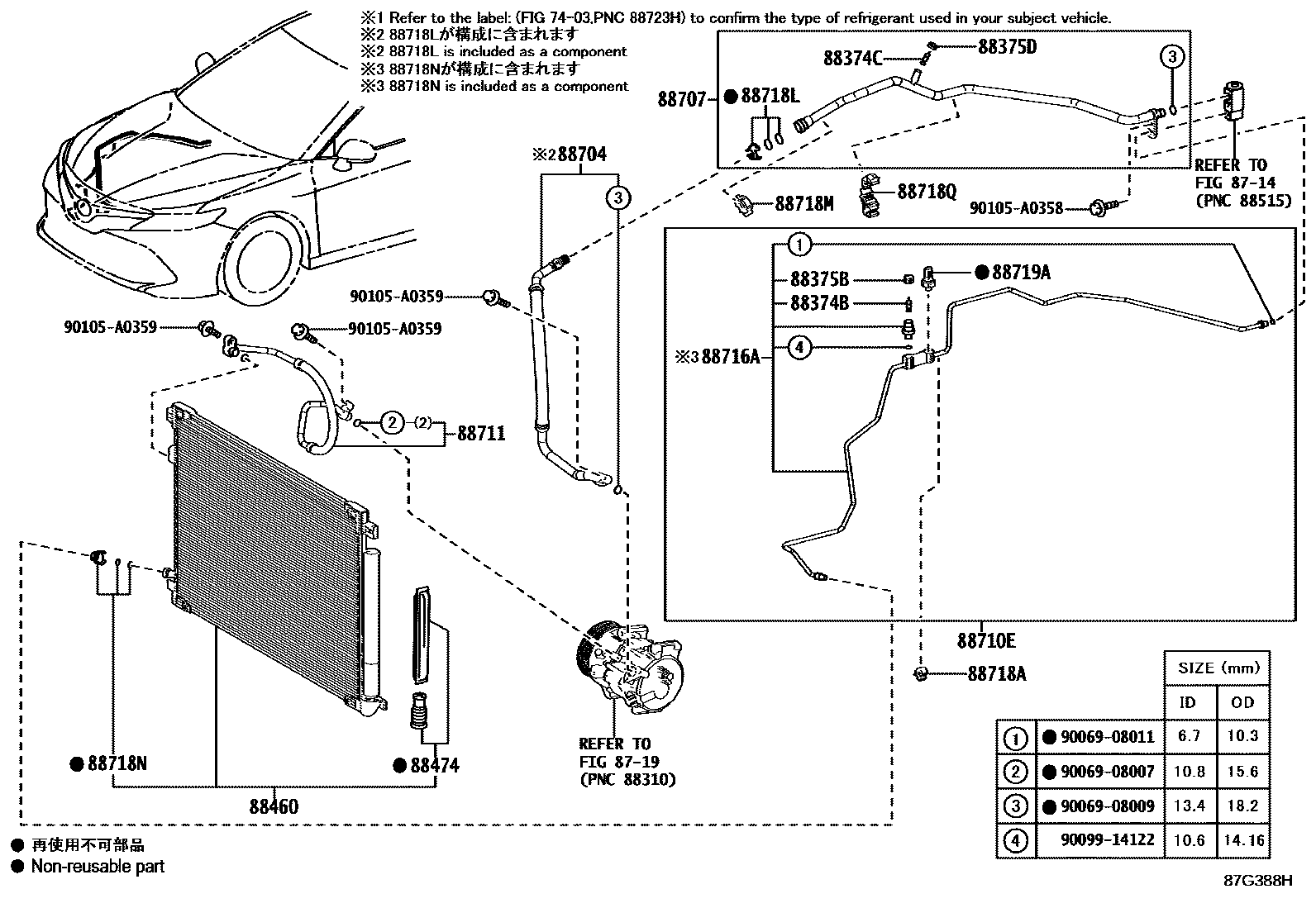

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-30020 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-0E020 · 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-0E030 · 88375-30310 |
| 88460 | Air conditioning condenser assembly | 884A0-06010 · 884A0-06020 · 884A0-06030 |
| 88474 | cooler dryer | 88474-06020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-06360 |
| 88704 | Oil suction hose sub-assembly | 88704-06230 · 88704-06240 · 88704-06270 |
| 88707 | Suction pipe sub-assembly | 88707-06210 · 88707-06250 · 88707-06360 · 88707-06380 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06480 · 88710-06490 · 88710-06491 · 88710-06530 · 88710-06531 · 88710-06640 · 88710-06660 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-06540 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06390 · 88711-06600 · 88711-06610 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-06540 · 88716-06550 · 88716-06570 · 88716-06610 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-06530 · 88718-58050 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-58050 |
| 88718G | Clamp No. 2 (for cooler refrigerant hose) | 88718-02170 · 88718-2D150 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | FIXATION, TUYAUTERIE | 88718-33520 · 88718-42110 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-06600 · 88718-33530 · 88718-33540 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
