Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

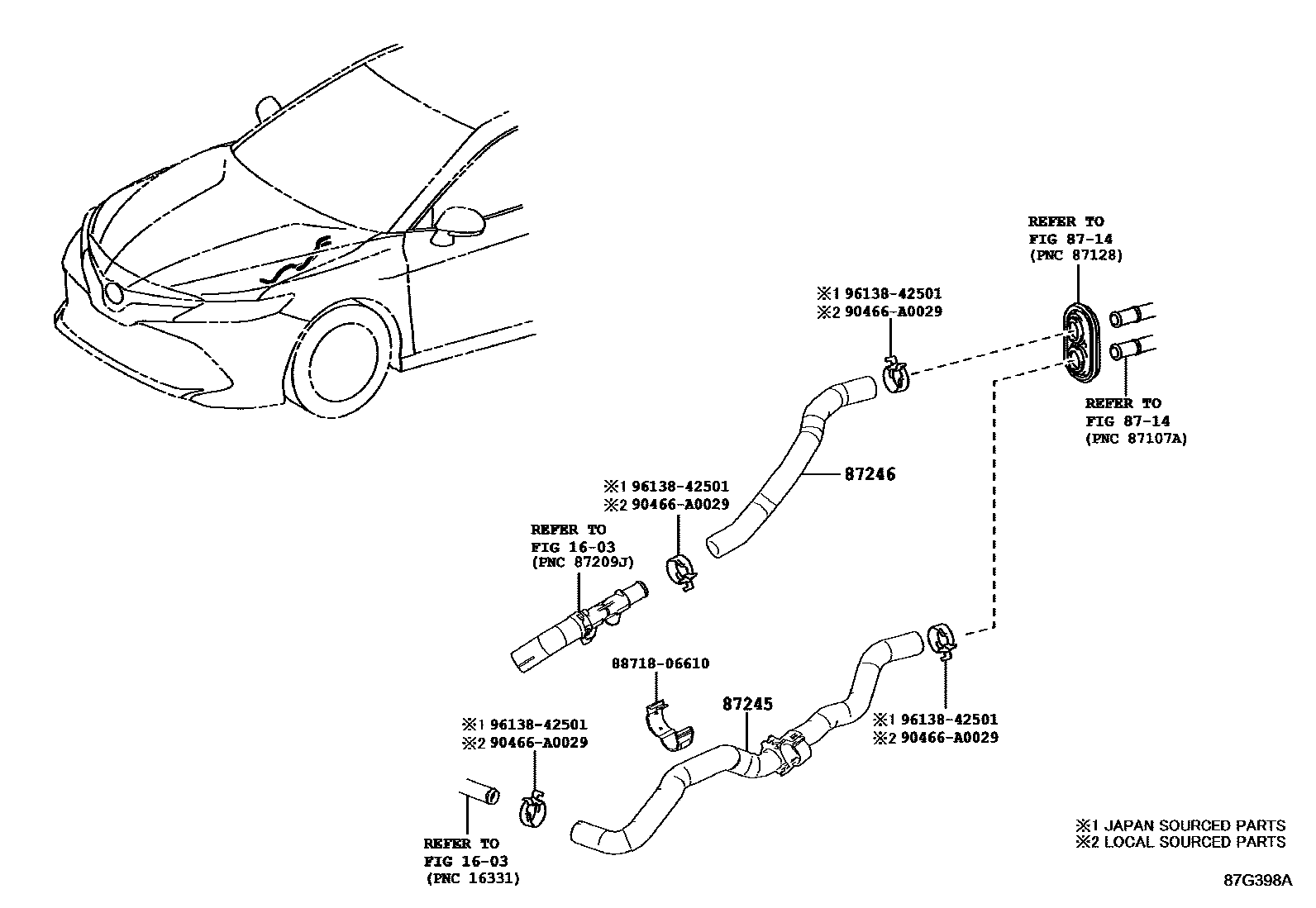

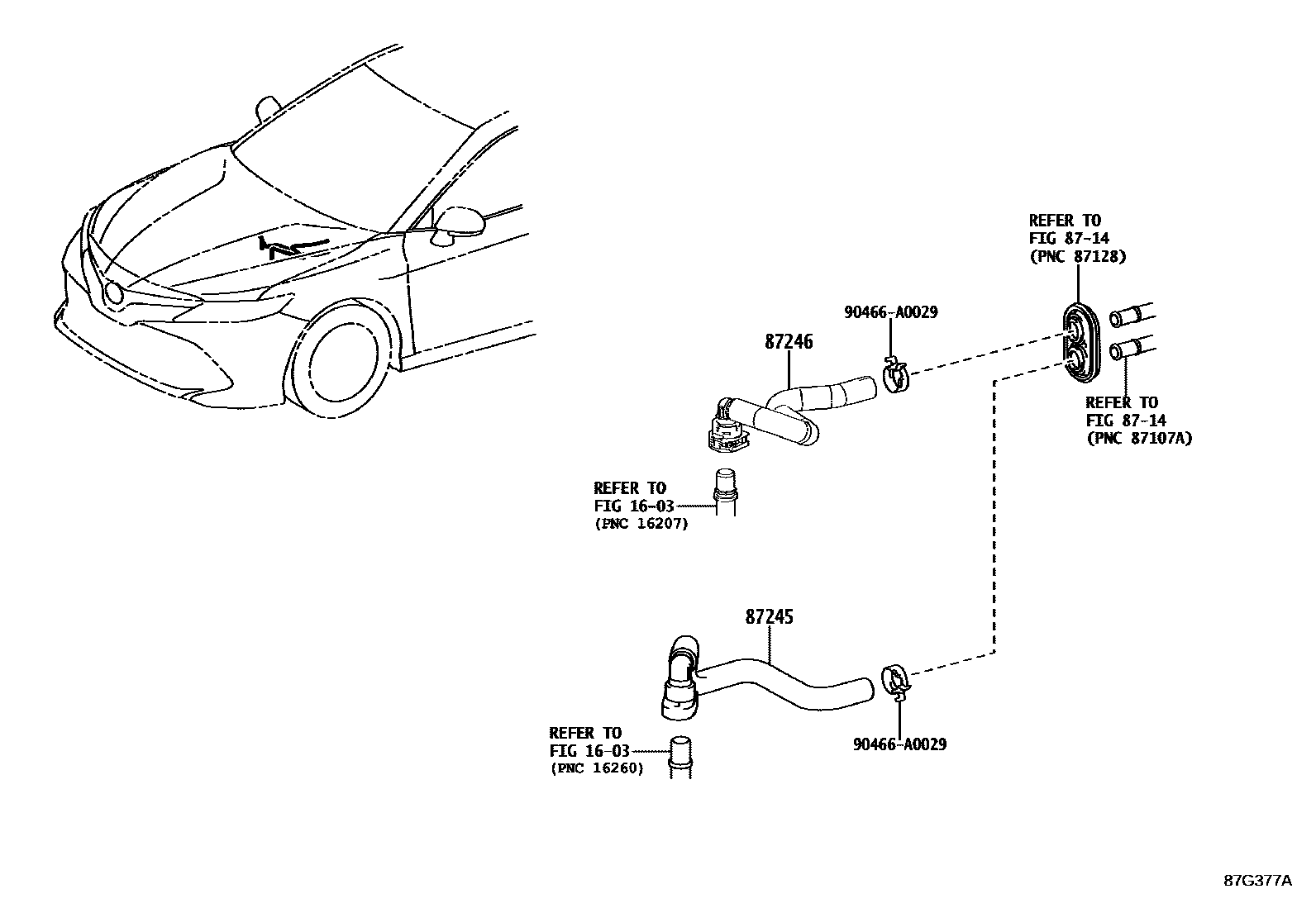

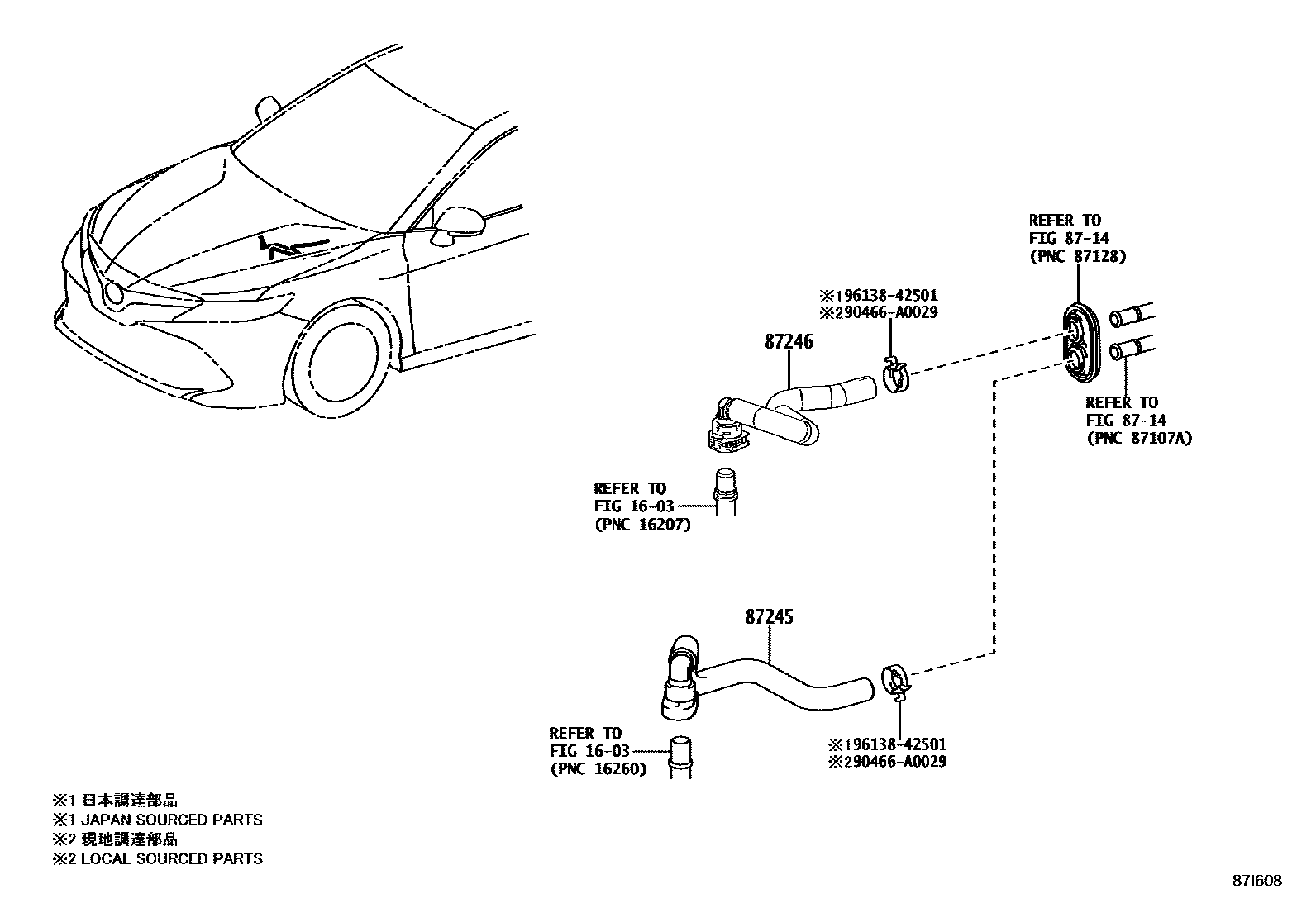

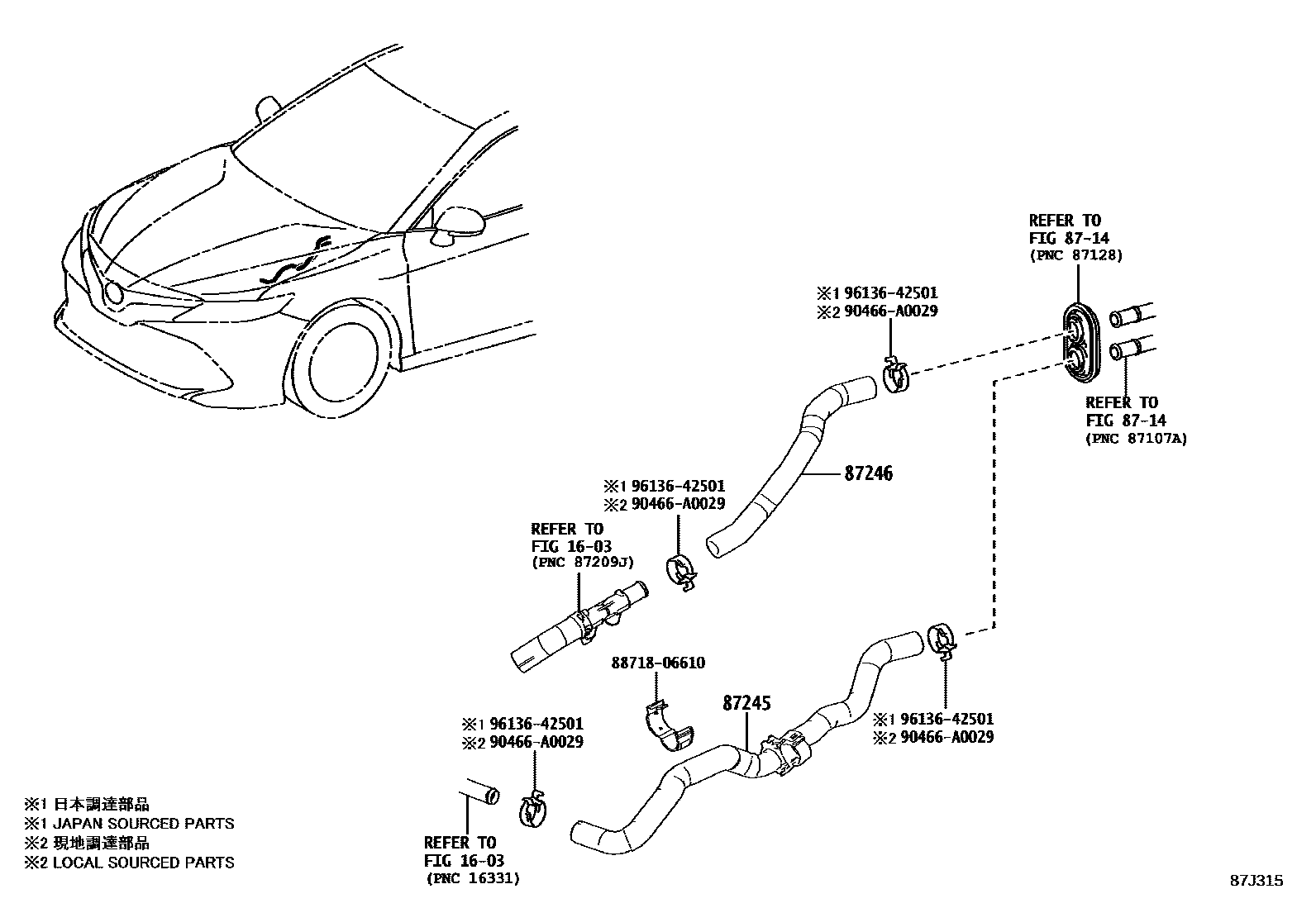

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87209-06060 · 87209-06240 |
| 87246 | Heater outlet hose | 87209-06070 · 87245-06D90 |
